IslandPath Analysis: Francisella tularensis subsp. holarctica

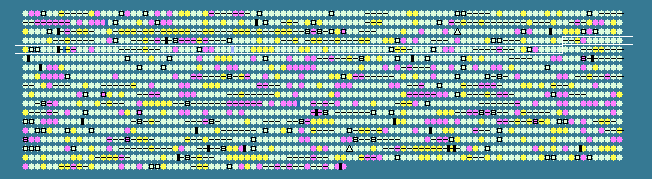

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.49 STD DEV: 3.39
Francisella tularensis subsp. holarctica, complete genome - 1..1895994
1754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
391	 32.77	0	396554..397261	+	235	89255839	-	FTL_0429	-	glutamine amidotransferase, class I
392	 31.52	0	397264..398145	+	293	89255840	-	FTL_0430	-	hypothetical protein
393	 36.59	+1	398142..398417	+	91	89255841	-	FTL_0431	-	hypothetical protein
394	 27.59	-1	398559..398732	+	57	89255842	-	FTL_0432	-	hypothetical protein
395	 33.01	0	398792..399412	-	206	89255843	-	FTL_0433	-	ribosomal large subunit methyltransferase J
396	 30.56	0	399570..400037	+	155	89255844	-	FTL_0434	-	hypothetical protein
397	 29.84	0	400032..400517	-	161	89255845	-	FTL_0435	-	lipoprotein signal peptidase II
398	 35.86	0	400504..403311	-	935	89255846	ileS	FTL_0436	-	isoleucyl-tRNA synthetase
399	 30.40	0	403404..404324	-	306	89255847	-	FTL_0437	-	riboflavin biosynthesis protein RibF
400	 35.65	0	404475..406289	+	604	89255848	-	FTL_0438	-	malate dehydrogenase
401	 37.98	+1	406452..408107	+	551	89255849	-	FTL_0439	-	hypothetical protein
402	 32.17	0	408242..409071	+	276	89255850	isftu1	FTL_0440	-	transposase
403	 32.00	0	409289..410188	+	299	89255851	isftu2	FTL_0441	-	transposase
404	 30.68	0	410238..410840	+	200	89255852	-	FTL_0442	-	hypothetical protein
405	 33.72	0	410837..412141	-	434	89255853	-	FTL_0443	-	major facilitator transporter
406	 34.07	0	412077..414101	-	674	89255854	metG	FTL_0444	-	methionyl-tRNA synthetase
407	 30.35	0	414671..415207	-	178	89255855	-	FTL_0445	-	hypothetical protein
408	 37.50	+1	421380..421595	+	71	89255856	-	FTL_0446	-	hypothetical protein
409	 27.65	-1	421977..423032	-	351	89255857	-	FTL_0447	-	hypothetical protein
410	 29.98	0	423165..423821	-	218	89255858	-	FTL_0448	-	hypothetical protein
411	 31.85	0	425025..425360	+	111	89255859	-	FTL_0449	-	hypothetical protein
412	 28.64	-1	425333..426184	-	283	89255860	-	FTL_0450	-	phosphatidylserine decarboxylase proenzyme
413	 31.29	0	426283..427263	+	326	89255861	-	FTL_0451	-	hypothetical protein
414	 31.90	0	427272..428315	+	347	89255862	-	FTL_0452	-	bifunctional nicotinamide mononucleotide adenylyltransferase/ADP-ribose pyrophosphatase
415	 34.50	0	428329..429696	+	455	89255863	-	FTL_0453	-	UDP-N-acetylglucosamine pyrophosphorylase/glucosamine-1-phosphate N-acetyltransferase
416	 33.50	0	429717..431555	+	612	89255864	-	FTL_0454	-	glucosamine--fructose-6-phosphate aminotransferase
417	 29.46	0	431645..432160	+	171	89255865	-	FTL_0455	-	acetyltransferase
418	 35.86	0	432157..432354	-	65	89255866	rpsU	FTL_0456	-	30S ribosomal protein S21
419	 31.86	0	432354..432557	-	67	89255867	-	FTL_0457	-	cold shock protein
420	 30.30	0	432804..433133	-	109	89255868	-	FTL_0458	-	hypothetical protein
421	 36.32	+1	433260..434030	+	256	89255869	-	FTL_0459	-	methionine aminopeptidase
422	 30.62	0	434032..434880	+	282	89255870	-	FTL_0460	-	hypothetical protein
423	 29.43	0	434974..435639	+	221	89255871	-	FTL_0461	-	hypothetical protein
424	 33.56	0	435772..437997	+	741	89255872	-	FTL_0462	-	DNA topoisomerase IV subunit A
425	 33.77	0	437997..438683	+	228	89255873	-	FTL_0463	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
426	 24.67	-2	438670..439269	-	199	89255874	-	FTL_0464	-	hypothetical protein
427	 31.55	0	439262..440380	-	372	89255875	-	FTL_0465	-	BNR/Asp-box repeat-containing protein
428	 30.96	0	440579..442555	+	658	89255876	-	FTL_0466	-	soluble lytic murein transglycosylase
429	 34.44	0	442569..442838	-	89	89255877	-	FTL_0467	-	hypothetical protein
430	 30.43	0	442789..443442	-	217	89255878	isftu2	FTL_0468	-	transposase
431	 27.60	-1	443682..444065	-	127	89255879	-	FTL_0469	-	hypothetical protein
432	 28.91	-1	444418..444801	+	127	89255880	-	FTL_0470	-	hypothetical protein
433	 29.47	0	445158..445571	+	137	89255881	-	FTL_0471	-	hypothetical protein
434	 35.89	+1	445928..449407	+	1159	89255882	-	FTL_0472	-	DNA polymerase III alpha subunit
435	 31.60	0	449483..450118	+	211	89255883	-	FTL_0473	-	peptide deformylase
436	 34.71	0	450781..452085	+	434	89255884	-	FTL_0474	-	lipoprotein releasing system, subunit C,putative membrane protein
437	 33.91	0	452078..452773	+	231	89255885	-	FTL_0475	-	lipoprotein releasing system, subunit D, ABC transporter, ATP-binding protein
438	 32.91	0	452890..455031	+	713	89255886	-	FTL_0476	-	lysine decarboxylase, inducable
439	 37.05	+1	455122..456198	+	358	89255887	gcvT	FTL_0477	-	glycine cleavage system aminomethyltransferase T
440	 38.28	+1	456255..456638	+	127	89255888	-	FTL_0478	-	glycine cleavage system H protein
441	 36.40	+1	456703..458070	+	455	89255889	-	FTL_0479	-	glycine dehydrogenase subunit 1
442	 37.83	+1	458076..459521	+	481	89255890	-	FTL_0480	-	glycine dehydrogenase subunit 2
443	 31.09	0	459641..460486	-	281	89255891	-	FTL_0481	-	shikimate 5-dehydrogenase
444	 33.27	0	460512..463724	-	1070	89255892	-	FTL_0482	-	pullulonase
445	 34.79	0	463758..465680	-	640	89255893	-	FTL_0483	-	glycogen branching enzyme
446	 35.84	0	465981..467615	+	544	89255894	-	FTL_0484	-	phosphoglucomutase
447	 37.03	+1	467649..468920	+	423	89255895	-	FTL_0485	-	glucose-1-phosphate adenylyltransferase
448	 36.73	+1	468930..470399	+	489	89255896	glgA	FTL_0486	-	glycogen synthase
449	 29.99	0	470504..472777	+	757	89255897	-	FTL_0487	-	maltodextrin phosphorylase
450	 32.24	0	472821..474284	+	487	89255898	-	FTL_0488	-	4-alpha-glucanotransferase
451	 37.71	+1	474376..475266	+	296	89255899	glyQ	FTL_0489	-	glycyl-tRNA synthetase subunit alpha
452	 29.30	0	475477..476940	+	487	89255900	-	FTL_0490	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6- diaminopimelate ligase
453	 32.07	0	476962..477357	+	131	89255901	-	FTL_0491	-	outer membrane lipoprotein
454	 33.11	0	477710..479068	+	452	89255902	-	FTL_0492	-	UDP-N--acetylmuramoylalanyl-D-glutamyl-2,6- diaminopimelate-D-alanyl-D-alanyl ligase
455	 34.07	0	479077..479895	+	272	89255903	-	FTL_0493	-	hypothetical protein
456	 34.38	0	479944..480993	-	349	89255904	-	FTL_0494	-	aspartate-semialdehyde dehydrogenase
457	 34.49	0	482791..484083	+	430	89255905	-	FTL_0498	-	threonine synthase
458	 34.76	0	484671..485159	+	162	89255906	-	FTL_0499	-	S-adenosylmethionine decarboxylase
459	 32.87	0	485159..486028	+	289	89255907	-	FTL_0500	-	spermidine synthase
460	 30.36	0	486393..487703	+	436	89255908	-	FTL_0501	-	putative arginine decarboxylase
461	 33.10	0	487684..488544	+	286	89255909	-	FTL_0502	-	hypothetical protein
462	 31.44	0	488545..489425	-	293	89255910	isftu1	FTL_0503	-	transposase
463	 37.43	+1	489874..490044	+	56	89255911	-	FTL_0504	-	beta-alanine synthase or beta-ureidopropionase
464	 37.40	+1	490114..490482	+	122	89255912	-	FTL_0505	-	carbon-nitrogen hydrolase family protein
465	 31.10	0	490499..491215	-	238	89255913	-	FTL_0506	-	UDP-2,3-diacylglucosamine hydrolase
466	 33.49	0	491205..491831	-	208	89255914	pyrE	FTL_0507	-	orotate phosphoribosyltransferase
467	 31.73	0	491991..493361	+	456	89255915	-	FTL_0508	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-me so-diaminopimelate ligase
468	 33.64	0	493358..494014	+	218	89255916	-	FTL_0509	-	tRNA/rRNA methyltransferase
469	 31.56	0	493992..494872	-	293	89255917	isftu1	FTL_0510	-	transposase
470	 32.31	0	495122..495802	+	226	89255918	-	FTL_0511	-	hypothetical protein
471	 28.69	-1	496082..496318	-	78	89255919	-	FTL_0512	-	BolA-like protein
472	 24.49	-2	496335..496628	-	97	89255920	-	FTL_0513	-	hypothetical protein
473	 32.43	0	496628..497290	-	220	89255921	-	FTL_0514	-	hypothetical protein
474	 33.15	0	497365..497898	-	177	89255922	-	FTL_0515	-	ABC transporter, periplasmic protein
475	 33.73	0	497898..498662	-	254	89255923	-	FTL_0516	-	ABC transporter, membrane protein
476	 32.84	0	498666..499469	-	267	89255924	-	FTL_0517	-	ABC transporter, ATP-binding protein
477	 30.77	0	499483..499755	-	90	89255925	-	FTL_0518	-	cell division topological specificity factor protein
478	 35.27	0	499758..500582	-	274	89255926	-	FTL_0519	-	septum site-determining protein MinD
479	 33.62	0	500622..501308	-	228	89255927	-	FTL_0520	-	septum site-determining protein MinC
480	 28.21	-1	501343..501498	-	51	89255928	rpmG	FTL_0521	-	50S ribosomal protein L33
481	 32.49	0	501525..501761	-	78	89255929	rpmB	FTL_0522	-	50S ribosomal protein L28
482	 35.07	0	501895..502239	-	114	89255930	-	FTL_0523	-	hypothetical protein
483	 34.22	0	502369..504408	+	679	89255931	-	FTL_0524	-	ATP-dependent DNA helicase RecG
484	 38.35	+1	505163..506677	+	504	89255932	-	FTL_0525	-	fumerate hydratase
485	 33.94	0	507162..507880	+	239	89255933	isftu1	FTL_0526	-	transposase
486	 28.77	-1	507885..508169	+	94	89255934	-	FTL_0527	-	endonuclease
487	 29.09	-1	508407..511280	+	957	89255935	-	FTL_0528	-	Type III restriction enzyme
488	 33.03	0	511277..511939	+	220	89255936	-	FTL_0529	-	uracil-DNA glycosylase
489	 29.93	0	512300..512593	-	97	89255937	-	FTL_0530	-	hypothetical protein
490	 29.46	0	512798..513055	-	85	89255938	-	FTL_0531	-	hypothetical protein
32.49	MEAN

3.39	STD DEV
