IslandPath Analysis: Francisella tularensis subsp. holarctica

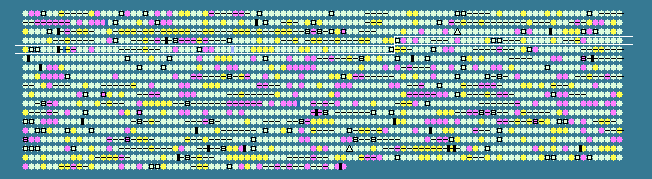

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.49 STD DEV: 3.39
Francisella tularensis subsp. holarctica, complete genome - 1..1895994
1754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
363	 29.51	0	370444..371070	-	208	89255811	isftu2	FTL_0400	-	transposase
364	 26.23	-1	371278..371643	-	121	89255812	-	FTL_0401	-	Sua5_yciO_yrdC family protein
365	 29.19	0	371704..372234	+	176	89255813	-	FTL_0402	-	intracellular septation protein A family protein
366	 26.98	-1	372308..372559	+	83	89255814	-	FTL_0403	-	hypothetical protein
367	 35.89	+1	372548..373564	-	338	89255815	-	FTL_0404	-	glucose kinase
368	 34.79	0	373658..374410	+	250	89255816	-	FTL_0405	-	menaquinone biosynthesis methyltransferase
369	 30.10	0	374412..374999	+	195	89255817	-	FTL_0406	-	hypothetical protein
370	 33.69	0	374992..376650	+	552	89255818	-	FTL_0407	-	2-polyprenylphenol 6-hydroxylase
371	 32.15	0	376656..376994	+	112	89255819	-	FTL_0408	-	histidine triad (HIT) family protein
372	 31.50	0	377509..378162	-	217	89255820	-	FTL_0409	-	purine/pyrimidine phosphoribosyl transferase family protein
373	 28.74	-1	378140..378967	+	275	89255821	-	FTL_0410	-	hypothetical protein
374	 30.94	0	378969..379844	-	291	89255822	-	FTL_0411	-	hypothetical protein
375	 30.39	0	379923..380771	-	282	89255823	-	FTL_0412	-	UDP-N-acetylenolpyruvoylglucosamine reductase
376	 32.18	0	380779..382083	-	434	89255824	-	FTL_0413	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
377	 35.48	0	382052..383449	-	465	89255825	engA	FTL_0414	-	GTP-binding protein EngA
378	 36.03	+1	383686..384204	-	172	89255826	-	FTL_0415	-	hypothetical protein
379	 29.77	0	384458..385270	+	270	89255827	isftu2	FTL_0416	-	transposase
380	 32.41	0	385054..385880	-	275	89255828	isftu1	FTL_0417	-	transposase
381	 32.53	0	385938..386186	-	82	89255829	-	FTL_0418	-	hypothetical protein
382	 33.88	0	386267..388273	-	668	89255830	-	FTL_0419	-	oligopeptidase A
383	 30.65	0	388365..388736	+	123	89255831	-	FTL_0420	-	hypothetical protein
384	 37.11	+1	388817..389266	+	149	89255832	-	FTL_0421	-	lipoprotein
385	 32.14	0	389927..390430	+	167	89255833	-	FTL_0423	-	hypothetical protein
386	 33.33	0	390463..390930	+	155	89255834	-	FTL_0424	-	lipoprotein
387	 30.97	0	391093..392445	+	450	89255835	-	FTL_0425	-	Type IV pili glycosylation protein
388	 34.47	0	392499..394793	-	764	89255836	-	FTL_0426	-	DNA topoisomerase I
389	 36.14	+1	394992..395633	+	213	89255837	-	FTL_0427	-	chmomosome partition protein A
390	 34.10	0	395626..396540	+	304	89255838	-	FTL_0428	-	chromosome partition protein B
391	 32.77	0	396554..397261	+	235	89255839	-	FTL_0429	-	glutamine amidotransferase, class I
392	 31.52	0	397264..398145	+	293	89255840	-	FTL_0430	-	hypothetical protein
393	 36.59	+1	398142..398417	+	91	89255841	-	FTL_0431	-	hypothetical protein
394	 27.59	-1	398559..398732	+	57	89255842	-	FTL_0432	-	hypothetical protein
395	 33.01	0	398792..399412	-	206	89255843	-	FTL_0433	-	ribosomal large subunit methyltransferase J
396	 30.56	0	399570..400037	+	155	89255844	-	FTL_0434	-	hypothetical protein
397	 29.84	0	400032..400517	-	161	89255845	-	FTL_0435	-	lipoprotein signal peptidase II
398	 35.86	0	400504..403311	-	935	89255846	ileS	FTL_0436	-	isoleucyl-tRNA synthetase
399	 30.40	0	403404..404324	-	306	89255847	-	FTL_0437	-	riboflavin biosynthesis protein RibF
400	 35.65	0	404475..406289	+	604	89255848	-	FTL_0438	-	malate dehydrogenase
401	 37.98	+1	406452..408107	+	551	89255849	-	FTL_0439	-	hypothetical protein
402	 32.17	0	408242..409071	+	276	89255850	isftu1	FTL_0440	-	transposase
403	 32.00	0	409289..410188	+	299	89255851	isftu2	FTL_0441	-	transposase
404	 30.68	0	410238..410840	+	200	89255852	-	FTL_0442	-	hypothetical protein
405	 33.72	0	410837..412141	-	434	89255853	-	FTL_0443	-	major facilitator transporter
406	 34.07	0	412077..414101	-	674	89255854	metG	FTL_0444	-	methionyl-tRNA synthetase
407	 30.35	0	414671..415207	-	178	89255855	-	FTL_0445	-	hypothetical protein
408	 37.50	+1	421380..421595	+	71	89255856	-	FTL_0446	-	hypothetical protein
409	 27.65	-1	421977..423032	-	351	89255857	-	FTL_0447	-	hypothetical protein
410	 29.98	0	423165..423821	-	218	89255858	-	FTL_0448	-	hypothetical protein
411	 31.85	0	425025..425360	+	111	89255859	-	FTL_0449	-	hypothetical protein
412	 28.64	-1	425333..426184	-	283	89255860	-	FTL_0450	-	phosphatidylserine decarboxylase proenzyme
413	 31.29	0	426283..427263	+	326	89255861	-	FTL_0451	-	hypothetical protein
414	 31.90	0	427272..428315	+	347	89255862	-	FTL_0452	-	bifunctional nicotinamide mononucleotide adenylyltransferase/ADP-ribose pyrophosphatase
415	 34.50	0	428329..429696	+	455	89255863	-	FTL_0453	-	UDP-N-acetylglucosamine pyrophosphorylase/glucosamine-1-phosphate N-acetyltransferase
416	 33.50	0	429717..431555	+	612	89255864	-	FTL_0454	-	glucosamine--fructose-6-phosphate aminotransferase
417	 29.46	0	431645..432160	+	171	89255865	-	FTL_0455	-	acetyltransferase
418	 35.86	0	432157..432354	-	65	89255866	rpsU	FTL_0456	-	30S ribosomal protein S21
419	 31.86	0	432354..432557	-	67	89255867	-	FTL_0457	-	cold shock protein
420	 30.30	0	432804..433133	-	109	89255868	-	FTL_0458	-	hypothetical protein
421	 36.32	+1	433260..434030	+	256	89255869	-	FTL_0459	-	methionine aminopeptidase
422	 30.62	0	434032..434880	+	282	89255870	-	FTL_0460	-	hypothetical protein
423	 29.43	0	434974..435639	+	221	89255871	-	FTL_0461	-	hypothetical protein
424	 33.56	0	435772..437997	+	741	89255872	-	FTL_0462	-	DNA topoisomerase IV subunit A
425	 33.77	0	437997..438683	+	228	89255873	-	FTL_0463	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
426	 24.67	-2	438670..439269	-	199	89255874	-	FTL_0464	-	hypothetical protein
427	 31.55	0	439262..440380	-	372	89255875	-	FTL_0465	-	BNR/Asp-box repeat-containing protein
428	 30.96	0	440579..442555	+	658	89255876	-	FTL_0466	-	soluble lytic murein transglycosylase
429	 34.44	0	442569..442838	-	89	89255877	-	FTL_0467	-	hypothetical protein
430	 30.43	0	442789..443442	-	217	89255878	isftu2	FTL_0468	-	transposase
431	 27.60	-1	443682..444065	-	127	89255879	-	FTL_0469	-	hypothetical protein
432	 28.91	-1	444418..444801	+	127	89255880	-	FTL_0470	-	hypothetical protein
433	 29.47	0	445158..445571	+	137	89255881	-	FTL_0471	-	hypothetical protein
434	 35.89	+1	445928..449407	+	1159	89255882	-	FTL_0472	-	DNA polymerase III alpha subunit
435	 31.60	0	449483..450118	+	211	89255883	-	FTL_0473	-	peptide deformylase
436	 34.71	0	450781..452085	+	434	89255884	-	FTL_0474	-	lipoprotein releasing system, subunit C,putative membrane protein
437	 33.91	0	452078..452773	+	231	89255885	-	FTL_0475	-	lipoprotein releasing system, subunit D, ABC transporter, ATP-binding protein
438	 32.91	0	452890..455031	+	713	89255886	-	FTL_0476	-	lysine decarboxylase, inducable
439	 37.05	+1	455122..456198	+	358	89255887	gcvT	FTL_0477	-	glycine cleavage system aminomethyltransferase T
440	 38.28	+1	456255..456638	+	127	89255888	-	FTL_0478	-	glycine cleavage system H protein
441	 36.40	+1	456703..458070	+	455	89255889	-	FTL_0479	-	glycine dehydrogenase subunit 1
442	 37.83	+1	458076..459521	+	481	89255890	-	FTL_0480	-	glycine dehydrogenase subunit 2
443	 31.09	0	459641..460486	-	281	89255891	-	FTL_0481	-	shikimate 5-dehydrogenase
444	 33.27	0	460512..463724	-	1070	89255892	-	FTL_0482	-	pullulonase
445	 34.79	0	463758..465680	-	640	89255893	-	FTL_0483	-	glycogen branching enzyme
446	 35.84	0	465981..467615	+	544	89255894	-	FTL_0484	-	phosphoglucomutase
447	 37.03	+1	467649..468920	+	423	89255895	-	FTL_0485	-	glucose-1-phosphate adenylyltransferase
448	 36.73	+1	468930..470399	+	489	89255896	glgA	FTL_0486	-	glycogen synthase
449	 29.99	0	470504..472777	+	757	89255897	-	FTL_0487	-	maltodextrin phosphorylase
450	 32.24	0	472821..474284	+	487	89255898	-	FTL_0488	-	4-alpha-glucanotransferase
451	 37.71	+1	474376..475266	+	296	89255899	glyQ	FTL_0489	-	glycyl-tRNA synthetase subunit alpha
452	 29.30	0	475477..476940	+	487	89255900	-	FTL_0490	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6- diaminopimelate ligase
453	 32.07	0	476962..477357	+	131	89255901	-	FTL_0491	-	outer membrane lipoprotein
454	 33.11	0	477710..479068	+	452	89255902	-	FTL_0492	-	UDP-N--acetylmuramoylalanyl-D-glutamyl-2,6- diaminopimelate-D-alanyl-D-alanyl ligase
455	 34.07	0	479077..479895	+	272	89255903	-	FTL_0493	-	hypothetical protein
456	 34.38	0	479944..480993	-	349	89255904	-	FTL_0494	-	aspartate-semialdehyde dehydrogenase
457	 34.49	0	482791..484083	+	430	89255905	-	FTL_0498	-	threonine synthase
458	 34.76	0	484671..485159	+	162	89255906	-	FTL_0499	-	S-adenosylmethionine decarboxylase
459	 32.87	0	485159..486028	+	289	89255907	-	FTL_0500	-	spermidine synthase
460	 30.36	0	486393..487703	+	436	89255908	-	FTL_0501	-	putative arginine decarboxylase
461	 33.10	0	487684..488544	+	286	89255909	-	FTL_0502	-	hypothetical protein
462	 31.44	0	488545..489425	-	293	89255910	isftu1	FTL_0503	-	transposase
32.49	MEAN

3.39	STD DEV
