IslandPath Analysis: Francisella tularensis subsp. holarctica

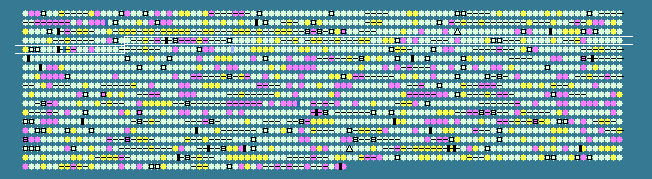

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.49 STD DEV: 3.39
Francisella tularensis subsp. holarctica, complete genome - 1..1895994
1754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
318	 34.49	0	322181..322786	+	201	89255766	-	FTL_0341	-	deoxyribodipyrimidine photolyase
319	 35.76	0	322844..323338	+	164	89255767	-	FTL_0342	-	deoxyribodipyrimidine photolyase
320	 34.05	0	323554..325083	+	509	89255768	-	FTL_0343	-	hypothetical protein
321	 36.23	+1	325080..325217	+	45	89255769	-	FTL_0344	-	hypothetical protein
322	 30.76	0	325343..326275	+	310	89255770	-	FTL_0345	-	bile acid symporter family protein
323	 26.91	-1	326342..326839	+	165	89255771	-	FTL_0346	-	hypothetical protein
324	 32.30	0	326969..327547	+	192	89255772	-	FTL_0347	-	hypothetical protein
325	 31.22	0	330636..331061	-	141	89255773	-	FTL_0352	-	hypothetical protein
326	 31.44	0	331033..331913	-	293	89255774	isftu1	FTL_0353	-	transposase
327	 28.33	-1	332031..332390	-	119	89255775	-	FTL_0354	-	hypothetical protein
328	 28.65	-1	332404..333258	-	284	89255776	ubiA	FTL_0355	-	prenyltransferase
329	 28.80	-1	333261..333767	-	168	89255777	-	FTL_0356	-	hypothetical protein
330	 39.27	+1	333866..334573	+	235	89255778	-	FTL_0357	-	ribonuclease PH
331	 28.70	-1	334627..334950	-	107	89255779	-	FTL_0358	-	hypothetical protein
332	 33.44	0	335055..335957	-	300	89255780	-	FTL_0359	-	Type IV pili fiber building block protein
333	 32.96	0	336062..337135	-	357	89255781	-	FTL_0360	-	heat shock protein HtpX
334	 32.64	0	337139..337714	-	191	89255782	-	FTL_0361	-	LemA-like protein
335	 29.86	0	340774..341436	+	220	89255783	isftu2	FTL_0367	-	transposase
336	 33.00	0	342870..343169	-	99	89255784	-	FTL_0370	-	arsenical restistance operon repressor
337	 30.43	0	343378..344031	+	217	89255785	-	FTL_0371	-	hypothetical protein
338	 35.94	+1	344351..345349	+	332	89255786	-	FTL_0372	-	glycerol-3-phosphate dehydrogenase
339	 31.84	0	345350..345886	-	178	89255787	-	FTL_0373	-	hypothetical protein
340	 36.32	+1	345891..347261	-	456	89255788	-	FTL_0374	-	DNA repair protein RadA
341	 31.39	0	347269..348039	-	256	89255789	-	FTL_0375	-	hypothetical protein
342	 30.33	0	348036..348635	-	199	89255790	-	FTL_0376	-	hypothetical protein
343	 38.62	+1	348638..349696	-	352	89255791	-	FTL_0377	-	chorismate synthase
344	 29.20	0	349837..350490	-	217	89255792	-	FTL_0378	-	hypothetical protein
345	 35.28	0	350509..351021	-	170	89255793	-	FTL_0379	-	methionine sulfoxide reductase B
346	 40.86	+2	351182..351739	+	185	89255794	-	FTL_0380	-	superoxide dismuate (Cu-Zn) precusor
347	 32.83	0	351743..352534	+	263	89255795	-	FTL_0381	-	hypothetical protein
348	 35.84	0	352509..353903	-	464	89255796	-	FTL_0382	-	amino acid permease
349	 36.64	+1	354053..354415	+	120	89255797	-	FTL_0383	-	mannose-6-phosphate isomerase, fragment
350	 36.69	+1	355654..356844	-	396	89255798	-	FTL_0387	-	aspartate aminotransferase
351	 30.86	0	357047..357934	+	295	89255799	-	FTL_0388	-	cation transporter
352	 35.88	0	358020..359669	+	549	89255800	-	FTL_0389	-	DNA repair protein recN
353	 36.10	+1	359970..361055	-	361	89255801	-	FTL_0390	-	Type IV pili fiber building block protein
354	 31.56	0	360979..361203	-	74	89255802	-	FTL_0391	-	hypothetical protein
355	 31.53	0	362203..362313	-	36	89255803	-	FTL_0392	-	Type IV pili fiber building block protein
356	 33.33	0	362697..363416	+	239	89255804	-	FTL_0393	-	hypothetical protein
357	 37.46	+1	363556..364404	+	282	89255805	-	FTL_0394	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase bifunctional protein
358	 37.36	+1	364624..365667	+	347	89255806	-	FTL_0395	-	phosphoribosylaminoimidazole synthetase
359	 35.97	+1	365667..367979	+	770	89255807	-	FTL_0396	-	fusion protein PurC/PurD
360	 35.24	0	367983..368558	+	191	89255808	-	FTL_0397	-	phosphoribosylglycinamide formyltransferase
361	 39.43	+2	368675..369166	+	163	89255809	-	FTL_0398	-	phosphoribosylaminoimidazole carboxylase,catalyic subunit
362	 36.43	+1	369170..370267	+	365	89255810	-	FTL_0399	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
363	 29.51	0	370444..371070	-	208	89255811	isftu2	FTL_0400	-	transposase
364	 26.23	-1	371278..371643	-	121	89255812	-	FTL_0401	-	Sua5_yciO_yrdC family protein
365	 29.19	0	371704..372234	+	176	89255813	-	FTL_0402	-	intracellular septation protein A family protein
366	 26.98	-1	372308..372559	+	83	89255814	-	FTL_0403	-	hypothetical protein
367	 35.89	+1	372548..373564	-	338	89255815	-	FTL_0404	-	glucose kinase
368	 34.79	0	373658..374410	+	250	89255816	-	FTL_0405	-	menaquinone biosynthesis methyltransferase
369	 30.10	0	374412..374999	+	195	89255817	-	FTL_0406	-	hypothetical protein
370	 33.69	0	374992..376650	+	552	89255818	-	FTL_0407	-	2-polyprenylphenol 6-hydroxylase
371	 32.15	0	376656..376994	+	112	89255819	-	FTL_0408	-	histidine triad (HIT) family protein
372	 31.50	0	377509..378162	-	217	89255820	-	FTL_0409	-	purine/pyrimidine phosphoribosyl transferase family protein
373	 28.74	-1	378140..378967	+	275	89255821	-	FTL_0410	-	hypothetical protein
374	 30.94	0	378969..379844	-	291	89255822	-	FTL_0411	-	hypothetical protein
375	 30.39	0	379923..380771	-	282	89255823	-	FTL_0412	-	UDP-N-acetylenolpyruvoylglucosamine reductase
376	 32.18	0	380779..382083	-	434	89255824	-	FTL_0413	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
377	 35.48	0	382052..383449	-	465	89255825	engA	FTL_0414	-	GTP-binding protein EngA
378	 36.03	+1	383686..384204	-	172	89255826	-	FTL_0415	-	hypothetical protein
379	 29.77	0	384458..385270	+	270	89255827	isftu2	FTL_0416	-	transposase
380	 32.41	0	385054..385880	-	275	89255828	isftu1	FTL_0417	-	transposase
381	 32.53	0	385938..386186	-	82	89255829	-	FTL_0418	-	hypothetical protein
382	 33.88	0	386267..388273	-	668	89255830	-	FTL_0419	-	oligopeptidase A
383	 30.65	0	388365..388736	+	123	89255831	-	FTL_0420	-	hypothetical protein
384	 37.11	+1	388817..389266	+	149	89255832	-	FTL_0421	-	lipoprotein
385	 32.14	0	389927..390430	+	167	89255833	-	FTL_0423	-	hypothetical protein
386	 33.33	0	390463..390930	+	155	89255834	-	FTL_0424	-	lipoprotein
387	 30.97	0	391093..392445	+	450	89255835	-	FTL_0425	-	Type IV pili glycosylation protein
388	 34.47	0	392499..394793	-	764	89255836	-	FTL_0426	-	DNA topoisomerase I
389	 36.14	+1	394992..395633	+	213	89255837	-	FTL_0427	-	chmomosome partition protein A
390	 34.10	0	395626..396540	+	304	89255838	-	FTL_0428	-	chromosome partition protein B
391	 32.77	0	396554..397261	+	235	89255839	-	FTL_0429	-	glutamine amidotransferase, class I
392	 31.52	0	397264..398145	+	293	89255840	-	FTL_0430	-	hypothetical protein
393	 36.59	+1	398142..398417	+	91	89255841	-	FTL_0431	-	hypothetical protein
394	 27.59	-1	398559..398732	+	57	89255842	-	FTL_0432	-	hypothetical protein
395	 33.01	0	398792..399412	-	206	89255843	-	FTL_0433	-	ribosomal large subunit methyltransferase J
396	 30.56	0	399570..400037	+	155	89255844	-	FTL_0434	-	hypothetical protein
397	 29.84	0	400032..400517	-	161	89255845	-	FTL_0435	-	lipoprotein signal peptidase II
398	 35.86	0	400504..403311	-	935	89255846	ileS	FTL_0436	-	isoleucyl-tRNA synthetase
399	 30.40	0	403404..404324	-	306	89255847	-	FTL_0437	-	riboflavin biosynthesis protein RibF
400	 35.65	0	404475..406289	+	604	89255848	-	FTL_0438	-	malate dehydrogenase
401	 37.98	+1	406452..408107	+	551	89255849	-	FTL_0439	-	hypothetical protein
402	 32.17	0	408242..409071	+	276	89255850	isftu1	FTL_0440	-	transposase
403	 32.00	0	409289..410188	+	299	89255851	isftu2	FTL_0441	-	transposase
404	 30.68	0	410238..410840	+	200	89255852	-	FTL_0442	-	hypothetical protein
405	 33.72	0	410837..412141	-	434	89255853	-	FTL_0443	-	major facilitator transporter
406	 34.07	0	412077..414101	-	674	89255854	metG	FTL_0444	-	methionyl-tRNA synthetase
407	 30.35	0	414671..415207	-	178	89255855	-	FTL_0445	-	hypothetical protein
408	 37.50	+1	421380..421595	+	71	89255856	-	FTL_0446	-	hypothetical protein
409	 27.65	-1	421977..423032	-	351	89255857	-	FTL_0447	-	hypothetical protein
410	 29.98	0	423165..423821	-	218	89255858	-	FTL_0448	-	hypothetical protein
411	 31.85	0	425025..425360	+	111	89255859	-	FTL_0449	-	hypothetical protein
412	 28.64	-1	425333..426184	-	283	89255860	-	FTL_0450	-	phosphatidylserine decarboxylase proenzyme
413	 31.29	0	426283..427263	+	326	89255861	-	FTL_0451	-	hypothetical protein
414	 31.90	0	427272..428315	+	347	89255862	-	FTL_0452	-	bifunctional nicotinamide mononucleotide adenylyltransferase/ADP-ribose pyrophosphatase
415	 34.50	0	428329..429696	+	455	89255863	-	FTL_0453	-	UDP-N-acetylglucosamine pyrophosphorylase/glucosamine-1-phosphate N-acetyltransferase
416	 33.50	0	429717..431555	+	612	89255864	-	FTL_0454	-	glucosamine--fructose-6-phosphate aminotransferase
417	 29.46	0	431645..432160	+	171	89255865	-	FTL_0455	-	acetyltransferase
32.49	MEAN

3.39	STD DEV
