IslandPath Analysis: Francisella tularensis subsp. holarctica

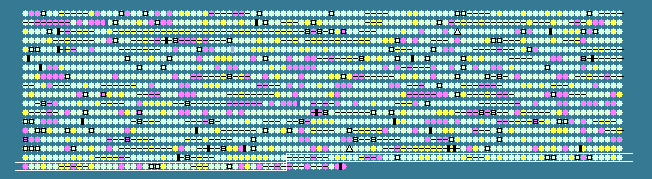

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.49 STD DEV: 3.39
Francisella tularensis subsp. holarctica, complete genome - 1..1895994
1754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1645	 31.12	0	1767450..1768712	+	420	89257093	-	FTL_1833	-	hypothetical protein
1646	 32.70	0	1768705..1769958	+	417	89257094	-	FTL_1834	-	diaminopimelate decarboxylase
1647	 33.92	0	1769974..1771164	+	396	89257095	-	FTL_1835	-	hypothetical protein
1648	 33.92	0	1771250..1772779	+	509	89257096	-	FTL_1836	-	hypothetical protein
1649	 26.45	-1	1772827..1773189	+	120	89257097	-	FTL_1837	-	hypothetical protein
1650	 35.31	0	1773438..1773740	+	100	89257098	-	FTL_1838	-	hypothetical protein
1651	 30.43	0	1773767..1774318	+	183	89257099	-	FTL_1839	-	lipase/acyltransferase
1652	 30.15	0	1774334..1774741	-	135	89257100	-	FTL_1840	-	hypothetical protein
1653	 36.88	+1	1774756..1776165	-	469	89257101	gatB	FTL_1841	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
1654	 37.41	+1	1776180..1777625	-	481	89257102	-	FTL_1842	-	glutamyl-tRNA(Gln) amidotransferase subunit A
1655	 31.91	0	1777634..1777915	-	93	89257103	-	FTL_1843	-	Glu-tRNAGln amidotransferase C subunit
1656	 34.97	0	1777998..1778486	-	162	89257104	-	FTL_1844	-	secretion protein
1657	 36.82	+1	1778553..1779068	-	171	89257105	-	FTL_1845	-	RND efflux membrane fusion protein
1658	 29.00	-1	1779193..1779723	-	176	89257106	-	FTL_1846	-	hypothetical protein
1659	 27.78	-1	1779823..1780290	-	155	89257107	-	FTL_1847	-	toxin secretion ABC transporter ATP-binding protein
1660	 28.15	-1	1780211..1780615	-	134	89257108	-	FTL_1848	-	hypothetical protein
1661	 31.26	0	1780702..1781280	-	192	89257109	-	FTL_1849	-	hypothetical protein
1662	 35.49	0	1781314..1782612	-	432	89257110	-	FTL_1850	-	adenylosuccinate lyase
1663	 29.68	0	1782785..1783414	-	209	89257111	isftu2	FTL_1851	-	transposase
1664	 32.83	0	1783795..1784193	+	132	89257112	-	FTL_1852	-	hypothetical protein
1665	 30.40	0	1784436..1785218	+	260	89257113	-	FTL_1853	-	lipoprotein
1666	 33.91	0	1785236..1786096	-	286	89257114	-	FTL_1854	-	hypothetical protein
1667	 39.07	+1	1788213..1792085	-	1290	89257115	-	FTL_1860	-	phosphoribosylformylglycinamidine synthase
1668	 36.75	+1	1792085..1793575	-	496	89257116	-	FTL_1861	-	amidophosphoribosyltransferase
1669	 35.24	0	1793669..1793878	-	69	89257117	-	FTL_1862	-	hypothetical protein
1670	 37.88	+1	1793853..1794974	-	373	89257118	-	FTL_1863	-	glutamate decarboxylase
1671	 31.93	0	1794985..1795626	-	213	89257119	-	FTL_1864	-	hypothetical protein
1672	 35.95	+1	1795635..1797164	-	509	89257120	-	FTL_1865	-	outer membrane protein tolC precursor
1673	 33.49	0	1797173..1797793	-	206	89257121	-	FTL_1866	-	protein-L-isoaspartate O-methyltransferase
1674	 36.94	+1	1798113..1799444	+	443	89257122	-	FTL_1867	-	protease yegQ
1675	 36.21	+1	1799484..1800665	-	393	89257123	-	FTL_1868	-	multidrug resistance protein, membrane located
1676	 35.29	0	1800840..1802267	+	475	89257124	-	FTL_1869	-	Na+/H+ antiporter
1677	 33.07	0	1803907..1805781	-	624	89257125	-	FTL_1873	-	amino acid transporter
1678	 36.92	+1	1805788..1806792	-	334	89257126	obgE	FTL_1874	-	GTPase ObgE
1679	 31.75	0	1806868..1808064	-	398	89257127	-	FTL_1875	-	aromatic amino acid HAAP transporter
1680	 42.11	+2	1808659..1809114	-	151	89257128	-	FTL_1876	-	outer membrane associated protein, fragment
1681	 31.88	0	1810079..1811656	-	525	89257129	-	FTL_1878	-	two component sensor protein kdpD
1682	 34.71	0	1811748..1812761	-	337	89257130	-	FTL_1879	-	osmosensitive K+ channel His kinase sensor
1683	 33.15	0	1812865..1813419	-	184	89257131	-	FTL_1880	-	potassium-transporting ATPase C chain
1684	 36.87	+1	1813436..1814341	-	301	89257132	-	FTL_1881	-	haloacid dehalogenase-like hydrolase
1685	 35.44	0	1814370..1815413	-	347	89257133	-	FTL_1882	-	potassium-transporting ATPase B chain
1686	 33.28	0	1815423..1817144	-	573	89257134	-	FTL_1883	-	potassium-transporting ATPase subunit A
1687	 38.40	+1	1817451..1817687	-	78	89257135	-	FTL_1884	-	hypothetical protein
1688	 30.80	0	1817620..1818408	-	262	89257136	isftu2	FTL_1885	-	transposase
1689	 32.17	0	1818626..1819455	-	276	89257137	isftu1	FTL_1886	-	transposase
1690	 33.58	0	1819695..1820105	-	136	89257138	-	FTL_1887	-	3-isopropylmalate dehydrogenase
1691	 32.28	0	1820693..1821262	-	189	89257139	-	FTL_1888	-	3-isopropylmalate dehydratase small subunit
1692	 36.54	+1	1821265..1822668	-	467	89257140	-	FTL_1889	-	isopropylmalate isomerase large subunit
1693	 31.56	0	1822946..1823826	+	293	89257141	isftu1	FTL_1891	-	transposase
1694	 25.80	-1	1824022..1825017	-	331	89257142	-	FTL_1892	-	hypothetical protein
1695	 30.35	0	1825374..1825910	+	178	89257143	-	FTL_1894	-	transposase
1696	 32.69	0	1826422..1827819	-	465	89257144	-	FTL_1896	-	hypothetical protein
1697	 32.37	0	1827983..1828501	-	172	89257145	-	FTL_1897	-	outer membrane lipoprotein
1698	 30.67	0	1828587..1829564	+	325	89257146	-	FTL_1898	-	DNA polymerase III, delta subunit
1699	 38.34	+1	1829684..1830721	+	345	89257147	-	FTL_1899	-	glutamine synthetase
1700	 34.50	0	1830803..1832344	+	513	89257148	-	FTL_1900	-	L-glutaminase
1701	 25.70	-2	1832353..1833138	+	261	89257149	-	FTL_1901	-	hypothetical protein
1702	 30.94	0	1833326..1833868	+	180	89257150	-	FTL_1902	-	hypothetical protein
1703	 35.83	0	1834253..1835935	-	560	89257151	-	FTL_1903	-	lysyl-tRNA synthetase
1704	 38.75	+1	1836113..1837090	-	325	89257152	-	FTL_1904	-	peptide chain release factor 2
1705	 32.60	0	1837363..1839000	+	545	89257153	-	FTL_1905	-	DNA polymerase III, gamma/tau subunits
1706	 34.84	0	1839014..1839874	-	286	89257154	lpxC	FTL_1906	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1707	 38.92	+1	1839897..1841042	-	381	89257155	-	FTL_1907	-	cell division protein FtsZ
1708	 36.42	+1	1841086..1842348	-	420	89257156	-	FTL_1908	-	cell division protein FtsA
1709	 28.95	-1	1842450..1843133	-	227	89257157	-	FTL_1909	-	cell division protein FtsQ
1710	 37.71	+1	1843130..1844020	-	296	89257158	-	FTL_1910	-	D-alanine--D-alanine ligase B
1711	 35.28	0	1844024..1844485	-	153	89257159	-	FTL_1911	-	zinc-binding domain-containing protein
1712	 36.09	+1	1844633..1846303	+	556	89257160	rpsA	FTL_1912	-	30S ribosomal protein S1
1713	 29.65	0	1846420..1846962	+	180	89257161	-	FTL_1913	-	Sua5/YciO/YrdC family protein
1714	 29.61	0	1847060..1847596	+	178	89257162	-	FTL_1914	-	hypothetical protein
1715	 30.30	0	1847982..1848872	-	296	89257163	-	FTL_1915	-	acetyltransferase
1716	 29.61	0	1848973..1850988	-	671	89257164	-	FTL_1916	-	competence-related protein
1717	 27.86	-1	1851152..1851973	+	273	89257165	-	FTL_1917	-	30S ribosomal protein S6 modification protein-related protein
1718	 30.30	0	1851946..1852308	+	120	89257166	-	FTL_1918	-	ribosomal protein S6 modification protein-related protein
1719	 34.48	0	1854557..1855339	+	260	89257167	-	FTL_1921	-	ABC transporter, ATP-binding protein
1720	 28.77	-1	1855333..1855902	-	189	89257168	-	FTL_1922	-	YggT family protein
1721	 35.78	0	1856017..1856832	-	271	89257169	-	FTL_1923	-	hypothetical protein
1722	 31.44	0	1857257..1858137	-	293	89257170	isftu1	FTL_1925	-	transposase
1723	 30.72	0	1858199..1858657	-	152	89257171	isftu2	FTL_1926	-	transposase
1724	 36.50	+1	1860055..1861602	-	515	89257172	-	FTL_1929	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1725	 35.35	0	1861779..1863065	+	428	89257173	-	FTL_1930	-	adenylosuccinate synthetase
1726	 32.40	0	1863069..1863602	+	177	89257174	-	FTL_1931	-	hypoxanthine-guanine phosphoribosyltransferase
1727	 32.64	0	1864432..1865295	-	287	89257175	-	FTL_1934	-	permease of ABC transporter
1728	 32.60	0	1865216..1865893	-	225	89257176	-	FTL_1935	-	ABC transporter, ATP-binding protein
1729	 34.53	0	1865895..1866812	-	305	89257177	-	FTL_1936	-	periplasmic solute binding family protein
1730	 38.28	+1	1868224..1868688	-	154	89257178	-	FTL_1939	-	outer membrane lipoprotein
1731	 39.70	+2	1868699..1869295	-	198	89257179	-	FTL_1940	-	trp repressor binding protein
1732	 29.12	0	1869302..1870489	+	395	89257180	-	FTL_1941	-	tRNA processing ribonuclease BN
1733	 30.38	0	1870508..1871083	+	191	89257181	-	FTL_1942	-	transport protein
1734	 32.59	0	1871080..1873233	+	717	89257182	-	FTL_1943	-	primosomal protein N'
1735	 31.44	0	1873363..1874243	+	293	89257183	isftu1	FTL_1944	-	transposase
1736	 32.18	0	1874376..1874636	-	86	89257184	-	FTL_1945	-	hypothetical protein
1737	 27.68	-1	1874771..1875124	-	117	89257185	-	FTL_1946	-	hypothetical protein
1738	 38.15	+1	1875078..1876757	-	559	89257186	-	FTL_1947	-	putative ABC transporter ATP-binding protein
1739	 29.68	0	1876925..1878211	+	428	89257187	-	FTL_1948	-	major facilitator transporter
1740	 22.54	-2	1878510..1878722	-	70	89257188	-	FTL_1949	-	hypothetical protein
1741	 30.28	0	1878768..1879748	+	326	89257189	-	FTL_1950	-	hypothetical protein
1742	 30.43	0	1879755..1880030	-	91	89257190	-	FTL_1951	-	amino acid transporter LysE
1743	 27.52	-1	1882141..1882467	+	108	89257191	-	FTL_1954	-	hypothetical protein
1744	 32.40	0	1883263..1885839	-	858	89257192	-	FTL_1956	-	aminopeptidase N
32.49	MEAN

3.39	STD DEV
