IslandPath Analysis: Francisella tularensis subsp. holarctica

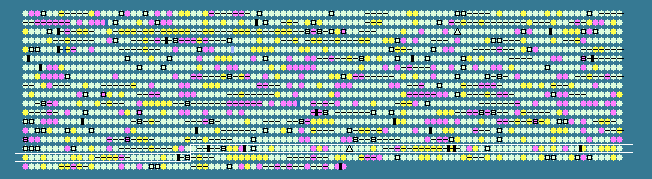

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.49 STD DEV: 3.39
Francisella tularensis subsp. holarctica, complete genome - 1..1895994
1754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1529	 33.81	0	1639985..1641439	+	484	89256977	-	FTL_1708	-	potassium uptake protein
1530	 31.70	0	1641454..1641942	-	162	89256978	-	FTL_1709	-	hypothetical protein
1531	 32.91	0	1642022..1642723	-	233	89256979	-	FTL_1710	-	ProP osmoprotectant transporter, fragment
1532	 34.43	0	1643127..1643675	-	182	89256980	-	FTL_1711	-	HsdR protein, fragment
1533	 33.98	0	1643645..1644412	-	255	89256981	-	FTL_1712	-	HsdR protein, fragment
1534	 31.56	0	1644403..1645283	+	293	89256982	isftu1	FTL_1713	-	transposase
1535	 38.90	+1	1645403..1647037	-	544	89256983	groEL	FTL_1714	-	chaperonin GroEL
1536	 36.46	+1	1647075..1647362	-	95	89256984	groES	FTL_1715	-	co-chaperonin GroES
1537	 28.81	-1	1647620..1648039	+	139	89256985	-	FTL_1716	-	hypothetical protein
1538	 29.43	0	1648650..1649444	+	264	89256986	-	FTL_1717	-	hypothetical protein
1539	 31.56	0	1649495..1650375	-	293	89256987	isftu1	FTL_1718	-	transposase
1540	 30.94	0	1650366..1650866	+	166	89256988	-	FTL_1719	-	hypothetical protein
1541	 31.23	0	1650857..1651711	-	284	89256989	-	FTL_1720	-	modification methylase
1542	 39.23	+1	1651704..1652789	-	361	89256990	prfA	FTL_1721	-	peptide chain release factor 1
1543	 32.69	0	1652790..1654034	-	414	89256991	-	FTL_1722	-	glutamyl-tRNA reductase
1544	 31.14	0	1654214..1654852	+	212	89256992	-	FTL_1723	-	hypothetical protein
1545	 34.87	0	1654855..1656225	+	456	89256993	-	FTL_1724	-	lipoprotein
1546	 34.26	0	1656225..1657406	+	393	89256994	-	FTL_1725	-	eflux protein
1547	 34.50	0	1657496..1659379	+	627	89256995	-	FTL_1726	-	DNA topoisomerase IV subunit B
1548	 32.38	0	1659427..1659951	-	174	89256996	-	FTL_1727	-	N-acetyl-anhydromuranmyl-L-alanine amidase
1549	 28.71	-1	1660025..1660651	+	208	89256997	-	FTL_1728	-	PAP2 family protein
1550	 36.11	+1	1660661..1661128	-	155	89256998	-	FTL_1729	-	dinucleoside polyphosphate hydrolase
1551	 27.88	-1	1661567..1662814	+	415	89256999	-	FTL_1730	-	hypothetical protein
1552	 30.40	0	1662932..1663816	+	294	89257000	-	FTL_1731	-	licB-like transmembrane protein
1553	 32.14	0	1663813..1664397	-	194	89257001	-	FTL_1732	-	acid phosphatase
1554	 34.16	0	1664402..1665247	-	281	89257002	-	FTL_1733	-	oxidoreductase iron/ascorbate family protein
1555	 34.70	0	1665370..1666248	-	292	89257003	-	FTL_1734	-	integrase/recombinase
1556	 33.05	0	1666414..1666761	-	115	89257004	rplS	FTL_1735	-	50S ribosomal protein L19
1557	 35.84	0	1666761..1667519	-	252	89257005	-	FTL_1736	-	tRNA (guanine-N(1)-)-methyltransferase
1558	 31.57	0	1667922..1668431	-	169	89257006	-	FTL_1737	-	16S rRNA processing protein RimM
1559	 38.15	+1	1668474..1668722	-	82	89257007	rpsP	FTL_1738	-	30S ribosomal protein S16
1560	 35.83	0	1669016..1670176	+	386	89257008	-	FTL_1739	-	S-adenosylmethionine synthetase
1561	 33.85	0	1670388..1671554	-	388	89257009	-	FTL_1740	-	fatty acid desaturase
1562	 35.41	0	1671668..1672678	-	336	89257010	-	FTL_1741	-	O-sialoglycoprotein endopeptidase
1563	 28.27	-1	1672678..1672914	-	78	89257011	-	FTL_1742	-	hypothetical protein
1564	 36.62	+1	1673017..1677270	-	1417	89257012	-	FTL_1743	-	DNA-directed RNA polymerase, beta subunit
1565	 35.30	0	1677332..1681408	-	1358	89257013	rpoB	FTL_1744	-	DNA-directed RNA polymerase subunit beta
1566	 38.62	+1	1681562..1681939	-	125	89257014	rplL	FTL_1745	-	50S ribosomal protein L7/L12
1567	 39.11	+1	1682001..1682519	-	172	89257015	rplJ	FTL_1746	-	50S ribosomal protein L10
1568	 37.48	+1	1682689..1683387	-	232	89257016	rplA	FTL_1747	-	50S ribosomal protein L1
1569	 38.16	+1	1683387..1683821	-	144	89257017	rplK	FTL_1748	-	50S ribosomal protein L11
1570	 38.76	+1	1683890..1684423	-	177	89257018	-	FTL_1749	-	transcription antitermination protein nusG
1571	 34.18	0	1684439..1684909	-	156	161353779	secE	FTL_1750	-	preprotein translocase subunit SecE
1572	 41.94	+2	1685101..1686285	-	394	89257020	-	FTL_1751	-	elongation factor Tu
1573	 33.09	0	1686750..1687997	-	415	89257021	-	FTL_1752	-	helicase
1574	 34.34	0	1688164..1688661	-	165	89257022	-	FTL_1753	-	ion channel protein, fragment
1575	 27.73	-1	1688639..1689352	-	237	89257023	-	FTL_1754	-	hypothetical protein
1576	 38.69	+1	1689356..1690120	-	254	89257024	-	FTL_1755	-	glycerol uptake facilitator protein
1577	 33.79	0	1690130..1691662	-	510	89257025	-	FTL_1756	-	anaerobic glycerol-3-phosphate dehydrogenase
1578	 31.56	0	1691978..1692858	+	293	89257026	isftu1	FTL_1757	-	transposase
1579	 31.23	0	1692836..1693120	-	94	89257027	-	FTL_1758	-	hypothetical protein
1580	 32.63	0	1693508..1694788	-	426	89257028	-	FTL_1759	-	hypothetical protein
1581	 33.52	0	1694792..1695319	-	175	89257029	-	FTL_1760	-	hypothetical protein
1582	 33.63	0	1695347..1695682	-	111	89257030	-	FTL_1761	-	hypothetical protein
1583	 31.79	0	1695821..1697248	+	475	89257031	-	FTL_1762	-	sensor histidine kinase
1584	 32.20	0	1697245..1698126	-	293	89257032	-	FTL_1763	-	hypothetical protein
1585	 30.32	0	1699742..1700704	+	320	89257033	-	FTL_1765	-	cytochrome oxidase bd-II, subunit II
1586	 25.06	-2	1700715..1701149	+	144	89257034	-	FTL_1766	-	hypothetical protein
1587	 37.44	+1	1702224..1702832	-	202	89257035	-	FTL_1770	-	Type IV pili nucleotide-binding protein
1588	 32.22	0	1702893..1703252	-	119	89257036	-	FTL_1771	-	twitching motility protein PilT
1589	 37.06	+1	1703346..1706159	-	937	89257037	-	FTL_1772	-	aconitate hydratase
1590	 30.41	0	1706264..1707049	-	261	89257038	-	FTL_1773	-	hypothetical protein
1591	 27.25	-1	1707119..1707496	+	125	89257039	-	FTL_1774	-	hypothetical protein
1592	 30.71	0	1707501..1708643	+	380	89257040	-	FTL_1775	-	oxygen-independent coproporphyrinogen III oxidase
1593	 33.55	0	1708640..1709092	-	150	89257041	-	FTL_1776	-	hypothetical protein
1594	 38.70	+1	1710322..1710675	-	117	89257042	secG	FTL_1779	-	preprotein translocase subunit SecG
1595	 34.25	0	1710663..1711424	-	253	89257043	-	FTL_1780	-	triosephosphate isomerase
1596	 34.68	0	1711427..1712758	-	443	89257044	-	FTL_1781	-	phosphoglucosamine mutase
1597	 38.64	+1	1712769..1713296	-	175	89257045	-	FTL_1782	-	adenine phosphoribosyltransferase
1598	 38.10	+1	1713336..1714805	-	489	89257046	-	FTL_1783	-	dihydrolipoamide succinyltransferase component of 2-oxoglutarate dehydrogenase complex
1599	 36.07	+1	1714831..1717644	-	937	89257047	kgd	FTL_1784	-	alpha-ketoglutarate decarboxylase
1600	 35.90	+1	1717674..1718375	-	233	89257048	sdhB	FTL_1785	-	succinate dehydrogenase iron-sulfur subunit
1601	 39.97	+2	1718393..1720186	-	597	89257049	-	FTL_1786	-	succinate dehydrogenase, catalytic and NAD/flavoprotein subunit
1602	 34.42	0	1720199..1720567	-	122	89257050	-	FTL_1787	-	succinate dehydrogenase hydrophobic membrane anchor protein
1603	 35.90	+1	1720543..1720932	-	129	89257051	-	FTL_1788	-	succinate dehydrogenase, cytochrome b556
1604	 36.51	+1	1721274..1722533	+	419	89257052	-	FTL_1789	-	citrate synthase
1605	 32.70	0	1722622..1723887	+	421	89257053	-	FTL_1790	-	major facilitator superfamily tranporter
1606	 34.02	0	1724094..1724672	-	192	89257054	-	FTL_1791	-	superoxide dismutase
1607	 35.15	0	1724808..1725137	+	109	89257055	-	FTL_1792	-	glutaredoxin-like protein
1608	 31.93	0	1725154..1727997	-	947	89257056	-	FTL_1793	-	hypothetical protein
1609	 38.13	+1	1728208..1728645	-	145	89257057	-	FTL_1794	-	F0F1 ATP synthase subunit epsilon
1610	 38.63	+1	1728658..1730034	-	458	89257058	-	FTL_1795	-	F0F1 ATP synthase subunit beta
1611	 34.89	0	1730044..1730940	-	298	89257059	-	FTL_1796	-	F0F1 ATP synthase subunit gamma
1612	 38.20	+1	1730955..1732496	-	513	89257060	-	FTL_1797	-	F0F1 ATP synthase subunit alpha
1613	 32.57	0	1732515..1733039	-	174	89257061	-	FTL_1798	-	F0F1 ATP synthase subunit delta
1614	 37.58	+1	1733059..1733529	-	156	89257062	-	FTL_1799	-	F0F1 ATP synthase subunit B
1615	 40.52	+2	1733575..1733880	-	101	89257063	-	FTL_1800	-	F0F1 ATP synthase subunit C
1616	 37.12	+1	1733931..1734722	-	263	89257064	-	FTL_1801	-	F0F1 ATP synthase subunit A
1617	 26.85	-1	1734775..1735206	-	143	89257065	-	FTL_1802	-	hypothetical protein
1618	 35.02	0	1735283..1736587	+	434	89257066	-	FTL_1803	-	major facilitator transporter
1619	 34.09	0	1736589..1737518	-	309	89257067	-	FTL_1804	-	ribosomal large subunit pseudouridine synthase C
1620	 29.49	0	1737511..1738578	-	355	89257068	-	FTL_1805	-	ATPase
1621	 33.87	0	1738581..1739879	-	432	89257069	-	FTL_1806	-	major facilitator transporter
1622	 34.60	0	1739886..1741151	-	421	89257070	hisS	FTL_1807	-	histidyl-tRNA synthetase
1623	 32.41	0	1741159..1741590	-	143	89257071	-	FTL_1808	-	ribosome-binding factor A
1624	 37.90	+1	1741593..1744133	-	846	89257072	infB	FTL_1809	-	translation initiation factor IF-2
1625	 34.08	0	1744172..1745641	-	489	89257073	nusA	FTL_1810	-	transcription elongation factor NusA
1626	 35.32	0	1745659..1746111	-	150	89257074	-	FTL_1811	-	hypothetical protein
1627	 35.75	0	1746337..1747371	-	344	89257075	-	FTL_1812	-	uroporphyrinogen decarboxylase
1628	 31.44	0	1748863..1749743	-	293	89257076	isftu1	FTL_1815	-	transposase
32.49	MEAN

3.39	STD DEV
