IslandPath Analysis: Francisella tularensis subsp. holarctica

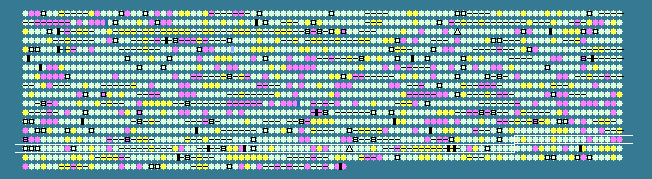

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.49 STD DEV: 3.39
Francisella tularensis subsp. holarctica, complete genome - 1..1895994
1754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1483	 33.56	0	1587892..1589208	-	438	89256931	-	FTL_1658	-	hypothetical protein
1484	 36.50	+1	1589283..1590860	-	525	89256932	-	FTL_1659	-	peptide chain release factor 3
1485	 32.22	0	1590922..1591551	-	209	89256933	-	FTL_1660	-	thymidylate kinase
1486	 30.76	0	1591564..1592766	-	400	89256934	-	FTL_1661	-	nucleoside permease NUP family protein
1487	 30.33	0	1592785..1593984	-	399	89256935	-	FTL_1662	-	nucleoside permease NUP family protein
1488	 33.06	0	1593974..1594708	-	244	89256936	-	FTL_1663	-	deoxyribose-phosphate aldolase
1489	 36.55	+1	1594698..1595942	-	414	89256937	-	FTL_1664	-	phosphopentomutase
1490	 34.64	0	1595947..1596711	-	254	89256938	-	FTL_1665	-	pantothenate kinase
1491	 35.12	0	1596731..1599424	-	897	89256939	-	FTL_1666	-	DNA polymerase I
1492	 32.51	0	1599520..1600488	-	322	89256940	-	FTL_1667	-	tetraacyldisaccharide 4'-kinase
1493	 34.59	0	1600494..1602323	-	609	89256941	-	FTL_1668	-	Lipid A transport protein, ABC transporter,ATP-binding and membrane protein
1494	 32.50	0	1602428..1603510	+	360	89256942	-	FTL_1669	-	tRNA CCA-pyrophosphorylase
1495	 28.86	-1	1603550..1604041	+	163	89256943	-	FTL_1670	-	disulfide bond formation protein
1496	 33.48	0	1604054..1605427	+	457	89256944	-	FTL_1671	-	RND efflux transporter
1497	 35.77	0	1605427..1608540	+	1037	89256945	-	FTL_1672	-	AcrB/AcrD/AcrF family transporter
1498	 34.50	0	1608672..1609952	+	426	89256946	-	FTL_1673	-	major facilitator transporter
1499	 28.18	-1	1610197..1610778	+	193	89256947	-	FTL_1674	-	hypothetical protein
1500	 27.12	-1	1612224..1613237	-	337	89256948	-	FTL_1678	-	hypothetical protein
1501	 29.97	0	1613466..1613792	-	108	89256949	-	FTL_1679	-	transposase
1502	 29.66	0	1613845..1614498	-	217	89256950	isftu2	FTL_1680	-	transposase
1503	 31.67	0	1614803..1615683	+	293	89256951	isftu1	FTL_1681	-	transposase
1504	 32.14	0	1615735..1615986	+	83	89256952	-	FTL_1682	-	hypothetical protein
1505	 34.77	0	1616054..1617448	+	464	89256953	-	FTL_1683	-	cysteinyl-tRNA synthetase
1506	 33.23	0	1617452..1618396	+	314	89256954	-	FTL_1684	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1507	 31.57	0	1618452..1619639	+	395	89256955	-	FTL_1685	-	major facilitator transporter
1508	 26.22	-1	1619653..1620144	+	163	89256956	-	FTL_1686	-	acetyltransferase
1509	 31.56	0	1620290..1621170	+	293	89256957	isftu1	FTL_1687	-	transposase
1510	 30.99	0	1621483..1622334	-	283	89256958	-	FTL_1689	-	hypothetical protein
1511	 32.26	0	1622338..1623267	-	309	89256959	-	FTL_1690	-	hypothetical protein
1512	 37.97	+1	1623286..1623522	-	78	89256960	-	FTL_1691	-	hypothetical protein
1513	 32.62	0	1623673..1623951	-	92	89256961	-	FTL_1692	-	hypothetical protein
1514	 29.32	0	1624106..1624579	-	157	89256962	-	FTL_1693	-	hypothetical protein
1515	 28.46	-1	1624787..1625977	-	396	89256963	-	FTL_1694	-	hypothetical protein
1516	 29.48	0	1625974..1626777	-	267	89256964	-	FTL_1695	-	hypothetical protein
1517	 32.76	0	1626761..1627108	-	115	89256965	-	FTL_1696	-	hypothetical protein
1518	 29.68	0	1627179..1627643	-	154	89256966	-	FTL_1697	-	metal ion transporter
1519	 31.52	0	1627888..1628217	-	109	89256967	-	FTL_1698	-	hypothetical protein
1520	 31.33	0	1628490..1630085	-	531	89256968	-	FTL_1699	-	hypothetical protein
1521	 35.11	0	1630240..1631706	-	488	89256969	-	FTL_1700	-	Sodium/proline permease
1522	 40.12	+2	1632013..1632999	-	328	89256970	glpX	FTL_1701	-	fructose 1,6-bisphosphatase II
1523	 33.49	0	1633019..1633657	-	212	89256971	-	FTL_1702	-	hypothetical protein
1524	 35.19	0	1633666..1635120	-	484	89256972	-	FTL_1703	-	amino acid transporter
1525	 33.63	0	1635367..1636035	-	222	89256973	-	FTL_1704	-	hypothetical protein
1526	 36.69	+1	1636157..1638658	+	833	89256974	-	FTL_1705	-	cell division protein
1527	 27.51	-1	1638659..1639276	+	205	89256975	-	FTL_1706	-	lipoprotein releasing system, subunit A, outer membrane lipoproteins carrier
1528	 30.39	0	1639670..1639873	-	67	89256976	-	FTL_1707	-	hypothetical protein
1529	 33.81	0	1639985..1641439	+	484	89256977	-	FTL_1708	-	potassium uptake protein
1530	 31.70	0	1641454..1641942	-	162	89256978	-	FTL_1709	-	hypothetical protein
1531	 32.91	0	1642022..1642723	-	233	89256979	-	FTL_1710	-	ProP osmoprotectant transporter, fragment
1532	 34.43	0	1643127..1643675	-	182	89256980	-	FTL_1711	-	HsdR protein, fragment
1533	 33.98	0	1643645..1644412	-	255	89256981	-	FTL_1712	-	HsdR protein, fragment
1534	 31.56	0	1644403..1645283	+	293	89256982	isftu1	FTL_1713	-	transposase
1535	 38.90	+1	1645403..1647037	-	544	89256983	groEL	FTL_1714	-	chaperonin GroEL
1536	 36.46	+1	1647075..1647362	-	95	89256984	groES	FTL_1715	-	co-chaperonin GroES
1537	 28.81	-1	1647620..1648039	+	139	89256985	-	FTL_1716	-	hypothetical protein
1538	 29.43	0	1648650..1649444	+	264	89256986	-	FTL_1717	-	hypothetical protein
1539	 31.56	0	1649495..1650375	-	293	89256987	isftu1	FTL_1718	-	transposase
1540	 30.94	0	1650366..1650866	+	166	89256988	-	FTL_1719	-	hypothetical protein
1541	 31.23	0	1650857..1651711	-	284	89256989	-	FTL_1720	-	modification methylase
1542	 39.23	+1	1651704..1652789	-	361	89256990	prfA	FTL_1721	-	peptide chain release factor 1
1543	 32.69	0	1652790..1654034	-	414	89256991	-	FTL_1722	-	glutamyl-tRNA reductase
1544	 31.14	0	1654214..1654852	+	212	89256992	-	FTL_1723	-	hypothetical protein
1545	 34.87	0	1654855..1656225	+	456	89256993	-	FTL_1724	-	lipoprotein
1546	 34.26	0	1656225..1657406	+	393	89256994	-	FTL_1725	-	eflux protein
1547	 34.50	0	1657496..1659379	+	627	89256995	-	FTL_1726	-	DNA topoisomerase IV subunit B
1548	 32.38	0	1659427..1659951	-	174	89256996	-	FTL_1727	-	N-acetyl-anhydromuranmyl-L-alanine amidase
1549	 28.71	-1	1660025..1660651	+	208	89256997	-	FTL_1728	-	PAP2 family protein
1550	 36.11	+1	1660661..1661128	-	155	89256998	-	FTL_1729	-	dinucleoside polyphosphate hydrolase
1551	 27.88	-1	1661567..1662814	+	415	89256999	-	FTL_1730	-	hypothetical protein
1552	 30.40	0	1662932..1663816	+	294	89257000	-	FTL_1731	-	licB-like transmembrane protein
1553	 32.14	0	1663813..1664397	-	194	89257001	-	FTL_1732	-	acid phosphatase
1554	 34.16	0	1664402..1665247	-	281	89257002	-	FTL_1733	-	oxidoreductase iron/ascorbate family protein
1555	 34.70	0	1665370..1666248	-	292	89257003	-	FTL_1734	-	integrase/recombinase
1556	 33.05	0	1666414..1666761	-	115	89257004	rplS	FTL_1735	-	50S ribosomal protein L19
1557	 35.84	0	1666761..1667519	-	252	89257005	-	FTL_1736	-	tRNA (guanine-N(1)-)-methyltransferase
1558	 31.57	0	1667922..1668431	-	169	89257006	-	FTL_1737	-	16S rRNA processing protein RimM
1559	 38.15	+1	1668474..1668722	-	82	89257007	rpsP	FTL_1738	-	30S ribosomal protein S16
1560	 35.83	0	1669016..1670176	+	386	89257008	-	FTL_1739	-	S-adenosylmethionine synthetase
1561	 33.85	0	1670388..1671554	-	388	89257009	-	FTL_1740	-	fatty acid desaturase
1562	 35.41	0	1671668..1672678	-	336	89257010	-	FTL_1741	-	O-sialoglycoprotein endopeptidase
1563	 28.27	-1	1672678..1672914	-	78	89257011	-	FTL_1742	-	hypothetical protein
1564	 36.62	+1	1673017..1677270	-	1417	89257012	-	FTL_1743	-	DNA-directed RNA polymerase, beta subunit
1565	 35.30	0	1677332..1681408	-	1358	89257013	rpoB	FTL_1744	-	DNA-directed RNA polymerase subunit beta
1566	 38.62	+1	1681562..1681939	-	125	89257014	rplL	FTL_1745	-	50S ribosomal protein L7/L12
1567	 39.11	+1	1682001..1682519	-	172	89257015	rplJ	FTL_1746	-	50S ribosomal protein L10
1568	 37.48	+1	1682689..1683387	-	232	89257016	rplA	FTL_1747	-	50S ribosomal protein L1
1569	 38.16	+1	1683387..1683821	-	144	89257017	rplK	FTL_1748	-	50S ribosomal protein L11
1570	 38.76	+1	1683890..1684423	-	177	89257018	-	FTL_1749	-	transcription antitermination protein nusG
1571	 34.18	0	1684439..1684909	-	156	161353779	secE	FTL_1750	-	preprotein translocase subunit SecE
1572	 41.94	+2	1685101..1686285	-	394	89257020	-	FTL_1751	-	elongation factor Tu
1573	 33.09	0	1686750..1687997	-	415	89257021	-	FTL_1752	-	helicase
1574	 34.34	0	1688164..1688661	-	165	89257022	-	FTL_1753	-	ion channel protein, fragment
1575	 27.73	-1	1688639..1689352	-	237	89257023	-	FTL_1754	-	hypothetical protein
1576	 38.69	+1	1689356..1690120	-	254	89257024	-	FTL_1755	-	glycerol uptake facilitator protein
1577	 33.79	0	1690130..1691662	-	510	89257025	-	FTL_1756	-	anaerobic glycerol-3-phosphate dehydrogenase
1578	 31.56	0	1691978..1692858	+	293	89257026	isftu1	FTL_1757	-	transposase
1579	 31.23	0	1692836..1693120	-	94	89257027	-	FTL_1758	-	hypothetical protein
1580	 32.63	0	1693508..1694788	-	426	89257028	-	FTL_1759	-	hypothetical protein
1581	 33.52	0	1694792..1695319	-	175	89257029	-	FTL_1760	-	hypothetical protein
1582	 33.63	0	1695347..1695682	-	111	89257030	-	FTL_1761	-	hypothetical protein
32.49	MEAN

3.39	STD DEV
