IslandPath Analysis: Francisella tularensis subsp. holarctica

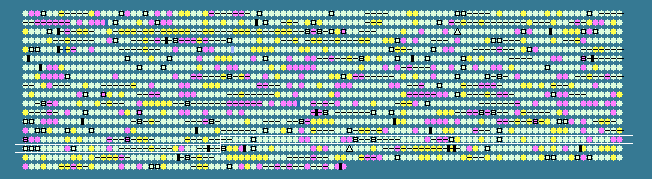

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.49 STD DEV: 3.39
Francisella tularensis subsp. holarctica, complete genome - 1..1895994
1754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1434	 33.53	0	1533630..1534646	-	338	89256882	-	FTL_1605	-	putative periplasmic protease
1435	 33.33	0	1534658..1535287	-	209	89256883	-	FTL_1606	-	stringent starvation protein A, regulator of transcription
1436	 34.60	0	1535376..1535690	+	104	89256884	-	FTL_1607	-	anaerobic sulfite reductase subunit
1437	 31.44	0	1535711..1535974	+	87	89256885	-	FTL_1608	-	hypothetical protein
1438	 30.83	0	1536066..1537826	+	586	89256886	-	FTL_1609	-	dolichyl-phosphate-mannose-protein mannosyltransferase family protein
1439	 31.56	0	1538111..1538991	-	293	89256887	isftu1	FTL_1610	-	transposase
1440	 33.75	0	1539150..1540103	-	317	89256888	-	FTL_1611	-	glycosyl transferase, group 2 family protein
1441	 29.62	0	1540205..1541011	+	268	89256889	-	FTL_1612	-	hypothetical protein
1442	 33.91	0	1541019..1542224	-	401	89256890	-	FTL_1613	-	cell division protein FtsW
1443	 29.58	0	1542234..1543484	-	416	89256891	-	FTL_1614	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
1444	 33.70	0	1543484..1544581	-	365	89256892	-	FTL_1615	-	phospho-N-acetylmuramoyl-pentapeptide transferase
1445	 32.51	0	1544656..1546242	-	528	89256893	-	FTL_1616	-	phosphoenolpyruvate carboxykinase
1446	 33.94	0	1546393..1548039	+	548	89256894	-	FTL_1617	-	glutaminyl-tRNA synthetase
1447	 27.49	-1	1548060..1548641	+	193	89256895	-	FTL_1618	-	hypothetical protein
1448	 26.32	-1	1548593..1549348	+	251	89256896	-	FTL_1619	-	hypothetical protein
1449	 29.32	0	1549544..1550017	-	157	89256897	-	FTL_1620	-	proton-dependent oligopeptide transport (POT) family protein
1450	 31.98	0	1550089..1551930	-	613	89256898	-	FTL_1621	-	ABC transporter, ATP-binding
1451	 34.15	0	1551964..1553190	-	408	89256899	-	FTL_1622	-	multidrug transporter (tetracycline resistance protein)
1452	 29.02	-1	1553273..1554316	-	347	89256900	-	FTL_1623	-	hypothetical protein
1453	 31.57	0	1554588..1555781	+	397	89256901	-	FTL_1624	-	major facilitator transporter
1454	 26.20	-1	1555811..1556455	+	214	89256902	-	FTL_1625	-	NADH dehydrogenase subunit
1455	 28.12	-1	1556471..1556662	-	63	89256903	-	FTL_1626	-	rRNA methylase
1456	 31.56	0	1556653..1557533	+	293	89256904	isftu1	FTL_1627	-	transposase
1457	 35.43	0	1557758..1558471	+	237	89256905	-	FTL_1628	-	hypothetical protein
1458	 33.68	0	1558425..1560131	+	568	89256906	-	FTL_1629	-	hypothetical protein
1459	 31.56	0	1560132..1561012	-	293	89256907	isftu1	FTL_1630	-	transposase
1460	 29.28	0	1561074..1562108	-	344	89256908	-	FTL_1631	-	hypothetical protein
1461	 31.33	0	1562127..1562375	-	82	89256909	-	FTL_1632	-	hypothetical protein
1462	 30.58	0	1562442..1563167	-	241	89256910	-	FTL_1633	-	hypothetical protein
1463	 30.51	0	1563348..1564340	-	330	89256911	-	FTL_1634	-	LysR family transcriptional regulator
1464	 35.08	0	1564878..1566992	+	704	89256912	-	FTL_1635	-	chitinase, fragment
1465	 33.85	0	1566967..1567161	+	64	89256913	-	FTL_1636	-	hypothetical protein
1466	 35.36	0	1568349..1569383	-	344	89256914	-	FTL_1637	-	lipoprotein
1467	 32.61	0	1569510..1570205	+	231	89256915	-	FTL_1638	-	3-demethylubiquinone-9 3-methyltransferase
1468	 25.13	-2	1570208..1570951	+	247	89256916	-	FTL_1639	-	hypothetical protein
1469	 33.60	0	1571317..1572819	+	500	89256917	-	FTL_1640	-	amino acid transporter protein, fragment
1470	 25.89	-1	1572832..1573113	+	93	89256918	-	FTL_1641	-	hypothetical protein
1471	 25.83	-1	1573127..1573366	-	79	89256919	-	FTL_1642	-	hypothetical protein
1472	 31.56	0	1573357..1574237	+	293	89256920	isftu1	FTL_1643	-	transposase
1473	 37.71	+1	1574234..1575742	-	502	89256921	-	FTL_1644	-	glycerol kinase
1474	 32.84	0	1575811..1577022	-	403	89256922	-	FTL_1645	-	major facilitator transporter
1475	 33.99	0	1577182..1577793	-	203	89256923	-	FTL_1646	-	hypothetical protein
1476	 30.84	0	1577927..1579129	+	400	89256924	-	FTL_1647	-	major facilitator transporter
1477	 36.07	+1	1579298..1580101	-	267	89256925	-	FTL_1648	-	oligopeptide transporter, subunit D, ABC transporter, ATP-binding protein
1478	 33.95	0	1581927..1582250	-	107	89256926	-	FTL_1653	-	peptide transport system substrate-binding protein
1479	 34.44	0	1582344..1583603	-	419	89256927	-	FTL_1654	-	hypothetical protein
1480	 29.65	0	1583637..1584260	-	207	89256928	isftu2	FTL_1655	-	transposase
1481	 33.47	0	1584551..1586773	-	740	89256929	-	FTL_1656	-	DNA helicase II
1482	 34.74	0	1586864..1587859	-	331	89256930	-	FTL_1657	-	signal recognition particle receptor FtsY
1483	 33.56	0	1587892..1589208	-	438	89256931	-	FTL_1658	-	hypothetical protein
1484	 36.50	+1	1589283..1590860	-	525	89256932	-	FTL_1659	-	peptide chain release factor 3
1485	 32.22	0	1590922..1591551	-	209	89256933	-	FTL_1660	-	thymidylate kinase
1486	 30.76	0	1591564..1592766	-	400	89256934	-	FTL_1661	-	nucleoside permease NUP family protein
1487	 30.33	0	1592785..1593984	-	399	89256935	-	FTL_1662	-	nucleoside permease NUP family protein
1488	 33.06	0	1593974..1594708	-	244	89256936	-	FTL_1663	-	deoxyribose-phosphate aldolase
1489	 36.55	+1	1594698..1595942	-	414	89256937	-	FTL_1664	-	phosphopentomutase
1490	 34.64	0	1595947..1596711	-	254	89256938	-	FTL_1665	-	pantothenate kinase
1491	 35.12	0	1596731..1599424	-	897	89256939	-	FTL_1666	-	DNA polymerase I
1492	 32.51	0	1599520..1600488	-	322	89256940	-	FTL_1667	-	tetraacyldisaccharide 4'-kinase
1493	 34.59	0	1600494..1602323	-	609	89256941	-	FTL_1668	-	Lipid A transport protein, ABC transporter,ATP-binding and membrane protein
1494	 32.50	0	1602428..1603510	+	360	89256942	-	FTL_1669	-	tRNA CCA-pyrophosphorylase
1495	 28.86	-1	1603550..1604041	+	163	89256943	-	FTL_1670	-	disulfide bond formation protein
1496	 33.48	0	1604054..1605427	+	457	89256944	-	FTL_1671	-	RND efflux transporter
1497	 35.77	0	1605427..1608540	+	1037	89256945	-	FTL_1672	-	AcrB/AcrD/AcrF family transporter
1498	 34.50	0	1608672..1609952	+	426	89256946	-	FTL_1673	-	major facilitator transporter
1499	 28.18	-1	1610197..1610778	+	193	89256947	-	FTL_1674	-	hypothetical protein
1500	 27.12	-1	1612224..1613237	-	337	89256948	-	FTL_1678	-	hypothetical protein
1501	 29.97	0	1613466..1613792	-	108	89256949	-	FTL_1679	-	transposase
1502	 29.66	0	1613845..1614498	-	217	89256950	isftu2	FTL_1680	-	transposase
1503	 31.67	0	1614803..1615683	+	293	89256951	isftu1	FTL_1681	-	transposase
1504	 32.14	0	1615735..1615986	+	83	89256952	-	FTL_1682	-	hypothetical protein
1505	 34.77	0	1616054..1617448	+	464	89256953	-	FTL_1683	-	cysteinyl-tRNA synthetase
1506	 33.23	0	1617452..1618396	+	314	89256954	-	FTL_1684	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1507	 31.57	0	1618452..1619639	+	395	89256955	-	FTL_1685	-	major facilitator transporter
1508	 26.22	-1	1619653..1620144	+	163	89256956	-	FTL_1686	-	acetyltransferase
1509	 31.56	0	1620290..1621170	+	293	89256957	isftu1	FTL_1687	-	transposase
1510	 30.99	0	1621483..1622334	-	283	89256958	-	FTL_1689	-	hypothetical protein
1511	 32.26	0	1622338..1623267	-	309	89256959	-	FTL_1690	-	hypothetical protein
1512	 37.97	+1	1623286..1623522	-	78	89256960	-	FTL_1691	-	hypothetical protein
1513	 32.62	0	1623673..1623951	-	92	89256961	-	FTL_1692	-	hypothetical protein
1514	 29.32	0	1624106..1624579	-	157	89256962	-	FTL_1693	-	hypothetical protein
1515	 28.46	-1	1624787..1625977	-	396	89256963	-	FTL_1694	-	hypothetical protein
1516	 29.48	0	1625974..1626777	-	267	89256964	-	FTL_1695	-	hypothetical protein
1517	 32.76	0	1626761..1627108	-	115	89256965	-	FTL_1696	-	hypothetical protein
1518	 29.68	0	1627179..1627643	-	154	89256966	-	FTL_1697	-	metal ion transporter
1519	 31.52	0	1627888..1628217	-	109	89256967	-	FTL_1698	-	hypothetical protein
1520	 31.33	0	1628490..1630085	-	531	89256968	-	FTL_1699	-	hypothetical protein
1521	 35.11	0	1630240..1631706	-	488	89256969	-	FTL_1700	-	Sodium/proline permease
1522	 40.12	+2	1632013..1632999	-	328	89256970	glpX	FTL_1701	-	fructose 1,6-bisphosphatase II
1523	 33.49	0	1633019..1633657	-	212	89256971	-	FTL_1702	-	hypothetical protein
1524	 35.19	0	1633666..1635120	-	484	89256972	-	FTL_1703	-	amino acid transporter
1525	 33.63	0	1635367..1636035	-	222	89256973	-	FTL_1704	-	hypothetical protein
1526	 36.69	+1	1636157..1638658	+	833	89256974	-	FTL_1705	-	cell division protein
1527	 27.51	-1	1638659..1639276	+	205	89256975	-	FTL_1706	-	lipoprotein releasing system, subunit A, outer membrane lipoproteins carrier
1528	 30.39	0	1639670..1639873	-	67	89256976	-	FTL_1707	-	hypothetical protein
1529	 33.81	0	1639985..1641439	+	484	89256977	-	FTL_1708	-	potassium uptake protein
1530	 31.70	0	1641454..1641942	-	162	89256978	-	FTL_1709	-	hypothetical protein
1531	 32.91	0	1642022..1642723	-	233	89256979	-	FTL_1710	-	ProP osmoprotectant transporter, fragment
1532	 34.43	0	1643127..1643675	-	182	89256980	-	FTL_1711	-	HsdR protein, fragment
1533	 33.98	0	1643645..1644412	-	255	89256981	-	FTL_1712	-	HsdR protein, fragment
32.49	MEAN

3.39	STD DEV
