IslandPath Analysis: Francisella tularensis subsp. holarctica

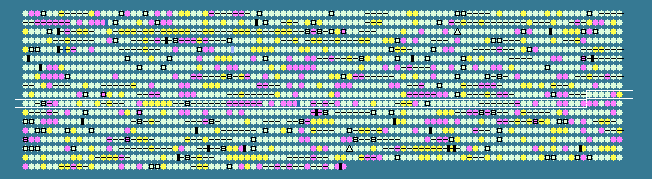

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.49   STD DEV: 3.39
Francisella tularensis subsp. holarctica, complete genome - 1..1895994
1754 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
995	 33.84	0	1063806..1064792	-	328	89256443	-	FTL_1118	-	hypothetical protein
996	 29.73	0	1064986..1065846	+	286	89256444	rdgC	FTL_1119	-	recombination associated protein
997	 30.23	0	1065851..1066108	+	85	89256445	-	FTL_1120	-	hypothetical protein
998	 32.09	0	1066772..1067575	+	267	89256446	-	FTL_1121	-	hypothetical protein
999	 23.37	-2	1067575..1068126	+	183	89256447	-	FTL_1122	-	hypothetical protein
1000	 38.21	+1	1068466..1069368	+	300	89256448	-	FTL_1123	-	hypothetical protein
1001	 34.63	0	1069405..1069866	+	153	89256449	-	FTL_1124	-	hypothetical protein
1002	 30.63	0	1069990..1071246	-	418	89256450	-	FTL_1125	-	transcription regulator
1003	 35.09	0	1071249..1071476	-	75	89256451	-	FTL_1126	-	transcriptional regulator
1004	 31.56	0	1072264..1073144	-	293	89256452	isftu1	FTL_1127	-	transposase
1005	 28.89	-1	1073135..1073404	+	89	89256453	-	FTL_1128	-	hypothetical protein
1006	 27.85	-1	1073497..1073988	+	163	89256454	-	FTL_1129	-	acetyltransferase
1007	 30.79	0	1073966..1074358	-	130	89256455	-	FTL_1130	-	ribosomal RNA small subunit methyltransferase
1008	 29.77	0	1074770..1075246	-	158	89256456	-	FTL_1131	-	Sun protein
1009	 31.56	0	1075246..1076034	-	262	89256457	-	FTL_1132	-	inositol-1-monophosphatase
1010	 36.85	+1	1076121..1077173	-	350	89256458	-	FTL_1133	-	hypothetical protein
1011	 31.51	0	1077263..1078471	-	402	89256459	-	FTL_1134	-	hypothetical protein
1012	 32.63	0	1079269..1079553	-	94	89256460	-	FTL_1136	-	hypothetical protein
1013	 38.25	+1	1079634..1080893	-	419	89256461	-	FTL_1137	-	3-oxoacyl-[acyl-carrier-protein] synthase II
1014	 32.98	0	1080973..1081257	-	94	89256462	-	FTL_1138	-	acyl carrier protein
1015	 36.42	+1	1081354..1082097	-	247	89256463	-	FTL_1139	-	3-oxoacyl-(acyl-carrier-protein) reductase
1016	 35.29	0	1082111..1083031	-	306	89256464	-	FTL_1140	-	malonyl CoA-acyl carrier protein transacylase
1017	 35.80	0	1083079..1084050	-	323	89256465	-	FTL_1141	-	3-oxoacyl-[acyl carrier protein] synthase III
1018	 33.33	0	1084147..1085193	-	348	89256466	-	FTL_1142	-	putative glycerol-3-phosphate acyltransferase PlsX
1019	 33.33	0	1085292..1085474	-	60	89256467	rpmF	FTL_1143	-	50S ribosomal protein L32
1020	 27.98	-1	1085518..1086021	-	167	89256468	-	FTL_1144	-	hypothetical protein
1021	 37.15	+1	1086160..1088151	+	663	89256469	-	FTL_1145	-	transketolase
1022	 38.02	+1	1088189..1089190	+	333	89256470	-	FTL_1146	-	glyceraldehyde-3-phosphate dehydrogenase
1023	 36.56	+1	1089209..1090387	+	392	89256471	-	FTL_1147	-	phosphogylcerate kinase
1024	 37.16	+1	1090403..1091839	+	478	89256472	-	FTL_1148	-	pyruvate kinase
1025	 39.06	+1	1091858..1092922	+	354	89256473	-	FTL_1149	-	fructose-1,6-bisphosphate aldolase
1026	 29.37	0	1093090..1093644	-	184	89256474	-	FTL_1150	-	Alpha,alpha-trehalase.
1027	 29.42	0	1093524..1094570	-	348	89256475	-	FTL_1151	-	trehalase, pseuodgene
1028	 31.44	0	1094950..1095830	+	293	89256476	isftu1	FTL_1153	-	transposase
1029	 30.10	0	1096796..1097197	+	133	89256477	-	FTL_1155	-	hypothetical protein
1030	 29.90	0	1097207..1097410	+	67	89256478	-	FTL_1156	-	hypothetical protein
1031	 32.25	0	1097491..1098045	+	184	89256479	-	FTL_1157	-	intracellular growth locus, subunit A
1032	 31.03	0	1098059..1099579	+	506	89256480	-	FTL_1158	-	intracellular growth locus, subunit B
1033	 34.60	0	1099596..1100225	+	209	89256481	-	FTL_1159	-	intracellular growth locus, subunit C
1034	 29.24	0	1100246..1101442	+	398	89256482	-	FTL_1160	-	intracellular growth locus, subunit D
1035	 24.48	-2	1101449..1102024	-	191	89256483	-	FTL_1161	-	hypothetical protein
1036	 26.39	-1	1102042..1106028	-	1328	89256484	-	FTL_1162	-	hypothetical protein
1037	 23.51	-2	1106068..1106841	-	257	89256485	-	FTL_1163	-	hypothetical protein
1038	 26.13	-1	1106807..1107958	-	383	89256486	-	FTL_1164	-	hypothetical protein
1039	 27.88	-1	1107980..1108603	-	207	89256487	-	FTL_1165	-	hypothetical protein
1040	 26.14	-1	1108616..1110046	-	476	89256488	-	FTL_1166	-	hypothetical protein
1041	 33.14	0	1110059..1110580	-	173	89256489	-	FTL_1167	-	hypothetical protein
1042	 23.84	-2	1110648..1112312	-	554	89256490	-	FTL_1168	-	hypothetical protein
1043	 30.10	0	1112317..1112811	-	164	89256491	-	FTL_1169	-	hypothetical protein
1044	 23.81	-2	1112824..1113201	-	125	89256492	-	FTL_1170	-	hypothetical protein
1045	 25.99	-1	1113191..1116472	-	1093	89256493	-	FTL_1171	-	hypothetical protein
1046	 27.00	-1	1116477..1118939	-	820	89256494	-	FTL_1172	-	hypothetical protein
1047	 31.58	0	1124519..1125088	-	189	89256495	-	FTL_1173	-	hypothetical protein
1048	 31.06	0	1125350..1126273	-	307	89256496	-	FTL_1174	-	cystathionine beta-synthase (cystein synthase)
1049	 28.92	-1	1127680..1128132	+	150	89256497	-	FTL_1176	-	LysR transcriptional regulator family protein
1050	 31.86	0	1128805..1130157	-	450	89256498	trmE	FTL_1177	-	tRNA modification GTPase TrmE
1051	 21.54	-2	1130163..1130408	-	81	89256499	-	FTL_1178	-	hypothetical protein
1052	 32.66	0	1130527..1130823	+	98	89256500	-	FTL_1179	-	sigma-54 modulation protein
1053	 27.63	-1	1130860..1131315	+	151	89256501	-	FTL_1180	-	PEP-dependent sugar phosphotransferase system (PTS) family protein
1054	 35.22	0	1131308..1132051	+	247	89256502	-	FTL_1181	-	SpoU rRNA methylase family protein
1055	 31.74	0	1132053..1132616	+	187	89256503	-	FTL_1182	-	ribonuclease HII
1056	 28.93	-1	1132609..1133880	+	423	89256504	-	FTL_1183	-	Sodium-solute symporter family protein
1057	 31.86	0	1133877..1134284	-	135	89256505	-	FTL_1184	-	ClpXP protease specificity-enhancing factor
1058	 29.82	0	1134286..1134855	-	189	89256506	-	FTL_1185	-	macrophage growth locus, subunit A
1059	 38.46	+1	1134963..1135352	-	129	89256507	rpsI	FTL_1186	-	30S ribosomal protein S9
1060	 35.66	0	1135368..1135796	-	142	89256508	rplM	FTL_1187	-	50S ribosomal protein L13
1061	 30.13	0	1135935..1137119	-	394	89256509	-	FTL_1188	-	hypothetical protein
1062	 32.55	0	1137112..1138263	-	383	89256510	-	FTL_1189	-	membrane-bound lytic murein transglycosylase A (MLT) family protein
1063	 33.16	0	1138367..1138954	+	195	89256511	-	FTL_1190	-	heat shock protein GrpE
1064	 38.26	+1	1139055..1140983	+	642	89256512	-	FTL_1191	-	heat shock protein DnaK
1065	 36.11	+1	1141072..1142187	+	371	89256513	-	FTL_1192	-	heat shock protein DnaJ
1066	 27.00	-1	1142201..1142989	-	262	89256514	-	FTL_1193	-	LysR transcriptional regulator family protein
1067	 30.92	0	1143082..1143330	+	82	89256515	-	FTL_1194	-	pirin family protein
1068	 31.56	0	1143354..1144234	+	293	89256516	isftu1	FTL_1195	-	transposase
1069	 29.75	0	1144282..1145118	+	278	89256517	-	FTL_1196	-	hypothetical protein
1070	 33.53	0	1145204..1146217	+	337	89256518	pheS	FTL_1197	-	phenylalanyl-tRNA synthetase subunit alpha
1071	 31.35	0	1146238..1148610	+	790	89256519	-	FTL_1198	-	phenylalanyl-tRNA synthetase, beta subunit
1072	 29.58	0	1148653..1149078	-	141	89256520	-	FTL_1199	-	regulatory protein
1073	 32.51	0	1149226..1150443	+	405	89256521	-	FTL_1200	-	cobalamin (vitamin B12) synthesis protein/P47K family protein
1074	 31.73	0	1150446..1151192	+	248	89256522	-	FTL_1201	-	ZIP metal transporter family protein
1075	 30.20	0	1151214..1152203	-	329	89256523	-	FTL_1202	-	hypothetical protein
1076	 29.14	0	1152371..1153801	-	476	89256524	-	FTL_1203	-	cardiolipin synthetase
1077	 29.83	0	1153893..1155320	-	475	89256525	-	FTL_1204	-	cardiolipin synthetase
1078	 29.34	0	1155463..1155888	-	141	89256526	-	FTL_1205	-	hypothetical protein
1079	 35.08	0	1156139..1156597	-	152	89256527	-	FTL_1206	-	major facilitator transporter
1080	 32.29	0	1156701..1157561	+	286	89256528	-	FTL_1207	-	MRP like protein
1081	 31.75	0	1157573..1158139	+	188	89256529	dcd	FTL_1208	-	deoxycytidine triphosphate deaminase
1082	 31.76	0	1158146..1158844	-	232	89256530	-	FTL_1209	-	hypothetical protein
1083	 24.10	-2	1158893..1159336	-	147	89256531	-	FTL_1210	-	hypothetical protein
1084	 30.90	0	1159397..1159972	-	191	89256532	-	FTL_1211	-	lipoprotein
1085	 32.88	0	1159980..1162421	-	813	89256533	leuS	FTL_1212	-	leucyl-tRNA synthetase
1086	 26.05	-1	1162529..1164424	-	631	89256534	-	FTL_1213	-	hypothetical protein
1087	 29.84	0	1164553..1164810	-	85	89256535	-	FTL_1214	-	hypothetical protein
1088	 35.28	0	1165224..1165634	-	136	89256536	-	FTL_1215	-	hypothetical protein
1089	 30.94	0	1165636..1166220	-	194	89256537	-	FTL_1216	-	hypothetical protein
1090	 23.66	-2	1166854..1167225	-	123	89256538	-	FTL_1217	-	hypothetical protein
1091	 23.74	-2	1167906..1168895	-	329	89256539	-	FTL_1218	-	hypothetical protein
1092	 29.63	0	1169829..1171070	-	413	89256540	-	FTL_1219	-	hypothetical protein
1093	 30.19	0	1171299..1172666	+	455	89256541	-	FTL_1220	-	amino-acid permease
1094	 23.60	-2	1172718..1173323	+	201	89256542	-	FTL_1221	-	hypothetical protein
32.49	MEAN

3.39	STD DEV
