IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

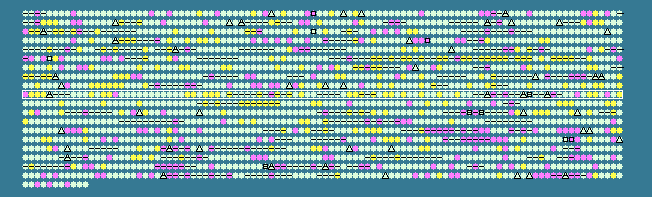

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No RNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.71   STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
901	 27.83	-1	968400..969053	+	217	167627126	-	Fphi_0902	-	4'-phosphopantetheinyl transferase family protein
902	 36.61	+1	969060..970400	+	446	167627127	-	Fphi_0903	-	glutamate decarboxylase
903	 36.75	+1	970493..971983	+	496	167627128	-	Fphi_0904	-	amidophosphoribosyltransferase
904	 39.75	+2	972382..975855	+	1157	167627129	-	Fphi_0905	-	phosphoribosylformylglycinamidine synthase
905	 30.26	0	976223..977167	+	314	167627130	-	Fphi_0906	-	integrase, catalytic region
906	 32.54	0	977151..977528	+	125	167627131	-	Fphi_0907	-	hypothetical protein
907	 35.19	0	977892..978752	+	286	167627132	-	Fphi_0908	-	galactose mutarotase
908	 32.43	0	978803..979579	-	258	167627133	-	Fphi_0909	-	hypothetical protein
909	 29.40	-1	979586..980221	-	211	167627134	-	Fphi_0910	-	hypothetical protein
910	 34.72	0	980518..981816	+	432	167627135	-	Fphi_0911	-	adenylosuccinate lyase
911	 30.46	0	981961..983526	+	521	167627136	-	Fphi_0912	-	putative ABC type bacteriocin/antibiotic exporter
912	 37.06	+1	983538..984611	+	357	167627137	-	Fphi_0913	-	membrane fusion protein
913	 32.62	0	984694..984975	+	93	167627138	-	Fphi_0914	-	Glu-tRNAGln amidotransferase C subunit
914	 36.51	+1	984984..986429	+	481	167627139	-	Fphi_0915	-	glutamyl-tRNA(Gln) and/or aspartyl-tRNA(Asn) amidotransferase, A subunit
915	 36.38	+1	986444..987853	+	469	167627140	-	Fphi_0916	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
916	 29.17	-1	987868..988275	+	135	167627141	-	Fphi_0917	-	hypothetical protein
917	 32.38	0	988286..989755	-	489	167627142	-	Fphi_0918	-	GDSL-like lipolytic enzyme
918	 35.53	0	989813..991315	-	500	167627143	-	Fphi_0919	-	hypothetical protein
919	 32.10	0	991413..992624	-	403	167627144	-	Fphi_0920	-	putative transmembrane transport protein
920	 32.82	0	992621..993010	-	129	167627145	-	Fphi_0921	-	hypothetical protein
921	 32.30	0	993007..995328	-	773	167627146	-	Fphi_0922	-	IucA/IucC
922	 32.19	0	995348..996664	-	438	167627147	-	Fphi_0923	-	L-lysine 6-monooxygenase (NADPH)
923	 31.23	0	996661..998370	-	569	167627148	-	Fphi_0924	-	IucA/IucC
924	 31.02	0	998367..999878	-	503	167627149	-	Fphi_0925	-	diaminobutyrate decarboxylase
925	 35.96	+1	999875..1001209	-	444	167627150	-	Fphi_0926	-	diaminobutyrate--2-oxoglutarate transaminase
926	 33.33	0	1001291..1002622	+	443	167627151	-	Fphi_0927	-	aspartate kinase
927	 32.62	0	1002626..1003045	-	139	167627152	-	Fphi_0928	-	ferric uptake regulation protein
928	 37.09	+1	1003271..1003669	+	132	167627153	-	Fphi_0929	-	NADH dehydrogenase I, A subunit
929	 42.56	+2	1003660..1004136	+	158	167627154	-	Fphi_0930	-	NADH dehydrogenase subunit B
930	 35.80	0	1004139..1004786	+	215	167627155	-	Fphi_0931	-	NADH dehydrogenase
931	 38.60	+1	1004805..1006058	+	417	167627156	-	Fphi_0932	-	NADH dehydrogenase subunit D
932	 36.20	+1	1006068..1006556	+	162	167627157	-	Fphi_0933	-	NADH dehydrogenase I, E subunit
933	 40.47	+2	1006563..1007837	+	424	167627158	-	Fphi_0934	-	NADH dehydrogenase (quinone)
934	 35.70	0	1007855..1010221	+	788	167627159	-	Fphi_0935	-	NADH dehydrogenase subunit G
935	 37.39	+1	1010223..1011233	+	336	167627160	-	Fphi_0936	-	NADH dehydrogenase (quinone)
936	 34.15	0	1011247..1011735	+	162	167627161	-	Fphi_0937	-	NADH dehydrogenase subunit I
937	 34.82	0	1011740..1012345	+	201	167627162	-	Fphi_0938	-	NADH dehydrogenase I, J subunit
938	 32.08	0	1012338..1012655	+	105	167627163	-	Fphi_0939	-	NADH dehydrogenase I, K subunit
939	 35.27	0	1012665..1014674	+	669	167627164	-	Fphi_0940	-	NADH dehydrogenase (quinone)
940	 36.54	+1	1014695..1016284	+	529	167627165	-	Fphi_0941	-	NADH dehydrogenase (quinone)
941	 34.50	0	1016300..1017751	+	483	167627166	-	Fphi_0942	-	NADH dehydrogenase (quinone)
942	 26.67	-1	1017827..1018021	+	64	167627167	-	Fphi_0943	-	hypothetical protein
943	 37.24	+1	1018023..1019531	+	502	167627168	-	Fphi_0944	-	magnesium chelatase
944	 35.85	0	1019566..1020600	+	344	167627169	-	Fphi_0945	-	uroporphyrinogen decarboxylase
945	 37.53	+1	1020814..1021266	+	150	167627170	-	Fphi_0946	-	hypothetical protein
946	 35.99	+1	1021282..1022751	+	489	167627171	-	Fphi_0947	-	transcription elongation factor NusA
947	 36.88	+1	1022787..1025321	+	844	167627172	-	Fphi_0948	-	translation initiation factor IF-2
948	 31.48	0	1025324..1025755	+	143	167627173	-	Fphi_0949	-	ribosome-binding factor A
949	 33.80	0	1025763..1027037	+	424	167627174	-	Fphi_0950	-	histidyl-tRNA synthetase
950	 34.41	0	1027034..1028332	+	432	167627175	-	Fphi_0951	-	major facilitator transporter
951	 30.62	0	1028332..1029399	+	355	167627176	-	Fphi_0952	-	hypothetical protein
952	 34.73	0	1029392..1030321	+	309	167627177	-	Fphi_0953	-	lysozyme
953	 35.86	0	1030329..1031633	-	434	167627178	-	Fphi_0954	-	major facilitator transporter
954	 30.11	0	1031774..1032145	+	123	167627179	-	Fphi_0955	-	hypothetical protein
955	 36.87	+1	1032200..1032991	+	263	167627180	-	Fphi_0956	-	F0F1 ATP synthase subunit A
956	 41.83	+2	1033040..1033345	+	101	167627181	-	Fphi_0957	-	F0F1 ATP synthase subunit C
957	 39.28	+2	1033391..1033861	+	156	167627182	-	Fphi_0958	-	F0F1 ATP synthase subunit B
958	 31.81	0	1033884..1034408	+	174	167627183	-	Fphi_0959	-	F0F1 ATP synthase subunit delta
959	 37.61	+1	1034427..1035968	+	513	167627184	-	Fphi_0960	-	F0F1 ATP synthase subunit alpha
960	 35.01	0	1035983..1036879	+	298	167627185	-	Fphi_0961	-	F0F1 ATP synthase subunit gamma
961	 38.20	+1	1036889..1038265	+	458	167627186	-	Fphi_0962	-	F0F1 ATP synthase subunit beta
962	 39.50	+2	1038278..1038715	+	145	167627187	-	Fphi_0963	-	F0F1 ATP synthase subunit epsilon
963	 33.86	0	1038861..1041713	+	950	167627188	-	Fphi_0964	-	hypothetical protein
964	 38.18	+1	1041731..1042060	-	109	167627189	-	Fphi_0965	-	glutaredoxin-related protein
965	 33.68	0	1042196..1042774	+	192	167627190	-	Fphi_0966	-	superoxide dismutase
966	 33.11	0	1042990..1044363	-	457	167627191	-	Fphi_0967	-	peptide-acetyl-coenzyme A transporter (PAT) family protein
967	 37.14	+1	1044452..1045711	-	419	167627192	-	Fphi_0968	-	citrate (Si)-synthase
968	 34.65	0	1046058..1046438	+	126	167627193	-	Fphi_0969	-	succinate dehydrogenase, cytochrome b556
969	 34.46	0	1046429..1046782	+	117	167627194	-	Fphi_0970	-	succinate dehydrogenase hydrophobic membrane anchor protein
970	 40.25	+2	1046795..1048588	+	597	167627195	-	Fphi_0971	-	succinate dehydrogenase
971	 35.75	0	1048605..1049306	+	233	167627196	-	Fphi_0972	-	succinate dehydrogenase iron-sulfur subunit
972	 35.79	0	1049336..1052140	+	934	167627197	-	Fphi_0973	-	alpha-ketoglutarate decarboxylase
973	 37.30	+1	1052168..1053628	+	486	167627198	-	Fphi_0974	-	2-oxoglutarate dehydrogenase complex, E2 component, dihydrolipoyltranssuccinase
974	 35.98	+1	1053666..1054193	+	175	167627199	-	Fphi_0975	-	adenine phosphoribosyltransferase
975	 34.45	0	1054197..1055534	+	445	167627200	-	Fphi_0976	-	phosphoglucosamine mutase
976	 33.86	0	1055537..1056298	+	253	167627201	-	Fphi_0977	-	Triose-phosphate isomerase
977	 34.81	0	1056286..1056624	+	112	167627202	-	Fphi_0978	-	preprotein translocase subunit SecG
978	 30.26	0	1057072..1058016	+	314	167627203	-	Fphi_0979	-	integrase, catalytic region
979	 26.75	-1	1058187..1058687	+	166	167627204	-	Fphi_0980	-	hypothetical protein
980	 35.56	0	1058921..1059100	+	59	167627205	-	Fphi_1927	-	AlpA family regulatory protein
981	 28.57	-1	1059104..1060027	+	307	167627206	-	Fphi_0981	-	hypothetical protein
982	 29.99	0	1060027..1061493	+	488	167627207	-	Fphi_0982	-	hypothetical protein
983	 29.70	0	1061726..1062028	+	100	167627208	-	Fphi_0983	-	hypothetical protein
984	 29.89	0	1062383..1062847	-	154	167627209	-	Fphi_0984	-	integrase, catalytic region
985	 29.97	0	1063032..1063328	-	98	167627210	-	Fphi_0985	-	putative transposase
986	 32.41	0	1063701..1064135	+	144	167627211	-	Fphi_0986	-	phage terminase, small subunit
987	 30.04	0	1064359..1064631	+	90	167627212	-	Fphi_0988	-	LysR family transcriptional regulator
988	 30.26	0	1064603..1065547	-	314	167627213	-	Fphi_0987	-	integrase, catalytic region
989	 27.23	-1	1065754..1066359	+	201	167627214	-	Fphi_0989	-	LysR family transcriptional regulator
990	 29.56	0	1066500..1067453	+	317	167627215	-	Fphi_0990	-	LysR family transcriptional regulator
991	 31.78	0	1067530..1067979	+	149	167627216	-	Fphi_0992	-	hypothetical protein
992	 33.77	0	1067976..1069118	-	380	167627217	-	Fphi_0991	-	coproporphyrinogen dehydrogenase
993	 29.10	-1	1069120..1069497	-	125	167627218	-	Fphi_0993	-	GtrA-like protein
994	 34.13	0	1069568..1070446	+	292	167627219	-	Fphi_0994	-	hypothetical protein
995	 37.25	+1	1070551..1073355	+	934	167627220	-	Fphi_0995	-	aconitate hydratase
996	 37.03	+1	1073446..1074474	+	342	167627221	-	Fphi_0996	-	type IV pili nucleotide-binding protein
997	 33.62	0	1074629..1075675	-	348	167627222	-	Fphi_0997	-	NAD/FAD-dependent oxidoreductase
998	 27.29	-1	1075633..1076079	-	148	167627223	-	Fphi_0998	-	hypothetical protein
999	 33.44	0	1076090..1077049	-	319	167627224	-	Fphi_0999	-	cytochrome bd-II terminal oxidase subunit II
1000	 37.04	+1	1077052..1078428	-	458	167627225	-	Fphi_1000	-	cytochrome bd-II terminal oxidase subunit I
32.71	MEAN

3.22	STD DEV
