IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

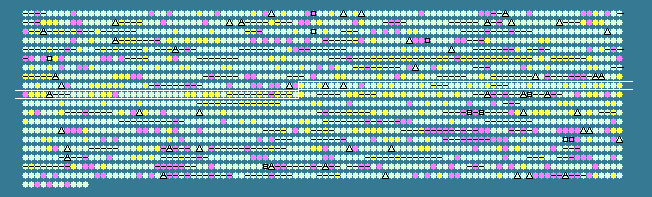

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No RNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.71   STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
847	 37.57	+1	903610..904317	-	235	167627072	-	Fphi_0848	-	hydrogenase accessory protein HypB
848	 33.92	0	904328..904666	-	112	167627073	-	Fphi_0849	-	hydrogenase nickel insertion protein HypA
849	 34.05	0	904803..906065	-	420	167627074	-	Fphi_0850	-	metabolite:H+ symporter (MHS) family protein
850	 39.34	+2	906245..907027	-	260	167627075	-	Fphi_0851	-	fkbp-type peptidyl-prolyl cis-trans isomerase family protein
851	 30.26	0	907166..908110	+	314	167627076	-	Fphi_0852	-	integrase, catalytic region
852	 34.30	0	908157..908672	-	171	167627077	-	Fphi_0853	-	B-type cytochrome
853	 31.07	0	908733..909218	-	161	167627078	-	Fphi_0854	-	Rieske (2Fe-2S) domain-containing protein
854	 30.26	0	909345..910289	+	314	167627079	-	Fphi_0856	-	integrase, catalytic region
855	 34.68	0	910233..910679	-	148	167627080	-	Fphi_0855	-	Rieske (2Fe-2S) domain-containing protein
856	 33.42	0	910770..911918	+	382	167627081	-	Fphi_0857	-	Na+:H+ antiporter
857	 29.17	-1	911982..912701	+	239	167627082	-	Fphi_0858	-	hypothetical protein
858	 33.20	0	912710..913450	-	246	167627083	-	Fphi_0859	-	acyltransferase
859	 33.07	0	913466..914218	-	250	167627084	-	Fphi_0860	-	acyltransferase
860	 37.35	+1	914379..914702	-	107	167627085	-	Fphi_0861	-	4Fe-4S ferredoxin
861	 32.57	0	914906..915562	+	218	167627086	-	Fphi_0862	-	hypothetical protein
862	 37.13	+1	915606..916763	-	385	167627087	-	Fphi_0863	-	phosphoribosylglycinamide formyltransferase 2
863	 36.08	+1	916850..919072	-	740	167627088	-	Fphi_0864	-	chitinase
864	 35.74	0	919223..921802	-	859	167627089	-	Fphi_0865	-	chaperone ClpB
865	 29.99	0	922017..922733	+	238	167627090	-	Fphi_0867	-	nicotinamide ribonucleoside (NR) uptake permease (PnuC) family protein
866	 35.93	0	922730..923539	-	269	167627091	-	Fphi_0866	-	tryptophan synthase subunit alpha
867	 38.12	+1	923542..924732	-	396	167627092	-	Fphi_0868	-	tryptophan synthase subunit beta
868	 31.41	0	924819..926324	-	501	167627093	-	Fphi_0869	-	carboxypeptidase Taq
869	 36.99	+1	926260..927654	-	464	167627094	-	Fphi_0870	-	chloride channel protein
870	 35.28	0	927756..928115	-	119	167627095	-	Fphi_0871	-	hypothetical protein
871	 34.31	0	928149..928559	-	136	167627096	-	Fphi_0872	-	hypothetical protein
872	 33.84	0	928577..928969	-	130	167627097	-	Fphi_0873	-	hypothetical protein
873	 31.90	0	929159..929716	+	185	167627098	-	Fphi_0874	-	nicotinamide ribonucleoside (NR) uptake permease (PnuC) family protein
874	 33.07	0	929717..930463	+	248	167627099	-	Fphi_0875	-	Mg-dependent DNase
875	 37.81	+1	930539..931477	+	312	167627100	-	Fphi_0876	-	prolyl aminopeptidase
876	 33.85	0	931921..933276	+	451	167627101	-	Fphi_0877	-	aspartate kinase
877	 33.78	0	933288..933959	+	223	167627102	-	Fphi_0878	-	dihydrodipicolinate reductase
878	 36.49	+1	933950..934837	+	295	167627103	-	Fphi_0879	-	dihydrodipicolinate synthase
879	 38.93	+1	934862..935611	+	249	167627104	-	Fphi_0880	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
880	 32.01	0	935616..936827	+	403	167627105	-	Fphi_0881	-	pyridoxal-dependent decarboxylase
881	 31.99	0	936846..938036	+	396	167627106	-	Fphi_0882	-	aspartate aminotransferase
882	 33.41	0	943420..944814	+	464	167627107	-	Fphi_0883	-	sugar phosphate antiporter
883	 29.42	-1	944815..945402	-	195	167627108	-	Fphi_0884	-	acyl carrier protein phosphodiesterase
884	 34.44	0	945693..947411	+	572	167627109	-	Fphi_0885	-	potassium-transporting ATPase subunit A
885	 36.67	+1	947424..949463	+	679	167627110	-	Fphi_0886	-	potassium-transporting ATPase B chain
886	 32.47	0	949480..950055	+	191	167627111	-	Fphi_0887	-	potassium-transporting ATPase
887	 32.92	0	950108..952798	+	896	167627112	-	Fphi_0888	-	two component sensor protein KdpD
888	 34.21	0	952816..953502	+	228	167627113	-	Fphi_0890	-	response regulator receiver protein
889	 30.87	0	953499..953945	-	148	167627114	-	Fphi_0889	-	hypothetical protein
890	 31.24	0	954075..955268	+	397	167627115	-	Fphi_0891	-	tyrosine permease
891	 37.61	+1	955344..956348	+	334	167627116	-	Fphi_0892	-	GTPase ObgE
892	 33.49	0	956356..958230	+	624	167627117	-	Fphi_0893	-	amino acid-polyamine-organocation (APC) superfamily protein
893	 31.42	0	958234..959904	+	556	167627118	-	Fphi_0895	-	ATP-binding cassette (ABC) superfamily protein
894	 36.20	+1	959894..961321	-	475	167627119	-	Fphi_0894	-	Na+:H+ antiporter
895	 35.02	0	961495..962679	+	394	167627120	-	Fphi_0896	-	drug:H+ antiporter-1 (DHA1) family protein
896	 36.30	+1	963134..963808	+	224	167627121	-	Fphi_0897	-	hypothetical protein
897	 37.35	+1	963859..965178	-	439	167627122	-	Fphi_0898	-	U32 family peptidase
898	 30.77	0	965583..965816	+	77	167627123	-	Fphi_0899	-	hypothetical protein
899	 33.33	0	966235..966855	+	206	167627124	-	Fphi_0900	-	protein-L-isoaspartate O-methyltransferase
900	 37.31	+1	966907..968391	+	494	167627125	-	Fphi_0901	-	outer membrane efflux protein, TolC precursor
901	 27.83	-1	968400..969053	+	217	167627126	-	Fphi_0902	-	4'-phosphopantetheinyl transferase family protein
902	 36.61	+1	969060..970400	+	446	167627127	-	Fphi_0903	-	glutamate decarboxylase
903	 36.75	+1	970493..971983	+	496	167627128	-	Fphi_0904	-	amidophosphoribosyltransferase
904	 39.75	+2	972382..975855	+	1157	167627129	-	Fphi_0905	-	phosphoribosylformylglycinamidine synthase
905	 30.26	0	976223..977167	+	314	167627130	-	Fphi_0906	-	integrase, catalytic region
906	 32.54	0	977151..977528	+	125	167627131	-	Fphi_0907	-	hypothetical protein
907	 35.19	0	977892..978752	+	286	167627132	-	Fphi_0908	-	galactose mutarotase
908	 32.43	0	978803..979579	-	258	167627133	-	Fphi_0909	-	hypothetical protein
909	 29.40	-1	979586..980221	-	211	167627134	-	Fphi_0910	-	hypothetical protein
910	 34.72	0	980518..981816	+	432	167627135	-	Fphi_0911	-	adenylosuccinate lyase
911	 30.46	0	981961..983526	+	521	167627136	-	Fphi_0912	-	putative ABC type bacteriocin/antibiotic exporter
912	 37.06	+1	983538..984611	+	357	167627137	-	Fphi_0913	-	membrane fusion protein
913	 32.62	0	984694..984975	+	93	167627138	-	Fphi_0914	-	Glu-tRNAGln amidotransferase C subunit
914	 36.51	+1	984984..986429	+	481	167627139	-	Fphi_0915	-	glutamyl-tRNA(Gln) and/or aspartyl-tRNA(Asn) amidotransferase, A subunit
915	 36.38	+1	986444..987853	+	469	167627140	-	Fphi_0916	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
916	 29.17	-1	987868..988275	+	135	167627141	-	Fphi_0917	-	hypothetical protein
917	 32.38	0	988286..989755	-	489	167627142	-	Fphi_0918	-	GDSL-like lipolytic enzyme
918	 35.53	0	989813..991315	-	500	167627143	-	Fphi_0919	-	hypothetical protein
919	 32.10	0	991413..992624	-	403	167627144	-	Fphi_0920	-	putative transmembrane transport protein
920	 32.82	0	992621..993010	-	129	167627145	-	Fphi_0921	-	hypothetical protein
921	 32.30	0	993007..995328	-	773	167627146	-	Fphi_0922	-	IucA/IucC
922	 32.19	0	995348..996664	-	438	167627147	-	Fphi_0923	-	L-lysine 6-monooxygenase (NADPH)
923	 31.23	0	996661..998370	-	569	167627148	-	Fphi_0924	-	IucA/IucC
924	 31.02	0	998367..999878	-	503	167627149	-	Fphi_0925	-	diaminobutyrate decarboxylase
925	 35.96	+1	999875..1001209	-	444	167627150	-	Fphi_0926	-	diaminobutyrate--2-oxoglutarate transaminase
926	 33.33	0	1001291..1002622	+	443	167627151	-	Fphi_0927	-	aspartate kinase
927	 32.62	0	1002626..1003045	-	139	167627152	-	Fphi_0928	-	ferric uptake regulation protein
928	 37.09	+1	1003271..1003669	+	132	167627153	-	Fphi_0929	-	NADH dehydrogenase I, A subunit
929	 42.56	+2	1003660..1004136	+	158	167627154	-	Fphi_0930	-	NADH dehydrogenase subunit B
930	 35.80	0	1004139..1004786	+	215	167627155	-	Fphi_0931	-	NADH dehydrogenase
931	 38.60	+1	1004805..1006058	+	417	167627156	-	Fphi_0932	-	NADH dehydrogenase subunit D
932	 36.20	+1	1006068..1006556	+	162	167627157	-	Fphi_0933	-	NADH dehydrogenase I, E subunit
933	 40.47	+2	1006563..1007837	+	424	167627158	-	Fphi_0934	-	NADH dehydrogenase (quinone)
934	 35.70	0	1007855..1010221	+	788	167627159	-	Fphi_0935	-	NADH dehydrogenase subunit G
935	 37.39	+1	1010223..1011233	+	336	167627160	-	Fphi_0936	-	NADH dehydrogenase (quinone)
936	 34.15	0	1011247..1011735	+	162	167627161	-	Fphi_0937	-	NADH dehydrogenase subunit I
937	 34.82	0	1011740..1012345	+	201	167627162	-	Fphi_0938	-	NADH dehydrogenase I, J subunit
938	 32.08	0	1012338..1012655	+	105	167627163	-	Fphi_0939	-	NADH dehydrogenase I, K subunit
939	 35.27	0	1012665..1014674	+	669	167627164	-	Fphi_0940	-	NADH dehydrogenase (quinone)
940	 36.54	+1	1014695..1016284	+	529	167627165	-	Fphi_0941	-	NADH dehydrogenase (quinone)
941	 34.50	0	1016300..1017751	+	483	167627166	-	Fphi_0942	-	NADH dehydrogenase (quinone)
942	 26.67	-1	1017827..1018021	+	64	167627167	-	Fphi_0943	-	hypothetical protein
943	 37.24	+1	1018023..1019531	+	502	167627168	-	Fphi_0944	-	magnesium chelatase
944	 35.85	0	1019566..1020600	+	344	167627169	-	Fphi_0945	-	uroporphyrinogen decarboxylase
945	 37.53	+1	1020814..1021266	+	150	167627170	-	Fphi_0946	-	hypothetical protein
946	 35.99	+1	1021282..1022751	+	489	167627171	-	Fphi_0947	-	transcription elongation factor NusA
32.71	MEAN

3.22	STD DEV
