IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

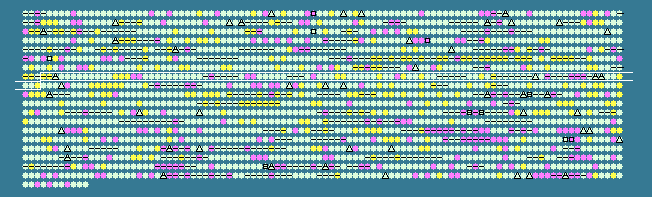

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No RNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.71   STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
704	 37.41	+1	748035..748574	-	179	167626929	-	Fphi_0707	-	outer membrane protein of unknown function
705	 36.59	+1	748666..749310	-	214	167626930	-	Fphi_0708	-	S49 family serine peptidase
706	 30.19	0	749486..750409	-	307	167626931	-	Fphi_0709	-	integrase, catalytic region
707	 33.61	0	750723..751079	+	118	167626932	-	Fphi_0710	-	ferredoxin
708	 35.39	0	751240..752937	+	565	167626933	-	Fphi_0711	-	indolepyruvate decarboxylase
709	 33.57	0	752953..754203	-	416	167626934	-	Fphi_0712	-	Na+/H+ antiporter
710	 34.83	0	754733..755803	+	356	167626935	-	Fphi_0713	-	pyrimidine reductase/pyrimidine deaminase
711	 33.33	0	755796..756401	+	201	167626936	-	Fphi_0714	-	riboflavin synthase subunit alpha
712	 35.97	+1	756394..757605	+	403	167626937	-	Fphi_0715	-	GTP cyclohydrolase II
713	 35.59	0	757609..758052	+	147	167626938	-	Fphi_0716	-	riboflavin synthase
714	 31.21	0	758056..758574	+	172	167626939	-	Fphi_0717	-	peptide deformylase
715	 33.65	0	758671..759615	+	314	167626940	-	Fphi_0718	-	hypothetical protein
716	 37.22	+1	759644..760723	-	359	167626941	-	Fphi_0719	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
717	 37.48	+1	760837..762621	-	594	167626942	-	Fphi_0720	-	GTP-binding protein LepA
718	 37.36	+1	762890..763162	+	90	167626943	-	Fphi_0721	-	30S ribosomal protein S20
719	 28.53	-1	763250..763603	+	117	167626944	-	Fphi_0722	-	hypothetical protein
720	 28.93	-1	763605..764921	-	438	167626945	-	Fphi_0723	-	hypothetical protein
721	 32.23	0	764949..765311	-	120	167626946	-	Fphi_0724	-	outer membrane lipoprotein
722	 35.85	0	765316..765912	-	198	167626947	-	Fphi_0725	-	phosphoheptose isomerase
723	 31.25	0	766094..768394	+	766	167626948	-	Fphi_0726	-	hypothetical protein
724	 30.99	0	768458..769609	-	383	167626949	-	Fphi_0727	-	drug:H+ antiporter-1 (DHA1) family protein
725	 29.57	0	769707..770609	+	300	167626950	-	Fphi_0728	-	LysR family transcriptional regulator
726	 30.67	0	770684..771697	+	337	167626951	-	Fphi_0730	-	hypothetical protein
727	 31.39	0	771694..772362	-	222	167626952	-	Fphi_0729	-	hypothetical protein
728	 34.47	0	772362..772976	-	204	167626953	-	Fphi_0731	-	methyltransferase GidB
729	 34.16	0	773075..774280	+	401	167626954	-	Fphi_0733	-	hydroxy/aromatic amino acid permease (HAAAP) family protein
730	 35.69	0	774277..774954	-	225	167626955	-	Fphi_0732	-	hypothetical protein
731	 34.53	0	775336..776001	+	221	167626956	-	Fphi_0734	-	nitroreductase
732	 28.69	-1	776064..777011	+	315	167626957	-	Fphi_0735	-	LysR family transcriptional regulator
733	 29.82	0	777015..777527	-	170	167626958	-	Fphi_0736	-	cytochrome b561 family protein
734	 35.24	0	777611..778606	-	331	167626959	-	Fphi_0737	-	inorganic phosphate transporter (PiT) family protein
735	 31.96	0	778628..779284	-	218	167626960	-	Fphi_0738	-	hypothetical protein
736	 34.57	0	779608..781143	+	511	167626961	-	Fphi_0739	-	phospholipase C
737	 35.48	0	781179..782666	+	495	167626962	-	Fphi_0740	-	hypothetical protein
738	 28.18	-1	782682..783380	+	232	167626963	-	Fphi_0742	-	hypothetical protein
739	 28.53	-1	783377..783751	-	124	167626964	-	Fphi_0741	-	diacylglycerol kinase
740	 31.52	0	783757..785406	-	549	167626965	-	Fphi_0743	-	sulfatase
741	 34.18	0	785483..786307	-	274	167626966	-	Fphi_0744	-	allophanate hydrolase subunit 2
742	 33.91	0	786312..787010	-	232	167626967	-	Fphi_0745	-	hypothetical protein
743	 30.58	0	787010..787627	-	205	167626968	-	Fphi_0746	-	allophanate hydrolase subunit 1
744	 34.07	0	787663..788889	-	408	167626969	-	Fphi_0747	-	metabolite:H+ symporter (MHS) family protein
745	 34.77	0	789017..789853	-	278	167626970	-	Fphi_0748	-	universal stress protein
746	 31.03	0	789928..792666	-	912	167626971	-	Fphi_0749	-	DNA/RNA helicase
747	 34.12	0	792673..793434	-	253	167626972	-	Fphi_0750	-	hypothetical protein
748	 35.44	0	793499..794068	-	189	167626973	-	Fphi_0751	-	hypothetical protein
749	 29.22	-1	794146..794898	+	250	167626974	-	Fphi_0752	-	hypothetical protein
750	 35.99	+1	794916..795782	-	288	167626975	-	Fphi_0753	-	SAM-dependent methyltransferase
751	 34.51	0	795775..797133	-	452	167626976	-	Fphi_0754	-	UDP-N-acetylmuramate-alanine ligase
752	 31.79	0	797203..797979	-	258	167626977	-	Fphi_0755	-	shikimate 5-dehydrogenase
753	 39.65	+2	798101..798559	+	152	167626978	-	Fphi_0756	-	hypothetical protein
754	 37.78	+1	798651..798785	+	44	167626979	-	Fphi_0757	-	50S ribosomal protein L34
755	 29.94	0	798775..799128	+	117	167626980	-	Fphi_0758	-	ribonuclease P protein component
756	 31.58	0	799080..799364	+	94	167626981	-	Fphi_0759	-	hypothetical protein
757	 34.42	0	799361..801016	+	551	167626982	-	Fphi_0760	-	membrane protein of unknown function
758	 32.34	0	801018..801920	+	300	167626983	-	Fphi_0761	-	acyltransferase
759	 32.90	0	801981..802904	+	307	167626984	-	Fphi_0762	-	LPS fatty acid acyltransferase
760	 36.67	+1	802882..803331	+	149	167626985	-	Fphi_0763	-	type IV pili, pilus assembly protein
761	 34.04	0	803364..803933	+	189	167626986	-	Fphi_0764	-	elongation factor P
762	 31.66	0	803938..804474	+	178	167626987	-	Fphi_0765	-	oligoribonuclease
763	 25.67	-2	804602..804901	+	99	167626988	-	Fphi_0766	-	hypothetical protein
764	 37.02	+1	805116..807749	+	877	167626989	-	Fphi_0767	-	pyruvate phosphate dikinase
765	 34.46	0	808143..809030	+	295	167626990	-	Fphi_0768	-	branched-chain amino acid aminotransferase protein (class IV)
766	 33.59	0	809042..810622	+	526	167626991	-	Fphi_0769	-	2-isopropylmalate synthase
767	 36.81	+1	810624..812033	+	469	167626992	-	Fphi_0770	-	isopropylmalate isomerase large subunit
768	 32.81	0	812036..812605	+	189	167626993	-	Fphi_0771	-	3-isopropylmalate dehydratase
769	 35.00	0	812607..813686	+	359	167626994	-	Fphi_0772	-	3-isopropylmalate dehydrogenase
770	 30.36	0	813700..815043	-	447	167626995	-	Fphi_0773	-	alkaline phosphatase
771	 31.70	0	815285..817000	+	571	167626996	-	Fphi_0774	-	beta-fructofuranosidase
772	 32.55	0	816975..818255	+	426	167626997	-	Fphi_0776	-	major facilitator superfamily (MFS) transporter family protein
773	 29.73	0	818230..819645	-	471	167626998	-	Fphi_0775	-	hypothetical protein
774	 32.65	0	819738..820175	+	145	167626999	-	Fphi_0777	-	D-tyrosyl-tRNA deacylase
775	 34.52	0	820178..821017	+	279	167627000	-	Fphi_0779	-	prephenate dehydrogenase
776	 31.86	0	821008..821481	-	157	167627001	-	Fphi_0778	-	hypothetical protein
777	 36.71	+1	821485..822225	-	246	167627002	-	Fphi_0780	-	dihydroorotate oxidase
778	 35.07	0	822227..822859	-	210	167627003	-	Fphi_0781	-	orotidine-5'-phosphate decarboxylase
779	 36.21	+1	823154..826528	+	1124	167627004	-	Fphi_0782	-	hypothetical protein
780	 31.49	0	826566..827108	-	180	167627005	-	Fphi_0783	-	hypothetical protein
781	 35.10	0	827248..827871	+	207	167627006	-	Fphi_0784	-	hypothetical protein
782	 33.11	0	827881..828774	-	297	167627007	-	Fphi_0785	-	LysR family transcriptional regulator
783	 29.41	-1	828871..829278	+	135	167627008	-	Fphi_0786	-	hypothetical protein
784	 29.61	0	829354..830319	+	321	167627009	-	Fphi_0787	-	HlyD family membrane fusion protein
785	 31.46	0	830306..831370	+	354	167627010	-	Fphi_0788	-	hypothetical protein
786	 30.26	0	831415..832359	-	314	167627011	-	Fphi_0789	-	integrase, catalytic region
787	 34.27	0	832521..834017	+	498	167627012	-	Fphi_0790	-	GDSL-like lipolytic enzyme
788	 25.64	-2	834683..834916	+	77	167627013	-	Fphi_1914	-	hypothetical protein
789	 30.46	0	835039..836256	+	405	167627014	-	Fphi_0791	-	hypothetical protein
790	 34.37	0	836421..837095	+	224	167627015	-	Fphi_0792	-	hypothetical protein
791	 33.08	0	837332..838135	+	267	167627016	-	Fphi_0793	-	hypothetical protein
792	 26.70	-1	838352..839587	-	411	167627017	-	Fphi_0794	-	Signal transduction histidine kinase-like protein
793	 25.67	-2	839718..840317	-	199	167627018	-	Fphi_0795	-	hypothetical protein
794	 27.47	-1	840319..841341	-	340	167627019	-	Fphi_0796	-	hypothetical protein
795	 30.49	0	841347..841943	-	198	167627020	-	Fphi_0797	-	response regulator receiver protein
796	 29.80	0	842097..842492	+	131	167627021	-	Fphi_0798	-	integrase, catalytic region
797	 29.89	0	842577..843041	+	154	167627022	-	Fphi_0799	-	integrase, catalytic region
798	 33.61	0	843466..846036	-	856	167627023	-	Fphi_0800	-	hypothetical protein
799	 34.02	0	846577..847449	+	290	167627024	-	Fphi_0801	-	alpha/beta fold family hydrolase
800	 37.79	+1	847704..849050	-	448	167627025	-	Fphi_0802	-	dihydroorotase
801	 33.18	0	849304..849975	+	223	167627026	-	Fphi_0803	-	thiopurine S-methyltransferase
802	 32.52	0	849982..851085	-	367	167627027	-	Fphi_0804	-	acid phosphatase
803	 36.25	+1	851744..852910	+	388	167627028	-	Fphi_0805	-	carbamoyl phosphate synthase small subunit
32.71	MEAN

3.22	STD DEV
