IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

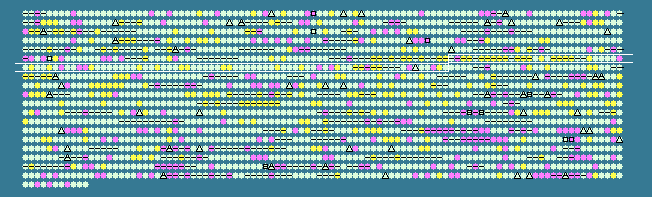

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.71 STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
572	 29.37	-1	618651..618902	-	83	167626797	-	Fphi_0578	-	30S ribosomal protein S17
573	 28.86	-1	618914..619114	-	66	167626798	-	Fphi_1925	-	50S ribosomal protein L29
574	 41.79	+2	619114..619527	-	137	167626799	-	Fphi_0579	-	50S ribosomal protein L16
575	 37.67	+1	619527..620195	-	222	167626800	-	Fphi_0580	-	30S ribosomal protein S3
576	 33.63	0	620210..620545	-	111	167626801	-	Fphi_0581	-	50S ribosomal protein L22
577	 37.63	+1	620561..620839	-	92	167626802	-	Fphi_0582	-	30S ribosomal protein S19
578	 40.00	+2	620854..621678	-	274	167626803	-	Fphi_0583	-	50S ribosomal protein L2
579	 37.00	+1	621699..621998	-	99	167626804	-	Fphi_0584	-	50S ribosomal protein L23
580	 37.02	+1	621995..622618	-	207	167626805	-	Fphi_0585	-	50S ribosomal protein L4
581	 39.49	+2	622651..623283	-	210	167626806	-	Fphi_0586	-	50S ribosomal protein L3
582	 33.96	0	623388..623705	-	105	167626807	-	Fphi_0587	-	30S ribosomal protein S10
583	 41.08	+2	623725..625842	-	705	167626808	-	Fphi_0588	-	elongation factor G
584	 38.61	+1	625857..626330	-	157	167626809	-	Fphi_0589	-	30S ribosomal protein S7
585	 42.67	+2	626369..626743	-	124	167626810	-	Fphi_0590	-	30S ribosomal protein S12
586	 35.85	0	626879..627475	-	198	167626811	-	Fphi_0591	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
587	 40.27	+2	627479..627925	-	148	167626812	-	Fphi_0592	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
588	 34.84	0	627940..628734	-	264	167626813	-	Fphi_0593	-	phosphatidate cytidylyltransferase
589	 37.13	+1	628731..629468	-	245	167626814	-	Fphi_0594	-	di-trans,poly-cis-decaprenylcistransferase
590	 36.20	+1	629552..630109	-	185	167626815	-	Fphi_0595	-	ribosome recycling factor
591	 39.60	+2	630138..630887	-	249	167626816	-	Fphi_0596	-	uridylate kinase
592	 38.97	+1	630891..631760	-	289	167626817	-	Fphi_0597	-	elongation factor Ts
593	 34.75	0	631782..632555	-	257	167626818	-	Fphi_0598	-	30S ribosomal protein S2
594	 31.53	0	632740..633237	+	165	167626819	-	Fphi_0600	-	dihydrofolate reductase
595	 38.89	+1	633234..634169	-	311	167626820	-	Fphi_0599	-	cysteine synthase A
596	 36.03	+1	634284..634802	+	172	167626821	-	Fphi_0601	-	Serine O-acetyltransferase
597	 34.64	0	634990..636444	-	484	167626822	-	Fphi_0602	-	hypothetical protein
598	 36.03	+1	637046..638455	-	469	167626823	-	Fphi_0603	-	glutamyl-tRNA synthetase
599	 35.85	0	638587..640056	-	489	167626824	-	Fphi_0604	-	fumarate hydratase
600	 24.53	-2	640133..640825	+	230	167626825	-	Fphi_0605	-	hypothetical protein
601	 32.72	0	640924..641577	+	217	167626826	-	Fphi_0606	-	dihydropteridine reductase
602	 36.21	+1	641636..642784	+	382	167626827	-	Fphi_0607	-	L-lactate dehydrogenase
603	 35.25	0	642787..644037	-	416	167626828	-	Fphi_0608	-	glutamate-5-semialdehyde dehydrogenase
604	 35.19	0	644038..645168	-	376	167626829	-	Fphi_0609	-	gamma-glutamyl kinase
605	 36.69	+1	645280..645666	-	128	167626830	-	Fphi_0610	-	putative MutT/NUDIX hydrolase
606	 33.33	0	645671..646363	-	230	167626831	-	Fphi_0611	-	hypothetical protein
607	 28.23	-1	646368..646700	-	110	167626832	-	Fphi_0612	-	hypothetical protein
608	 32.66	0	646927..649461	+	844	167626833	-	Fphi_0613	-	phosphoenolpyruvate carboxylase
609	 32.02	0	649476..650084	-	202	167626834	-	Fphi_0614	-	mobilization/cell filamentation protein-like protein
610	 28.26	-1	650084..650536	-	150	167626835	-	Fphi_0615	-	hypothetical protein
611	 25.86	-2	650533..651027	-	164	167626836	-	Fphi_0616	-	hypothetical protein
612	 37.17	+1	651027..653786	-	919	167626837	-	Fphi_0617	-	valyl-tRNA synthetase
613	 32.42	0	653927..654364	-	145	167626838	-	Fphi_0618	-	DNA polymerase III (chi subunit) protein
614	 32.65	0	654461..654901	-	146	167626839	-	Fphi_0619	-	hypothetical protein
615	 30.64	0	654932..655414	-	160	167626840	-	Fphi_0620	-	hypothetical protein
616	 33.18	0	655416..656078	-	220	167626841	-	Fphi_0621	-	pyroglutamyl-peptidase I
617	 32.47	0	656088..657710	-	540	167626842	-	Fphi_0622	-	hypothetical protein
618	 30.20	0	657700..658593	-	297	167626843	-	Fphi_0623	-	TPR repeat-containing protein
619	 34.83	0	658584..659582	-	332	167626844	-	Fphi_0624	-	hypothetical protein
620	 38.02	+1	659584..660585	-	333	167626845	-	Fphi_0625	-	IMP dehydrogenase/GMP reductase:von Willebrand factor, type A
621	 31.87	0	660582..661058	-	158	167626846	-	Fphi_0626	-	hypothetical protein
622	 32.46	0	661048..661959	-	303	167626847	-	Fphi_0627	-	hypothetical protein
623	 38.56	+1	661970..662926	-	318	167626848	-	Fphi_0628	-	MoxR-like ATPase
624	 31.25	0	663074..663505	+	143	167626849	-	Fphi_0629	-	hypothetical protein
625	 33.45	0	663507..664358	+	283	167626850	-	Fphi_0630	-	pyridoxal kinase
626	 30.17	0	664358..665053	+	231	167626851	-	Fphi_0631	-	hypothetical protein
627	 37.44	+1	665125..666171	+	348	167626852	-	Fphi_0632	-	UDP-3-O-(3-fatty acid) glucosamine N-acyltransferase
628	 38.29	+1	666549..668303	+	584	167626853	-	Fphi_0633	-	cytochrome d ubiquinol oxidase subunit I
629	 35.92	0	668314..669510	+	398	167626854	-	Fphi_0634	-	alkaline phosphatase
630	 31.19	0	669695..670441	+	248	167626855	-	Fphi_0635	-	polar amino acid uptake transporter
631	 32.92	0	670454..672610	-	718	167626856	-	Fphi_0636	-	primosomal protein N'
632	 30.72	0	672610..673182	-	190	167626857	-	Fphi_0637	-	nicotinamide ribonucleoside (NR) uptake permease (PnuC) family protein
633	 30.16	0	673202..674398	-	398	167626858	-	Fphi_0638	-	tRNA processing ribonuclease BN
634	 37.39	+1	674411..675001	+	196	167626859	-	Fphi_0639	-	trp repressor binding protein
635	 37.04	+1	675013..675471	+	152	167626860	-	Fphi_0640	-	outer membrane protein
636	 33.99	0	675610..676833	+	407	167626861	-	Fphi_0641	-	major facilitator transporter
637	 34.09	0	676905..677825	+	306	167626862	-	Fphi_0642	-	manganese/zinc/iron chelate uptake transporter family protein
638	 32.74	0	677827..678504	+	225	167626863	-	Fphi_0643	-	ABC transporter, ATP-binding protein
639	 34.38	0	678425..679288	+	287	167626864	-	Fphi_0644	-	permease of ABC transporter
640	 35.86	0	679345..680097	+	250	167626865	-	Fphi_0645	-	dienelactone hydrolase family protein
641	 33.52	0	680475..681017	-	180	167626866	-	Fphi_0646	-	hypoxanthine phosphoribosyltransferase
642	 35.04	0	681020..682306	-	428	167626867	-	Fphi_0647	-	adenylosuccinate synthetase
643	 38.50	+1	682484..684031	+	515	167626868	-	Fphi_0648	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
644	 32.55	0	684099..685367	-	422	167626869	-	Fphi_0649	-	serine permease
645	 32.97	0	685472..686017	-	181	167626870	-	Fphi_0650	-	outer membrane lipoprotein
646	 30.57	0	686075..687052	+	325	167626871	-	Fphi_0651	-	DNA polymerase III, delta subunit
647	 38.63	+1	687165..688202	+	345	167626872	-	Fphi_0652	-	glutamate--ammonia ligase
648	 34.76	0	688276..689820	+	514	167626873	-	Fphi_0653	-	glutaminase
649	 32.23	0	689963..690505	+	180	167626874	-	Fphi_0654	-	hypothetical protein
650	 24.07	-2	690561..690884	-	107	167626875	-	Fphi_1926	-	hypothetical protein
651	 34.94	0	690901..692583	-	560	167626876	-	Fphi_0655	-	lysyl-tRNA synthetase
652	 25.26	-2	692659..692943	-	94	167626877	-	Fphi_0656	-	endonuclease
653	 38.33	+1	692998..694038	-	346	167626878	-	Fphi_0657	-	peptide chain release factor 2
654	 34.36	0	694246..695901	+	551	167626879	-	Fphi_0659	-	DNA-directed DNA polymerase
655	 33.68	0	695898..696755	-	285	167626880	-	Fphi_0658	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
656	 39.15	+2	696977..698110	-	377	167626881	-	Fphi_0660	-	cell division protein FtsZ
657	 36.66	+1	698151..699413	-	420	167626882	-	Fphi_0661	-	cell division protein FtsA
658	 28.22	-1	699515..700198	-	227	167626883	-	Fphi_0662	-	cell division protein FtsQ
659	 37.47	+1	700192..701085	-	297	167626884	-	Fphi_0663	-	D-alanine--D-alanine ligase
660	 36.36	+1	701092..701520	-	142	167626885	-	Fphi_0664	-	zinc-binding protein
661	 35.88	0	701687..703372	+	561	167626886	-	Fphi_0665	-	30S ribosomal protein S1
662	 32.78	0	703496..704038	+	180	167626887	-	Fphi_0666	-	putative SUA5/YciO/YrdC family protein
663	 31.10	0	704132..704668	+	178	167626888	-	Fphi_0667	-	membrane protein of unknown function
664	 30.20	0	704894..705787	-	297	167626889	-	Fphi_0668	-	1-acylglycerol-3-phosphate acyltransferase
665	 27.76	-1	705880..707046	-	388	167626890	-	Fphi_0669	-	competence protein
666	 30.16	0	707049..707993	-	314	167626891	-	Fphi_0670	-	integrase, catalytic region
667	 31.07	0	708061..708942	-	293	167626892	-	Fphi_0671	-	competence-related protein
668	 30.48	0	709097..710566	+	489	167626893	-	Fphi_0672	-	glutathione synthase/ribosomal protein S6 modification enzyme
669	 25.46	-2	710553..710984	+	143	167626894	-	Fphi_0673	-	acetyltransferase GNAT family protein
670	 36.41	+1	711416..713140	+	574	167626895	-	Fphi_0674	-	ABC-type anion transport system, duplicated permease component
671	 34.23	0	713169..713951	+	260	167626896	-	Fphi_0676	-	ABC-type nitrate/sulfonate/bicarbonate transport system, ATPase component
32.71	MEAN

3.22	STD DEV
