IslandPathversion 1.0

IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

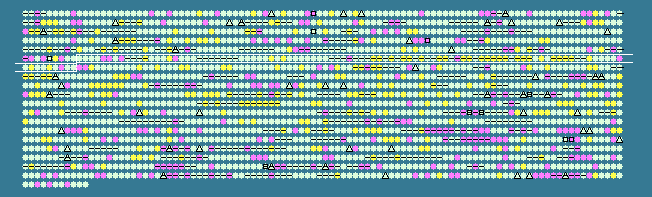

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.71 STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
510	 33.99	0	559026..560405	-	459	167626735	-	Fphi_0516	-	cysteine--tRNA ligase
511	 35.63	0	560483..562570	-	695	167626736	-	Fphi_0517	-	hypothetical protein
512	 31.92	0	562580..563500	-	306	167626737	-	Fphi_0518	-	hypothetical protein
513	 35.95	+1	563514..564239	-	241	167626738	-	Fphi_0519	-	pilus assembly protein
514	 26.92	-1	564325..564948	-	207	167626739	-	Fphi_0520	-	pilus assembly protein
515	 29.21	-1	564958..566364	-	468	167626740	-	Fphi_0521	-	pilus assembly protein
516	 30.49	0	566361..567275	-	304	167626741	-	Fphi_0522	-	pilus assembly protein
517	 27.92	-1	567259..567609	-	116	167626742	-	Fphi_0523	-	hypothetical protein
518	 31.78	0	567697..568980	-	427	167626743	-	Fphi_0524	-	HlyC/CorC family transporter-associated protein
519	 30.71	0	568991..570670	-	559	167626744	-	Fphi_0525	-	glycosyl transferase, group 2
520	 35.86	0	570735..572201	-	488	167626745	-	Fphi_0526	-	proline:Na+ symporter
521	 40.12	+2	572377..573363	-	328	167626746	-	Fphi_0527	-	fructose 1,6-bisphosphatase II
522	 34.27	0	573384..574022	-	212	167626747	-	Fphi_0528	-	hypothetical protein
523	 35.81	0	574034..575488	-	484	167626748	-	Fphi_0529	-	lysine:H+ symporter
524	 34.54	0	575749..576411	-	220	167626749	-	Fphi_0530	-	phosphatidic acid phosphatase PAP2 superfamily protein
525	 36.90	+1	576533..578998	+	821	167626750	-	Fphi_0531	-	cell division protein
526	 27.51	-1	578999..579616	+	205	167626751	-	Fphi_0532	-	lipoprotein releasing system, subunit A
527	 30.68	0	579902..581218	-	438	167626752	-	Fphi_0533	-	membrane protein of unknown function
528	 32.84	0	581341..581541	-	66	167626753	-	Fphi_0534	-	hypothetical protein
529	 35.88	0	581658..583109	+	483	167626754	-	Fphi_0535	-	K+ transporter (trk) family protein
530	 30.02	0	583115..583597	-	160	167626755	-	Fphi_0536	-	putative lipoprotein
531	 33.33	0	583687..584385	-	232	167626756	-	Fphi_0537	-	activator of osmoprotectant transporter ProP
532	 35.13	0	584848..585738	-	296	167626757	-	Fphi_0538	-	hypothetical protein
533	 32.00	0	585763..586212	-	149	167626758	-	Fphi_0539	-	hypothetical protein
534	 32.83	0	586221..586616	-	131	167626759	-	Fphi_0540	-	hypothetical protein
535	 34.43	0	586803..587531	+	242	167626760	-	Fphi_0541	-	phenol 2-monooxygenase
536	 30.12	0	587618..587866	+	82	167626761	-	Fphi_0542	-	50S ribosomal protein L31
537	 31.81	0	587966..589471	-	501	167626762	-	Fphi_0543	-	glutamate--cysteine ligase
538	 29.71	0	589523..591067	-	514	167626763	-	Fphi_0544	-	multidrug/oligosaccharidyl-lipid/polysaccharide (MOP) transporter
539	 35.99	+1	591092..592294	-	400	167626764	-	Fphi_0545	-	hypothetical protein
540	 33.60	0	592377..592754	-	125	167626765	-	Fphi_0546	-	hypothetical protein
541	 33.00	0	592762..593946	-	394	167626766	-	Fphi_0547	-	dihydrofolate synthase
542	 37.76	+1	593961..594863	-	300	167626767	-	Fphi_0548	-	acetyl-CoA carboxylase, carboxytransferase subunit beta
543	 36.17	+1	594903..595325	-	140	167626768	-	Fphi_0549	-	nucleoside-diphosphate kinase
544	 36.26	+1	595398..597038	-	546	167626769	-	Fphi_0550	-	CTP synthetase
545	 34.39	0	597198..598709	+	503	167626770	-	Fphi_0551	-	hypothetical protein
546	 35.80	0	598816..600072	+	418	167626771	-	Fphi_0552	-	argininosuccinate synthase
547	 33.84	0	600077..601270	+	397	167626772	-	Fphi_0553	-	argininosuccinate lyase
548	 32.02	0	601382..601837	+	151	167626773	-	Fphi_0555	-	arginine repressor
549	 33.50	0	601826..603010	-	394	167626774	-	Fphi_0554	-	ornithine aminotransferase
550	 31.48	0	603155..604180	+	341	167626775	-	Fphi_0556	-	N-acetyl-gamma-glutamyl-phosphate reductase
551	 34.68	0	604195..605385	+	396	167626776	-	Fphi_0557	-	amino-acid N-acetyltransferase
552	 30.86	0	605382..606188	+	268	167626777	-	Fphi_0558	-	acetylglutamate kinase
553	 32.45	0	606185..607093	+	302	167626778	-	Fphi_0559	-	ornithine carbamoyltransferase
554	 32.75	0	607145..609031	-	628	167626779	-	Fphi_0560	-	heat shock protein 90
555	 26.73	-1	609147..609827	-	226	167626780	-	Fphi_0561	-	ion transport protein
556	 34.25	0	609940..610377	-	145	167626781	-	Fphi_0562	-	50S ribosomal protein L17
557	 31.29	0	610424..611401	-	325	167626782	-	Fphi_0563	-	DNA-directed RNA polymerase subunit alpha
558	 35.27	0	611458..612078	-	206	167626783	-	Fphi_0564	-	30S ribosomal protein S4
559	 36.67	+1	612100..612489	-	129	167626784	-	Fphi_0565	-	30S ribosomal protein S11
560	 37.82	+1	612526..612882	-	118	167626785	-	Fphi_0566	-	30S ribosomal protein S13
561	 34.54	0	613135..614460	-	441	167626786	-	Fphi_0567	-	preprotein translocase subunit SecY
562	 36.57	+1	614471..614902	-	143	167626787	-	Fphi_0568	-	50S ribosomal protein L15
563	 31.72	0	614909..615094	-	61	167626788	-	Fphi_0569	-	50S ribosomal protein L30
564	 38.32	+1	615101..615601	-	166	167626789	-	Fphi_0570	-	30S ribosomal protein S5
565	 37.01	+1	615629..615982	-	117	167626790	-	Fphi_0571	-	50S ribosomal protein L18
566	 35.38	0	616005..616541	-	178	167626791	-	Fphi_0572	-	50S ribosomal protein L6
567	 36.59	+1	616561..616959	-	132	167626792	-	Fphi_0573	-	30S ribosomal protein S8
568	 34.97	0	616975..617280	-	101	167626793	-	Fphi_0574	-	30S ribosomal protein S14
569	 32.78	0	617299..617838	-	179	167626794	-	Fphi_0575	-	50S ribosomal protein L5
570	 36.48	+1	617851..618168	-	105	167626795	-	Fphi_0576	-	50S ribosomal protein L24
571	 37.94	+1	618192..618560	-	122	167626796	-	Fphi_0577	-	50S ribosomal protein L14
572	 29.37	-1	618651..618902	-	83	167626797	-	Fphi_0578	-	30S ribosomal protein S17
573	 28.86	-1	618914..619114	-	66	167626798	-	Fphi_1925	-	50S ribosomal protein L29
574	 41.79	+2	619114..619527	-	137	167626799	-	Fphi_0579	-	50S ribosomal protein L16
575	 37.67	+1	619527..620195	-	222	167626800	-	Fphi_0580	-	30S ribosomal protein S3
576	 33.63	0	620210..620545	-	111	167626801	-	Fphi_0581	-	50S ribosomal protein L22
577	 37.63	+1	620561..620839	-	92	167626802	-	Fphi_0582	-	30S ribosomal protein S19
578	 40.00	+2	620854..621678	-	274	167626803	-	Fphi_0583	-	50S ribosomal protein L2
579	 37.00	+1	621699..621998	-	99	167626804	-	Fphi_0584	-	50S ribosomal protein L23
580	 37.02	+1	621995..622618	-	207	167626805	-	Fphi_0585	-	50S ribosomal protein L4
581	 39.49	+2	622651..623283	-	210	167626806	-	Fphi_0586	-	50S ribosomal protein L3
582	 33.96	0	623388..623705	-	105	167626807	-	Fphi_0587	-	30S ribosomal protein S10
583	 41.08	+2	623725..625842	-	705	167626808	-	Fphi_0588	-	elongation factor G
584	 38.61	+1	625857..626330	-	157	167626809	-	Fphi_0589	-	30S ribosomal protein S7
585	 42.67	+2	626369..626743	-	124	167626810	-	Fphi_0590	-	30S ribosomal protein S12
586	 35.85	0	626879..627475	-	198	167626811	-	Fphi_0591	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
587	 40.27	+2	627479..627925	-	148	167626812	-	Fphi_0592	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
588	 34.84	0	627940..628734	-	264	167626813	-	Fphi_0593	-	phosphatidate cytidylyltransferase
589	 37.13	+1	628731..629468	-	245	167626814	-	Fphi_0594	-	di-trans,poly-cis-decaprenylcistransferase
590	 36.20	+1	629552..630109	-	185	167626815	-	Fphi_0595	-	ribosome recycling factor
591	 39.60	+2	630138..630887	-	249	167626816	-	Fphi_0596	-	uridylate kinase
592	 38.97	+1	630891..631760	-	289	167626817	-	Fphi_0597	-	elongation factor Ts
593	 34.75	0	631782..632555	-	257	167626818	-	Fphi_0598	-	30S ribosomal protein S2
594	 31.53	0	632740..633237	+	165	167626819	-	Fphi_0600	-	dihydrofolate reductase
595	 38.89	+1	633234..634169	-	311	167626820	-	Fphi_0599	-	cysteine synthase A
596	 36.03	+1	634284..634802	+	172	167626821	-	Fphi_0601	-	Serine O-acetyltransferase
597	 34.64	0	634990..636444	-	484	167626822	-	Fphi_0602	-	hypothetical protein
598	 36.03	+1	637046..638455	-	469	167626823	-	Fphi_0603	-	glutamyl-tRNA synthetase
599	 35.85	0	638587..640056	-	489	167626824	-	Fphi_0604	-	fumarate hydratase
600	 24.53	-2	640133..640825	+	230	167626825	-	Fphi_0605	-	hypothetical protein
601	 32.72	0	640924..641577	+	217	167626826	-	Fphi_0606	-	dihydropteridine reductase
602	 36.21	+1	641636..642784	+	382	167626827	-	Fphi_0607	-	L-lactate dehydrogenase
603	 35.25	0	642787..644037	-	416	167626828	-	Fphi_0608	-	glutamate-5-semialdehyde dehydrogenase
604	 35.19	0	644038..645168	-	376	167626829	-	Fphi_0609	-	gamma-glutamyl kinase
605	 36.69	+1	645280..645666	-	128	167626830	-	Fphi_0610	-	putative MutT/NUDIX hydrolase
606	 33.33	0	645671..646363	-	230	167626831	-	Fphi_0611	-	hypothetical protein
607	 28.23	-1	646368..646700	-	110	167626832	-	Fphi_0612	-	hypothetical protein
608	 32.66	0	646927..649461	+	844	167626833	-	Fphi_0613	-	phosphoenolpyruvate carboxylase
609	 32.02	0	649476..650084	-	202	167626834	-	Fphi_0614	-	mobilization/cell filamentation protein-like protein
32.71	MEAN

3.22	STD DEV
