IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

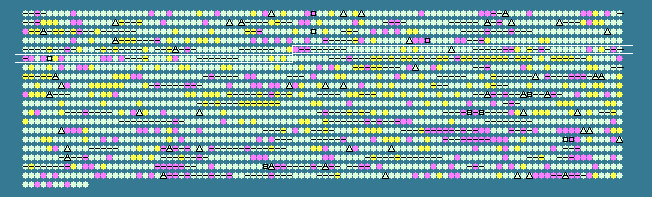

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.71 STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
446	 27.91	-1	504871..505386	+	171	167626671	-	Fphi_0452	-	chorismate lyase
447	 29.14	-1	505376..506233	+	285	167626672	-	Fphi_0453	-	prenyltransferase
448	 27.22	-1	506248..506607	+	119	167626673	-	Fphi_0454	-	hypothetical protein
449	 30.81	0	506625..507020	+	131	167626674	-	Fphi_0455	-	hypothetical protein
450	 30.92	0	507017..507430	+	137	167626675	-	Fphi_0456	-	hypothetical protein
451	 31.23	0	507567..508325	-	252	167626676	-	Fphi_0457	-	hypothetical protein
452	 29.49	0	508342..508965	-	207	167626677	-	Fphi_0458	-	hypothetical protein
453	 29.99	0	509014..509940	-	308	167626678	-	Fphi_0459	-	bile acid symporter family protein
454	 34.78	0	510071..510208	-	45	167626679	-	Fphi_0460	-	hypothetical protein
455	 35.49	0	510205..511734	-	509	167626680	-	Fphi_0461	-	deoxyribodipyrimidine photolyase-related protein
456	 35.40	0	511734..513233	-	499	167626681	-	Fphi_0462	-	deoxyribodipyrimidine photo-lyase
457	 31.17	0	513214..513444	-	76	167626682	-	Fphi_0463	-	hypothetical protein
458	 34.99	0	513468..514190	-	240	167626683	-	Fphi_0464	-	hypothetical protein
459	 35.61	0	514293..515612	-	439	167626684	-	Fphi_0465	-	2-alkenal reductase
460	 34.60	0	515714..516343	-	209	167626685	-	Fphi_0466	-	OmpA family peptidoglycan-associated lipoprotein
461	 34.55	0	516359..516604	-	81	167626686	-	Fphi_0467	-	hypothetical protein
462	 31.65	0	516614..517921	-	435	167626687	-	Fphi_0468	-	group A colicin translocation; TolB protein
463	 35.73	0	517937..518770	-	277	167626688	-	Fphi_0469	-	group A colicin translocation; TolA protein
464	 36.28	+1	518757..519197	-	146	167626689	-	Fphi_0470	-	group A colicin translocation; TolR protein
465	 35.73	0	519214..519921	-	235	167626690	-	Fphi_0471	-	group A colicin translocation; TolQ protein
466	 39.11	+1	520076..520300	+	74	167626691	-	Fphi_0472	-	hypothetical protein
467	 33.09	0	520310..521131	-	273	167626692	-	Fphi_0473	-	CDP-alcohol phosphatidyltransferase
468	 35.54	0	521145..521507	-	120	167626693	-	Fphi_0474	-	chorismate mutase
469	 36.05	+1	521519..522475	-	318	167626694	-	Fphi_0475	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
470	 33.33	0	522456..522920	-	154	167626695	-	Fphi_0476	-	FKBP-type peptidyl-prolyl cis-trans isomerase
471	 32.46	0	523102..524358	+	418	167626696	-	Fphi_0477	-	OmpA family protein
472	 30.26	0	524584..525528	+	314	167626697	-	Fphi_0478	-	integrase, catalytic region
473	 33.10	0	525639..526505	+	288	167626698	-	Fphi_0479	-	DNA processing protein DprA
474	 34.62	0	526579..528294	+	571	167626699	-	Fphi_0480	-	aspartate:alanine exchanger (AAE) family protein
475	 33.02	0	528307..529887	+	526	167626700	-	Fphi_0481	-	aspartate aminotransferase
476	 33.33	0	529959..531134	+	391	167626701	-	Fphi_0482	-	xanthine/uracil permease family/inorganic anion transporter, sulfate permease (SulP) family protein
477	 33.63	0	531303..531638	+	111	167626702	-	Fphi_0483	-	hypothetical protein
478	 30.79	0	531662..532015	-	117	167626703	-	Fphi_0484	-	arsenate reductase
479	 33.01	0	532034..532660	-	208	167626704	-	Fphi_0485	-	multiple antibiotic resistance (MarC)-related protein
480	 31.19	0	532741..533346	-	201	167626705	-	Fphi_0486	-	MutT/NUDIX family protein
481	 28.57	-1	533405..533845	+	146	167626706	-	Fphi_0487	-	glyoxalase family protein
482	 28.11	-1	533886..534134	-	82	167626707	-	Fphi_0488	-	hypothetical protein
483	 39.34	+2	534363..535877	-	504	167626708	-	Fphi_0489	-	fumarate hydratase, class I
484	 35.69	0	536202..538241	-	679	167626709	-	Fphi_0490	-	ATP-dependent DNA helicase
485	 37.31	+1	538374..538700	+	108	167626710	-	Fphi_0491	-	hypothetical protein
486	 31.65	0	538837..539073	+	78	167626711	-	Fphi_0492	-	50S ribosomal protein L28
487	 27.56	-1	539105..539260	+	51	167626712	-	Fphi_0493	-	50S ribosomal protein L33
488	 34.64	0	539292..539978	+	228	167626713	-	Fphi_0494	-	septum formation inhibitor
489	 35.77	0	540006..540827	+	273	167626714	-	Fphi_0495	-	septum formation inhibitor-activating ATPase
490	 31.14	0	540833..541105	+	90	167626715	-	Fphi_0496	-	cell division topological specificity factor protein
491	 32.58	0	541121..541915	+	264	167626716	-	Fphi_0497	-	ABC transporter, ATP-binding protein
492	 33.73	0	541918..542682	+	254	167626717	-	Fphi_0498	-	ABC-type transport system permease protein
493	 35.59	0	542682..543212	+	176	167626718	-	Fphi_0499	-	hypothetical protein
494	 33.18	0	543289..543954	+	221	167626719	-	Fphi_0500	-	hypothetical protein
495	 25.85	-2	543951..544244	+	97	167626720	-	Fphi_0501	-	hypothetical protein
496	 29.96	0	544262..544498	+	78	167626721	-	Fphi_0502	-	BolA family protein
497	 37.51	+1	544684..545784	-	366	167626722	-	Fphi_0503	-	VacJ like lipoprotein
498	 30.32	0	545931..546626	+	231	167626723	-	Fphi_0504	-	3-demethylubiquinone-9 3-methyltransferase
499	 27.28	-1	546630..547373	+	247	167626724	-	Fphi_0505	-	hypothetical protein
500	 35.26	0	547761..549263	+	500	167626725	-	Fphi_0506	-	amino acid-polyamine-organocation family protein
501	 28.37	-1	549367..550071	+	234	167626726	-	Fphi_0507	-	hypothetical protein
502	 25.35	-2	550100..550387	+	95	167626727	-	Fphi_0508	-	hypothetical protein
503	 32.68	0	550389..551759	-	456	167626728	-	Fphi_0509	-	amino acid transporter
504	 28.98	-1	551769..552824	+	351	167626729	-	Fphi_0510	-	alanine racemase
505	 32.52	0	553181..554413	+	410	167626730	-	Fphi_0511	-	transposase mutator family protein
506	 39.43	+2	554467..556320	+	617	167626731	-	Fphi_0512	-	chitinase
507	 26.02	-2	556328..556819	-	163	167626732	-	Fphi_0513	-	acetyltransferase
508	 31.99	0	556831..558021	-	396	167626733	-	Fphi_0514	-	drug:H+ antiporter-1 (DHA1) family protein
509	 33.76	0	558078..559022	-	314	167626734	-	Fphi_0515	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
510	 33.99	0	559026..560405	-	459	167626735	-	Fphi_0516	-	cysteine--tRNA ligase
511	 35.63	0	560483..562570	-	695	167626736	-	Fphi_0517	-	hypothetical protein
512	 31.92	0	562580..563500	-	306	167626737	-	Fphi_0518	-	hypothetical protein
513	 35.95	+1	563514..564239	-	241	167626738	-	Fphi_0519	-	pilus assembly protein
514	 26.92	-1	564325..564948	-	207	167626739	-	Fphi_0520	-	pilus assembly protein
515	 29.21	-1	564958..566364	-	468	167626740	-	Fphi_0521	-	pilus assembly protein
516	 30.49	0	566361..567275	-	304	167626741	-	Fphi_0522	-	pilus assembly protein
517	 27.92	-1	567259..567609	-	116	167626742	-	Fphi_0523	-	hypothetical protein
518	 31.78	0	567697..568980	-	427	167626743	-	Fphi_0524	-	HlyC/CorC family transporter-associated protein
519	 30.71	0	568991..570670	-	559	167626744	-	Fphi_0525	-	glycosyl transferase, group 2
520	 35.86	0	570735..572201	-	488	167626745	-	Fphi_0526	-	proline:Na+ symporter
521	 40.12	+2	572377..573363	-	328	167626746	-	Fphi_0527	-	fructose 1,6-bisphosphatase II
522	 34.27	0	573384..574022	-	212	167626747	-	Fphi_0528	-	hypothetical protein
523	 35.81	0	574034..575488	-	484	167626748	-	Fphi_0529	-	lysine:H+ symporter
524	 34.54	0	575749..576411	-	220	167626749	-	Fphi_0530	-	phosphatidic acid phosphatase PAP2 superfamily protein
525	 36.90	+1	576533..578998	+	821	167626750	-	Fphi_0531	-	cell division protein
526	 27.51	-1	578999..579616	+	205	167626751	-	Fphi_0532	-	lipoprotein releasing system, subunit A
527	 30.68	0	579902..581218	-	438	167626752	-	Fphi_0533	-	membrane protein of unknown function
528	 32.84	0	581341..581541	-	66	167626753	-	Fphi_0534	-	hypothetical protein
529	 35.88	0	581658..583109	+	483	167626754	-	Fphi_0535	-	K+ transporter (trk) family protein
530	 30.02	0	583115..583597	-	160	167626755	-	Fphi_0536	-	putative lipoprotein
531	 33.33	0	583687..584385	-	232	167626756	-	Fphi_0537	-	activator of osmoprotectant transporter ProP
532	 35.13	0	584848..585738	-	296	167626757	-	Fphi_0538	-	hypothetical protein
533	 32.00	0	585763..586212	-	149	167626758	-	Fphi_0539	-	hypothetical protein
534	 32.83	0	586221..586616	-	131	167626759	-	Fphi_0540	-	hypothetical protein
535	 34.43	0	586803..587531	+	242	167626760	-	Fphi_0541	-	phenol 2-monooxygenase
536	 30.12	0	587618..587866	+	82	167626761	-	Fphi_0542	-	50S ribosomal protein L31
537	 31.81	0	587966..589471	-	501	167626762	-	Fphi_0543	-	glutamate--cysteine ligase
538	 29.71	0	589523..591067	-	514	167626763	-	Fphi_0544	-	multidrug/oligosaccharidyl-lipid/polysaccharide (MOP) transporter
539	 35.99	+1	591092..592294	-	400	167626764	-	Fphi_0545	-	hypothetical protein
540	 33.60	0	592377..592754	-	125	167626765	-	Fphi_0546	-	hypothetical protein
541	 33.00	0	592762..593946	-	394	167626766	-	Fphi_0547	-	dihydrofolate synthase
542	 37.76	+1	593961..594863	-	300	167626767	-	Fphi_0548	-	acetyl-CoA carboxylase, carboxytransferase subunit beta
543	 36.17	+1	594903..595325	-	140	167626768	-	Fphi_0549	-	nucleoside-diphosphate kinase
544	 36.26	+1	595398..597038	-	546	167626769	-	Fphi_0550	-	CTP synthetase
545	 34.39	0	597198..598709	+	503	167626770	-	Fphi_0551	-	hypothetical protein
32.71	MEAN

3.22	STD DEV
