IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

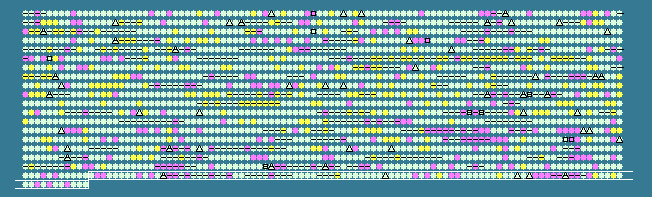

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.71 STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1812	 30.53	0	1934722..1935897	-	391	167628037	-	Fphi_1809	-	flavohemoprotein
1813	 26.24	-2	1936003..1936425	+	140	167628038	-	Fphi_1810	-	putative transcriptional regulator
1814	 28.34	-1	1936435..1938135	-	566	167628039	-	Fphi_1811	-	4-amino-4-deoxy-L-arabinose transferase-like protein
1815	 35.41	0	1938145..1939446	-	433	167628040	-	Fphi_1812	-	glutamate-1-semialdehyde-2,1-aminomutase
1816	 32.00	0	1939436..1940410	-	324	167628041	-	Fphi_1813	-	glutathione synthetase
1817	 33.97	0	1940414..1941352	-	312	167628042	-	Fphi_1814	-	methionyl-tRNA formyltransferase
1818	 31.04	0	1941355..1941747	-	130	167628043	-	Fphi_1815	-	hypothetical protein
1819	 32.08	0	1941750..1942148	-	132	167628044	-	Fphi_1816	-	hypothetical protein
1820	 24.78	-2	1942305..1942643	+	112	167628045	-	Fphi_1817	-	ArsR family transcriptional regulator
1821	 31.20	0	1942647..1943675	+	342	167628046	-	Fphi_1818	-	ArsB arsenite/antimonite exporter
1822	 27.58	-1	1943727..1944056	+	109	167628047	-	Fphi_1819	-	putative membrane transporter of cations and cationic drugs, multidrug resistance protein
1823	 30.97	0	1944068..1946224	-	718	167628048	-	Fphi_1820	-	23S rRNA m(2)G2445 methyltransferase
1824	 31.50	0	1946589..1947785	+	398	167628049	-	Fphi_1821	-	phage integrase
1825	 26.08	-2	1947789..1949015	-	408	167628050	-	Fphi_1822	-	hypothetical protein
1826	 24.91	-2	1949035..1950780	-	581	167628051	-	Fphi_1823	-	hypothetical protein
1827	 32.18	0	1950865..1953543	+	892	167628052	-	Fphi_1824	-	hypothetical protein
1828	 24.54	-2	1953697..1956789	+	1030	167628053	-	Fphi_1825	-	hypothetical protein
1829	 30.92	0	1956890..1957885	+	331	167628054	-	Fphi_1826	-	hypothetical protein
1830	 33.85	0	1958054..1959979	+	641	167628055	-	Fphi_1827	-	DEAD/DEAH box helicase-like protein
1831	 31.16	0	1959969..1961165	+	398	167628056	-	Fphi_1828	-	hypothetical protein
1832	 28.87	-1	1961180..1961470	-	96	167628057	-	Fphi_1829	-	XRE family transcriptional regulator
1833	 33.02	0	1961467..1961787	-	106	167628058	-	Fphi_1830	-	hypothetical protein
1834	 33.53	0	1961875..1962381	-	168	167628059	-	Fphi_1831	-	putative antirestriction protein
1835	 25.60	-2	1962912..1963118	+	68	167628060	-	Fphi_1832	-	hypothetical protein
1836	 31.47	0	1963204..1964547	+	447	167628061	-	Fphi_1833	-	Na+/H+ antiporter NhaA
1837	 33.75	0	1964578..1965300	-	240	167628062	-	Fphi_1834	-	hypothetical protein
1838	 31.94	0	1965297..1967312	-	671	167628063	-	Fphi_1835	-	hypothetical protein
1839	 32.53	0	1967832..1969082	-	416	167628064	-	Fphi_1836	-	hypothetical protein
1840	 33.33	0	1969075..1969275	-	66	167628065	-	Fphi_1931	-	phage transcriptional regulator, AlpA
1841	 31.62	0	1969720..1969953	+	77	167628066	-	Fphi_1837	-	hypothetical protein
1842	 27.13	-1	1970087..1970344	-	85	167628067	-	Fphi_1838	-	hypothetical protein
1843	 30.57	0	1970347..1971213	-	288	167628068	-	Fphi_1839	-	recombination associated protein
1844	 29.61	0	1971285..1971794	-	169	167628069	-	Fphi_1840	-	hypothetical protein
1845	 34.54	0	1971883..1972875	+	330	167628070	-	Fphi_1841	-	rhodanese sulfurtransferase
1846	 35.60	0	1973007..1973933	+	308	167628071	-	Fphi_1842	-	coproporphyrinogen III oxidase
1847	 32.57	0	1974017..1975069	+	350	167628072	-	Fphi_1843	-	phosphoserine aminotransferase
1848	 33.48	0	1975056..1975724	+	222	167628073	-	Fphi_1845	-	cytidylate kinase
1849	 32.70	0	1975711..1976025	-	104	167628074	-	Fphi_1844	-	anti-ECFsigma factor, ChrR
1850	 29.36	-1	1976132..1977742	+	536	167628075	-	Fphi_1846	-	hypothetical protein
1851	 33.33	0	1977778..1979268	-	496	167628076	-	Fphi_1847	-	L-aspartate oxidase
1852	 34.49	0	1979271..1980134	-	287	167628077	-	Fphi_1848	-	nicotinate-nucleotide diphosphorylase (carboxylating)
1853	 36.45	+1	1980144..1981169	-	341	167628078	-	Fphi_1849	-	quinolinate synthetase
1854	 32.29	0	1981189..1981761	-	190	167628079	-	Fphi_1850	-	guanylate kinase
1855	 34.71	0	1981870..1983615	-	581	167628080	-	Fphi_1851	-	DEAD-box subfamily ATP-dependent helicase
1856	 35.48	0	1983681..1983959	-	92	167628081	-	Fphi_1852	-	parvulin-like peptidyl-prolyl isomerase domain-containing protein
1857	 33.41	0	1985499..1986881	-	460	167628082	-	Fphi_1855	-	2-alkenal reductase
1858	 34.41	0	1986972..1987997	+	341	167628083	-	Fphi_1856	-	galactose-1-phosphate uridylyltransferase
1859	 30.92	0	1988000..1989157	+	385	167628084	-	Fphi_1857	-	galactokinase
1860	 29.63	0	1989185..1989940	-	251	167628085	-	Fphi_1858	-	hypothetical protein
1861	 30.26	0	1990219..1991163	-	314	167628086	-	Fphi_1859	-	integrase, catalytic region
1862	 29.29	-1	1991314..1991709	-	131	167628087	-	Fphi_1860	-	histidine triad family protein
1863	 34.66	0	1991702..1992454	-	250	167628088	-	Fphi_1861	-	3-deoxy-manno-octulosonate cytidylyltransferase
1864	 30.69	0	1992447..1992635	-	62	167628089	-	Fphi_1862	-	hypothetical protein
1865	 35.23	0	1992635..1993900	-	421	167628090	-	Fphi_1863	-	hypothetical protein
1866	 27.94	-1	1993995..1994624	-	209	167628091	-	Fphi_1864	-	acid phosphatase/phosphotransferase
1867	 34.48	0	1994694..1996532	-	612	167628092	-	Fphi_1865	-	excinuclease ABC, C subunit
1868	 28.16	-1	1996641..1997741	+	366	167628093	-	Fphi_1866	-	ribonuclease D
1869	 31.84	0	1997763..1998968	+	401	167628094	-	Fphi_1868	-	drug:H+ antiporter-1 (DHA1) family protein
1870	 36.53	+1	1998965..1999339	-	124	167628095	-	Fphi_1867	-	hypothetical protein
1871	 33.05	0	1999409..2001496	-	695	167628096	-	Fphi_1869	-	glycine--tRNA ligase
1872	 28.11	-1	2001618..2002364	+	248	167628097	-	Fphi_1870	-	TatD family hydrolase
1873	 29.05	-1	2002368..2003417	+	349	167628098	-	Fphi_1871	-	DNA replication and repair protein RecF
1874	 30.24	0	2003429..2003719	+	96	167628099	-	Fphi_1872	-	hypothetical protein
1875	 33.72	0	2003720..2004241	-	173	167628100	-	Fphi_1873	-	hypothetical protein
1876	 30.85	0	2004270..2004632	-	120	167628101	-	Fphi_1874	-	methylation protein-like protein
1877	 30.58	0	2005042..2005731	-	229	167628102	-	Fphi_1875	-	hypothetical protein
1878	 31.15	0	2005742..2006107	-	121	167628103	-	Fphi_1876	-	hypothetical protein
1879	 33.01	0	2006275..2007189	-	304	167628104	-	Fphi_1877	-	hypothetical protein
1880	 37.04	+1	2007200..2009143	-	647	167628105	-	Fphi_1878	-	acyl-coenzyme A synthetase/AMP-(fatty) acid ligase
1881	 35.30	0	2009254..2010117	-	287	167628106	-	Fphi_1879	-	UTP--glucose-1-phosphate uridylyltransferase
1882	 32.11	0	2010133..2011272	-	379	167628107	-	Fphi_1880	-	Co/Zn/Cd cation transporter
1883	 30.26	0	2011453..2012397	+	314	167628108	-	Fphi_1881	-	integrase, catalytic region
1884	 31.22	0	2012415..2012981	-	188	167628109	-	Fphi_1882	-	hypothetical protein
1885	 30.26	0	2014125..2015069	+	314	167628110	-	Fphi_1884	-	integrase, catalytic region
1886	 24.59	-2	2015013..2016521	-	502	167628111	-	Fphi_1883	-	hypothetical protein
1887	 29.13	-1	2016541..2019396	-	951	167628112	-	Fphi_1885	-	restriction endonuclease
1888	 26.18	-2	2019626..2020156	-	176	167628113	-	Fphi_1886	-	hypothetical protein
1889	 29.12	-1	2020225..2020509	-	94	167628114	-	Fphi_1887	-	endonuclease
1890	 24.58	-2	2020568..2020807	-	79	167628115	-	Fphi_1888	-	hypothetical protein
1891	 30.26	0	2020949..2021893	+	314	167628116	-	Fphi_1890	-	integrase, catalytic region
1892	 27.17	-1	2021837..2022193	-	118	167628117	-	Fphi_1889	-	hypothetical protein
1893	 28.21	-1	2024495..2024923	-	142	167628118	-	Fphi_1893	-	hypothetical protein
1894	 33.53	0	2024992..2025498	-	168	167628119	-	Fphi_1894	-	putative antirestriction protein
1895	 28.39	-1	2026031..2028052	-	673	167628120	-	Fphi_1895	-	hypothetical protein
1896	 38.05	+1	2028121..2029095	-	324	167628121	-	Fphi_1896	-	tRNA-dihydrouridine synthase
1897	 32.51	0	2029085..2029930	-	281	167628122	-	Fphi_1897	-	ribosomal protein L11 methyltransferase
1898	 30.97	0	2030048..2030554	-	168	167628123	-	Fphi_1898	-	hypothetical protein
1899	 38.04	+1	2030672..2030926	-	84	167628124	-	Fphi_1899	-	hypothetical protein
1900	 30.38	0	2031051..2032067	+	338	167628125	-	Fphi_1900	-	ferrochelatase
1901	 34.12	0	2032052..2033446	+	464	167628126	-	Fphi_1901	-	deoxyribodipyrimidine photo-lyase
1902	 35.61	0	2033618..2034805	+	395	167628127	-	Fphi_1902	-	phosphopyruvate hydratase
1903	 27.73	-1	2034827..2035825	-	332	167628128	-	Fphi_1903	-	aldose 1-epimerase
1904	 30.02	0	2035806..2036981	-	391	167628129	-	Fphi_1904	-	P-pantothenate cysteine ligase/P-pantothenoylcysteine decarboxylase
1905	 28.69	-1	2036994..2038178	-	394	167628130	-	Fphi_1905	-	major facilitator transporter
1906	 33.13	0	2038253..2039761	-	502	167628131	-	Fphi_1906	-	amino acid transporter
1907	 34.44	0	2039915..2043979	-	1354	167628132	-	Fphi_1907	-	bifunctional proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1908	 28.47	-1	2043997..2044284	-	95	167628133	-	Fphi_1908	-	hypothetical protein
1909	 30.73	0	2044503..2044886	+	127	167628134	-	Fphi_1909	-	hypothetical protein
1910	 31.40	0	2044955..2045161	-	68	167628135	-	Fphi_1910	-	hypothetical protein
1911	 29.83	0	2045233..2045775	-	180	167628136	-	Fphi_1911	-	3-dehydroquinate synthase
32.71	MEAN

3.22	STD DEV
