IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

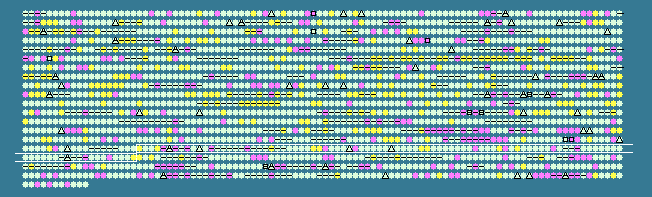

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.71 STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1520	 36.60	+1	1648653..1649111	+	152	167627745	-	Fphi_1519	-	ribonuclease H
1521	 34.21	0	1649114..1650145	+	343	167627746	-	Fphi_1520	-	L-asparaginase
1522	 35.89	0	1650233..1650937	+	234	167627747	-	Fphi_1521	-	carbonate dehydratase
1523	 36.40	+1	1651011..1653359	+	782	167627748	-	Fphi_1522	-	type I restriction-modification system, subunit R (restriction)
1524	 21.36	-2	1653356..1653973	+	205	167627749	-	Fphi_1917	-	hypothetical protein
1525	 30.26	0	1654041..1654985	+	314	167627750	-	Fphi_1523	-	integrase, catalytic region
1526	 25.24	-2	1655042..1655560	+	172	167627751	-	Fphi_1524	-	hypothetical protein
1527	 31.94	0	1655891..1657114	+	407	167627752	-	Fphi_1525	-	type I restriction-modification system, subunit S
1528	 28.23	-1	1657422..1658048	+	208	167627753	-	Fphi_1526	-	hypothetical protein
1529	 34.89	0	1658029..1658349	+	106	167627754	-	Fphi_1528	-	type I restriction-modification system, subunit M (methyltransferase)
1530	 30.26	0	1658346..1659290	-	314	167627755	-	Fphi_1527	-	integrase, catalytic region
1531	 35.13	0	1659574..1660521	+	315	167627756	-	Fphi_1530	-	N-6 DNA methylase family
1532	 25.81	-2	1660516..1660980	-	154	167627757	-	Fphi_1529	-	hypothetical protein
1533	 34.55	0	1661133..1662449	+	438	167627758	-	Fphi_1531	-	trigger factor
1534	 34.98	0	1662475..1663080	+	201	167627759	-	Fphi_1532	-	endopeptidase Clp
1535	 33.57	0	1663105..1664358	+	417	167627760	-	Fphi_1533	-	ATP-dependent protease ATP-binding subunit
1536	 34.32	0	1664384..1666708	+	774	167627761	-	Fphi_1534	-	endopeptidase La
1537	 35.16	0	1666794..1667066	+	90	167627762	-	Fphi_1535	-	DNA-binding protein HU-beta
1538	 28.87	-1	1667178..1668611	+	477	167627763	-	Fphi_1536	-	hypothetical protein
1539	 32.25	0	1668612..1669538	+	308	167627764	-	Fphi_1537	-	tRNA isopentenyltransferase
1540	 33.03	0	1669643..1669972	+	109	167627765	-	Fphi_1538	-	host factor I for bacteriophage Q beta replication
1541	 33.87	0	1670020..1671327	+	435	167627766	-	Fphi_1539	-	protease, GTP-binding subunit
1542	 36.34	+1	1671330..1671695	-	121	167627767	-	Fphi_1540	-	oxidoreductase
1543	 33.59	0	1671740..1672513	-	257	167627768	-	Fphi_1541	-	oxidoreductase
1544	 34.64	0	1672707..1673774	+	355	167627769	-	Fphi_1542	-	HflK-HflC membrane protein complex, HflK
1545	 32.90	0	1673776..1674702	+	308	167627770	-	Fphi_1543	-	HflK-HflC membrane protein complex, HflC
1546	 34.36	0	1674705..1675190	+	161	167627771	-	Fphi_1544	-	low molecular weight phosphotyrosine protein phosphatase
1547	 31.99	0	1675187..1675780	+	197	167627772	-	Fphi_1545	-	GTPase EngB
1548	 34.45	0	1675929..1677725	+	598	167627773	-	Fphi_1546	-	hypothetical protein
1549	 38.03	+1	1677749..1679431	+	560	167627774	-	Fphi_1547	-	dihydroxy-acid dehydratase
1550	 36.45	+1	1679579..1681276	+	565	167627775	-	Fphi_1548	-	acetolactate synthase large subunit
1551	 28.62	-1	1681281..1681598	+	105	167627776	-	Fphi_1549	-	acetolactate synthase small subunit
1552	 35.06	0	1681623..1682666	+	347	167627777	-	Fphi_1550	-	ketol-acid reductoisomerase
1553	 30.67	0	1682754..1686173	-	1139	167627778	-	Fphi_1551	-	transcription-repair coupling factor
1554	 36.10	+1	1686220..1686906	-	228	167627779	-	Fphi_1552	-	hypothetical protein
1555	 30.26	0	1687023..1687967	-	314	167627780	-	Fphi_1553	-	integrase, catalytic region
1556	 25.48	-2	1688068..1689327	-	419	167627781	-	Fphi_1554	-	hypothetical protein
1557	 30.56	0	1689327..1689758	-	143	167627782	-	Fphi_1555	-	hypothetical protein
1558	 31.77	0	1689755..1690393	-	212	167627783	-	Fphi_1556	-	DNA-(apurinic or apyrimidinic site) lyase
1559	 31.27	0	1690386..1691015	-	209	167627784	-	Fphi_1557	-	iron-sulfur cluster-binding protein
1560	 30.85	0	1691017..1691661	-	214	167627785	-	Fphi_1558	-	glutaredoxin 2
1561	 30.85	0	1691782..1692987	-	401	167627786	-	Fphi_1559	-	lipoprotein
1562	 30.26	0	1693135..1694079	+	314	167627787	-	Fphi_1560	-	integrase, catalytic region
1563	 31.03	0	1694182..1695654	+	490	167627788	-	Fphi_1561	-	alkaline phosphatase
1564	 33.13	0	1695658..1696161	-	167	167627789	-	Fphi_1562	-	ferric iron binding protein, ferritin-like protein
1565	 34.96	0	1696368..1697351	+	327	167627790	-	Fphi_1563	-	lipoyl synthase
1566	 35.15	0	1697380..1698039	+	219	167627791	-	Fphi_1564	-	isoprenoid biosynthesis protein with amidotransferase-like domain
1567	 37.75	+1	1698057..1698803	+	248	167627792	-	Fphi_1565	-	hypothetical protein
1568	 38.18	+1	1698944..1699459	+	171	167627793	-	Fphi_1566	-	crossover junction endodeoxyribonuclease
1569	 33.08	0	1699536..1700729	+	397	167627794	-	Fphi_1567	-	major facilitator superfamily sugar transporter
1570	 33.18	0	1700737..1701393	+	218	167627795	-	Fphi_1568	-	Holliday junction DNA helicase, subunit A
1571	 31.36	0	1701409..1702827	+	472	167627796	-	Fphi_1569	-	RmuC family protein
1572	 33.85	0	1702831..1703415	+	194	167627797	-	Fphi_1570	-	hypothetical protein
1573	 33.00	0	1703419..1703715	-	98	167627798	-	Fphi_1571	-	hypothetical protein
1574	 35.50	0	1703746..1704207	-	153	167627799	-	Fphi_1572	-	hypothetical protein
1575	 33.25	0	1704470..1705639	+	389	167627800	-	Fphi_1574	-	monovalent cation:proton antiporter family protein
1576	 26.62	-1	1705623..1706456	-	277	167627801	-	Fphi_1573	-	small conductance mechanosensitive ion channel family protein
1577	 33.33	0	1708000..1709283	-	427	167627802	-	Fphi_1577	-	major facilitator transporter
1578	 33.13	0	1709276..1710283	-	335	167627803	-	Fphi_1578	-	hypothetical protein
1579	 35.40	0	1710487..1711455	+	322	167627804	-	Fphi_1579	-	ribose-phosphate diphosphokinase
1580	 36.43	+1	1711557..1711847	+	96	167627805	-	Fphi_1580	-	50S ribosomal protein L25
1581	 28.25	-1	1711942..1713201	+	419	167627806	-	Fphi_1581	-	hypothetical protein
1582	 33.33	0	1713217..1713495	-	92	167627807	-	Fphi_1582	-	putative lipoprotein
1583	 36.63	+1	1713512..1714603	-	363	167627808	-	Fphi_1583	-	translation-associated GTPase
1584	 31.60	0	1714623..1715198	-	191	167627809	-	Fphi_1584	-	peptidyl-tRNA hydrolase
1585	 30.85	0	1715191..1716075	-	294	167627810	-	Fphi_1585	-	Beta-lactamase
1586	 32.51	0	1716084..1716929	-	281	167627811	-	Fphi_1586	-	hypothetical protein
1587	 30.74	0	1716939..1717787	-	282	167627812	-	Fphi_1587	-	type IV pili leader peptidase and methylase
1588	 33.69	0	1717790..1719190	-	466	167627813	-	Fphi_1588	-	soluble pyridine nucleotide transhydrogenase
1589	 27.65	-1	1719286..1720446	-	386	167627814	-	Fphi_1589	-	potassium channel protein
1590	 33.82	0	1720525..1721976	-	483	167627815	-	Fphi_1590	-	proton-dependent oligopeptide transporter (POT) family protein, di-or tripeptide:H+ symporter
1591	 34.65	0	1722066..1723433	-	455	167627816	-	Fphi_1591	-	ATP-dependent protease ATP-binding subunit
1592	 36.05	+1	1723441..1723992	-	183	167627817	-	Fphi_1592	-	ATP-dependent protease peptidase subunit
1593	 27.49	-1	1724178..1724930	+	250	167627818	-	Fphi_1593	-	hypothetical protein
1594	 31.34	0	1724934..1725836	-	300	167627819	-	Fphi_1594	-	lipoate-protein ligase A
1595	 34.01	0	1725950..1727140	+	396	167627820	-	Fphi_1595	-	tyrosyl-tRNA synthetase
1596	 29.37	-1	1727461..1728342	+	293	167627821	-	Fphi_1596	-	oxidative stress transcriptional regulator
1597	 32.90	0	1728495..1729637	+	380	167627822	-	Fphi_1597	-	L-lactate dehydrogenase
1598	 33.88	0	1729660..1731303	+	547	167627823	-	Fphi_1598	-	pyruvate decarboxylase
1599	 32.46	0	1731352..1731693	+	113	167627824	-	Fphi_1599	-	hypothetical protein
1600	 30.35	0	1731686..1732054	+	122	167627825	-	Fphi_1600	-	hypothetical protein
1601	 32.73	0	1732188..1735010	+	940	167627826	-	Fphi_1601	-	4Fe-4S ferredoxin, FAD dependent
1602	 31.71	0	1735031..1735399	-	122	167627827	-	Fphi_1602	-	heat shock protein 15 (HSP15)
1603	 31.62	0	1735514..1736329	+	271	167627828	-	Fphi_1603	-	hypothetical protein
1604	 29.60	0	1736353..1738041	-	562	167627829	-	Fphi_1604	-	hypothetical protein
1605	 35.08	0	1738038..1738895	-	285	167627830	-	Fphi_1605	-	membrane fusion protein
1606	 33.88	0	1739283..1740014	+	243	167627831	-	Fphi_1606	-	IclR family transcriptional regulator
1607	 31.00	0	1740116..1741102	+	328	167627832	-	Fphi_1607	-	lysine 2,3-aminomutase
1608	 30.26	0	1741244..1742188	+	314	167627833	-	Fphi_1608	-	integrase, catalytic region
1609	 29.82	0	1742488..1743597	+	369	167627834	-	Fphi_1609	-	hypothetical protein
1610	 34.31	0	1743609..1743812	-	67	167627835	-	Fphi_1610	-	cold-shock DNA-binding domain-containing protein
1611	 23.94	-2	1744011..1744340	-	109	167627836	-	Fphi_1611	-	hypothetical protein
1612	 33.33	0	1744587..1744784	+	65	167627837	-	Fphi_1612	-	30S ribosomal protein S21
1613	 33.62	0	1745279..1746331	-	350	167627838	-	Fphi_1613	-	DNA-directed DNA polymerase
1614	 32.52	0	1746338..1746460	-	40	167627839	-	Fphi_1614	-	DJ-1/PfpI family protein
1615	 28.54	-1	1747061..1747852	+	263	167627840	-	Fphi_1615	-	hypothetical protein
1616	 31.96	0	1747929..1749818	+	629	167627841	-	Fphi_1616	-	ABC transporter, ATP-binding protein
1617	 34.79	0	1749893..1751125	-	410	167627842	-	Fphi_1617	-	bifunctional gluaredoxin/ribonucleoside-diphosphate reductase subunit beta
1618	 31.42	0	1751133..1751393	-	86	167627843	-	Fphi_1618	-	glutaredoxin 1
1619	 36.72	+1	1751397..1753169	-	590	167627844	-	Fphi_1619	-	ribonucleotide-diphosphate reductase subunit alpha
32.71	MEAN

3.22	STD DEV
