IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

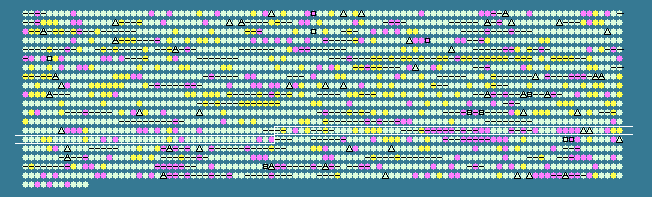

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No RNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 32.71   STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1343	 33.59	0	1464732..1465520	-	262	167627568	-	Fphi_1342	-	inositol-phosphate phosphatase
1344	 36.47	+1	1465606..1466658	-	350	167627569	-	Fphi_1343	-	hypothetical protein
1345	 30.25	0	1466770..1467969	-	399	167627570	-	Fphi_1344	-	hypothetical protein
1346	 27.63	-1	1468084..1468767	+	227	167627571	-	Fphi_1346	-	hypothetical protein
1347	 31.21	0	1468760..1469041	-	93	167627572	-	Fphi_1345	-	hypothetical protein
1348	 38.10	+1	1469118..1470377	-	419	167627573	-	Fphi_1347	-	beta-ketoacyl-ACP synthase II
1349	 34.16	0	1470456..1470698	-	80	167627574	-	Fphi_1348	-	acyl carrier protein
1350	 36.16	+1	1470797..1471540	-	247	167627575	-	Fphi_1349	-	beta-ketoacyl-ACP reductase
1351	 36.92	+1	1471554..1472474	-	306	167627576	-	Fphi_1350	-	malonyl-CoA:ACP transacylase
1352	 35.60	0	1472519..1473490	-	323	167627577	-	Fphi_1351	-	Beta-ketoacyl-acyl-carrier-protein synthase I
1353	 35.24	0	1473596..1474642	-	348	167627578	-	Fphi_1352	-	putative glycerol-3-phosphate acyltransferase PlsX
1354	 34.97	0	1474748..1474930	-	60	167627579	-	Fphi_1353	-	50S ribosomal protein L32
1355	 31.79	0	1474974..1475492	-	172	167627580	-	Fphi_1354	-	hypothetical protein
1356	 37.40	+1	1475607..1477598	+	663	167627581	-	Fphi_1355	-	transketolase
1357	 35.53	0	1477635..1478636	+	333	167627582	-	Fphi_1356	-	glyceraldehyde-3-phosphate dehydrogenase (phosphorylating)
1358	 36.64	+1	1478656..1479834	+	392	167627583	-	Fphi_1357	-	phosphoglycerate kinase
1359	 36.60	+1	1479850..1481286	+	478	167627584	-	Fphi_1358	-	pyruvate kinase
1360	 38.78	+1	1481297..1482361	+	354	167627585	-	Fphi_1359	-	fructose-1,6-bisphosphate aldolase
1361	 31.69	0	1482468..1483925	-	485	167627586	-	Fphi_1360	-	Alpha,alpha-trehalase
1362	 31.60	0	1483928..1485136	-	402	167627587	-	Fphi_1361	-	fucose permease-like protein
1363	 32.81	0	1485309..1486457	+	382	167627588	-	Fphi_1362	-	anhydro-N-acetylmuramic acid kinase
1364	 31.59	0	1486538..1490272	+	1244	167627589	-	Fphi_1363	-	hypothetical protein
1365	 31.38	0	1490356..1490919	+	187	167627590	-	Fphi_1364	-	intracellular growth locus protein A
1366	 31.69	0	1490932..1492452	+	506	167627591	-	Fphi_1365	-	intracellular growth locus, subunit B
1367	 36.35	+1	1492470..1493099	+	209	167627592	-	Fphi_1366	-	intracellular growth locus, subunit C
1368	 27.90	-1	1493123..1494319	+	398	167627593	-	Fphi_1367	-	intracellular growth locus protein D
1369	 25.97	-2	1494332..1495051	-	239	167627594	-	Fphi_1368	-	hypothetical protein
1370	 27.14	-1	1495069..1496262	-	397	167627595	-	Fphi_1369	-	hypothetical protein
1371	 25.44	-2	1496277..1496897	-	206	167627596	-	Fphi_1370	-	hypothetical protein
1372	 26.05	-2	1496912..1498339	-	475	167627597	-	Fphi_1371	-	hypothetical protein
1373	 35.06	0	1498351..1498872	-	173	167627598	-	Fphi_1372	-	hypothetical protein
1374	 24.24	-2	1498872..1500587	-	571	167627599	-	Fphi_1373	-	hypothetical protein
1375	 31.92	0	1500593..1501087	-	164	167627600	-	Fphi_1374	-	hypothetical protein
1376	 26.72	-1	1501100..1501477	-	125	167627601	-	Fphi_1375	-	hypothetical protein
1377	 26.15	-2	1501467..1504736	-	1089	167627602	-	Fphi_1376	-	hypothetical protein
1378	 28.18	-1	1504740..1507202	-	820	167627603	-	Fphi_1377	-	hypothetical protein
1379	 30.16	0	1512989..1513429	-	146	167627604	-	Fphi_1378	-	hypothetical protein
1380	 29.55	0	1513812..1514735	-	307	167627605	-	Fphi_1379	-	putative cystathionine beta-synthase
1381	 30.75	0	1515199..1516245	-	348	167627606	-	Fphi_1380	-	choloylglycine hydrolase family protein
1382	 29.04	-1	1516378..1517262	+	294	167627607	-	Fphi_1381	-	transcriptional regulator, LysR family protein
1383	 32.59	0	1517465..1518817	-	450	167627608	-	Fphi_1382	-	tRNA modification GTPase TrmE
1384	 25.61	-2	1518820..1519065	-	81	167627609	-	Fphi_1383	-	hypothetical protein
1385	 31.07	0	1519185..1519493	+	102	167627610	-	Fphi_1384	-	sigma54 modulation protein
1386	 25.39	-2	1519525..1519977	+	150	167627611	-	Fphi_1385	-	PEP-dependent sugar phosphotransferase system (PTS), enzyme IIA
1387	 34.27	0	1519970..1520719	+	249	167627612	-	Fphi_1386	-	rRNA methylase
1388	 32.44	0	1520716..1521273	+	185	167627613	-	Fphi_1387	-	ribonuclease H
1389	 30.63	0	1521274..1522533	+	419	167627614	-	Fphi_1389	-	solute:sodium symporter
1390	 28.44	-1	1522528..1523529	-	333	167627615	-	Fphi_1388	-	hypothetical protein
1391	 28.50	-1	1523535..1523927	-	130	167627616	-	Fphi_1390	-	diguanylate cyclase
1392	 26.19	-2	1523988..1524491	+	167	167627617	-	Fphi_1391	-	hypothetical protein
1393	 22.04	-2	1524512..1524697	+	61	167627618	-	Fphi_1393	-	hypothetical protein
1394	 29.89	0	1524669..1525133	-	154	167627619	-	Fphi_1392	-	integrase, catalytic region
1395	 30.05	0	1525187..1525612	-	141	167627620	-	Fphi_1394	-	integrase, catalytic region
1396	 35.85	0	1525726..1526796	+	356	167627621	-	Fphi_1395	-	amidohydrolase
1397	 33.82	0	1526831..1527238	-	135	167627622	-	Fphi_1396	-	ClpXP protease specificity-enhancing factor
1398	 28.32	-1	1527240..1527857	-	205	167627623	-	Fphi_1397	-	macrophage growth locus, protein A
1399	 37.18	+1	1527918..1528307	-	129	167627624	-	Fphi_1398	-	30S ribosomal protein S9
1400	 36.36	+1	1528323..1528751	-	142	167627625	-	Fphi_1399	-	50S ribosomal protein L13
1401	 29.51	0	1528875..1530077	-	400	167627626	-	Fphi_1400	-	protoporphyrinogen oxidase
1402	 32.90	0	1530070..1531221	-	383	167627627	-	Fphi_1401	-	membrane-bound lytic murein transglycosylase
1403	 34.55	0	1531325..1531900	+	191	167627628	-	Fphi_1402	-	co-chaperone GrpE
1404	 37.17	+1	1531997..1533925	+	642	167627629	-	Fphi_1403	-	2-alkenal reductase
1405	 36.44	+1	1534015..1535139	+	374	167627630	-	Fphi_1404	-	heat shock protein DnaJ
1406	 32.38	0	1535276..1535695	-	139	167627631	-	Fphi_1405	-	putative lipoprotein
1407	 33.60	0	1535774..1536523	-	249	167627632	-	Fphi_1406	-	NAD(+) synthase (glutamine-hydrolyzing)
1408	 34.08	0	1536619..1538091	-	490	167627633	-	Fphi_1407	-	outer membrane efflux protein
1409	 34.01	0	1538102..1539142	-	346	167627634	-	Fphi_1408	-	membrane fusion protein
1410	 33.07	0	1539166..1540698	-	510	167627635	-	Fphi_1409	-	drug:H+ antiporter-1 family protein
1411	 38.34	+1	1540845..1541663	+	272	167627636	-	Fphi_1410	-	transcriptional regulator AraC family protein
1412	 29.85	0	1541672..1543363	-	563	167627637	-	Fphi_1411	-	long chain fatty acid CoA ligase
1413	 32.86	0	1543474..1544955	-	493	167627638	-	Fphi_1412	-	alkaline phosphatase
1414	 26.03	-2	1545047..1545772	-	241	167627639	-	Fphi_1413	-	hypothetical protein
1415	 30.42	0	1545843..1546529	+	228	167627640	-	Fphi_1415	-	membrane protein of unknown function
1416	 27.97	-1	1546519..1547226	-	235	167627641	-	Fphi_1414	-	hypothetical protein
1417	 29.51	0	1547231..1547962	-	243	167627642	-	Fphi_1416	-	cell entry related family protein
1418	 31.63	0	1547972..1548733	-	253	167627643	-	Fphi_1417	-	ATP-binding cassette (ABC) superfamily protein
1419	 31.06	0	1548743..1549840	-	365	167627644	-	Fphi_1418	-	ABC-type transport system permease protein
1420	 29.51	0	1549914..1550750	-	278	167627645	-	Fphi_1419	-	hypothetical protein
1421	 33.13	0	1550713..1551699	-	328	167627646	-	Fphi_1420	-	lysozyme
1422	 34.30	0	1551786..1552610	+	274	167627647	-	Fphi_1421	-	competence lipoprotein ComL
1423	 36.11	+1	1552712..1554511	+	599	167627648	-	Fphi_1422	-	FAD binding family protein
1424	 34.64	0	1554675..1556129	-	484	167627649	-	Fphi_1423	-	hypothetical protein
1425	 37.16	+1	1556400..1557653	-	417	167627650	-	Fphi_1424	-	serine hydroxymethyltransferase
1426	 30.95	0	1557756..1558301	+	181	167627651	-	Fphi_1425	-	hypothetical protein
1427	 27.45	-1	1558430..1559737	+	435	167627652	-	Fphi_1426	-	hypothetical protein
1428	 31.07	0	1559997..1560878	+	293	167627653	-	Fphi_1428	-	mannosyltransferase OCH1-like protein
1429	 30.10	0	1560875..1561957	-	360	167627654	-	Fphi_1427	-	hypothetical protein
1430	 33.99	0	1562143..1563207	+	354	167627655	-	Fphi_1429	-	glycosyl transferase group 1 family protein
1431	 30.84	0	1563209..1564411	-	400	167627656	-	Fphi_1430	-	tRNA(Ile)-lysidine synthase (tRNA(Ile)-lysidinesynthetase) (tRNA(Ile)-2-lysyl-cytidine synthase)
1432	 34.30	0	1564412..1565647	-	411	167627657	-	Fphi_1431	-	D-3-phosphoglycerate dehydrogenase
1433	 33.70	0	1565661..1566485	-	274	167627658	-	Fphi_1432	-	thymidylate synthase
1434	 35.07	0	1566470..1567276	-	268	167627659	-	Fphi_1433	-	prolipoprotein diacylglyceryl transferase
1435	 32.32	0	1567295..1569967	-	890	167627660	-	Fphi_1434	-	ribonuclease E
1436	 33.76	0	1570218..1571393	+	391	167627661	-	Fphi_1435	-	cysteine desulfurase
1437	 31.21	0	1571386..1571715	+	109	167627662	-	Fphi_1436	-	hypothetical protein
1438	 30.06	0	1571699..1572400	+	233	167627663	-	Fphi_1437	-	DNA repair protein RecO
1439	 34.25	0	1572410..1573060	-	216	167627664	-	Fphi_1438	-	DedA family protein
1440	 28.71	-1	1573117..1573743	-	208	167627665	-	Fphi_1439	-	DedA family protein
1441	 30.71	0	1573748..1574014	-	88	167627666	-	Fphi_1440	-	hypothetical protein
1442	 28.96	-1	1574018..1574566	-	182	167627667	-	Fphi_1441	-	5-formyltetrahydrofolate cycloligase
32.71	MEAN

3.22	STD DEV
