IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

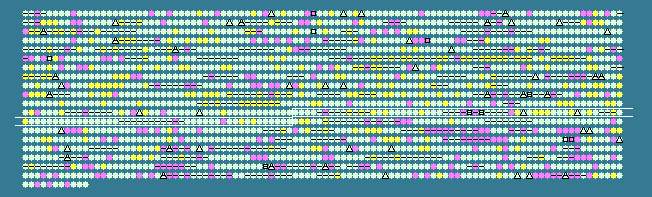

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.71 STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1146	 34.28	0	1237389..1244282	+	2297	167627371	-	Fphi_1146	-	polyketide synthase modules
1147	 34.73	0	1244282..1245571	+	429	167627372	-	Fphi_1147	-	8-amino-7-oxononanoate synthase
1148	 31.22	0	1245579..1246193	+	204	167627373	-	Fphi_1148	-	hypothetical protein
1149	 29.86	0	1246242..1246529	+	95	167627374	-	Fphi_1149	-	oligoketide cyclase/lipid transport protein
1150	 31.37	0	1246694..1248067	-	457	167627375	-	Fphi_1150	-	putative cytochrome P450
1151	 26.97	-1	1248071..1249138	-	355	167627376	-	Fphi_1151	-	hypothetical protein
1152	 30.62	0	1249183..1250580	-	465	167627377	-	Fphi_1152	-	phosphoglycerol transferase-like protein
1153	 35.32	0	1250582..1251337	-	251	167627378	-	Fphi_1153	-	short-chain dehydrogenase/reductase SDR
1154	 33.33	0	1251342..1252553	-	403	167627379	-	Fphi_1154	-	capsule polysaccharide biosynthesis protein
1155	 40.45	+2	1252757..1254568	+	603	167627380	-	Fphi_1155	-	KpsD protein
1156	 33.05	0	1254928..1255983	+	351	167627381	-	Fphi_1156	-	hypothetical protein
1157	 36.74	+1	1256164..1257015	-	283	167627382	-	Fphi_1157	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1158	 35.48	0	1257023..1258282	-	419	167627383	-	Fphi_1158	-	capsular polysaccharide ABC transporter
1159	 36.85	+1	1258316..1258969	-	217	167627384	-	Fphi_1159	-	putative capsule polysaccharide export transport system ATP-binding protein
1160	 33.33	0	1258979..1259773	-	264	167627385	-	Fphi_1160	-	polysialic acid transport protein KpsM
1161	 40.12	+2	1260039..1261820	+	593	167627386	-	Fphi_1161	-	KpsD protein
1162	 32.75	0	1261853..1269274	+	2473	167627387	-	Fphi_1162	-	hypothetical protein
1163	 34.01	0	1269279..1270469	+	396	167627388	-	Fphi_1163	-	UDP-N-acetylglucosamine 4,6-dehydratase
1164	 33.16	0	1270456..1271613	+	385	167627389	-	Fphi_1164	-	DegT/DnrJ/EryC1/StrS aminotransferase
1165	 34.02	0	1271613..1272194	+	193	167627390	-	Fphi_1165	-	acetyl transferase
1166	 30.67	0	1272191..1272415	+	74	167627391	-	Fphi_1166	-	general stress protein 14 (GSP14)
1167	 37.08	+1	1272471..1273190	+	239	167627392	-	Fphi_1167	-	N-acylneuraminate-9-phosphate synthase
1168	 33.85	0	1273187..1274350	+	387	167627393	-	Fphi_1168	-	UDP-N-acetylglucosamine 2-epimerase
1169	 33.52	0	1274350..1275396	+	348	167627394	-	Fphi_1169	-	nucleotidyl transferase
1170	 32.32	0	1275396..1276085	+	229	167627395	-	Fphi_1170	-	acylneuraminate cytidylyltransferase
1171	 31.28	0	1276101..1277072	+	323	167627396	-	Fphi_1171	-	dehydrogenase
1172	 34.24	0	1277047..1278036	+	329	167627397	-	Fphi_1172	-	dehydrogenase
1173	 32.11	0	1278063..1280105	+	680	167627398	-	Fphi_1173	-	capsule polysaccharide export protein KpsC
1174	 28.67	-1	1280213..1281070	+	285	167627399	-	Fphi_1174	-	hypothetical protein
1175	 31.83	0	1281322..1281654	-	110	167627400	-	Fphi_1175	-	transposase
1176	 29.17	-1	1282074..1282193	-	39	167627401	-	Fphi_1929	-	hypothetical protein
1177	 31.71	0	1282265..1283065	-	266	167627402	-	Fphi_1176	-	transposase for IS1106
1178	 32.24	0	1283254..1283892	-	212	167627403	-	Fphi_1177	-	hypothetical protein
1179	 32.49	0	1283955..1284782	-	275	167627404	-	Fphi_1178	-	putative desulfatase
1180	 35.44	0	1285203..1286198	+	331	167627405	-	Fphi_1179	-	putative spore protein
1181	 34.67	0	1286205..1287179	+	324	167627406	-	Fphi_1180	-	capsule polysaccharide export protein KpsC
1182	 25.53	-2	1287468..1287608	+	46	167627407	-	Fphi_1181	-	hypothetical protein
1183	 36.58	+1	1287612..1288721	+	369	167627408	-	Fphi_1182	-	capsule polysaccharide export protein
1184	 30.26	0	1288971..1289915	+	314	167627409	-	Fphi_1184	-	integrase, catalytic region
1185	 33.82	0	1289887..1290093	-	68	167627410	-	Fphi_1183	-	hypothetical protein
1186	 37.63	+1	1290535..1293213	+	892	167627411	-	Fphi_1185	-	pyruvate dehydrogenase subunit E1
1187	 39.32	+2	1293231..1295102	+	623	167627412	-	Fphi_1186	-	dihydrolipoamide acetyltransferase
1188	 39.70	+2	1295118..1296530	+	470	167627413	-	Fphi_1187	-	pyruvate dehydrogenase complex, E3 component, dihydrolipoamide dehydrogenase
1189	 35.16	0	1296626..1297282	+	218	167627414	-	Fphi_1188	-	uracil-DNA glycosylase
1190	 29.71	0	1297303..1297743	-	146	167627415	-	Fphi_1189	-	hypothetical protein
1191	 29.76	0	1297746..1298333	-	195	167627416	-	Fphi_1190	-	hypothetical protein
1192	 39.89	+2	1298368..1298550	-	60	167627417	-	Fphi_1191	-	chitin-binding protein
1193	 30.26	0	1299018..1299962	-	314	167627418	-	Fphi_1192	-	integrase, catalytic region
1194	 35.95	+1	1300030..1301214	-	394	167627419	-	Fphi_1193	-	hypothetical protein
1195	 36.65	+1	1301474..1304068	+	864	167627420	-	Fphi_1194	-	DNA topoisomerase (ATP-hydrolyzing)
1196	 33.25	0	1304074..1305228	+	384	167627421	-	Fphi_1195	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1197	 34.43	0	1305234..1307612	+	792	167627422	-	Fphi_1196	-	outer membrane protein of unknown function
1198	 33.13	0	1307735..1308235	+	166	167627423	-	Fphi_1197	-	outer membrane protein OmpH
1199	 36.48	+1	1308256..1309272	+	338	167627424	-	Fphi_1198	-	UDP-3-O-(3-hydroxy-fatty acid)-glucosamine N-acyltransferase
1200	 35.98	+1	1309283..1309774	+	163	167627425	-	Fphi_1199	-	beta-hydroxyacyl-ACP dehydratase
1201	 37.69	+1	1309777..1310556	+	259	167627426	-	Fphi_1200	-	UDP-N-acetylglucosamine acyltransferase
1202	 32.37	0	1310556..1311698	+	380	167627427	-	Fphi_1201	-	Lipid-A-disaccharide synthase
1203	 29.57	0	1311759..1312343	+	194	167627428	-	Fphi_1202	-	hypothetical protein
1204	 34.44	0	1312659..1313468	-	269	167627429	-	Fphi_1203	-	hypothetical protein
1205	 29.25	-1	1313536..1314294	-	252	167627430	-	Fphi_1204	-	(CDP-alcohol) phosphatidyltransferase
1206	 31.75	0	1314356..1315237	-	293	167627431	-	Fphi_1205	-	geranyltranstransferase
1207	 32.10	0	1315234..1316529	-	431	167627432	-	Fphi_1206	-	3-deoxy-D-manno-octulosonic-acid transferase
1208	 33.85	0	1316639..1317217	-	192	167627433	-	Fphi_1207	-	HAM1 protein
1209	 36.01	+1	1317320..1318141	+	273	167627434	-	Fphi_1208	-	pyrroline-5-carboxylate reductase
1210	 33.04	0	1318276..1318962	+	228	167627435	-	Fphi_1209	-	response regulator receiver protein
1211	 33.80	0	1318967..1319830	+	287	167627436	-	Fphi_1210	-	Signal peptidase I
1212	 30.88	0	1319835..1320527	+	230	167627437	-	Fphi_1211	-	ribonuclease III
1213	 33.44	0	1320514..1321422	+	302	167627438	-	Fphi_1212	-	tRNA pseudouridine synthase B
1214	 33.59	0	1321415..1323715	+	766	167627439	-	Fphi_1213	-	exoribonuclease II
1215	 33.57	0	1323736..1324566	-	276	167627440	-	Fphi_1214	-	delta 9 acyl-lipid fatty acid desaturase
1216	 32.12	0	1324580..1325323	-	247	167627441	-	Fphi_1215	-	short chain dehydrogenase
1217	 34.44	0	1325326..1325868	-	180	167627442	-	Fphi_1216	-	hypothetical protein
1218	 31.60	0	1325865..1326383	-	172	167627443	-	Fphi_1217	-	hypothetical protein
1219	 34.45	0	1326376..1327539	-	387	167627444	-	Fphi_1218	-	cyclopropane-fatty-acyl-phospholipid synthase
1220	 29.50	0	1327681..1328463	-	260	167627445	-	Fphi_1219	-	hypothetical protein
1221	 33.33	0	1328457..1329710	-	417	167627446	-	Fphi_1220	-	NAD/FAD-binding protein
1222	 32.95	0	1329788..1330825	-	345	167627447	-	Fphi_1221	-	two-component regulator, sensor histidine kinase
1223	 32.90	0	1330809..1331498	-	229	167627448	-	Fphi_1222	-	response regulator receiver protein
1224	 32.22	0	1331640..1332176	+	178	167627449	-	Fphi_1223	-	hypothetical protein
1225	 31.84	0	1332307..1332708	+	133	167627450	-	Fphi_1224	-	hypothetical protein
1226	 27.31	-1	1332724..1333371	+	215	167627451	-	Fphi_1225	-	SAM-dependent methyltransferase
1227	 33.17	0	1333455..1334060	+	201	167627452	-	Fphi_1226	-	hypothetical protein
1228	 34.39	0	1334127..1335551	+	474	167627453	-	Fphi_1227	-	hypothetical protein
1229	 33.33	0	1335558..1336553	+	331	167627454	-	Fphi_1228	-	hypothetical protein
1230	 32.30	0	1336501..1337946	+	481	167627455	-	Fphi_1229	-	hypothetical protein
1231	 34.61	0	1338148..1339164	+	338	167627456	-	Fphi_1230	-	ornithine cyclodeaminase
1232	 34.25	0	1339180..1340049	+	289	167627457	-	Fphi_1231	-	hypothetical protein
1233	 34.82	0	1340107..1341519	+	470	167627458	-	Fphi_1232	-	putative nicotinate phosphoribosyltransferase
1234	 26.75	-1	1341602..1341829	+	75	167627459	-	Fphi_1233	-	hypothetical protein
1235	 32.55	0	1341984..1343264	+	426	167627460	-	Fphi_1235	-	sugar porter (SP) family protein
1236	 33.54	0	1343257..1343745	-	162	167627461	-	Fphi_1234	-	hypothetical protein
1237	 38.38	+1	1343806..1344993	-	395	167627462	-	Fphi_1236	-	acetyl-CoA acetyltransferase
1238	 35.56	0	1345006..1347699	-	897	167627463	-	Fphi_1237	-	bifunctional protein: 3-hydroxacyl-CoA dehydrogenase/acyl-CoA-binding protein
1239	 36.46	+1	1347772..1350012	-	746	167627464	-	Fphi_1238	-	acyl-CoA dehydrogenase
1240	 32.86	0	1350043..1351737	-	564	167627465	-	Fphi_1239	-	long chain fatty acid CoA ligase
1241	 31.90	0	1351954..1352301	+	115	167627466	-	Fphi_1240	-	arsenate reductase
1242	 35.63	0	1352352..1354568	+	738	167627467	-	Fphi_1241	-	isocitrate dehydrogenase (NADP(+))
1243	 33.46	0	1354822..1358622	+	1266	167627468	-	Fphi_1242	-	HrpA-like helicase
1244	 33.79	0	1358654..1360414	+	586	167627469	-	Fphi_1243	-	dTDP-glucose 4,6-dehydratase
1245	 34.79	0	1360421..1361038	+	205	167627470	-	Fphi_1244	-	galactosyl transferase
32.71	MEAN

3.22	STD DEV
