IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

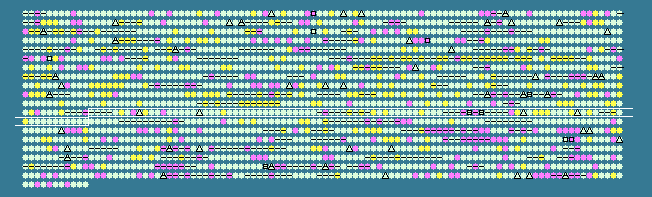

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.71 STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1112	 33.48	0	1203197..1203889	+	230	167627337	-	Fphi_1112	-	hypothetical protein
1113	 35.53	0	1203892..1205304	+	470	167627338	-	Fphi_1113	-	dihydrolipoamide dehydrogenase
1114	 29.98	0	1205301..1205897	+	198	167627339	-	Fphi_1114	-	CDP-alcohol phosphatidyltransferase family protein
1115	 31.01	0	1205897..1206283	+	128	167627340	-	Fphi_1115	-	hypothetical protein
1116	 33.08	0	1206300..1206692	+	130	167627341	-	Fphi_1116	-	hypothetical protein
1117	 38.62	+1	1206851..1207777	+	308	167627342	-	Fphi_1117	-	chaperone protein DNA J
1118	 32.38	0	1208349..1208870	+	173	167627343	-	Fphi_1118	-	hypothetical protein
1119	 26.92	-1	1208870..1210054	+	394	167627344	-	Fphi_1119	-	hypothetical protein
1120	 30.26	0	1210168..1211112	+	314	167627345	-	Fphi_1120	-	integrase, catalytic region
1121	 36.67	+1	1211181..1211360	+	59	167627346	-	Fphi_1122	-	hypothetical protein
1122	 33.45	0	1211357..1212235	-	292	167627347	-	Fphi_1121	-	10 TMS drug/metabolite exporter protein
1123	 32.50	0	1212421..1213617	+	398	167627348	-	Fphi_1123	-	hydroxy/aromatic amino acid permease (HAAAP) family protein
1124	 26.61	-1	1213649..1214005	+	118	167627349	-	Fphi_1124	-	hypothetical protein
1125	 33.75	0	1214380..1216308	+	642	167627350	-	Fphi_1125	-	GTP diphosphokinase
1126	 33.96	0	1216326..1216967	-	213	167627351	-	Fphi_1126	-	thymosin beta-4 family protein
1127	 32.65	0	1217045..1217626	-	193	167627352	-	Fphi_1127	-	hypothetical protein
1128	 31.06	0	1217708..1218322	+	204	167627353	-	Fphi_1128	-	hypothetical protein
1129	 29.60	0	1218328..1219050	-	240	167627354	-	Fphi_1129	-	hypothetical protein
1130	 29.82	0	1219047..1219928	-	293	167627355	-	Fphi_1130	-	phage integrase family protein
1131	 32.87	0	1219937..1221220	-	427	167627356	-	Fphi_1131	-	aromatic amino acid HAAP transporter
1132	 31.11	0	1221168..1221617	-	149	167627357	-	Fphi_1132	-	preprotein translocase subunit SecB
1133	 32.98	0	1221684..1224230	-	848	167627358	-	Fphi_1133	-	DNA mismatch repair protein
1134	 38.08	+1	1224401..1225348	+	315	167627359	-	Fphi_1134	-	tRNA adenylyltransferase
1135	 30.75	0	1225379..1225882	+	167	167627360	-	Fphi_1135	-	pilus assembly protein
1136	 32.54	0	1225863..1226876	+	337	167627361	-	Fphi_1136	-	pilus assembly protein
1137	 31.07	0	1226885..1228828	+	647	167627362	-	Fphi_1137	-	hypothetical protein
1138	 34.80	0	1228825..1229709	+	294	167627363	-	Fphi_1138	-	N-acetylmuramic acid-6-phosphate etherase
1139	 33.83	0	1229711..1230112	+	133	167627364	-	Fphi_1139	-	hypothetical protein
1140	 34.71	0	1230327..1231631	-	434	167627365	-	Fphi_1140	-	monovalent cation:proton antiporter-1
1141	 31.82	0	1231641..1232369	-	242	167627366	-	Fphi_1141	-	hypothetical protein
1142	 34.03	0	1232371..1233375	-	334	167627367	-	Fphi_1142	-	tryptophanyl-tRNA synthetase
1143	 34.06	0	1233604..1234977	-	457	167627368	-	Fphi_1143	-	hypothetical protein
1144	 30.89	0	1235422..1236036	-	204	167627369	-	Fphi_1144	-	dephospho-CoA kinase
1145	 32.89	0	1236170..1237306	+	378	167627370	-	Fphi_1145	-	hypothetical protein
1146	 34.28	0	1237389..1244282	+	2297	167627371	-	Fphi_1146	-	polyketide synthase modules
1147	 34.73	0	1244282..1245571	+	429	167627372	-	Fphi_1147	-	8-amino-7-oxononanoate synthase
1148	 31.22	0	1245579..1246193	+	204	167627373	-	Fphi_1148	-	hypothetical protein
1149	 29.86	0	1246242..1246529	+	95	167627374	-	Fphi_1149	-	oligoketide cyclase/lipid transport protein
1150	 31.37	0	1246694..1248067	-	457	167627375	-	Fphi_1150	-	putative cytochrome P450
1151	 26.97	-1	1248071..1249138	-	355	167627376	-	Fphi_1151	-	hypothetical protein
1152	 30.62	0	1249183..1250580	-	465	167627377	-	Fphi_1152	-	phosphoglycerol transferase-like protein
1153	 35.32	0	1250582..1251337	-	251	167627378	-	Fphi_1153	-	short-chain dehydrogenase/reductase SDR
1154	 33.33	0	1251342..1252553	-	403	167627379	-	Fphi_1154	-	capsule polysaccharide biosynthesis protein
1155	 40.45	+2	1252757..1254568	+	603	167627380	-	Fphi_1155	-	KpsD protein
1156	 33.05	0	1254928..1255983	+	351	167627381	-	Fphi_1156	-	hypothetical protein
1157	 36.74	+1	1256164..1257015	-	283	167627382	-	Fphi_1157	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1158	 35.48	0	1257023..1258282	-	419	167627383	-	Fphi_1158	-	capsular polysaccharide ABC transporter
1159	 36.85	+1	1258316..1258969	-	217	167627384	-	Fphi_1159	-	putative capsule polysaccharide export transport system ATP-binding protein
1160	 33.33	0	1258979..1259773	-	264	167627385	-	Fphi_1160	-	polysialic acid transport protein KpsM
1161	 40.12	+2	1260039..1261820	+	593	167627386	-	Fphi_1161	-	KpsD protein
1162	 32.75	0	1261853..1269274	+	2473	167627387	-	Fphi_1162	-	hypothetical protein
1163	 34.01	0	1269279..1270469	+	396	167627388	-	Fphi_1163	-	UDP-N-acetylglucosamine 4,6-dehydratase
1164	 33.16	0	1270456..1271613	+	385	167627389	-	Fphi_1164	-	DegT/DnrJ/EryC1/StrS aminotransferase
1165	 34.02	0	1271613..1272194	+	193	167627390	-	Fphi_1165	-	acetyl transferase
1166	 30.67	0	1272191..1272415	+	74	167627391	-	Fphi_1166	-	general stress protein 14 (GSP14)
1167	 37.08	+1	1272471..1273190	+	239	167627392	-	Fphi_1167	-	N-acylneuraminate-9-phosphate synthase
1168	 33.85	0	1273187..1274350	+	387	167627393	-	Fphi_1168	-	UDP-N-acetylglucosamine 2-epimerase
1169	 33.52	0	1274350..1275396	+	348	167627394	-	Fphi_1169	-	nucleotidyl transferase
1170	 32.32	0	1275396..1276085	+	229	167627395	-	Fphi_1170	-	acylneuraminate cytidylyltransferase
1171	 31.28	0	1276101..1277072	+	323	167627396	-	Fphi_1171	-	dehydrogenase
1172	 34.24	0	1277047..1278036	+	329	167627397	-	Fphi_1172	-	dehydrogenase
1173	 32.11	0	1278063..1280105	+	680	167627398	-	Fphi_1173	-	capsule polysaccharide export protein KpsC
1174	 28.67	-1	1280213..1281070	+	285	167627399	-	Fphi_1174	-	hypothetical protein
1175	 31.83	0	1281322..1281654	-	110	167627400	-	Fphi_1175	-	transposase
1176	 29.17	-1	1282074..1282193	-	39	167627401	-	Fphi_1929	-	hypothetical protein
1177	 31.71	0	1282265..1283065	-	266	167627402	-	Fphi_1176	-	transposase for IS1106
1178	 32.24	0	1283254..1283892	-	212	167627403	-	Fphi_1177	-	hypothetical protein
1179	 32.49	0	1283955..1284782	-	275	167627404	-	Fphi_1178	-	putative desulfatase
1180	 35.44	0	1285203..1286198	+	331	167627405	-	Fphi_1179	-	putative spore protein
1181	 34.67	0	1286205..1287179	+	324	167627406	-	Fphi_1180	-	capsule polysaccharide export protein KpsC
1182	 25.53	-2	1287468..1287608	+	46	167627407	-	Fphi_1181	-	hypothetical protein
1183	 36.58	+1	1287612..1288721	+	369	167627408	-	Fphi_1182	-	capsule polysaccharide export protein
1184	 30.26	0	1288971..1289915	+	314	167627409	-	Fphi_1184	-	integrase, catalytic region
1185	 33.82	0	1289887..1290093	-	68	167627410	-	Fphi_1183	-	hypothetical protein
1186	 37.63	+1	1290535..1293213	+	892	167627411	-	Fphi_1185	-	pyruvate dehydrogenase subunit E1
1187	 39.32	+2	1293231..1295102	+	623	167627412	-	Fphi_1186	-	dihydrolipoamide acetyltransferase
1188	 39.70	+2	1295118..1296530	+	470	167627413	-	Fphi_1187	-	pyruvate dehydrogenase complex, E3 component, dihydrolipoamide dehydrogenase
1189	 35.16	0	1296626..1297282	+	218	167627414	-	Fphi_1188	-	uracil-DNA glycosylase
1190	 29.71	0	1297303..1297743	-	146	167627415	-	Fphi_1189	-	hypothetical protein
1191	 29.76	0	1297746..1298333	-	195	167627416	-	Fphi_1190	-	hypothetical protein
1192	 39.89	+2	1298368..1298550	-	60	167627417	-	Fphi_1191	-	chitin-binding protein
1193	 30.26	0	1299018..1299962	-	314	167627418	-	Fphi_1192	-	integrase, catalytic region
1194	 35.95	+1	1300030..1301214	-	394	167627419	-	Fphi_1193	-	hypothetical protein
1195	 36.65	+1	1301474..1304068	+	864	167627420	-	Fphi_1194	-	DNA topoisomerase (ATP-hydrolyzing)
1196	 33.25	0	1304074..1305228	+	384	167627421	-	Fphi_1195	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1197	 34.43	0	1305234..1307612	+	792	167627422	-	Fphi_1196	-	outer membrane protein of unknown function
1198	 33.13	0	1307735..1308235	+	166	167627423	-	Fphi_1197	-	outer membrane protein OmpH
1199	 36.48	+1	1308256..1309272	+	338	167627424	-	Fphi_1198	-	UDP-3-O-(3-hydroxy-fatty acid)-glucosamine N-acyltransferase
1200	 35.98	+1	1309283..1309774	+	163	167627425	-	Fphi_1199	-	beta-hydroxyacyl-ACP dehydratase
1201	 37.69	+1	1309777..1310556	+	259	167627426	-	Fphi_1200	-	UDP-N-acetylglucosamine acyltransferase
1202	 32.37	0	1310556..1311698	+	380	167627427	-	Fphi_1201	-	Lipid-A-disaccharide synthase
1203	 29.57	0	1311759..1312343	+	194	167627428	-	Fphi_1202	-	hypothetical protein
1204	 34.44	0	1312659..1313468	-	269	167627429	-	Fphi_1203	-	hypothetical protein
1205	 29.25	-1	1313536..1314294	-	252	167627430	-	Fphi_1204	-	(CDP-alcohol) phosphatidyltransferase
1206	 31.75	0	1314356..1315237	-	293	167627431	-	Fphi_1205	-	geranyltranstransferase
1207	 32.10	0	1315234..1316529	-	431	167627432	-	Fphi_1206	-	3-deoxy-D-manno-octulosonic-acid transferase
1208	 33.85	0	1316639..1317217	-	192	167627433	-	Fphi_1207	-	HAM1 protein
1209	 36.01	+1	1317320..1318141	+	273	167627434	-	Fphi_1208	-	pyrroline-5-carboxylate reductase
1210	 33.04	0	1318276..1318962	+	228	167627435	-	Fphi_1209	-	response regulator receiver protein
1211	 33.80	0	1318967..1319830	+	287	167627436	-	Fphi_1210	-	Signal peptidase I
32.71	MEAN

3.22	STD DEV
