IslandPath Analysis: Francisella philomiragia subsp. philomiragia ATCC 25017

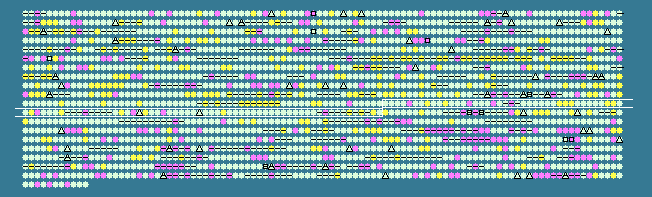

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 32.71 STD DEV: 3.22
Francisella philomiragia subsp. philomiragia ATCC 25017, complete genome - 1..2045775
1911 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1061	 34.62	0	1153215..1153682	+	155	167627286	-	Fphi_1062	-	dinucleoside polyphosphate hydrolase
1062	 29.26	-1	1153683..1154321	-	212	167627287	-	Fphi_1063	-	phosphatidic acid phosphatase (PAP2) family protein, membrane associated
1063	 32.96	0	1154395..1154934	+	179	167627288	-	Fphi_1064	-	N-acetyl-anhydromuranmyl-L-alanine amidase
1064	 36.02	+1	1154939..1156243	+	434	167627289	-	Fphi_1065	-	hypothetical protein
1065	 29.13	-1	1156343..1157602	-	419	167627290	-	Fphi_1066	-	serine permease
1066	 34.34	0	1157668..1159551	-	627	167627291	-	Fphi_1067	-	DNA topoisomerase IV subunit B
1067	 33.33	0	1159649..1160830	-	393	167627292	-	Fphi_1068	-	drug:H+ antiporter-1 (DHA1) family protein
1068	 36.72	+1	1160830..1162392	-	520	167627293	-	Fphi_1069	-	hypothetical protein
1069	 31.61	0	1162395..1163033	-	212	167627294	-	Fphi_1070	-	hypothetical protein
1070	 31.97	0	1163219..1164463	+	414	167627295	-	Fphi_1071	-	glutamyl-tRNA reductase
1071	 36.92	+1	1164464..1165549	+	361	167627296	-	Fphi_1072	-	peptide chain release factor 1
1072	 33.68	0	1165542..1166399	+	285	167627297	-	Fphi_1074	-	HemK family modification methylase
1073	 31.84	0	1166390..1166857	-	155	167627298	-	Fphi_1073	-	hypothetical protein
1074	 30.20	0	1166861..1167625	-	254	167627299	-	Fphi_1075	-	hypothetical protein
1075	 26.64	-1	1167916..1169214	+	432	167627300	-	Fphi_1076	-	membrane protein of unknown function
1076	 30.78	0	1169231..1169818	-	195	167627301	-	Fphi_1077	-	hypothetical protein
1077	 30.13	0	1169808..1172150	-	780	167627302	-	Fphi_1078	-	hypothetical protein
1078	 30.42	0	1172156..1172773	-	205	167627303	-	Fphi_1079	-	hypothetical protein
1079	 28.44	-1	1172737..1173165	-	142	167627304	-	Fphi_1080	-	4-hydroxybenzoyl-CoA thioesterase
1080	 29.93	0	1173170..1174108	-	312	167627305	-	Fphi_1081	-	putative acyltransferase
1081	 32.53	0	1174090..1174839	-	249	167627306	-	Fphi_1082	-	glycosyltransferase
1082	 28.95	-1	1174832..1175173	-	113	167627307	-	Fphi_1083	-	hypothetical protein
1083	 30.52	0	1175252..1176565	-	437	167627308	-	Fphi_1084	-	aconitate hydratase
1084	 29.28	-1	1176549..1177115	-	188	167627309	-	Fphi_1085	-	hypothetical protein
1085	 33.33	0	1177127..1177381	-	84	167627310	-	Fphi_1086	-	putative acyl carrier protein
1086	 32.53	0	1177392..1177640	-	82	167627311	-	Fphi_1087	-	putative acyl carrier protein
1087	 31.92	0	1177658..1178434	-	258	167627312	-	Fphi_1088	-	putative phospholipid biosynthesis acyltransferase
1088	 30.82	0	1178437..1179192	-	251	167627313	-	Fphi_1089	-	hypothetical protein
1089	 35.36	0	1179322..1180503	+	393	167627314	-	Fphi_1090	-	3-oxoacyl-(acyl carrier protein) synthase
1090	 36.75	+1	1180504..1180971	+	155	167627315	-	Fphi_1091	-	putative beta-hydroxydecanoyl-ACP dehydrase
1091	 36.64	+1	1180975..1181700	+	241	167627316	-	Fphi_1092	-	3-oxoacyl-(acyl-carrier-protein) reductase, putative
1092	 38.51	+1	1181700..1182917	+	405	167627317	-	Fphi_1093	-	beta-ketoacyl-ACP synthase
1093	 32.65	0	1182994..1183431	+	145	167627318	-	Fphi_1094	-	excinuclease ATPase subunit
1094	 33.58	0	1183439..1184674	-	411	167627319	-	Fphi_1095	-	putative enzyme
1095	 33.38	0	1184794..1187031	-	745	167627320	-	Fphi_1096	-	ferrous iron transport protein B
1096	 30.58	0	1187028..1187354	-	108	167627321	-	Fphi_1928	-	hypothetical protein
1097	 30.48	0	1187495..1187914	-	139	167627322	-	Fphi_1097	-	hypothetical protein
1098	 38.54	+1	1188130..1188417	+	95	167627323	-	Fphi_1098	-	co-chaperonin GroES
1099	 38.42	+1	1188455..1190086	+	543	167627324	-	Fphi_1099	-	chaperonin GroEL
1100	 35.26	0	1190278..1191627	+	449	167627325	-	Fphi_1100	-	amino acid-polyamine-organocation (APC) superfamily protein
1101	 34.55	0	1191631..1192452	-	273	167627326	-	Fphi_1101	-	short chain dehydrogenase/reductase family oxidoreductase
1102	 36.38	+1	1192648..1194159	+	503	167627327	-	Fphi_1102	-	serine protease
1103	 26.26	-2	1194183..1194380	-	65	167627328	-	Fphi_1103	-	hypothetical protein
1104	 30.25	0	1194394..1194879	-	161	167627329	-	Fphi_1104	-	hypothetical protein
1105	 35.02	0	1194934..1196118	-	394	167627330	-	Fphi_1105	-	hypothetical protein
1106	 33.25	0	1196124..1197269	-	381	167627331	-	Fphi_1106	-	Bcr/CflA subfamily drug resistance transporter
1107	 37.63	+1	1197419..1198768	-	449	167627332	-	Fphi_1107	-	glutamate dehydrogenase
1108	 32.02	0	1199265..1199948	+	227	167627333	-	Fphi_1108	-	hypothetical protein
1109	 32.57	0	1199963..1201147	+	394	167627334	-	Fphi_1109	-	diaminopimelate decarboxylase
1110	 33.69	0	1201162..1202565	+	467	167627335	-	Fphi_1110	-	APC family gamma-glutamate:GABA antiporter
1111	 29.01	-1	1202599..1203153	-	184	167627336	-	Fphi_1111	-	methylated-DNA--(protein)-cysteine S-methyltransferase
1112	 33.48	0	1203197..1203889	+	230	167627337	-	Fphi_1112	-	hypothetical protein
1113	 35.53	0	1203892..1205304	+	470	167627338	-	Fphi_1113	-	dihydrolipoamide dehydrogenase
1114	 29.98	0	1205301..1205897	+	198	167627339	-	Fphi_1114	-	CDP-alcohol phosphatidyltransferase family protein
1115	 31.01	0	1205897..1206283	+	128	167627340	-	Fphi_1115	-	hypothetical protein
1116	 33.08	0	1206300..1206692	+	130	167627341	-	Fphi_1116	-	hypothetical protein
1117	 38.62	+1	1206851..1207777	+	308	167627342	-	Fphi_1117	-	chaperone protein DNA J
1118	 32.38	0	1208349..1208870	+	173	167627343	-	Fphi_1118	-	hypothetical protein
1119	 26.92	-1	1208870..1210054	+	394	167627344	-	Fphi_1119	-	hypothetical protein
1120	 30.26	0	1210168..1211112	+	314	167627345	-	Fphi_1120	-	integrase, catalytic region
1121	 36.67	+1	1211181..1211360	+	59	167627346	-	Fphi_1122	-	hypothetical protein
1122	 33.45	0	1211357..1212235	-	292	167627347	-	Fphi_1121	-	10 TMS drug/metabolite exporter protein
1123	 32.50	0	1212421..1213617	+	398	167627348	-	Fphi_1123	-	hydroxy/aromatic amino acid permease (HAAAP) family protein
1124	 26.61	-1	1213649..1214005	+	118	167627349	-	Fphi_1124	-	hypothetical protein
1125	 33.75	0	1214380..1216308	+	642	167627350	-	Fphi_1125	-	GTP diphosphokinase
1126	 33.96	0	1216326..1216967	-	213	167627351	-	Fphi_1126	-	thymosin beta-4 family protein
1127	 32.65	0	1217045..1217626	-	193	167627352	-	Fphi_1127	-	hypothetical protein
1128	 31.06	0	1217708..1218322	+	204	167627353	-	Fphi_1128	-	hypothetical protein
1129	 29.60	0	1218328..1219050	-	240	167627354	-	Fphi_1129	-	hypothetical protein
1130	 29.82	0	1219047..1219928	-	293	167627355	-	Fphi_1130	-	phage integrase family protein
1131	 32.87	0	1219937..1221220	-	427	167627356	-	Fphi_1131	-	aromatic amino acid HAAP transporter
1132	 31.11	0	1221168..1221617	-	149	167627357	-	Fphi_1132	-	preprotein translocase subunit SecB
1133	 32.98	0	1221684..1224230	-	848	167627358	-	Fphi_1133	-	DNA mismatch repair protein
1134	 38.08	+1	1224401..1225348	+	315	167627359	-	Fphi_1134	-	tRNA adenylyltransferase
1135	 30.75	0	1225379..1225882	+	167	167627360	-	Fphi_1135	-	pilus assembly protein
1136	 32.54	0	1225863..1226876	+	337	167627361	-	Fphi_1136	-	pilus assembly protein
1137	 31.07	0	1226885..1228828	+	647	167627362	-	Fphi_1137	-	hypothetical protein
1138	 34.80	0	1228825..1229709	+	294	167627363	-	Fphi_1138	-	N-acetylmuramic acid-6-phosphate etherase
1139	 33.83	0	1229711..1230112	+	133	167627364	-	Fphi_1139	-	hypothetical protein
1140	 34.71	0	1230327..1231631	-	434	167627365	-	Fphi_1140	-	monovalent cation:proton antiporter-1
1141	 31.82	0	1231641..1232369	-	242	167627366	-	Fphi_1141	-	hypothetical protein
1142	 34.03	0	1232371..1233375	-	334	167627367	-	Fphi_1142	-	tryptophanyl-tRNA synthetase
1143	 34.06	0	1233604..1234977	-	457	167627368	-	Fphi_1143	-	hypothetical protein
1144	 30.89	0	1235422..1236036	-	204	167627369	-	Fphi_1144	-	dephospho-CoA kinase
1145	 32.89	0	1236170..1237306	+	378	167627370	-	Fphi_1145	-	hypothetical protein
1146	 34.28	0	1237389..1244282	+	2297	167627371	-	Fphi_1146	-	polyketide synthase modules
1147	 34.73	0	1244282..1245571	+	429	167627372	-	Fphi_1147	-	8-amino-7-oxononanoate synthase
1148	 31.22	0	1245579..1246193	+	204	167627373	-	Fphi_1148	-	hypothetical protein
1149	 29.86	0	1246242..1246529	+	95	167627374	-	Fphi_1149	-	oligoketide cyclase/lipid transport protein
1150	 31.37	0	1246694..1248067	-	457	167627375	-	Fphi_1150	-	putative cytochrome P450
1151	 26.97	-1	1248071..1249138	-	355	167627376	-	Fphi_1151	-	hypothetical protein
1152	 30.62	0	1249183..1250580	-	465	167627377	-	Fphi_1152	-	phosphoglycerol transferase-like protein
1153	 35.32	0	1250582..1251337	-	251	167627378	-	Fphi_1153	-	short-chain dehydrogenase/reductase SDR
1154	 33.33	0	1251342..1252553	-	403	167627379	-	Fphi_1154	-	capsule polysaccharide biosynthesis protein
1155	 40.45	+2	1252757..1254568	+	603	167627380	-	Fphi_1155	-	KpsD protein
1156	 33.05	0	1254928..1255983	+	351	167627381	-	Fphi_1156	-	hypothetical protein
1157	 36.74	+1	1256164..1257015	-	283	167627382	-	Fphi_1157	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
1158	 35.48	0	1257023..1258282	-	419	167627383	-	Fphi_1158	-	capsular polysaccharide ABC transporter
1159	 36.85	+1	1258316..1258969	-	217	167627384	-	Fphi_1159	-	putative capsule polysaccharide export transport system ATP-binding protein
1160	 33.33	0	1258979..1259773	-	264	167627385	-	Fphi_1160	-	polysialic acid transport protein KpsM
32.71	MEAN

3.22	STD DEV
