IslandPath Analysis: Escherichia coli SMS-3-5

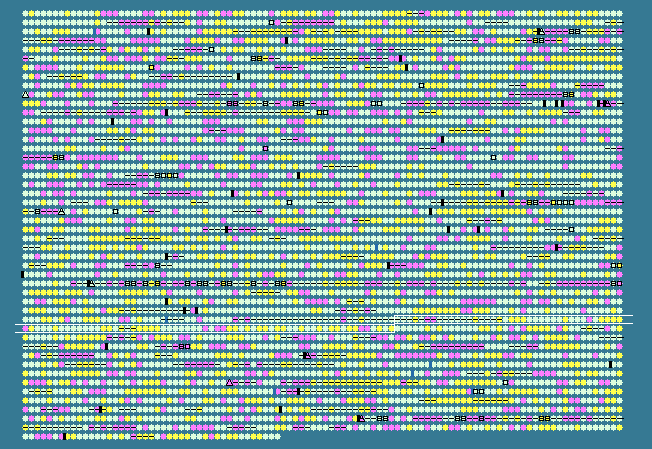

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.50 STD DEV: 5.49
Escherichia coli SMS-3-5, complete genome - 1..5068389
4743 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3463	 47.85	0	3678617..3678919	-	100	170681042	rplW	EcSMS35_3613	-	ribosomal protein L23
3464	 52.97	0	3678916..3679521	-	201	170679638	rplD	EcSMS35_3614	-	ribosomal protein L4
3465	 51.27	0	3679532..3680161	-	209	170680319	rplC	EcSMS35_3615	-	ribosomal protein L3
3466	 55.45	0	3680194..3680505	-	103	170683626	rpsJ	EcSMS35_3616	-	ribosomal protein S10
3467	 49.36	0	3680884..3681351	+	155	170682251	-	EcSMS35_3618	-	A24 family peptidase
3468	 41.09	-1	3681348..3681824	-	158	170684300	bfr	EcSMS35_3617	-	bacterioferritin
3469	 45.13	0	3681897..3682091	-	64	170682920	bfd	EcSMS35_3619	-	bacterioferritin-associated ferredoxin
3470	 53.16	0	3682274..3683458	-	394	170681311	tuf2	EcSMS35_3620	-	translation elongation factor Tu
3471	 50.73	0	3683529..3685643	-	704	170681744	fusA	EcSMS35_3621	-	translation elongation factor G
3472	 49.68	0	3685740..3686210	-	156	170680064	rpsG	EcSMS35_3622	-	ribosomal protein S7
3473	 53.07	0	3686307..3686681	-	124	170683246	rpsL	EcSMS35_3623	-	ribosomal protein S12
3474	 50.00	0	3686807..3687094	-	95	170682708	dsrH	EcSMS35_3624	-	sulfur relay protein TusD/DsrH
3475	 50.00	0	3687102..3687461	-	119	170682208	tusC	EcSMS35_3625	-	sulfur relay protein TusC/DsrF
3476	 55.30	0	3687461..3687847	-	128	170681621	tusD	EcSMS35_3626	-	sulfurtransferase TusD
3477	 47.30	0	3687847..3688569	-	240	170681109	-	EcSMS35_3627	-	hypothetical protein
3478	 48.34	0	3688736..3689548	-	270	170680696	fkpA	EcSMS35_3628	-	FKBP-type peptidyl-prolyl cis-trans isomerase FkpA
3479	 53.42	0	3689769..3689987	+	72	170683809	-	EcSMS35_3629	-	slyX protein
3480	 55.33	0	3690037..3690627	-	196	170683250	slyD	EcSMS35_3630	-	FKBP-type peptidyl-prolyl cis-trans isomerase SlyD
3481	 48.26	0	3690722..3690922	-	66	170682580	-	EcSMS35_3631	-	hypothetical protein
3482	 54.10	0	3690932..3692737	-	601	170682213	kefB	EcSMS35_3632	-	glutathione-regulated potassium-efflux system protein KefB
3483	 56.70	+1	3692737..3693288	-	183	170684014	kefG	EcSMS35_3633	-	glutathione-regulated potassium-efflux system ancillary protein kefG
3484	 55.69	0	3693419..3695332	+	637	170679823	-	EcSMS35_3634	-	ABC transporter, ATP-binding protein
3485	 53.57	0	3695332..3696354	+	340	170683037	-	EcSMS35_3635	-	alpha/beta fold family hydrolase
3486	 50.23	0	3696348..3696566	+	72	170683432	-	EcSMS35_3636	-	hypothetical protein
3487	 53.45	0	3696620..3697489	+	289	170683032	-	EcSMS35_3637	-	phosphoribulokinase/uridine kinase family protein
3488	 51.60	0	3697544..3697948	-	134	170682548	-	EcSMS35_3638	-	OsmC family protein
3489	 49.76	0	3698250..3698882	+	210	170681629	crp	EcSMS35_3639	-	catabolite gene activator
3490	 53.28	0	3698933..3701023	+	696	170682476	-	EcSMS35_3640	-	YccS/YhfK family integral membrane protein
3491	 54.00	0	3701086..3702309	-	407	170679794	argD	EcSMS35_3641	-	acetylornithine/succinyldiaminopimelate aminotransferase
3492	 53.55	0	3702395..3702958	-	187	170680557	pabA	EcSMS35_3642	-	aminodeoxychorismate synthase, component II
3493	 53.73	0	3702990..3703592	-	200	170681998	fic	EcSMS35_3643	-	cell filamentation protein Fic
3494	 51.31	0	3703854..3704426	-	190	170681864	ppiA	EcSMS35_3644	-	peptidyl-prolyl cis-trans isomerase A
3495	 40.14	-1	3704570..3704716	-	48	170682492	-	EcSMS35_3645	-	hypothetical protein
3496	 52.37	0	3704697..3705878	+	393	170682755	tsgA	EcSMS35_3646	-	major facilitator family transporter TsgA
3497	 54.21	0	3706140..3708683	+	847	170683252	nirB	EcSMS35_3647	-	nitrite reductase [NAD(P)H], large subunit
3498	 56.27	+1	3708680..3709006	+	108	170684098	nirD	EcSMS35_3648	-	nitrite reductase [NAD(P)H], small subunit
3499	 54.52	0	3709131..3709937	+	268	170683994	nirC	EcSMS35_3649	-	nitrite transporter NirC
3500	 54.00	0	3709956..3711329	+	457	170680692	cysG	EcSMS35_3650	-	siroheme synthase
3501	 42.26	-1	3711580..3711747	+	55	170681033	-	EcSMS35_3651	-	putative lipoprotein
3502	 57.27	+1	3711854..3712939	-	361	170682063	-	EcSMS35_3652	-	hypothetical protein
3503	 53.56	0	3712951..3714255	-	434	170680136	-	EcSMS35_3653	-	hypothetical protein
3504	 47.46	0	3714267..3714620	-	117	170681101	-	EcSMS35_3654	-	hypothetical protein
3505	 52.56	0	3714631..3715509	-	292	170680454	-	EcSMS35_3655	-	phosphotriesterase family protein
3506	 54.44	0	3715506..3716732	-	408	170680107	-	EcSMS35_3656	-	metalloenzyme domain-containing protein
3507	 53.95	0	3716732..3717895	-	387	170684172	-	EcSMS35_3657	-	alanine racemase
3508	 50.41	0	3717979..3718341	-	120	170680031	-	EcSMS35_3658	-	hypothetical protein
3509	 51.66	0	3718358..3719263	-	301	170680763	-	EcSMS35_3659	-	hypothetical protein
3510	 52.24	0	3719423..3720427	-	334	170681086	trpS	EcSMS35_3660	-	tryptophanyl-tRNA synthetase
3511	 52.31	0	3720420..3721178	-	252	170681789	gph	EcSMS35_3661	-	phosphoglycolate phosphatase
3512	 50.44	0	3721171..3721848	-	225	170680384	rpe	EcSMS35_3662	-	ribulose-phosphate 3-epimerase
3513	 49.10	0	3721866..3722702	-	278	170683954	dam	EcSMS35_3663	-	DNA adenine methylase
3514	 54.62	0	3722809..3724095	-	428	170683150	damX	EcSMS35_3664	-	DamX protein
3515	 54.09	0	3724187..3725275	-	362	170680643	aroB	EcSMS35_3665	-	3-dehydroquinate synthase
3516	 47.94	0	3725332..3726009	-	225	170680023	aroK	EcSMS35_3666	-	shikimate kinase
3517	 54.00	0	3726254..3727492	-	412	170681657	-	EcSMS35_3667	-	protein transporter HofQ
3518	 52.10	0	3727404..3727808	-	134	170681152	-	EcSMS35_3668	-	hypothetical protein
3519	 57.58	+1	3727798..3727995	-	65	170682127	-	EcSMS35_3669	-	hypothetical protein
3520	 57.50	+1	3727981..3728100	+	39	170683769	-	EcSMS35_3670	-	hypothetical protein
3521	 54.63	0	3728222..3728761	-	179	170683225	-	EcSMS35_3671	-	PilN family protein
3522	 57.95	+1	3728761..3729540	-	259	170680610	hofM	EcSMS35_3672	-	HofM protein
3523	 54.79	0	3729636..3732212	+	858	170683444	mrcA	EcSMS35_3673	-	penicillin-binding protein 1A
3524	 50.98	0	3732380..3732940	-	186	170680526	nudE	EcSMS35_3674	-	ADP compounds hydrolase NudE
3525	 48.33	0	3733144..3733263	+	39	170680061	-	EcSMS35_3675	-	hypothetical protein
3526	 52.76	0	3733260..3735395	+	711	170681885	-	EcSMS35_3676	-	hypothetical protein
3527	 51.57	0	3735460..3736128	+	222	170681347	-	EcSMS35_3677	-	HAD family hydrolase
3528	 52.74	0	3736139..3736540	+	133	170680851	hslR	EcSMS35_3678	-	heat shock protein 15
3529	 52.79	0	3736565..3737443	+	292	170682746	hslO	EcSMS35_3679	-	chaperonin HslO
3530	 50.03	0	3737577..3739301	-	574	170682230	-	EcSMS35_3680	-	hypothetical protein
3531	 32.56	-2	3739307..3739435	-	42	170684065	-	EcSMS35_3681	-	hypothetical protein
3532	 53.54	0	3739680..3741302	+	540	170683548	pckA	EcSMS35_3682	-	phosphoenolpyruvate carboxykinase (ATP)
3533	 42.45	-1	3741417..3741734	+	105	170682459	-	EcSMS35_3683	-	hypothetical protein
3534	 45.12	0	3741793..3742089	+	98	170680949	-	EcSMS35_3684	-	hypothetical protein
3535	 56.98	+1	3742121..3743473	-	450	170681185	envZ	EcSMS35_3685	-	osmolarity sensor protein EnvZ
3536	 55.14	0	3743470..3744189	-	239	170679581	ompR	EcSMS35_3686	-	transcriptional regulatory protein OmpR
3537	 49.90	0	3744417..3744893	+	158	170680405	greB	EcSMS35_3687	-	transcription elongation factor GreB
3538	 56.72	+1	3744990..3747311	+	773	170683595	-	EcSMS35_3688	-	putative transcriptional accessory protein
3539	 48.68	0	3747749..3747976	+	75	170683798	feoA	EcSMS35_3689	-	ferrous iron transport protein A
3540	 54.87	0	3747993..3750314	+	773	170682365	feoB	EcSMS35_3690	-	ferrous iron transport protein B
3541	 56.12	+1	3750314..3750550	+	78	170683053	-	EcSMS35_3691	-	hypothetical protein
3542	 47.90	0	3750753..3751631	+	292	170683554	-	EcSMS35_3692	-	hypothetical protein
3543	 56.55	+1	3751660..3752430	-	256	170680513	-	EcSMS35_3693	-	putative pimeloyl-BioC--CoA transferase BioH
3544	 56.14	+1	3752468..3753151	+	227	170681819	gntX	EcSMS35_3694	-	protein GntX
3545	 52.78	0	3753210..3753785	+	191	170681204	gntY	EcSMS35_3695	-	protein GntY
3546	 53.53	0	3754146..3755462	+	438	170681024	gntT	EcSMS35_3696	-	high-affinity gluconate transporter
3547	 55.16	0	3755507..3757591	-	694	170682539	malQ	EcSMS35_3697	-	4-alpha-glucanotransferase
3548	 51.96	0	3757601..3759994	-	797	170683923	malP	EcSMS35_3698	-	maltodextrin phosphorylase
3549	 53.73	0	3760617..3763322	+	901	170683264	malT	EcSMS35_3699	-	maltose regulon activator MalT
3550	 59.98	+1	3763365..3764381	-	338	170680706	rtcA	EcSMS35_3700	-	RNA 3'-terminal phosphate cyclase
3551	 50.20	0	3764385..3765611	-	408	170679877	rtcB	EcSMS35_3701	-	RtcB protein
3552	 55.28	0	3765799..3767397	+	532	170680280	rtcR	EcSMS35_3703	-	sigma-54 dependent transcriptional regulator RtcR
3553	 54.41	0	3767379..3768137	-	252	170683823	glpR	EcSMS35_3702	-	glycerol-3-phosphate regulon repressor
3554	 53.91	0	3768154..3768984	-	276	170683698	-	EcSMS35_3704	-	S54 family peptidase
3555	 54.43	0	3769029..3769355	-	108	170684232	glpE	EcSMS35_3705	-	thiosulfate sulfurtransferase glpE
3556	 54.98	0	3769545..3771050	+	501	170682330	glpD	EcSMS35_3706	-	glycerol-3-phosphate dehydrogenase
3557	 46.83	0	3771868..3772860	-	330	170683549	-	EcSMS35_3708	-	hypothetical protein
3558	 46.88	0	3772886..3774391	-	501	170681684	-	EcSMS35_3709	-	hypothetical protein
3559	 51.55	0	3774520..3776967	-	815	170682143	glgP	EcSMS35_3710	-	glycogen phosphorylase
3560	 54.74	0	3776986..3778419	-	477	170680998	glgA	EcSMS35_3711	-	starch synthase
3561	 52.62	0	3778419..3779714	-	431	170682122	glgC	EcSMS35_3712	-	glucose-1-phosphate adenylyltransferase
3562	 54.00	0	3779732..3781705	-	657	170679803	glgX	EcSMS35_3713	-	glycogen debranching enzyme GlgX
50.50	MEAN

5.49	STD DEV
