IslandPath Analysis: Escherichia coli SMS-3-5

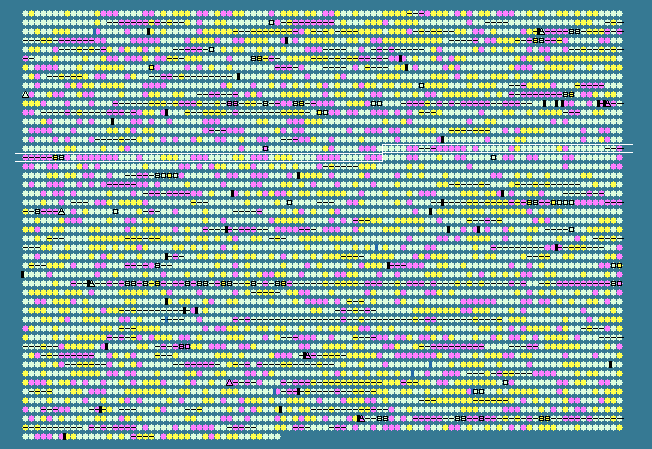

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.50 STD DEV: 5.49
Escherichia coli SMS-3-5, complete genome - 1..5068389
4743 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1561	 51.47	0	1613942..1614145	-	67	170679938	-	EcSMS35_1624	-	hypothetical protein
1562	 50.36	0	1614322..1615008	-	228	170679935	-	EcSMS35_1625	-	GntR family transcriptional regulator
1563	 51.00	0	1615097..1615843	-	248	170680775	-	EcSMS35_1626	-	NADP-dependent l-serine/l-allo-threonine dehydrogenase ydfg
1564	 50.34	0	1615980..1618025	+	681	170681397	dcp	EcSMS35_1627	-	peptidyl-dipeptidase Dcp
1565	 46.56	0	1618388..1618780	+	130	170681831	-	EcSMS35_1628	-	hypothetical protein
1566	 44.33	-1	1619035..1619925	+	296	170681992	-	EcSMS35_1629	-	diguanylate cyclase
1567	 50.00	0	1620366..1621553	-	395	170682596	ydeE	EcSMS35_1630	-	major facilitator family transporter
1568	 50.33	0	1621748..1622647	+	299	170682899	eamA	EcSMS35_1631	-	drug/metabolite exporter family transporter
1569	 41.34	-1	1622692..1623390	-	232	170681310	-	EcSMS35_1632	-	GntR family transcriptional regulator
1570	 41.35	-1	1623589..1623900	+	103	170679787	-	EcSMS35_1633	-	PTS system lactose/cellobiose family IIB subunit
1571	 43.84	-1	1624014..1625336	+	440	170680463	-	EcSMS35_1634	-	PTS system lactose/cellobiose family IIC subunit
1572	 45.51	0	1625364..1625675	+	103	170683356	-	EcSMS35_1635	-	PTS system lactose/cellobiose-specific family IIA subunit
1573	 42.00	-1	1625731..1627404	+	557	170680584	bglH	EcSMS35_1636	-	glucoside specific outer membrane porin BglH
1574	 45.21	0	1627429..1628868	+	479	170683087	-	EcSMS35_1637	-	putative 6-phospho-beta-glucosidase BglA
1575	 49.32	0	1628925..1629143	-	72	170682435	marB	EcSMS35_1638	-	multiple antibiotic resistance protein MarB
1576	 45.57	0	1629175..1629558	-	127	170684233	marA	EcSMS35_1639	-	multiple antibiotic resistance protein MarA
1577	 49.66	0	1629579..1630013	-	144	170683414	marR	EcSMS35_1640	-	multiple antibiotic resistance protein MarR
1578	 50.00	0	1630225..1630890	+	221	170680289	marC	EcSMS35_1641	-	multiple antibiotic resistance protein MarC
1579	 51.55	0	1630915..1632105	-	396	170680058	sotB	EcSMS35_1642	-	sugar efflux transporter SotB
1580	 49.59	0	1632023..1632145	+	40	170681467	-	EcSMS35_1643	-	hypothetical protein
1581	 50.83	0	1632182..1632301	+	39	170681472	-	EcSMS35_1645	-	hypothetical protein
1582	 39.70	-1	1632255..1633370	-	371	170680980	-	EcSMS35_1644	-	hypothetical protein
1583	 54.20	0	1633448..1634329	-	293	170682090	-	EcSMS35_1646	-	LysR family transcriptional regulator
1584	 53.06	0	1634430..1635818	+	462	170684086	-	EcSMS35_1647	-	aldehyde dehydrogenase (NAD) family protein
1585	 51.56	0	1635882..1636808	+	308	170683424	glsA2	EcSMS35_1648	-	glutaminase
1586	 50.28	0	1636808..1637167	+	119	170684186	-	EcSMS35_1649	-	hypothetical protein
1587	 48.56	0	1637306..1638724	+	472	170683666	-	EcSMS35_1650	-	diguanylate cyclase
1588	 51.79	0	1638952..1640403	+	483	170679585	uxaB	EcSMS35_1651	-	tagaturonate reductase
1589	 48.31	0	1640600..1641514	+	304	170681385	-	EcSMS35_1652	-	hypothetical protein
1590	 54.15	0	1641518..1642276	-	252	170681176	tam	EcSMS35_1653	-	trans-aconitate 2-methyltransferase
1591	 46.74	0	1642333..1642623	-	96	170682706	lsrG	EcSMS35_1654	-	lsrG protein
1592	 49.89	0	1642647..1643522	-	291	170682465	lsrF	EcSMS35_1655	-	lsrF protein
1593	 49.66	0	1643549..1644571	-	340	170683902	lsrB	EcSMS35_1656	-	autoinducer-2 ABC transporter, periplasmic autoinducer-2-binding protein LsrB
1594	 53.27	0	1644583..1645575	-	330	170680972	lsrD	EcSMS35_1657	-	autoinducer-2 ABC transporter, permease protein LsrD
1595	 53.84	0	1645575..1646603	-	342	170681527	lsrC	EcSMS35_1658	-	autoinducer-2 ABC transporter, permease protein LsrC
1596	 53.26	0	1646597..1648132	-	511	170679722	lsrA	EcSMS35_1659	-	autoinducer-2 ABC transporter, ATP-binding protein LsrA
1597	 50.10	0	1648381..1649334	+	317	170680199	lsrR	EcSMS35_1660	-	transcriptional repressor LsrR
1598	 52.54	0	1649413..1651005	+	530	170683577	lsrK	EcSMS35_1661	-	autoinducer-2 kinase
1599	 50.07	0	1651535..1656415	+	1626	170684085	-	EcSMS35_1662	-	pertactin family protein
1600	 39.84	-1	1656724..1656846	+	40	170682223	-	EcSMS35_1663	-	hypothetical protein
1601	 46.99	0	1657614..1658177	+	187	170682216	-	EcSMS35_1664	-	fimbrial protein
1602	 44.87	-1	1658540..1659250	+	236	170683705	-	EcSMS35_1665	-	periplasmic pilus chaperone family protein
1603	 44.34	-1	1659328..1661943	+	871	170679788	-	EcSMS35_1666	-	fimbrial usher family protein
1604	 44.26	-1	1661957..1662487	+	176	170684138	-	EcSMS35_1667	-	protein FimF-like protein
1605	 46.45	0	1662500..1663147	+	215	170682655	-	EcSMS35_1669	-	protein FimG-like protein
1606	 54.97	0	1662987..1663892	-	301	170684099	-	EcSMS35_1668	-	IS2 transposase orfB
1607	 50.61	0	1663850..1664260	-	136	170683416	-	EcSMS35_1670	-	IS2 transposase orfA
1608	 44.04	-1	1664399..1665313	+	304	170683036	-	EcSMS35_1671	-	protein FimH-like protein
1609	 49.82	0	1665652..1667931	+	759	170682379	-	EcSMS35_1672	-	molybdopterin oxidoreductase, alpha subunit
1610	 38.38	-2	1668179..1668376	+	65	170680802	-	EcSMS35_1673	-	hypothetical protein
1611	 40.29	-1	1668451..1669212	+	253	170680428	-	EcSMS35_1674	-	AraC family transcriptional regulator
1612	 44.51	-1	1669676..1671295	+	539	170679774	-	EcSMS35_1675	-	sulfatase
1613	 38.95	-2	1671347..1672504	+	385	170682242	-	EcSMS35_1676	-	radical SAM domain-containing protein
1614	 43.18	-1	1672795..1674480	+	561	170682224	-	EcSMS35_1677	-	inner membrane ABC transporter ATP-binding protein
1615	 46.06	0	1674518..1676890	+	790	170681386	-	EcSMS35_1678	-	TonB-dependent receptor
1616	 46.80	0	1676947..1679730	+	927	170681032	pqqL	EcSMS35_1679	-	M16B family peptidase
1617	 53.89	0	1680092..1681492	+	466	170680042	gadA	EcSMS35_1680	-	glutamate decarboxylase GadA
1618	 48.24	0	1681648..1683183	+	511	170679725	gadC	EcSMS35_1681	-	glutamate:gamma aminobutyrate antiporter
1619	 52.92	0	1683419..1684633	+	404	170683453	-	EcSMS35_1682	-	putative lipoprotein
1620	 44.69	-1	1685009..1686391	+	460	170683103	-	EcSMS35_1683	-	diguanylate cyclase
1621	 50.21	0	1686392..1688815	+	807	170683445	dos	EcSMS35_1684	-	heme-regulated cyclic AMP phosphodiesterase
1622	 52.75	0	1689073..1689654	+	193	170680875	ddpX	EcSMS35_1685	-	D-alanyl-D-alanine dipeptidase
1623	 50.29	0	1689668..1691218	+	516	170681069	-	EcSMS35_1686	-	putative ABC transporter periplasmic-binding protein yddS precursor
1624	 55.43	0	1691220..1692242	+	340	170681904	yddR	EcSMS35_1687	-	inner membrane ABC transporter permease protein yddR
1625	 54.07	0	1692239..1693135	+	298	170681230	yddQ	EcSMS35_1688	-	inner membrane ABC transporter permease protein yddQ
1626	 54.20	0	1693132..1694118	+	328	170681718	-	EcSMS35_1689	-	ABC transporter, ATP-binding protein
1627	 53.18	0	1694111..1695037	+	308	170680211	-	EcSMS35_1690	-	putative ABC transport system ATP-binding protein
1628	 47.86	0	1695093..1695443	-	116	170680714	osmC	EcSMS35_1691	-	peroxiredoxin OsmC
1629	 34.75	-2	1695561..1695701	-	46	170683270	-	EcSMS35_1692	-	hypothetical protein
1630	 45.83	0	1695868..1696083	+	71	170683795	-	EcSMS35_1693	-	protein bdm
1631	 44.20	-1	1696185..1696322	+	45	170682250	-	EcSMS35_1694	-	30S ribosomal subunit S24
1632	 51.88	0	1696479..1698176	+	565	170682113	sfcA	EcSMS35_1695	-	malate dehydrogenase (oxaloacetate-decarboxylating)
1633	 52.92	0	1698310..1699320	+	336	170681593	-	EcSMS35_1696	-	zinc-binding dehydrogenase family oxidoreductase
1634	 52.63	0	1699466..1699750	+	94	170680944	-	EcSMS35_1697	-	addiction module antidote protein
1635	 50.31	0	1699801..1700454	-	217	170682255	fdnI	EcSMS35_1698	-	formate dehydrogenase, gamma subunit
1636	 54.92	0	1700447..1701331	-	294	170681880	fdnH	EcSMS35_1699	-	formate dehydrogenase, nitrate-inducible, iron-sulfur subunit
1637	 54.13	0	1701344..1704391	-	1015	170684244	fdnG	EcSMS35_1700	-	formate dehydrogenase, nitrate inducible, alpha subunit, selenocysteine-containing
1638	 50.11	0	1704623..1705504	+	293	170680186	-	EcSMS35_1701	-	hypothetical protein
1639	 44.14	-1	1705762..1706862	+	366	170679684	-	EcSMS35_1702	-	porin family protein
1640	 35.32	-2	1707032..1708291	+	419	170680907	-	EcSMS35_1703	-	hypothetical protein
1641	 33.65	-2	1708354..1709610	+	418	170683898	-	EcSMS35_1704	-	hypothetical protein
1642	 49.39	0	1709920..1711308	+	462	170682066	narU	EcSMS35_1705	-	nitrite extrusion protein 2
1643	 54.72	0	1711403..1715143	+	1246	170682586	narZ	EcSMS35_1706	-	nitrate reductase 2, alpha subunit
1644	 54.37	0	1715140..1716684	+	514	170683492	narY	EcSMS35_1707	-	nitrate reductase 2, beta subunit
1645	 55.60	0	1716684..1717379	+	231	170683975	narW	EcSMS35_1708	-	nitrate reductase molybdenum cofactor assembly chaperone 2
1646	 51.69	0	1717376..1718056	+	226	170681973	narV	EcSMS35_1709	-	respiratory nitrate reductase 2, gamma subunit
1647	 51.34	0	1718136..1719029	+	297	170682607	-	EcSMS35_1710	-	PhzF family phenazine biosynthesis protein
1648	 51.18	0	1719125..1719970	-	281	170681423	-	EcSMS35_1711	-	N-hydroxyarylamine O-acetyltransferase
1649	 52.11	0	1720145..1720714	+	189	170681909	-	EcSMS35_1712	-	flavin reductase domain-containing protein
1650	 43.42	-1	1720718..1720945	-	75	170679957	-	EcSMS35_1713	-	tautomerase enzyme family protein
1651	 45.47	0	1721250..1723226	+	658	170683013	-	EcSMS35_1714	-	metallo-beta-lactamase family protein
1652	 43.48	-1	1723202..1723339	+	45	170684171	-	EcSMS35_1715	-	hypothetical protein
1653	 43.05	-1	1723321..1724370	+	349	170679992	-	EcSMS35_1716	-	diguanylate cyclase
1654	 48.22	0	1724371..1724988	-	205	170679756	-	EcSMS35_1717	-	hypothetical protein
1655	 52.67	0	1725255..1726754	+	499	170681095	ansP	EcSMS35_1718	-	L-asparagine permease
1656	 49.34	0	1726867..1727928	-	353	170680680	-	EcSMS35_1719	-	hypothetical protein
1657	 51.36	0	1728170..1730272	+	700	170680750	-	EcSMS35_1720	-	TonB-dependent receptor
1658	 43.09	-1	1730308..1730973	-	221	170681762	-	EcSMS35_1721	-	GntR family transcriptional regulator
1659	 40.15	-1	1730972..1731103	+	43	170682411	-	EcSMS35_1722	-	hypothetical protein
1660	 38.89	-2	1731072..1731197	+	41	170683824	-	EcSMS35_1724	-	hypothetical protein
50.50	MEAN

5.49	STD DEV
