IslandPath Analysis: Escherichia coli SMS-3-5

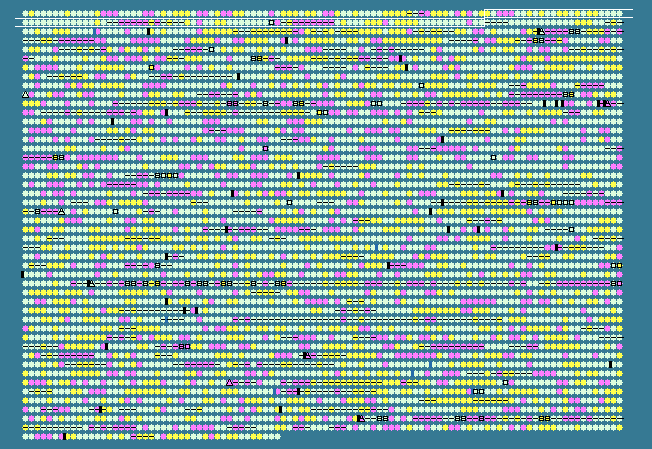

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.50 STD DEV: 5.49
Escherichia coli SMS-3-5, complete genome - 1..5068389
4743 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
78	 54.95	0	87501..88592	-	363	170684236	leuB	EcSMS35_0078	-	3-isopropylmalate dehydrogenase
79	 52.74	0	88592..90163	-	523	170683572	leuA	EcSMS35_0079	-	2-isopropylmalate synthase
80	 41.67	-1	90380..90511	-	43	170680253	-	EcSMS35_0080	-	hypothetical protein
81	 45.82	0	91001..91945	+	314	170679841	leuO	EcSMS35_0081	-	transcriptional regulator LeuO
82	 25.20	-2	91981..92103	-	40	170681517	-	EcSMS35_0082	-	hypothetical protein
83	 53.06	0	92173..93987	+	604	170683042	ilvI	EcSMS35_0083	-	acetolactate synthase, large subunit, isozyme III
84	 49.62	0	93960..94481	+	173	170682993	ilvH	EcSMS35_0084	-	acetolactate synthase, small subunit, isozyme III
85	 55.02	0	94661..95665	+	334	170683499	fruR	EcSMS35_0085	-	fructose repressor
86	 52.29	0	96267..96725	+	152	170684017	mraZ	EcSMS35_0086	-	MraZ protein
87	 55.10	0	96727..97668	+	313	170679711	mraW	EcSMS35_0087	-	S-adenosyl-methyltransferase MraW
88	 50.00	0	97665..98030	+	121	170680807	ftsL	EcSMS35_0088	-	cell division protein FtsL
89	 53.82	0	98046..99812	+	588	170681597	ftsI	EcSMS35_0089	-	peptidoglycan synthetase FtsI
90	 56.65	+1	99799..101286	+	495	170682313	murE	EcSMS35_0090	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
91	 54.67	0	101283..102641	+	452	170682834	murF	EcSMS35_0091	-	UDP-N-acetylmuramoyl-tripeptide--D-alanyl-D-alanine ligase
92	 53.09	0	102635..103717	+	360	170684044	mraY	EcSMS35_0092	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
93	 54.90	0	103720..105036	+	438	170681706	murD	EcSMS35_0093	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
94	 52.69	0	105036..106280	+	414	170682663	ftsW	EcSMS35_0094	-	cell division protein FtsW
95	 55.71	0	106277..107344	+	355	170683320	murG	EcSMS35_0095	-	undecaprenyldiphospho-muramoylpentapeptide beta-N-acetylglucosaminyltransferase
96	 54.54	0	107398..108873	+	491	170683694	murC	EcSMS35_0096	-	UDP-N-acetylmuramate--alanine ligase
97	 51.36	0	108866..109786	+	306	170683837	ddlB	EcSMS35_0097	-	D-alanine--D-alanine ligase B
98	 53.19	0	109788..110618	+	276	170680072	ftsQ	EcSMS35_0098	-	cell division protein FtsQ
99	 52.26	0	110615..111877	+	420	170680487	ftsA	EcSMS35_0099	-	cell division protein FtsA
100	 53.91	0	111939..113090	+	383	170681165	ftsZ	EcSMS35_0100	-	cell division protein FtsZ
101	 51.09	0	113191..114108	+	305	170681175	lpxC	EcSMS35_0101	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
102	 52.89	0	114264..114851	+	195	170682119	secM	EcSMS35_0102	-	secretion monitor protein
103	 52.00	0	114913..117618	+	901	170680792	secA	EcSMS35_0103	-	preprotein translocase, SecA subunit
104	 49.87	0	117678..118076	+	132	170682809	mutT	EcSMS35_0104	-	7,8-dihydro-8-oxoguanine-triphosphatase
105	 52.02	0	118165..118362	-	65	170683016	-	EcSMS35_0105	-	zinc-binding protein YacG
106	 51.21	0	118372..119115	-	247	170683836	-	EcSMS35_0106	-	hypothetical protein
107	 52.82	0	119115..119735	-	206	170684117	coaE	EcSMS35_0107	-	dephospho-CoA kinase
108	 51.53	0	119960..121003	+	347	170683674	guaC	EcSMS35_0108	-	guanosine monophosphate reductase
109	 51.95	0	121038..122240	-	400	170681709	pilC	EcSMS35_0109	-	type IV pilus assembly protein PilC
110	 53.46	0	122230..123615	-	461	170681105	hofB	EcSMS35_0110	-	GspE family protein HofB
111	 52.61	0	123625..124065	-	146	170682801	pilA	EcSMS35_0111	-	type 4 pilus subunit PilA
112	 53.36	0	124268..125161	-	297	170681997	nadC	EcSMS35_0112	-	nicotinate-nucleotide diphosphorylase (carboxylating)
113	 54.53	0	125249..125800	+	183	170683851	ampD	EcSMS35_0113	-	N-acetylmuramoyl-L-alanine amidase
114	 51.70	0	125797..126651	+	284	170680046	ampE	EcSMS35_0114	-	protein AmpE
115	 53.10	0	126694..128064	-	456	170680377	aroP	EcSMS35_0115	-	aromatic amino acid transport protein AroP
116	 48.88	0	128593..130374	+	593	170680765	-	EcSMS35_0116	-	putative S-type colicin
117	 36.84	-2	130377..130661	+	94	170681742	-	EcSMS35_0117	-	putative colicin immunity protein
118	 36.67	-2	130829..131068	+	79	170682972	-	EcSMS35_0118	-	putative colicin
119	 38.49	-2	131069..131359	+	96	170681564	-	EcSMS35_0119	-	putative colicin immunity protein
120	 35.98	-2	131526..131714	+	62	170682281	-	EcSMS35_0120	-	putative colicin
121	 32.32	-2	131762..132058	+	98	170683102	-	EcSMS35_0121	-	putative colicin immunity protein
122	 55.69	0	132514..133278	+	254	170679674	-	EcSMS35_0123	-	GntR family transcriptional regulator
123	 38.80	-2	133275..133457	-	60	170683479	-	EcSMS35_0122	-	hypothetical protein
124	 53.23	0	133439..136102	+	887	170680617	aceE	EcSMS35_0124	-	pyruvate dehydrogenase (acetyl-transferring), homodimeric type
125	 55.04	0	136117..138009	+	630	170680247	aceF	EcSMS35_0125	-	dihydrolipoyllysine-residue acetyltransferase
126	 52.28	0	138154..139641	+	495	170679767	lpdA	EcSMS35_0126	-	dihydrolipoamide dehydrogenase
127	 53.24	0	139712..141469	-	585	170684092	-	EcSMS35_0127	-	hypothetical protein
128	 55.32	0	141902..144421	+	839	170683451	acnB	EcSMS35_0128	-	aconitate hydratase 2
129	 52.07	0	144596..144958	+	120	170683045	-	EcSMS35_0129	-	hypothetical protein
130	 46.54	0	144996..145790	-	264	170682621	speD	EcSMS35_0130	-	S-adenosylmethionine decarboxylase
131	 50.87	0	145806..146672	-	288	170683238	speE	EcSMS35_0131	-	spermidine synthase
132	 49.71	0	146778..147125	-	115	170680607	-	EcSMS35_0132	-	hypothetical protein
133	 54.16	0	147291..148841	+	516	170682517	cueO	EcSMS35_0133	-	copper oxidase CueO
134	 55.37	0	148888..151278	-	796	170683523	gcd	EcSMS35_0134	-	quinoprotein glucose dehydrogenase
135	 50.09	0	151484..152020	+	178	170680010	hpt	EcSMS35_0135	-	hypoxanthine phosphoribosyltransferase
136	 50.83	0	152061..152723	-	220	170680677	can	EcSMS35_0136	-	carbonic anhydrase
137	 48.54	0	152832..153758	+	308	170681249	-	EcSMS35_0137	-	ABC transporter, ATP-binding protein
138	 51.23	0	153755..154525	+	256	170679696	-	EcSMS35_0138	-	ABC transporter, permease protein
139	 50.11	0	154630..155070	+	146	170682787	-	EcSMS35_0139	-	PTS system IIA component domain-containing protein
140	 48.37	0	155134..156363	+	409	170680801	-	EcSMS35_0140	-	polysaccharide deacetylase domain-containing protein
141	 53.54	0	156367..156747	-	126	170683804	panD	EcSMS35_0141	-	aspartate 1-decarboxylase
142	 48.86	0	157021..157941	+	306	170682409	-	EcSMS35_0142	-	ISNCY family transposase
143	 44.91	-1	158010..158225	+	71	170681773	-	EcSMS35_0143	-	hypothetical protein
144	 52.35	0	158307..159158	-	283	170679778	panC	EcSMS35_0144	-	pantoate--beta-alanine ligase
145	 54.72	0	159170..159964	-	264	170682456	panB	EcSMS35_0145	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
146	 38.60	-2	160076..161347	-	423	170682836	-	EcSMS35_0146	-	putative fimbrial protein
147	 41.04	-1	161401..161997	-	198	170680339	-	EcSMS35_0147	-	putative fimbrial protein
148	 43.56	-1	162024..162629	-	201	170681181	-	EcSMS35_0148	-	hypothetical protein
149	 41.98	-1	162644..163210	-	188	170683790	-	EcSMS35_0149	-	fimbrial protein
150	 44.21	-1	163230..165830	-	866	170679612	htrE	EcSMS35_0150	-	outer membrane usher protein HtrE
151	 45.88	0	165865..166605	-	246	170680970	-	EcSMS35_0151	-	periplasmic pilus chaperone family protein
152	 44.96	-1	166703..167287	-	194	170681382	-	EcSMS35_0152	-	fimbrial protein
153	 49.17	0	167658..168137	-	159	170680561	folK	EcSMS35_0153	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
154	 55.97	0	168134..169498	-	454	170680324	pcnB	EcSMS35_0154	-	poly(A) polymerase
155	 52.43	0	169591..170517	-	308	170683546	gluQ	EcSMS35_0155	-	glutamyl-Q tRNA(Asp) synthetase
156	 52.85	0	170554..171009	-	151	170679800	dksA	EcSMS35_0156	-	RNA polymerase-binding protein DksA
157	 49.22	0	171187..171891	-	234	170682246	sfsA	EcSMS35_0157	-	sugar fermentation stimulation protein
158	 55.56	0	171906..172436	-	176	170684250	ligT	EcSMS35_0158	-	2'-5' RNA ligase
159	 56.97	+1	172465..174939	+	824	170681199	hrpB	EcSMS35_0159	-	ATP-dependent helicase HrpB
160	 55.35	0	175033..177567	+	844	170683049	mrcB	EcSMS35_0160	-	penicillin-binding protein 1B
161	 38.52	-2	177632..177766	-	44	170679586	-	EcSMS35_0161	-	hypothetical protein
162	 51.04	0	177787..180045	+	752	170681393	fhuA	EcSMS35_0162	-	ferrichrome-iron receptor FhuA
163	 56.64	+1	180096..180893	+	265	170682356	fhuC	EcSMS35_0163	-	ferrichrome transport ATP-binding protein FhuC
164	 54.43	0	180893..181783	+	296	170684223	fhuD	EcSMS35_0164	-	ferrichrome-binding periplasmic protein FhuD
165	 59.51	+1	181780..183762	+	660	170683245	fhuB	EcSMS35_0165	-	ferrichrome ABC transporter, permease protein FhuB
166	 55.43	0	183797..185077	-	426	170680366	hemL	EcSMS35_0166	-	glutamate-1-semialdehyde-2,1-aminomutase
167	 53.38	0	185302..186723	+	473	170682657	clcA	EcSMS35_0167	-	H(+)/Cl(-) exchange transporter ClcA
168	 50.43	0	186805..187149	+	114	170682180	yadR	EcSMS35_0168	-	iron-sulfur cluster assembly accessory protein YadR
169	 53.37	0	187196..187819	-	207	170681649	-	EcSMS35_0169	-	hypothetical protein
170	 52.81	0	187857..188657	-	266	170681038	btuF	EcSMS35_0170	-	cobalamin ABC transporter, periplasmic cobalamin-binding protein
171	 53.22	0	188650..189348	-	232	170681375	mtnN	EcSMS35_0171	-	MTA/SAH nucleosidase
172	 47.56	0	189432..190949	+	505	170681908	dgt	EcSMS35_0172	-	deoxyguanosinetriphosphate triphosphohydrolase
173	 53.96	0	191079..192503	+	474	170680398	degP	EcSMS35_0173	-	protease Do
174	 53.11	0	192658..193815	+	385	170679721	cdaR	EcSMS35_0174	-	carbohydrate diacid regulator
175	 44.70	-1	193869..194255	-	128	170683939	-	EcSMS35_0175	-	hypothetical protein
176	 52.73	0	194570..195394	-	274	170682872	dapD	EcSMS35_0176	-	2,3,4,5-tetrahydropyridine-2,6-dicarboxylate N-succinyltransferase
177	 53.76	0	195425..198097	-	890	170683624	glnD	EcSMS35_0177	-	protein-P-II uridylyltransferase
50.50	MEAN

5.49	STD DEV
