IslandPath Analysis: Escherichia coli str. K12 substr. DH10B

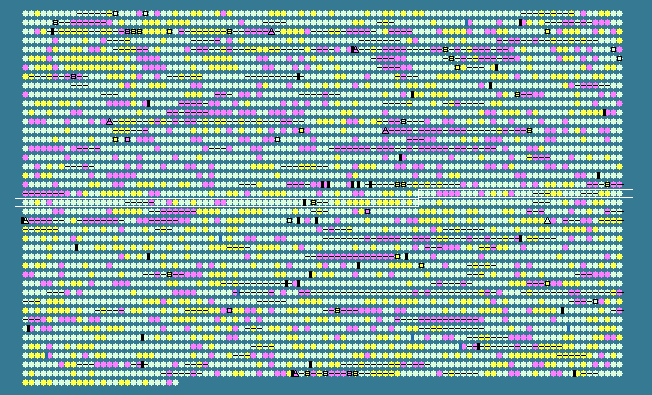

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.13 STD DEV: 4.76
Escherichia coli str. K-12 substr. DH10B, complete genome - 1..4686137
4126 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2067	 48.35	0	2274554..2274826	-	90	170081730	rcnR	ECDH10B_2258	-	transcriptional repressor of rcnA
2068	 51.52	0	2274947..2275771	+	274	170081731	yohM	ECDH10B_2259	-	membrane protein conferring nickel and cobalt resistance
2069	 49.85	0	2275990..2276328	+	112	170081732	yohN	ECDH10B_2260	-	hypothetical protein
2070	 45.51	-1	2277460..2279940	-	826	170081733	yehB	ECDH10B_2262	-	outer membrane protein
2071	 39.31	-2	2279956..2280675	-	239	170081734	yehC	ECDH10B_2263	-	periplasmic pilin chaperone
2072	 40.52	-2	2280710..2281252	-	180	170081735	yehD	ECDH10B_2264	-	fimbrial-like adhesin protein
2073	 43.97	-1	2281545..2281826	-	93	170081736	yehE	ECDH10B_2265	-	hypothetical protein
2074	 53.96	0	2282089..2283198	-	369	170081737	mrp	ECDH10B_2266	-	antiporter inner membrane protein
2075	 53.05	0	2283330..2285363	+	677	170081738	metG	ECDH10B_2267	-	methionyl-tRNA synthetase
2076	 50.78	0	2289309..2292941	+	1210	170081739	yehI	ECDH10B_2272	-	hypothetical protein
2077	 38.68	-2	2293002..2293319	+	105	170081740	yehK	ECDH10B_2273	-	hypothetical protein
2078	 54.36	0	2293626..2294714	+	362	170081741	yehL	ECDH10B_2274	-	ABC transporter ATP-binding protein
2079	 55.70	0	2294725..2297004	+	759	170081742	yehM	ECDH10B_2275	-	hypothetical protein
2080	 54.35	0	2296997..2298133	+	378	170081743	yehP	ECDH10B_2276	-	hypothetical protein
2081	 54.85	0	2298130..2299974	+	614	170081744	yehQ	ECDH10B_2277	-	hypothetical protein
2082	 42.42	-1	2300255..2300716	+	153	170081745	yehR	ECDH10B_2278	-	hypothetical protein
2083	 49.04	0	2300756..2301226	-	156	170081746	yehS	ECDH10B_2279	-	hypothetical protein
2084	 49.31	0	2301273..2301992	-	239	170081747	yehT	ECDH10B_2280	-	response regulator in two-component system withYehU
2085	 50.59	0	2301989..2303674	-	561	170081748	yehU	ECDH10B_2281	-	sensory kinase in two-component system with YehT
2086	 52.87	0	2303896..2304627	+	243	170081749	mlrA	ECDH10B_2282	-	DNA-binding transcriptional regulator
2087	 49.07	0	2304687..2304794	+	35	170081750	yohO	ECDH10B_2283	-	hypothetical protein
2088	 57.51	+1	2304775..2305506	-	243	170081751	yehW	ECDH10B_2284	-	ABC transporter membrane protein
2089	 55.12	0	2305511..2306437	-	308	170081752	yehX	ECDH10B_2285	-	ABC transporter ATP-binding protein
2090	 57.43	+1	2306430..2307587	-	385	170081753	yehY	ECDH10B_2286	-	ABC transporter membrane protein
2091	 54.03	0	2307594..2308511	-	305	170081754	yehZ	ECDH10B_2287	-	ABC transporter periplasmic-binding protein
2092	 54.22	0	2308722..2311019	-	765	170081755	bglX	ECDH10B_2288	-	beta-D-glucoside glucohydrolase, periplasmic
2093	 52.21	0	2311215..2312930	+	571	170081756	dld	ECDH10B_2289	-	D-lactate dehydrogenase, FAD-binding, NADH independent
2094	 50.70	0	2312968..2313900	-	310	170081757	pbpG	ECDH10B_2290	-	D-alanyl-D-alanine endopeptidase
2095	 53.57	0	2314074..2314661	-	195	170081758	yohC	ECDH10B_2291	-	inner membrane protein
2096	 54.40	0	2314831..2315409	+	192	170081759	yohD	ECDH10B_2292	-	inner membrane protein
2097	 55.12	0	2315539..2316300	-	253	170081760	yohF	ECDH10B_2293	-	oxidoreductase
2098	 55.74	0	2316353..2317441	-	362	170081761	yohG	ECDH10B_2294	-	outer membrane protein
2099	 52.90	0	2317579..2317716	-	45	170081762	yohH	ECDH10B_2296	-	hypothetical protein
2100	 54.22	0	2318468..2319415	-	315	170081763	dusC	ECDH10B_2297	-	tRNA-dihydrouridine synthase C
2101	 49.37	0	2319654..2320052	+	132	170081764	yohJ	ECDH10B_2298	-	inner membrane protein
2102	 53.45	0	2320049..2320744	+	231	170081765	yohK	ECDH10B_2299	-	inner membrane protein
2103	 54.69	0	2320874..2321758	+	294	170081766	cdd	ECDH10B_2300	-	cytidine/deoxycytidine deaminase
2104	 47.78	0	2321908..2322627	+	239	170081767	sanA	ECDH10B_2301	-	hypothetical protein
2105	 42.92	-1	2322630..2322869	+	79	170081768	yeiS	ECDH10B_2302	-	inner membrane protein
2106	 51.49	0	2323063..2324301	+	412	170081769	yeiT	ECDH10B_2303	-	oxidoreductase
2107	 51.05	0	2324295..2325530	+	411	170081770	yeiA	ECDH10B_2304	-	oxidoreductase
2108	 50.25	0	2325773..2326783	-	336	170081771	mglC	ECDH10B_2305	-	methyl-galactoside ABC transporter membrane protein
2109	 51.05	0	2328361..2329359	-	332	170081772	mglB	ECDH10B_2307	-	methyl-galactoside ABC transporter periplasmic substrate-binding protein
2110	 52.45	0	2329639..2330679	-	346	170081773	galS	ECDH10B_2308	-	DNA-binding transcriptional repressor
2111	 54.40	0	2330821..2331978	-	385	170081774	yeiB	ECDH10B_2309	-	inner membrane protein
2112	 51.27	0	2331995..2332663	-	222	170081775	folE	ECDH10B_2310	-	GTP cyclohydrolase I
2113	 54.48	0	2332921..2333757	+	278	170081776	yeiG	ECDH10B_2311	-	esterase
2114	 52.76	0	2333789..2335780	-	663	170081777	cirA	ECDH10B_2312	-	ferric iron-catecholate outer membrane transporter
2115	 53.47	0	2336074..2337543	-	489	170081778	lysP	ECDH10B_2313	-	lysine transporter
2116	 53.74	0	2337748..2338629	-	293	170081779	yeiE	ECDH10B_2314	-	DNA-binding transcriptional regulator
2117	 53.05	0	2338728..2339777	+	349	170081780	yeiH	ECDH10B_2315	-	inner membrane protein
2118	 52.45	0	2339851..2340708	+	285	170081781	nfo	ECDH10B_2316	-	endonuclease IV with intrinsic 3'-5' exonuclease activity
2119	 51.79	0	2340711..2341799	+	362	170081782	yeiI	ECDH10B_2317	-	kinase
2120	 50.44	0	2341906..2343156	-	416	170081783	yeiJ	ECDH10B_2318	-	nucleoside transporter
2121	 52.02	0	2343256..2344197	-	313	170081784	rihB	ECDH10B_2319	-	ribonucleoside hydrolase 2
2122	 45.00	-1	2344366..2345025	+	219	170081785	yeiL	ECDH10B_2320	-	DNA-binding transcriptional activator of stationary phase nitrogen survival
2123	 51.08	0	2345096..2346346	-	416	170081786	yeiM	ECDH10B_2321	-	nucleoside transporter
2124	 49.73	0	2346440..2347378	-	312	170081787	yeiN	ECDH10B_2322	-	hypothetical protein
2125	 47.03	0	2347366..2348307	-	313	170081788	yeiC	ECDH10B_2323	-	kinase
2126	 55.73	0	2348730..2350421	-	563	170081789	fruA	ECDH10B_2324	-	fused fructose-specific PTS enzymes: iibcomponent; IIC components
2127	 53.46	0	2350438..2351376	-	312	170081790	fruK	ECDH10B_2325	-	fructose-1-phosphate kinase
2128	 53.05	0	2352873..2354054	+	393	170081791	setB	ECDH10B_2327	-	lactose/glucose efflux system
2129	 55.69	0	2354051..2354305	-	84	170081792	yeiW	ECDH10B_2328	-	hypothetical protein
2130	 49.91	0	2354460..2355032	+	190	170081793	yeiP	ECDH10B_2329	-	elongtion factor
2131	 52.01	0	2355255..2356721	+	488	170081794	yeiQ	ECDH10B_2330	-	dehydrogenase, NAD-dependent
2132	 54.51	0	2356839..2357825	+	328	170081795	yeiR	ECDH10B_2331	-	hypothetical protein
2133	 44.12	-1	2357864..2358577	+	237	170081796	yeiU	ECDH10B_2332	-	undecaprenyl pyrophosphate phosphatase
2134	 46.74	0	2358989..2359555	+	188	170081797	spr	ECDH10B_2333	-	peptidase, outer membrane lipoprotein
2135	 50.55	0	2359736..2361292	+	518	170081798	rtn	ECDH10B_2334	-	EAL domain-containing protein
2136	 51.18	0	2361374..2363188	+	604	170081799	yejA	ECDH10B_2335	-	oligopeptide ABC transporter periplasmic-binding protein
2137	 51.23	0	2363189..2364283	+	364	170081800	yejB	ECDH10B_2336	-	oligopeptide ABC transporter membrane protein
2138	 52.73	0	2364283..2365308	+	341	170081801	yejE	ECDH10B_2337	-	oligopeptide ABC transporter membrane protein
2139	 51.38	0	2365310..2366899	+	529	170081802	yejF	ECDH10B_2338	-	fused oligopeptide transporter subunits of ABC superfamilly: ATP-binding components
2140	 48.70	0	2366903..2367247	-	114	170081803	yejG	ECDH10B_2339	-	hypothetical protein
2141	 53.32	0	2367580..2368770	-	396	170081804	bcr	ECDH10B_2340	-	bicyclomycin/multidrug efflux system
2142	 52.87	0	2368798..2369493	-	231	170081805	rsuA	ECDH10B_2341	-	16S rRNA pseudouridylate 516 synthase
2143	 53.15	0	2369642..2371402	+	586	170081806	yejH	ECDH10B_2342	-	ATP-dependet helicase
2144	 50.53	0	2371527..2371811	+	94	170081807	rplY	ECDH10B_2343	-	50S ribosomal subunit protein L25
2145	 52.28	0	2371950..2372957	-	335	170081808	yejK	ECDH10B_2344	-	nucleotide associated protein
2146	 50.44	0	2373139..2373366	+	75	170081809	yejL	ECDH10B_2345	-	hypothetical protein
2147	 52.07	0	2373386..2375146	+	586	170081810	yejM	ECDH10B_2346	-	hydrolase, inner membrane
2148	 48.35	0	2375400..2377910	-	836	170081811	yejO	ECDH10B_2348	-	autotransporter outer membrane protein
2149	 54.67	0	2378075..2379091	-	338	170081812	insH-8	ECDH10B_2349	-	IS5 transposase and trans-activator
2150	 52.47	0	2379510..2380157	+	215	170081813	narP	ECDH10B_2350	-	DNA-binding response regulator in two-component regulatory system with NarQ or NarX
2151	 54.04	0	2380368..2381420	-	350	170081814	ccmH	ECDH10B_2351	-	heme lyase, CcmH subunit
2152	 54.48	0	2381417..2381974	-	185	170081815	ccmG	ECDH10B_2352	-	periplasmic thioredoxin of cytochrome c-type biogenesis
2153	 57.10	+1	2381971..2383914	-	647	170081816	ccmF	ECDH10B_2353	-	heme lyase, CcmF subunit
2154	 53.54	0	2383911..2384390	-	159	170081817	ccmE	ECDH10B_2354	-	periplasmic heme chaperone
2155	 57.14	+1	2384387..2384596	-	69	170081818	ccmD	ECDH10B_2355	-	cytochrome c biogenesis protein
2156	 55.28	0	2384593..2385330	-	245	170081819	ccmC	ECDH10B_2356	-	heme ABC transporter membrane protein
2157	 55.96	+1	2385372..2386034	-	220	170081820	ccmB	ECDH10B_2357	-	heme ABC transporter membrane protein
2158	 55.93	+1	2386031..2386654	-	207	170081821	ccmA	ECDH10B_2358	-	heme ABC transporter ATP-binding protein
2159	 51.58	0	2386667..2387269	-	200	170081822	napC	ECDH10B_2359	-	nitrate reductase, cytochrome c-type,periplasmic
2160	 55.56	0	2387279..2387728	-	149	170081823	napB	ECDH10B_2360	-
