IslandPath Analysis: Escherichia coli str. K12 substr. DH10B

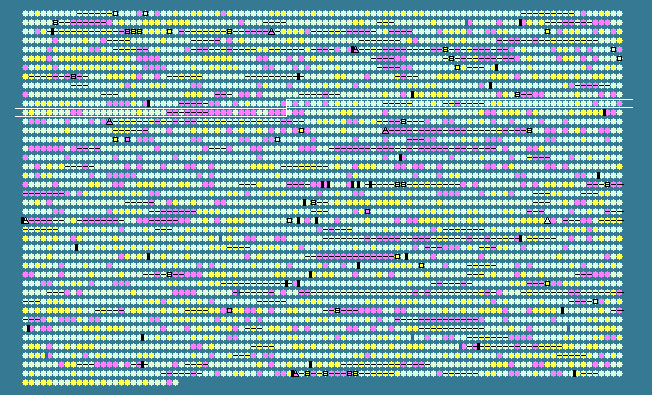

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.13 STD DEV: 4.76
Escherichia coli str. K-12 substr. DH10B, complete genome - 1..4686137
4126 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1045	 51.15	0	1173148..1173714	-	188	170080708	yceJ	ECDH10B_1128	-	cytochrome b561
1046	 37.59	-2	1173975..1174115	-	46	170080709	yceO	ECDH10B_1129	-	hypothetical protein
1047	 52.46	0	1174136..1175254	-	372	170080710	solA	ECDH10B_1130	-	N-methyltryptophan oxidase, FAD-binding
1048	 45.10	-1	1175369..1175623	-	84	170080711	bssS	ECDH10B_1131	-	regulator of biofilm formation
1049	 47.97	0	1175910..1176155	-	81	170080712	dinI	ECDH10B_1132	-	DNA damage-inducible protein I
1050	 53.10	0	1176229..1177275	-	348	170080713	pyrC	ECDH10B_1133	-	dihydro-orotase
1051	 46.88	0	1177381..1177941	-	186	170080714	yceB	ECDH10B_1134	-	lipoprotein
1052	 48.92	0	1178075..1178722	-	215	170080715	grxB	ECDH10B_1135	-	glutaredoxin 2
1053	 55.33	0	1178786..1179994	-	402	170080716	mdtH	ECDH10B_1136	-	drug efflux system
1054	 49.40	0	1180230..1180814	+	194	170080717	rimJ	ECDH10B_1137	-	ribosomal-protein-S5-alanine N-acetyltransferase
1055	 51.85	0	1180825..1181472	+	215	170080718	yceH	ECDH10B_1138	-	hypothetical protein
1056	 55.30	0	1181474..1182397	+	307	170080719	mviM	ECDH10B_1139	-	oxidoreductase
1057	 53.71	0	1182507..1184042	+	511	170080720	yceN	ECDH10B_1140	-	inner membrane protein
1058	 48.20	0	1184082..1184498	-	138	170080721	flgN	ECDH10B_1141	-	export chaperone for FlgK and FlgL
1059	 52.72	0	1184503..1184796	-	97	170080722	flgM	ECDH10B_1142	-	anti-sigma factor for FliA (sigma 28)
1060	 52.27	0	1184872..1185531	-	219	170080723	flgA	ECDH10B_1143	-	assembly protein for flagellar basal-body periplasmic P ring
1061	 53.48	0	1185686..1186102	+	138	170080724	flgB	ECDH10B_1144	-	flagellar component of cell-proximal portion of basal-body rod
1062	 52.84	0	1186106..1186510	+	134	170080725	flgC	ECDH10B_1145	-	flagellar component of cell-proximal portion of basal-body rod
1063	 54.60	0	1186522..1187217	+	231	170080726	flgD	ECDH10B_1146	-	flagellar hook assembly protein
1064	 51.53	0	1187242..1188450	+	402	170080727	flgE	ECDH10B_1147	-	flagellar hook protein
1065	 59.13	+1	1188470..1189225	+	251	170080728	flgF	ECDH10B_1148	-	flagellar component of cell-proximal portion of basal-body rod
1066	 53.77	0	1189397..1190179	+	260	170080729	flgG	ECDH10B_1149	-	flagellar component of cell-distal portion of basal-body rod
1067	 53.51	0	1190232..1190930	+	232	170080730	flgH	ECDH10B_1150	-	flagellar protein of basal-body outer-membrane L ring
1068	 54.19	0	1190942..1192039	+	365	170080731	flgI	ECDH10B_1151	-	flagellar basal body protein
1069	 54.67	0	1192039..1192980	+	313	170080732	flgJ	ECDH10B_1152	-	muramidase
1070	 51.82	0	1193046..1194689	+	547	170080733	flgK	ECDH10B_1153	-	flagellar hook-filament junction protein 1
1071	 50.73	0	1194701..1195654	+	317	170080734	flgL	ECDH10B_1154	-	flagellar hook-filament junction protein
1072	 55.65	0	1195850..1199035	-	1061	170080735	rne	ECDH10B_1155	-	RNase E
1073	 44.55	-1	1199170..1199490	+	106	170080736	yceQ	ECDH10B_1156	-	hypothetical protein
1074	 51.46	0	1199608..1200567	+	319	170080737	rluC	ECDH10B_1157	-	ribosomal large subunit pseudouridine synthase C
1075	 50.09	0	1200679..1201263	-	194	170080738	yceF	ECDH10B_1158	-	hypothetical protein
1076	 49.62	0	1201462..1201983	+	173	170080739	yceD	ECDH10B_1160	-	hypothetical protein
1077	 54.02	0	1202035..1202208	+	57	170080740	rpmF	ECDH10B_1161	-	50S ribosomal subunit protein L32
1078	 52.10	0	1202289..1203359	+	356	170080741	plsX	ECDH10B_1162	-	fatty acid/phospholipid synthesis protein
1079	 54.72	0	1203427..1204380	+	317	170080742	fabH	ECDH10B_1163	-	3-oxoacyl-[acyl-carrier-protein] synthase III
1080	 55.16	0	1204396..1205325	+	309	170080743	fabD	ECDH10B_1164	-	malonyl-CoA-[acyl-carrier-protein] transacylase
1081	 51.56	0	1205338..1206072	+	244	170080744	fabG	ECDH10B_1165	-	3-oxoacyl-[acyl-carrier-protein] reductase
1082	 48.10	0	1206283..1206519	+	78	170080745	acpP	ECDH10B_1166	-	acyl carrier protein (ACP)
1083	 53.30	0	1206607..1207848	+	413	170080746	fabF	ECDH10B_1167	-	3-oxoacyl-[acyl-carrier-protein] synthase II
1084	 50.62	0	1207968..1208777	+	269	170080747	pabC	ECDH10B_1168	-	4-amino-4-deoxychorismate lyase component of para-aminobenzoate synthase multienzyme complex
1085	 50.73	0	1208780..1209802	+	340	170080748	yceG	ECDH10B_1169	-	aminodeoxychorismate lyase
1086	 54.05	0	1209792..1210433	+	213	170080749	tmk	ECDH10B_1170	-	thymidylate kinase
1087	 54.03	0	1210430..1211434	+	334	170080750	holB	ECDH10B_1171	-	DNA polymerase III, delta prime subunit
1088	 50.88	0	1211445..1212242	+	265	170080751	ycfH	ECDH10B_1172	-	metallodependent hydrolase
1089	 52.65	0	1212537..1213970	+	477	170080752	ptsG	ECDH10B_1173	-	fused glucose-specific PTS enzymes: iibcomponent; IIC component
1090	 50.00	0	1214030..1216219	-	729	170080753	fhuE	ECDH10B_1174	-	ferric-rhodotorulic acid outer membrane transporter
1091	 50.56	0	1216553..1216912	+	119	170080754	hinT	ECDH10B_1175	-	purine nucleoside phosphoramidase
1092	 49.47	0	1216915..1217292	+	125	170080755	ycfL	ECDH10B_1176	-	lipoprotein
1093	 56.39	+1	1217306..1217947	+	213	170080756	ycfM	ECDH10B_1177	-	outer membrane lipoprotein
1094	 53.33	0	1217928..1218752	+	274	170080757	thiK	ECDH10B_1178	-	thiamin kinase
1095	 53.02	0	1218763..1219788	+	341	170080758	nagZ	ECDH10B_1179	-	beta-N-acetylglucosaminidase
1096	 46.59	0	1219811..1220353	+	180	170080759	ycfP	ECDH10B_1180	-	hypothetical protein
1097	 52.95	0	1220753..1222057	+	434	170080760	ndh	ECDH10B_1181	-	respiratory NADH dehydrogenase 2/cupric reductase
1098	 53.70	0	1222267..1222806	+	179	170080761	ycfJ	ECDH10B_1182	-	hypothetical protein
1099	 51.18	0	1222868..1223500	-	210	170080762	ycfQ	ECDH10B_1183	-	DNA-binding transcriptional regulator
1100	 47.29	0	1223741..1223998	+	85	170080763	ycfR	ECDH10B_1184	-	hypothetical protein
1101	 53.37	0	1224080..1225042	-	320	170080764	ycfS	ECDH10B_1185	-	hypothetical protein
1102	 54.77	0	1225186..1228632	-	1148	170080765	mfd	ECDH10B_1186	-	transcription-repair coupling factor
1103	 49.53	0	1228760..1229833	-	357	170080766	ycfT	ECDH10B_1187	-	inner membrane protein
1104	 54.17	0	1230095..1231294	+	399	170080767	lolC	ECDH10B_1188	-	outer membrane-specific lipoprotein ABC transporter membrane protein
1105	 55.13	0	1231287..1231988	+	233	170080768	lolD	ECDH10B_1189	-	outer membrane-specific lipoprotein ABC transporter ATP-binding protein
1106	 51.89	0	1231988..1233232	+	414	170080769	lolE	ECDH10B_1190	-	outer membrane-specific lipoprotein ABC transporter membrane protein
1107	 52.74	0	1233261..1234172	+	303	170080770	nagK	ECDH10B_1191	-	N-acetyl-D-glucosamine kinase
1108	 51.79	0	1234188..1235027	+	279	170080771	cobB	ECDH10B_1192	-	deacetylase of acetyl-CoA synthetase, NAD-dependent
1109	 42.59	-1	1235147..1235935	-	262	170080772	ycfZ	ECDH10B_1193	-	inner membrane protein
1110	 43.51	-1	1235932..1236393	-	153	170080773	ymfA	ECDH10B_1194	-	inner membrane protein
1111	 50.81	0	1236451..1237497	-	348	170080774	potD	ECDH10B_1195	-	polyamine ABC transporter periplasmic-binding protein
1112	 50.19	0	1237494..1238288	-	264	170080775	potC	ECDH10B_1196	-	polyamine ABC transporter transmembrane protein
1113	 50.85	0	1238285..1239112	-	275	170080776	potB	ECDH10B_1197	-	polyamine ABC transporter transmembrane protein
1114	 50.84	0	1239126..1240262	-	378	170080777	potA	ECDH10B_1198	-	polyamine ABC transporter ATP-binding protein
1115	 49.88	0	1240512..1241738	+	408	170080778	pepT	ECDH10B_1199	-	peptidase T
1116	 54.01	0	1241787..1242908	-	373	170080779	ycfD	ECDH10B_1200	-	hypothetical protein
1117	 51.33	0	1242984..1244444	-	486	170080780	phoQ	ECDH10B_1201	-	sensory histidine kinase in two-compoent regulatory system with PhoP
1118	 47.92	0	1244444..1245115	-	223	170080781	phoP	ECDH10B_1202	-	DNA-binding response regulator in two-component regulatory system with PhoQ
1119	 52.30	0	1245284..1246654	-	456	170080782	purB	ECDH10B_1203	-	adenylosuccinate lyase
1120	 57.17	+1	1246658..1247299	-	213	170080783	hflD	ECDH10B_1204	-	lysogenization regulator
1121	 53.75	0	1247335..1248441	-	368	170080784	mnmA	ECDH10B_1205	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1122	 50.22	0	1248495..1248956	-	153	170080785	nudJ	ECDH10B_1206	-	bifunctional thiamin pyrimidine pyrophosphate hydrolase and thiamin pyrophosphate hydrolase
1123	 51.22	0	1248966..1249619	-	217	170080786	rluE	ECDH10B_1207	-	23S rRNA pseudouridine synthase
1124	 50.04	0	1249791..1251041	+	416	170080787	icd	ECDH10B_1208	-	isocitrate dehydrogenase, specific for NADP+
1125	 33.95	-2	1251144..1251467	-	107	170080788	elbA	ECDH10B_1209	-	hypothetical protein
1126	 36.79	-2	1252167..1252571	-	134	170080789	ycgX	ECDH10B_1210	-	hypothetical protein
1127	 48.77	0	1252792..1253523	-	243	170080790	ycgE	ECDH10B_1211	-	DNA-binding transcriptional regulator
1128	 43.56	-1	1253728..1254939	-	403	170080791	ycgF	ECDH10B_1212	-	FAD-binding phosphodiesterase
1129	 41.77	-1	1255253..1255489	+	78	170080792	ycgZ	ECDH10B_1213	-	hypothetical protein
1130	 37.00	-2	1255532..1255804	+	90	170080793	ymgA	ECDH10B_1214	-	hypothetical protein
1131	 34.83	-2	1255833..1256099	+	88	170080794	ymgB	ECDH10B_1215	-	hypothetical protein
1132	 35.74	-2	1256212..1256460	+	82	170080795	ymgC	ECDH10B_1216	-	hypothetical protein
1133	 44.62	-1	1256792..1258315	+	507	170080796	ycgG	ECDH10B_1217	-	inner membrane protein
1134	 40.18	-2	1258447..1258665	+	72	170080797	ymgF	ECDH10B_1218	-	hypothetical protein
1135	 45.15	-1	1261769..1262098	-	109	170080798	ymgD	ECDH10B_1222	-	hypothetical protein
1136	 53.26	0	1262108..1262383	-	91	170080799	ymgG	ECDH10B_1223	-	hypothetical protein
1137	 32.18	-2	1262454..1262627	-	57	170080800	ymgI	ECDH10B_1224	-	hypothetical protein
1138	 38.1
