IslandPath Analysis: Escherichia coli E24377A

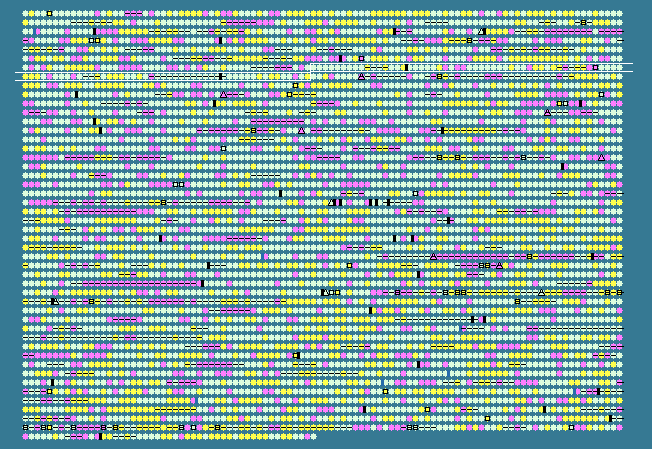

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
649	 47.38	0	702889..704340	+	483	157157945	-	EcE24377A_0677	-	DnaJ domain-containing protein
650	 49.61	0	704400..706070	-	556	157157133	hscC	EcE24377A_0678	-	DnaK family protein HscC
651	 51.07	0	706154..707089	-	311	157156069	-	EcE24377A_0679	-	ribonucleoside hydrolase 1
652	 51.93	0	707207..707932	-	241	157156502	gltL	EcE24377A_0680	-	glutamate/aspartate ABC transporter, ATP-binding protein
653	 49.63	0	707932..708606	-	224	157155672	gltK	EcE24377A_0681	-	glutamate/aspartate ABC transporter, permease protein GltK
654	 52.63	0	708606..709346	-	246	157155111	gltJ	EcE24377A_0682	-	glutamate/aspartate ABC transporter, permease protein GltJ
655	 48.40	0	709516..710424	-	302	157157607	gltI	EcE24377A_0683	-	glutamate and aspartate transporter subunit
656	 48.78	0	710559..710681	+	40	157159333	-	EcE24377A_0684	-	hypothetical protein
657	 49.47	0	710879..712756	+	625	157159255	-	EcE24377A_0685	-	S54 family peptidase
658	 55.95	0	712834..714372	-	512	157158732	lnt	EcE24377A_0686	-	apolipoprotein N-acyltransferase
659	 51.54	0	714397..715275	-	292	157154891	corC	EcE24377A_0687	-	magnesium and cobalt efflux protein CorC
660	 51.50	0	715365..715832	-	155	157156781	-	EcE24377A_0688	-	putative metalloprotease
661	 54.76	0	715829..716869	-	346	157157740	-	EcE24377A_0689	-	PhoH family protein
662	 50.00	0	716888..717031	+	47	157159267	-	EcE24377A_0691	-	hypothetical protein
663	 53.96	0	717022..718446	-	474	157157673	miaB	EcE24377A_0690	-	tRNA-I(6)A37 thiotransferase enzyme MiaB
664	 56.12	+1	718592..719767	+	391	157158593	ubiF	EcE24377A_0692	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
665	 52.25	0	720893..722557	-	554	157156873	asnB	EcE24377A_0699	-	asparagine synthetase B
666	 53.92	0	722814..723566	-	250	157155303	nagD	EcE24377A_0700	-	UMP phosphatase
667	 53.32	0	723614..724834	-	406	157158174	nagC	EcE24377A_0701	-	N-acetylglucosamine repressor
668	 52.22	0	724843..725991	-	382	157156004	nagA1	EcE24377A_0702	-	N-acetylglucosamine-6-phosphate deacetylase
669	 48.31	0	726051..726851	-	266	157159152	nagB	EcE24377A_0703	-	glucosamine-6-phosphate deaminase
670	 54.55	0	727184..729130	+	648	157155109	nagE	EcE24377A_0705	-	N-acetyl glucosamine specific PTS system components IIABC
671	 43.09	-1	729100..729222	-	40	157157357	-	EcE24377A_0704	-	hypothetical protein
672	 52.97	0	729333..730997	+	554	157159259	glnS	EcE24377A_0706	-	glutaminyl-tRNA synthetase
673	 39.25	-1	731000..731185	-	61	157156481	-	EcE24377A_0707	-	hypothetical protein
674	 35.24	-2	731148..731252	-	34	157157009	-	EcE24377A_0708	-	hypothetical protein
675	 51.46	0	731443..732849	+	468	157158347	oprD	EcE24377A_0709	-	porin D
676	 47.71	0	732899..733225	+	108	157155578	-	EcE24377A_0710	-	putative lipoprotein
677	 47.87	0	733310..733756	-	148	157156224	fur	EcE24377A_0711	-	ferric uptake regulator
678	 48.46	0	734045..734692	-	215	157157770	fldA	EcE24377A_0712	-	flavodoxin FldA
679	 53.74	0	734715..735008	-	97	157154857	-	EcE24377A_0713	-	LexA regulated protein
680	 50.72	0	735148..735912	-	254	157156449	-	EcE24377A_0714	-	hypothetical protein
681	 49.63	0	736097..736642	+	181	157155619	seqA	EcE24377A_0715	-	replication initiation regulator SeqA
682	 55.45	0	736668..738308	+	546	157155077	pgm	EcE24377A_0716	-	phosphoglucomutase
683	 50.45	0	738364..739683	-	439	157159107	potE	EcE24377A_0717	-	putrescine transporter
684	 48.37	0	739680..741887	-	735	157158479	speF	EcE24377A_0718	-	ornithine decarboxylase
685	 21.48	-2	742412..742546	+	44	157154803	-	EcE24377A_0719	-	hypothetical protein
686	 57.37	+1	742568..743245	-	225	157155566	kdpE	EcE24377A_0720	-	DNA-binding transcriptional activator KdpE
687	 57.65	+1	743242..745926	-	894	157157107	kdpD	EcE24377A_0721	-	sensor protein KdpD
688	 53.93	0	745919..746491	-	190	157156599	kdpC	EcE24377A_0722	-	potassium-transporting ATPase subunit C
689	 56.12	+1	746500..748548	-	682	157159118	kdpB	EcE24377A_0723	-	potassium-transporting ATPase subunit B
690	 55.50	0	748571..750244	-	557	157158452	kdpA	EcE24377A_0724	-	potassium-transporting ATPase subunit A
691	 46.57	0	750244..750447	-	67	157155728	kdpF	EcE24377A_0725	-	K+-transporting ATPase, F subunit
692	 50.24	0	750645..750851	+	68	157155052	-	EcE24377A_0726	-	hypothetical protein
693	 59.78	+1	751094..755287	+	1397	157155232	-	EcE24377A_0727	-	protein rhsA precursor
694	 54.46	0	755731..757164	+	477	157156917	-	EcE24377A_0728	-	RHS domain-containing protein
695	 36.49	-2	757161..757730	+	189	157157299	-	EcE24377A_0729	-	hypothetical protein
696	 38.04	-2	757956..758210	+	84	157158968	-	EcE24377A_0730	-	ISEc2, transposase
697	 50.00	0	759245..759754	+	169	157158604	-	EcE24377A_0732	-	hypothetical protein
698	 53.14	0	759751..761169	+	472	157154932	phrB	EcE24377A_0733	-	deoxyribodipyrimidine photolyase
699	 51.96	0	761211..762692	-	493	157156984	-	EcE24377A_0734	-	amino acid/peptide transporter
700	 53.23	0	762963..763706	+	247	157157712	-	EcE24377A_0735	-	putative hydrolase-oxidase
701	 57.53	+1	763729..764385	+	218	157157256	-	EcE24377A_0736	-	allophanate hydrolase, subunit 1
702	 56.06	0	764379..765311	+	310	157159077	-	EcE24377A_0737	-	allophanate hydrolase, subunit 2
703	 56.73	+1	765301..766035	+	244	157158558	-	EcE24377A_0738	-	hypothetical protein
704	 52.27	0	766071..766862	+	263	157155050	nei	EcE24377A_0740	-	endonuclease VIII
705	 44.26	-1	768056..769117	-	353	157155342	-	EcE24377A_0742	-	hypothetical protein
706	 49.59	0	769114..769845	-	243	157156567	-	EcE24377A_0743	-	periplasmic pilus chaperone family protein
707	 49.80	0	769860..772361	-	833	157156026	-	EcE24377A_0744	-	fimbrial usher family protein
708	 47.80	0	772370..772936	-	188	157158772	-	EcE24377A_0745	-	putative type 1 fimbrial protein
709	 21.71	-2	773008..773136	-	42	157158265	-	EcE24377A_0746	-	hypothetical protein
710	 50.08	0	773327..774610	-	427	157155745	gltA	EcE24377A_0747	-	type II citrate synthase
711	 49.14	0	775304..775708	+	134	157154902	sdhC	EcE24377A_0748	-	succinate dehydrogenase cytochrome b556 large membrane subunit
712	 50.86	0	775702..776049	+	115	157156814	sdhD	EcE24377A_0749	-	succinate dehydrogenase cytochrome b556 small membrane subunit
713	 56.03	0	776049..777815	+	588	157156147	sdhA	EcE24377A_0750	-	succinate dehydrogenase flavoprotein subunit
714	 51.88	0	777831..778547	+	238	157156213	sdhB	EcE24377A_0751	-	succinate dehydrogenase iron-sulfur subunit
715	 55.71	0	778748..781549	+	933	157155363	sucA	EcE24377A_0752	-	alpha-ketoglutarate decarboxylase
716	 55.91	0	781564..782781	+	405	157157585	sucB	EcE24377A_0753	-	dihydrolipoamide acetyltransferase
717	 54.50	0	782875..784041	+	388	157156644	sucC	EcE24377A_0754	-	succinyl-CoA synthetase subunit beta
718	 52.53	0	784041..784910	+	289	157158239	sucD	EcE24377A_0755	-	succinyl-CoA synthetase subunit alpha
719	 47.16	0	785014..785736	-	240	157157593	farR	EcE24377A_0756	-	DNA-binding transcriptional repressor MngR
720	 54.77	0	785905..787821	+	638	157159304	-	EcE24377A_0757	-	2-O-a-mannosyl-D-glycerate specific PTS transporten components IIABC
721	 49.32	0	787839..790472	+	877	157158631	-	EcE24377A_0758	-	alpha-mannosidase
722	 36.19	-2	790801..790905	-	34	157155558	-	EcE24377A_0760	-	hypothetical protein
723	 52.90	0	791319..792887	+	522	157156610	cydA	EcE24377A_0761	-	cytochrome d ubiquinol oxidase, subunit I
724	 53.68	0	792903..794042	+	379	157158603	cydB	EcE24377A_0762	-	cytochrome d ubiquinol oxidase, subunit II
725	 52.63	0	794057..794170	+	37	157159220	-	EcE24377A_0763	-	cyd operon protein YbgT
726	 49.66	0	794170..794463	+	97	157154913	-	EcE24377A_0764	-	hypothetical protein
727	 49.63	0	794613..795017	+	134	157155477	ybgC	EcE24377A_0765	-	acyl-CoA thioester hydrolase YbgC
728	 50.36	0	795014..795706	+	230	157156530	tolQ	EcE24377A_0766	-	colicin uptake protein TolQ
729	 51.75	0	795710..796138	+	142	157154910	tolR	EcE24377A_0767	-	colicin uptake protein TolR
730	 52.27	0	796203..797501	+	432	157158717	tolA	EcE24377A_0768	-	cell envelope integrity inner membrane protein TolA
731	 53.13	0	797634..798926	+	430	157154962	tolB	EcE24377A_0769	-	translocation protein TolB
732	 51.34	0	798961..799482	+	173	157157682	pal	EcE24377A_0770	-	peptidoglycan-associated outer membrane lipoprotein
733	 49.62	0	799492..800283	+	263	157158211	ygbF	EcE24377A_0771	-	hypothetical protein
734	 50.29	0	801549..802592	+	347	157156025	nadA	EcE24377A_0777	-	quinolinate synthetase
735	 48.65	0	802645..803349	+	234	157156542	pnuC	EcE24377A_0779	-	nicotinamide mononucleotide transporter PnuC
736	 53.08	0	803346..804287	-	313	157156058	zitB	EcE24377A_0778	-	zinc transporter ZitB
737	 50.13	0	804401..804781	-	126	157156580	-	EcE24377A_0780	-	hypothetical protein
738	 52.04	0	805097..806149	+	350	157154975	aroG	EcE24377A_0781	-	phospho-2-dehydro-3-deoxyheptonate aldolase
739	 51.13	0	806308..807060	-	250	157155502	gpmA	EcE24377A_0782	-	2,3-bisphosphoglycerate-dependent phosphoglycerate mutase
740	 55.52	0	807262..808302	-	346	157157316	galM	EcE24377A_0783	-	aldose 1-epimerase
741	 53.26	0	808296..809444	-	382	157158993	galK	EcE24377A_0784	-	galactokinase
742	 55.40	0	809448..810494	-	348	157158334	galT	EcE24377A_0785	-	galactose-1-phosphate uridylyltransferase
743	 54.08	0	810504..811520	-	338	157155911	galE	EcE24377A_0786	-	UDP-galactose-4-epimerase
744	 52.68	0	811781..813253	-	490	157155198	modF	EcE24377A_0787	-	putative molybdenum transport ATP-binding protein ModF
745	 52.47	0	813321..814109	-	262	157156950	modE	EcE24377A_0788	-	DNA-binding transcriptional regulator ModE
746	 41.33	-1	814238..814387	+	49	157157941	-	EcE24377A_0789	-	hypothetical protein
747	 50.90	0	814553..815326	+	257	157157330	modA	EcE24377A_0790	-	molybdate transporter periplasmic protein
748	 54.20	0	815326..816015	+	229	157159018	modB	EcE24377A_0791	-	molybdate ABC transporter permease protein
50.48	MEAN

5.64	STD DEV
