IslandPath Analysis: Escherichia coli E24377A

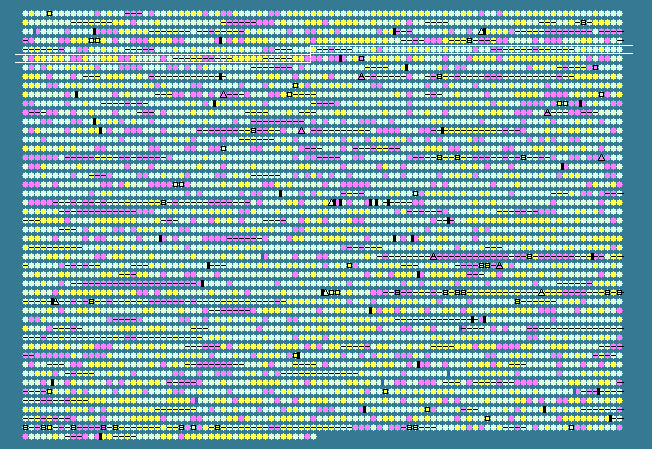

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
449	 54.27	0	487218..488693	-	491	157155361	-	EcE24377A_0468	-	muropeptide transporter
450	 51.12	0	488737..489315	-	192	157154980	-	EcE24377A_0469	-	hypothetical protein
451	 48.43	0	489620..489937	+	105	157155498	-	EcE24377A_0470	-	transcriptional regulator BolA
452	 44.44	-1	489946..490134	+	62	157154997	-	EcE24377A_0471	-	hypothetical protein
453	 51.81	0	490281..491579	+	432	157155935	tig	EcE24377A_0472	-	trigger factor
454	 50.96	0	491825..492448	+	207	157158299	clpP	EcE24377A_0473	-	ATP-dependent Clp protease proteolytic subunit
455	 51.92	0	492574..493848	+	424	157157655	clpX	EcE24377A_0474	-	ATP-dependent protease ATP-binding subunit
456	 52.44	0	494036..496390	+	784	157159434	lon	EcE24377A_0475	-	DNA-binding ATP-dependent protease La
457	 49.08	0	496599..496871	+	90	157158595	hupB	EcE24377A_0476	-	transcriptional regulator HU subunit beta
458	 52.14	0	497063..498934	+	623	157156448	ppiD	EcE24377A_0477	-	peptidyl-prolyl cis-trans isomerase (rotamase D)
459	 54.57	0	499085..499456	+	123	157156949	-	EcE24377A_0478	-	competence protein ComEA
460	 46.12	0	499550..499948	+	132	157156010	-	EcE24377A_0479	-	thioesterase family protein
461	 51.29	0	500000..500695	-	231	157156536	queC	EcE24377A_0480	-	queuosine biosynthesis protein QueC
462	 53.03	0	500760..502460	-	566	157155849	-	EcE24377A_0481	-	solute-binding family 5 protein
463	 51.40	0	502560..503378	+	272	157156257	cof	EcE24377A_0482	-	hydrolase Cof
464	 51.85	0	503531..503989	+	152	157159291	-	EcE24377A_0483	-	AsnC family transcriptional regulator
465	 53.98	0	504019..505791	+	590	157154903	mdlA	EcE24377A_0484	-	putative multidrug transporter membrane\ATP-binding components
466	 55.84	0	505784..507565	+	593	157157939	mdlB	EcE24377A_0485	-	putative multidrug transporter membrane\ATP-binding components
467	 51.03	0	507746..508084	+	112	157158324	glnK	EcE24377A_0486	-	nitrogen regulatory protein P-II 2
468	 55.87	0	508114..509400	+	428	157157708	amt	EcE24377A_0487	-	ammonium transporter
469	 52.85	0	509448..510308	-	286	157158552	tesB	EcE24377A_0488	-	acyl-CoA thioesterase II
470	 53.75	0	510526..511098	+	190	157157879	-	EcE24377A_0489	-	putative lipoprotein
471	 54.10	0	511129..511518	-	129	157157382	-	EcE24377A_0490	-	methylated-DNA-[protein]-cysteine S-methyltransferase
472	 49.72	0	511819..512172	+	117	157158965	-	EcE24377A_0491	-	hypothetical protein
473	 48.04	0	512214..513770	-	518	157158408	-	EcE24377A_0492	-	cyclic diguanylate phosphodiesterase domain-containing protein
474	 47.45	0	513928..514437	-	169	157156260	-	EcE24377A_0493	-	hypothetical protein
475	 48.37	0	514514..515065	-	183	157155912	maa	EcE24377A_0494	-	maltose O-acetyltransferase
476	 40.53	-1	515481..515855	-	124	157157278	-	EcE24377A_0495	-	hypothetical protein
477	 53.65	0	516401..519550	-	1049	157156955	-	EcE24377A_0496	-	acriflavine resistance protein B
478	 53.85	0	519573..520766	-	397	157157374	acrA	EcE24377A_0497	-	acriflavine resistance protein A
479	 45.52	0	520908..521555	+	215	157156905	acrR	EcE24377A_0498	-	DNA-binding transcriptional repressor AcrR
480	 40.61	-1	521637..521801	+	54	157157065	-	EcE24377A_0499	-	hypothetical protein
481	 52.01	0	521683..525045	+	1120	157156171	kefA	EcE24377A_0500	-	potassium efflux protein KefA
482	 54.00	0	525091..525240	+	49	157157724	-	EcE24377A_0501	-	hypothetical protein
483	 48.77	0	525257..525418	-	53	157158044	-	EcE24377A_0502	-	hypothetical protein
484	 59.66	+1	525432..525959	-	175	157157537	priC	EcE24377A_0503	-	primosomal replication protein N''
485	 52.12	0	526029..526406	+	125	157159378	-	EcE24377A_0504	-	hypothetical protein
486	 45.95	0	526381..526491	+	36	157158833	-	EcE24377A_0505	-	hypothetical protein
487	 54.17	0	526559..527110	+	183	157155373	apt	EcE24377A_0506	-	adenine phosphoribosyltransferase
488	 57.40	+1	527239..529170	+	643	157154853	dnaX	EcE24377A_0507	-	DNA polymerase III subunits gamma and tau
489	 51.59	0	529199..529576	-	125	157155769	-	EcE24377A_0508	-	hypothetical protein
490	 52.42	0	529223..529552	+	109	157158940	-	EcE24377A_0509	-	hypothetical protein
491	 57.43	+1	529552..530157	+	201	157157829	recR	EcE24377A_0510	-	recombination protein RecR
492	 53.01	0	530267..532141	+	624	157155982	htpG	EcE24377A_0511	-	heat shock protein 90
493	 51.94	0	532322..532966	+	214	157154899	adk	EcE24377A_0513	-	adenylate kinase
494	 54.52	0	533202..534164	+	320	157158688	hemH	EcE24377A_0515	-	ferrochelatase
495	 51.35	0	534161..535120	-	319	157159249	aes	EcE24377A_0514	-	acetyl esterase
496	 51.88	0	535272..536576	+	434	157157660	gsk	EcE24377A_0516	-	inosine-guanosine kinase
497	 55.34	0	536709..538385	-	558	157158216	-	EcE24377A_0517	-	putative cation:proton antiport protein
498	 52.25	0	538623..539843	-	406	157158710	fsr	EcE24377A_0518	-	fosmidomycin resistance protein
499	 50.82	0	540061..541713	+	550	157157603	ushA	EcE24377A_0519	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
500	 50.62	0	541750..542229	-	159	157158258	-	EcE24377A_0520	-	hypothetical protein
501	 53.33	0	542433..543227	-	264	157158629	-	EcE24377A_0521	-	GumN family protein
502	 43.69	-1	543311..543706	+	131	157159330	-	EcE24377A_0522	-	addiction module antidote protein
503	 57.92	+1	543820..546324	-	834	157155513	copA	EcE24377A_0523	-	copper exporting ATPase
504	 54.34	0	546586..547518	+	310	157156184	glsA1	EcE24377A_0524	-	glutaminase
505	 53.13	0	547521..548813	+	430	157156643	-	EcE24377A_0525	-	amino acid permease family protein
506	 58.33	+1	548938..549345	+	135	157157213	cueR	EcE24377A_0526	-	DNA-binding transcriptional regulator CueR
507	 57.08	+1	549346..549804	-	152	157158261	-	EcE24377A_0527	-	nodulation efficiency family protein
508	 52.72	0	549801..550718	-	305	157155972	-	EcE24377A_0528	-	SPFH domain-containing protein/band 7 family protein
509	 45.72	0	550864..551541	+	225	157156724	-	EcE24377A_0529	-	putative ABC transporter ATP-binding protein YbbL
510	 46.15	0	551528..552307	+	259	157155957	-	EcE24377A_0530	-	hypothetical protein
511	 56.37	+1	552370..553224	-	284	157156452	ybbN	EcE24377A_0531	-	protein YbbN
512	 53.83	0	553285..554094	-	269	157155767	-	EcE24377A_0532	-	short chain dehydrogenase
513	 53.12	0	554084..554740	-	218	157155032	tesA	EcE24377A_0533	-	multifunctional acyl-CoA thioesterase I and protease I and lysophospholipase L1
514	 56.77	+1	554678..555364	+	228	157159113	-	EcE24377A_0534	-	putative ABC transporter ATP-binding protein YbbA
515	 57.85	+1	555361..557775	+	804	157158498	-	EcE24377A_0535	-	efflux ABC transporter, permease protein
516	 60.19	+1	558205..562494	+	1429	157157827	-	EcE24377A_0536	-	RhsD protein precursor
517	 30.62	-2	562534..562902	+	122	157157139	-	EcE24377A_0537	-	putative lipoprotein
518	 43.60	-1	562902..563612	+	236	157158632	-	EcE24377A_0538	-	Rhs domain-containing protein
519	 55.16	0	565087..566181	-	364	157156550	selU	EcE24377A_0540	-	tRNA 2-selenouridine synthase
520	 51.89	0	566250..567176	-	308	157156027	-	EcE24377A_0541	-	DNA-binding transcriptional activator AllS
521	 51.14	0	567406..567888	+	160	157155464	allA	EcE24377A_0542	-	ureidoglycolate hydrolase
522	 52.70	0	567966..568781	+	271	157154938	allR	EcE24377A_0543	-	DNA-binding transcriptional repressor AllR
523	 53.54	0	568871..570652	+	593	157158653	gcl	EcE24377A_0544	-	glyoxylate carboligase
524	 44.92	0	570665..571441	+	258	157158233	hyi	EcE24377A_0545	-	hydroxypyruvate isomerase
525	 50.74	0	571541..572419	+	292	157157577	-	EcE24377A_0546	-	2-hydroxy-3-oxopropionate reductase
526	 47.22	0	572588..574042	+	484	157156624	-	EcE24377A_0547	-	allantoin permease
527	 51.91	0	574102..575463	+	453	157155927	allB	EcE24377A_0548	-	allantoinase
528	 51.23	0	575520..576821	+	433	157157735	-	EcE24377A_0550	-	putative purine permease YbbY
529	 54.84	0	576482..576574	-	30	157158280	-	EcE24377A_0549	-	hypothetical protein
530	 54.97	0	576843..577988	+	381	157156007	-	EcE24377A_0551	-	glycerate kinase II
531	 41.84	-1	578047..578187	+	46	157156401	-	EcE24377A_0552	-	hypothetical protein
532	 46.31	0	578216..579001	-	261	157157046	-	EcE24377A_0553	-	hypothetical protein
533	 51.05	0	579012..580247	-	411	157155718	allC	EcE24377A_0554	-	allantoate amidohydrolase
534	 52.19	0	580269..581318	-	349	157158586	allD	EcE24377A_0555	-	ureidoglycolate dehydrogenase
535	 56.12	0	581635..583302	+	555	157159355	-	EcE24377A_0556	-	membrane protein FdrA
536	 56.90	+1	583312..584571	+	419	157157509	-	EcE24377A_0557	-	hypothetical protein
537	 56.74	+1	584582..585397	+	271	157156050	-	EcE24377A_0558	-	hypothetical protein
538	 57.16	+1	585394..586287	+	297	157159246	arcC	EcE24377A_0559	-	carbamate kinase
539	 54.63	0	586324..586431	+	35	157158441	-	EcE24377A_0561	-	hypothetical protein
540	 56.27	+1	586424..587491	-	355	157158959	purK	EcE24377A_0560	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
541	 59.02	+1	587488..587997	-	169	157157867	purE	EcE24377A_0562	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
542	 53.67	0	588115..588837	-	240	157157360	lpxH	EcE24377A_0563	-	UDP-2,3-diacylglucosamine hydrolase
543	 47.68	0	588840..589334	-	164	157154955	ppiB	EcE24377A_0564	-	peptidyl-prolyl cis-trans isomerase B (rotamase B)
544	 54.55	0	589508..590893	+	461	157155754	cysS	EcE24377A_0566	-	cysteinyl-tRNA synthetase
545	 53.83	0	590929..591450	-	173	157155142	-	EcE24377A_0567	-	hypothetical protein
546	 54.93	0	591558..591770	-	70	157158070	-	EcE24377A_0569	-	hypothetical protein
547	 54.21	0	591772..592638	-	288	157156074	folD	EcE24377A_0570	-	bifunctional 5,10-methylene-tetrahydrofolate dehydrogenase/ 5,10-methylene-tetrahydrofolate cyclohydrolase
548	 44.38	-1	593119..593661	+	180	157156301	-	EcE24377A_0571	-	type-1 fimbrial protein
50.48	MEAN

5.64	STD DEV
