IslandPath Analysis: Escherichia coli E24377A

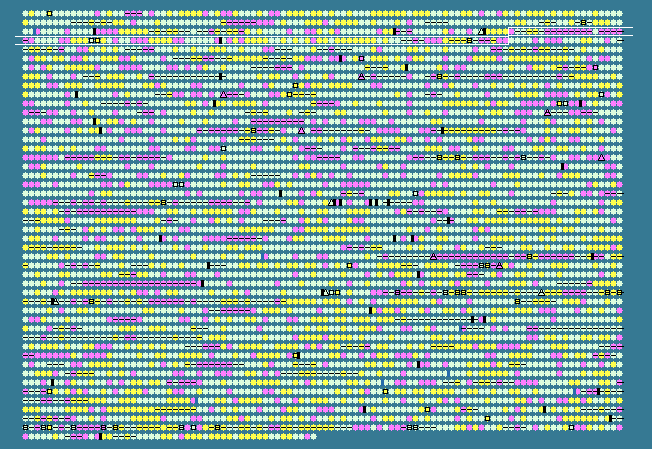

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
282	 45.20	0	326512..327126	+	204	157157430	-	EcE24377A_0298	-	hypothetical protein
283	 52.60	0	328011..328721	-	236	157158349	-	EcE24377A_0299	-	hypothetical protein
284	 51.82	0	328690..330333	-	547	157158770	-	EcE24377A_0300	-	hypothetical protein
285	 55.34	0	330323..332848	-	841	157154909	-	EcE24377A_0301	-	hypothetical protein
286	 54.56	0	332874..333542	-	222	157159226	-	EcE24377A_0302	-	hypothetical protein
287	 53.23	0	333600..334187	-	195	157155651	matB	EcE24377A_0303	-	fimbrillin MatB
288	 39.09	-2	334262..334852	-	196	157156152	matA	EcE24377A_0304	-	fimbrillin MatA
289	 26.04	-2	335050..335145	-	31	157156737	-	EcE24377A_0305	-	hypothetical protein
290	 41.84	-1	335889..336029	-	46	157157243	rpmJ2	EcE24377A_0306	-	50S ribosomal protein L36
291	 45.69	0	336029..336295	-	88	157158370	rpmE1	EcE24377A_0307	-	50S ribosomal protein L31 type B
292	 39.78	-1	336456..336548	+	30	157158841	-	EcE24377A_0308	-	hypothetical protein
293	 28.43	-2	336656..336757	-	33	157159361	-	EcE24377A_0309	-	hypothetical protein
294	 34.21	-2	336725..336838	+	37	157155092	-	EcE24377A_0310	-	hypothetical protein
295	 42.34	-1	337864..337974	-	36	157156345	-	EcE24377A_0311	-	hypothetical protein
296	 52.54	0	337935..342125	+	1396	157156471	-	EcE24377A_0312	-	EaeH
297	 43.94	-1	342246..343103	-	285	157156459	-	EcE24377A_0313	-	AraC family transcriptional regulator
298	 42.99	-1	343352..344221	+	289	157156985	-	EcE24377A_0314	-	aldo/keto reductase family oxidoreductase
299	 44.95	0	344381..344974	-	197	157157158	-	EcE24377A_0315	-	hypothetical protein
300	 35.86	-2	344986..345222	-	78	157157971	-	EcE24377A_0316	-	hypothetical protein
301	 45.63	0	345331..346656	-	441	157155734	-	EcE24377A_0318	-	pyridine nucleotide-disulfide oxidoreductase
302	 25.81	-2	346736..346828	+	30	157156451	-	EcE24377A_0319	-	hypothetical protein
303	 50.88	0	346882..347736	+	284	157156998	-	EcE24377A_0320	-	AraC family transcriptional regulator
304	 50.42	0	348263..348982	+	239	157156993	-	EcE24377A_0321	-	hypothetical protein
305	 50.35	0	348993..350420	+	475	157159192	-	EcE24377A_0322	-	iron-sulfur cluster binding protein
306	 52.59	0	350413..351108	+	231	157158990	-	EcE24377A_0323	-	hypothetical protein
307	 41.92	-1	351182..351379	-	65	157157674	-	EcE24377A_0324	-	hypothetical protein
308	 37.07	-2	351351..352019	-	222	157155567	-	EcE24377A_0325	-	hypothetical protein
309	 57.57	+1	352232..353902	-	556	157158516	betA	EcE24377A_0326	-	choline dehydrogenase
310	 58.38	+1	353916..355388	-	490	157156812	betB	EcE24377A_0327	-	betaine aldehyde dehydrogenase
311	 56.80	+1	355402..355989	-	195	157155650	betI	EcE24377A_0328	-	transcriptional regulator BetI
312	 52.54	0	356127..356402	+	91	157156382	-	EcE24377A_0329	-	IS1, transposase orfA
313	 54.76	0	356321..356824	+	167	157157054	-	EcE24377A_0330	-	IS1, transposase orfB
314	 55.21	0	356894..358927	+	677	157158744	betT	EcE24377A_0331	-	choline transport protein BetT
315	 49.60	0	359500..363483	+	1327	157158257	-	EcE24377A_0332	-	putative outer membrane autotransporter
316	 46.10	0	363625..364713	+	362	157158021	-	EcE24377A_0333	-	LuxR-family transcriptional regulator
317	 49.09	0	364755..365687	-	310	157156304	-	EcE24377A_0334	-	LysR family transcriptional regulator
318	 52.81	0	365779..366276	-	165	157159229	-	EcE24377A_0335	-	hypothetical protein
319	 38.46	-2	366353..366586	+	77	157157384	-	EcE24377A_0336	-	hypothetical protein
320	 45.38	0	366534..367139	+	201	157155799	-	EcE24377A_0337	-	ankyrin repeat-containing protein
321	 46.99	0	367179..368042	+	287	157158698	-	EcE24377A_0338	-	hypothetical protein
322	 55.30	0	368032..369579	+	515	157154800	-	EcE24377A_0339	-	acyl-CoA synthetase
323	 58.91	+1	369579..370997	+	472	157155327	-	EcE24377A_0340	-	hypothetical protein
324	 57.10	+1	371140..372090	+	316	157157266	-	EcE24377A_0341	-	putative carbamate kinase
325	 55.98	0	372238..373482	+	414	157155685	-	EcE24377A_0342	-	deaminase
326	 43.54	-1	373751..374191	+	146	157157414	-	EcE24377A_0343	-	hypothetical protein
327	 30.39	-2	374219..374320	-	33	157159464	-	EcE24377A_0344	-	hypothetical protein
328	 47.97	0	374445..375428	+	327	157156551	-	EcE24377A_0345	-	sugar ABC transporter, periplasmic sugar-binding protein
329	 51.18	0	375477..376961	+	494	157156018	-	EcE24377A_0346	-	sugar ABC transporter, ATP-binding protein
330	 50.62	0	376954..377925	+	323	157156768	-	EcE24377A_0347	-	sugar ABC transporter, permease protein
331	 51.31	0	377922..378878	+	318	157156045	-	EcE24377A_0348	-	sugar ABC transporter, permease protein
332	 53.52	0	378965..380014	+	349	157155687	-	EcE24377A_0349	-	zinc-binding dehydrogenase family oxidoreductase
333	 38.97	-2	380257..381072	+	271	157154994	-	EcE24377A_0350	-	hypothetical protein
334	 50.46	0	381746..382393	-	215	157159412	-	EcE24377A_0352	-	putative homoserine/threonine efflux protein
335	 39.49	-1	382564..382839	+	91	157156208	-	EcE24377A_0353	-	hypothetical protein
336	 55.26	0	382937..384523	-	528	157159324	prpR	EcE24377A_0354	-	propionate catabolism operon regulatory protein PrpR
337	 33.33	-2	384584..384682	+	32	157158609	-	EcE24377A_0355	-	hypothetical protein
338	 56.23	+1	384761..385651	+	296	157158231	prpB	EcE24377A_0356	-	2-methylisocitrate lyase
339	 55.13	0	385696..386865	+	389	157157579	prpC	EcE24377A_0357	-	methylcitrate synthase
340	 56.75	+1	386899..388350	+	483	157158262	prpD	EcE24377A_0358	-	2-methylcitrate dehydratase
341	 58.13	+1	388390..390276	+	628	157157602	prpE	EcE24377A_0359	-	propionyl-CoA synthetase
342	 53.57	0	390513..391772	+	419	157156666	codB	EcE24377A_0360	-	cytosine permease
343	 53.04	0	391762..393045	+	427	157156161	codA	EcE24377A_0361	-	cytosine deaminase
344	 55.22	0	393085..393984	-	299	157155582	cynR	EcE24377A_0362	-	DNA-binding transcriptional regulator CynR
345	 50.00	0	393907..394002	+	31	157155049	-	EcE24377A_0363	-	hypothetical protein
346	 57.58	+1	394094..394753	+	219	157157076	cynT	EcE24377A_0364	-	carbonic anhydrase
347	 52.02	0	394784..395254	+	156	157157752	cynS	EcE24377A_0365	-	cyanate hydratase
348	 58.27	+1	395287..396441	+	384	157155715	cynX	EcE24377A_0366	-	putative cyanate transporter
349	 46.25	0	396520..397773	-	417	157156415	lacY	EcE24377A_0367	-	galactoside permease
350	 56.03	0	397825..400899	-	1024	157154977	lacZ	EcE24377A_0368	-	beta-D-galactosidase
351	 55.86	0	401022..402113	-	363	157155643	lacI	EcE24377A_0369	-	lac repressor
352	 53.59	0	402181..403128	-	315	157158422	mhpR	EcE24377A_0370	-	DNA-binding transcriptional activator MhpR
353	 56.82	+1	403205..404869	+	554	157159034	mhpA	EcE24377A_0371	-	3-(3-hydroxyphenyl)propionate hydroxylase
354	 57.35	+1	404871..405815	+	314	157157662	mhpB	EcE24377A_0372	-	3-(2,3-dihydroxyphenyl)propionate dioxygenase
355	 54.20	0	405818..406699	+	293	157155601	mhpC	EcE24377A_0373	-	2-hydroxy-6-ketonona-2,4-dienedioic acid hydrolase
356	 55.56	0	406709..407518	+	269	157156243	mhpD	EcE24377A_0374	-	2-keto-4-pentenoate hydratase
357	 54.89	0	407515..408465	+	316	157156149	mhpF	EcE24377A_0375	-	acetaldehyde dehydrogenase
358	 56.31	+1	408462..409475	+	337	157155206	mhpE	EcE24377A_0376	-	4-hydroxy-2-ketovalerate aldolase
359	 56.93	+1	409651..410862	+	403	157155702	-	EcE24377A_0377	-	putative 3-hydroxyphenylpropionic transporter MhpT
360	 47.96	0	410964..411503	+	179	157158343	-	EcE24377A_0378	-	hypothetical protein
361	 60.19	+1	411525..411632	+	35	157159466	-	EcE24377A_0379	-	hypothetical protein
362	 49.04	0	411729..412562	-	277	157157121	fghA1	EcE24377A_0380	-	S-formylglutathione hydrolase
363	 53.60	0	412655..413764	-	369	157155527	-	EcE24377A_0381	-	alcohol dehydrogenase class III
364	 53.26	0	413799..414074	-	91	157158905	-	EcE24377A_0382	-	regulator protein FrmR
365	 50.13	0	414260..415033	-	257	157156597	-	EcE24377A_0383	-	hypothetical protein
366	 45.12	0	415035..415475	-	146	157157408	-	EcE24377A_0384	-	putative acyltransferase
367	 49.71	0	415594..416790	-	398	157155529	-	EcE24377A_0385	-	glycosyl transferase, group 2 family protein
368	 43.60	-1	416800..417471	-	223	157156377	-	EcE24377A_0386	-	putative GlcNAc-PI de-N-acetylase
369	 22.22	-2	417643..417750	+	35	157158716	-	EcE24377A_0387	-	hypothetical protein
370	 35.11	-2	417909..418133	-	74	157159237	-	EcE24377A_0388	-	hypothetical protein
371	 55.87	0	418087..419049	+	320	157157826	tauA	EcE24377A_0389	-	taurine transporter substrate binding subunit
372	 58.45	+1	419825..420652	+	275	157157564	tauC	EcE24377A_0391	-	taurine transporter subunit
373	 54.11	0	420649..421500	+	283	157156427	tauD	EcE24377A_0392	-	taurine dioxygenase
374	 54.15	0	421658..422632	-	324	157156861	hemB	EcE24377A_0393	-	delta-aminolevulinic acid dehydratase
375	 55.19	0	423338..424243	-	301	157155082	-	EcE24377A_0394	-	insertion element IS2 transposase InsD
376	 53.01	0	424201..424566	-	121	157154869	-	EcE24377A_0395	-	insertion sequence 2 OrfA protein
377	 45.43	0	424630..427398	+	922	157157315	-	EcE24377A_0396	-	outer membrane autotransporter
378	 39.74	-1	427486..428109	+	207	157158707	-	EcE24377A_0397	-	putative DNA-binding transcriptional regulator
379	 54.92	0	428110..429267	-	385	157156874	ampH	EcE24377A_0398	-	beta-lactamase/D-alanine carboxypeptidase
380	 41.18	-1	429313..429414	-	33	157157661	-	EcE24377A_0399	-	hypothetical protein
381	 45.13	0	429405..429599	+	64	157155278	-	EcE24377A_0400	-	hypothetical protein
50.48	MEAN

5.64	STD DEV
