IslandPath Analysis: Escherichia coli E24377A

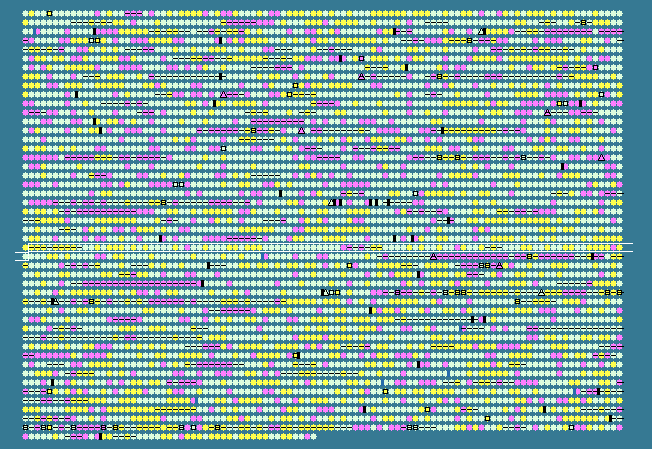

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2602	 58.50	+1	2718153..2719340	-	395	157154795	eutG	EcE24377A_2730	-	ethanolamine utilization protein EutG
2603	 58.42	+1	2719330..2720166	-	278	157155503	eutJ	EcE24377A_2731	-	ethanolamine utilization protein EutJ
2604	 57.55	+1	2720177..2721580	-	467	157154906	eutE	EcE24377A_2732	-	ethanolamine utilization protein EutE
2605	 53.12	0	2721592..2721879	-	95	157159231	eutN	EcE24377A_2733	-	ethanolamine utilization protein
2606	 58.16	+1	2721986..2722279	-	97	157158705	eutM	EcE24377A_2734	-	ethanolamine utilization protein EutM
2607	 58.21	+1	2722318..2723334	-	338	157158168	pta	EcE24377A_2735	-	phosphotransacetylase
2608	 58.46	+1	2723331..2724134	-	267	157159056	eutT	EcE24377A_2736	-	ethanolamine utilization cobalamin adenosyltransferase
2609	 55.84	0	2724131..2724832	-	233	157159208	-	EcE24377A_2737	-	ethanolamine utilization protein EutQ
2610	 49.79	0	2724807..2725286	-	159	157157909	eutP	EcE24377A_2738	-	ethanolamine utilization protein, EutP
2611	 48.53	0	2725299..2725706	-	135	157157188	-	EcE24377A_2739	-	ethanolamine utilization protein EutS
2612	 49.07	0	2725563..2725670	+	35	157156544	-	EcE24377A_2740	-	hypothetical protein
2613	 54.17	0	2725927..2728206	-	759	157156474	maeB	EcE24377A_2741	-	malic enzyme
2614	 50.68	0	2728495..2729445	+	316	157155721	tal1	EcE24377A_2742	-	transaldolase A
2615	 54.49	0	2729465..2731468	+	667	157155048	tktB	EcE24377A_2743	-	transketolase
2616	 57.02	+1	2731461..2731574	+	37	157155025	-	EcE24377A_2745	-	hypothetical protein
2617	 54.79	0	2731564..2732607	-	347	157155725	-	EcE24377A_2744	-	hypothetical protein
2618	 48.44	0	2732733..2733308	-	191	157155986	-	EcE24377A_2746	-	NUDIX family hydrolase
2619	 55.51	0	2733376..2735355	-	659	157155091	aegA	EcE24377A_2747	-	putative oxidoreductase Fe-S binding subunit
2620	 51.85	0	2735561..2737261	+	566	157155766	narQ	EcE24377A_2748	-	nitrate/nitrite sensor protein NarQ
2621	 54.30	0	2737425..2740538	+	1037	157158507	acrD	EcE24377A_2749	-	aminoglycoside/multidrug efflux system
2622	 47.34	0	2741077..2741433	+	118	157159180	-	EcE24377A_2750	-	hypothetical protein
2623	 53.46	0	2741437..2742564	+	375	157158473	dapE	EcE24377A_2751	-	succinyl-diaminopimelate desuccinylase
2624	 48.26	0	2742592..2742792	+	66	157159147	-	EcE24377A_2752	-	hypothetical protein
2625	 53.93	0	2742873..2743571	-	232	157157118	-	EcE24377A_2753	-	esterase YpfH
2626	 55.21	0	2743645..2745660	-	671	157157754	-	EcE24377A_2754	-	hypothetical protein
2627	 53.12	0	2745675..2746538	-	287	157155162	-	EcE24377A_2755	-	hypothetical protein
2628	 45.18	0	2747083..2747310	-	75	157155392	-	EcE24377A_2756	-	hypothetical protein
2629	 52.38	0	2747464..2748177	-	237	157156219	purC	EcE24377A_2757	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
2630	 47.22	0	2748183..2748290	-	35	157156715	-	EcE24377A_2758	-	hypothetical protein
2631	 55.36	0	2748390..2749424	-	344	157157892	-	EcE24377A_2759	-	lipoprotein
2632	 51.88	0	2749441..2750319	-	292	157158100	dapA	EcE24377A_2760	-	dihydrodipicolinate synthase
2633	 48.36	0	2750399..2751037	+	212	157158641	gcvR	EcE24377A_2761	-	glycine cleavage system transcriptional repressor
2634	 49.26	0	2751037..2751507	+	156	157159418	bcp	EcE24377A_2762	-	thioredoxin-dependent thiol peroxidase
2635	 56.47	+1	2751760..2752377	+	205	157156854	-	EcE24377A_2763	-	iron-sulfur cluster-binding protein
2636	 53.97	0	2754405..2755349	+	314	157156555	hyfC	EcE24377A_2765	-	hydrogenase-4 component C
2637	 53.46	0	2756607..2757257	+	216	157155069	hyfE	EcE24377A_2767	-	hydrogenase 4 membrane subunit
2638	 54.66	0	2758838..2760553	+	571	157157080	-	EcE24377A_2769	-	hydrogenase-4, G subunit
2639	 55.86	0	2760563..2761108	+	181	157156396	-	EcE24377A_2770	-	hydrogenase 4 subunit H
2640	 55.86	0	2761105..2761863	+	252	157158565	-	EcE24377A_2771	-	hydrogenase-4, I subunit
2641	 52.90	0	2761856..2762269	+	137	157159063	-	EcE24377A_2772	-	formate hydrogenlyase maturation protein HycH
2642	 52.71	0	2762299..2764311	+	670	157157257	-	EcE24377A_2773	-	formate hydrogenlyase transcriptional activator
2643	 50.18	0	2764333..2765181	+	282	157159160	fnt	EcE24377A_2774	-	putative formate transporter
2644	 53.86	0	2765219..2766280	-	353	157157181	-	EcE24377A_2775	-	PerM family permease
2645	 53.69	0	2766493..2767956	+	487	157157808	-	EcE24377A_2776	-	M48 family peptidase
2646	 53.15	0	2768350..2768460	-	36	157155691	-	EcE24377A_2778	-	hypothetical protein
2647	 52.74	0	2768473..2769219	-	248	157158460	hda	EcE24377A_2779	-	DNA replication initiation factor
2648	 52.25	0	2769269..2770558	-	429	157157034	uraA	EcE24377A_2780	-	uracil transporter
2649	 53.11	0	2770644..2771270	-	208	157155140	upp	EcE24377A_2781	-	uracil phosphoribosyltransferase
2650	 53.08	0	2771595..2772632	+	345	157158807	purM	EcE24377A_2782	-	phosphoribosylaminoimidazole synthetase
2651	 53.21	0	2772632..2773270	+	212	157157696	purN	EcE24377A_2783	-	phosphoribosylglycinamide formyltransferase
2652	 48.72	0	2773441..2775507	+	688	157157220	ppk	EcE24377A_2784	-	polyphosphate kinase
2653	 50.78	0	2775512..2777053	+	513	157156806	ppx	EcE24377A_2785	-	exopolyphosphatase
2654	 46.61	0	2777092..2779335	-	747	157156852	-	EcE24377A_2786	-	cyclic diguanylate phosphodiesterase domain-containing protein
2655	 31.37	-2	2779517..2779669	-	50	157156311	-	EcE24377A_2787	-	hypothetical protein
2656	 49.48	0	2779687..2779878	+	63	157159199	-	EcE24377A_2788	-	hypothetical protein
2657	 46.51	0	2780192..2780707	+	171	157156723	-	EcE24377A_2789	-	surface antigen family protein
2658	 48.89	0	2780723..2781262	+	179	157158741	-	EcE24377A_2790	-	hypothetical protein
2659	 54.63	0	2781357..2782934	-	525	157157765	guaA	EcE24377A_2791	-	bifunctional GMP synthase/glutamine amidotransferase protein
2660	 54.46	0	2783003..2784469	-	488	157155040	guaB	EcE24377A_2792	-	inositol-5-monophosphate dehydrogenase
2661	 48.15	0	2785998..2786213	-	71	157155744	-	EcE24377A_2793	-	hypothetical protein
2662	 51.93	0	2786282..2787754	-	490	157156728	engA	EcE24377A_2795	-	GTP-binding protein EngA
2663	 53.10	0	2787872..2789050	-	392	157155949	-	EcE24377A_2796	-	outer membrane protein assembly complex subunit YfgL
2664	 49.76	0	2789061..2789681	-	206	157158004	-	EcE24377A_2797	-	hypothetical protein
2665	 54.75	0	2789699..2790973	-	424	157155202	hisS	EcE24377A_2798	-	histidyl-tRNA synthetase
2666	 53.17	0	2791084..2792202	-	372	157158896	ispG	EcE24377A_2799	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2667	 54.64	0	2792229..2793242	-	337	157155877	-	EcE24377A_2800	-	hypothetical protein
2668	 53.07	0	2793527..2794681	-	384	157157838	-	EcE24377A_2801	-	hypothetical protein
2669	 52.55	0	2794831..2795262	-	143	157157218	ndk	EcE24377A_2802	-	nucleoside diphosphate kinase
2670	 56.46	+1	2795411..2797723	-	770	157158154	pbpC	EcE24377A_2803	-	penicillin-binding protein 1C
2671	 52.96	0	2797724..2802685	-	1653	157154935	-	EcE24377A_2804	-	alpha-2-macroglobulin domain-containing protein
2672	 53.07	0	2802892..2803737	+	281	157156971	sseA	EcE24377A_2805	-	3-mercaptopyruvate sulfurtransferase
2673	 46.85	0	2804230..2805006	-	258	157158304	sseB	EcE24377A_2806	-	enhanced serine sensitivity protein SseB
2674	 56.46	+1	2805148..2806431	-	427	157155395	pepB	EcE24377A_2807	-	aminopeptidase B
2675	 49.75	0	2806609..2806809	-	66	157158155	iscX	EcE24377A_2808	-	hypothetical protein
2676	 52.68	0	2806821..2807156	-	111	157158839	fdx	EcE24377A_2809	-	ferredoxin, 2Fe-2S type, ISC system
2677	 57.37	+1	2807158..2809008	-	616	157157591	hscA	EcE24377A_2810	-	chaperone protein HscA
2678	 52.13	0	2809025..2809540	-	171	157158249	hscB	EcE24377A_2811	-	co-chaperone HscB
2679	 59.83	+1	2809548..2809664	-	38	157155994	-	EcE24377A_2812	-	hypothetical protein
2680	 50.30	0	2809636..2809965	-	109	157156631	iscA	EcE24377A_2813	-	iron-sulfur cluster assembly protein
2681	 49.87	0	2809976..2810362	-	128	157155593	iscU	EcE24377A_2814	-	scaffold protein
2682	 53.25	0	2810390..2811604	-	404	157155974	iscS	EcE24377A_2815	-	cysteine desulfurase
2683	 53.58	0	2811716..2812204	-	162	157158615	iscR	EcE24377A_2816	-	DNA-binding transcriptional regulator IscR
2684	 55.28	0	2812505..2813242	-	245	157158953	-	EcE24377A_2817	-	RNA methyltransferase
2685	 53.98	0	2813361..2814164	+	267	157155322	suhB	EcE24377A_2818	-	inositol monophosphatase
2686	 50.18	0	2814309..2815163	+	284	157155268	-	EcE24377A_2819	-	hypothetical protein
2687	 51.44	0	2815354..2816634	+	426	157156379	csiE	EcE24377A_2821	-	stationary phase inducible protein CsiE
2688	 56.67	+1	2816626..2817765	-	379	157156907	hcaT	EcE24377A_2820	-	putative 3-phenylpropionic acid transporter
2689	 49.83	0	2817925..2818815	-	296	157157520	hcaR	EcE24377A_2822	-	DNA-binding transcriptional regulator HcaR
2690	 52.41	0	2820309..2820827	+	172	157158391	hcaF	EcE24377A_2824	-	3-phenylpropionate dioxygenase subunit beta
2691	 55.45	0	2820827..2821147	+	106	157154809	hcaC	EcE24377A_2825	-	3-phenylpropionate dioxygenase ferredoxin subunit
2692	 56.21	+1	2821144..2821956	+	270	157158187	hcaB	EcE24377A_2826	-	2,3-dihydroxy-2,3-dihydrophenylpropionate dehydrogenase
2693	 53.95	0	2821966..2823168	+	400	157156491	hcaD	EcE24377A_2827	-	phenylpropionate dioxygenase ferredoxin reductase subunit
2694	 50.12	0	2823265..2823687	+	140	157157627	-	EcE24377A_2828	-	hypothetical protein
2695	 55.21	0	2823735..2824607	-	290	157157995	-	EcE24377A_2829	-	aldose 1-epimerase family protein
2696	 54.52	0	2824619..2825713	-	364	157158660	-	EcE24377A_2830	-	zinc-binding dehydrogenase family oxidoreductase
2697	 56.56	+1	2825746..2826744	-	332	157158445	-	EcE24377A_2831	-	putative sugar ABC transporter, permease protein
2698	 55.95	0	2826769..2828280	-	503	157154916	-	EcE24377A_2832	-	putative sugar ABC transporter, ATP-binding protein
2699	 46.46	0	2828303..2829247	-	314	157155581	-	EcE24377A_2833	-	putative sugar ABC transporter, periplasmic sugar-binding protein
2700	 54.25	0	2829383..2832757	-	1124	157155956	-	EcE24377A_2834	-	TPR repeat-containing protein
2701	 51.26	0	2832782..2833975	+	397	157156629	-	EcE24377A_2835	-	ROK family protein
50.48	MEAN

5.64	STD DEV
