IslandPathversion 1.0

IslandPath Analysis: Escherichia coli E24377A

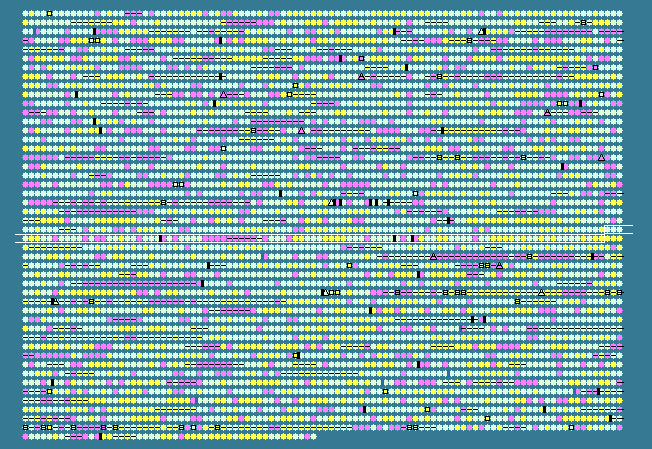

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2498	 52.37	0	2612183..2614189	+	668	157157358	mnmC	EcE24377A_2619	-	5-methylaminomethyl-2-thiouridine methyltransferase
2499	 53.05	0	2614245..2614523	-	92	157155830	-	EcE24377A_2620	-	hypothetical protein
2500	 50.27	0	2614557..2615105	-	182	157156358	-	EcE24377A_2621	-	hypothetical protein
2501	 52.59	0	2615105..2615914	-	269	157155594	-	EcE24377A_2622	-	hypothetical protein
2502	 55.27	0	2615914..2616738	-	274	157156902	mepA	EcE24377A_2623	-	penicillin-insensitive murein endopeptidase
2503	 56.81	+1	2616742..2617827	-	361	157155097	aroC	EcE24377A_2624	-	chorismate synthase
2504	 53.16	0	2617986..2618918	-	310	157155888	prmB	EcE24377A_2625	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
2505	 53.26	0	2619084..2619635	+	183	157158361	-	EcE24377A_2626	-	hypothetical protein
2506	 45.75	0	2619708..2620577	-	289	157158957	-	EcE24377A_2627	-	hypothetical protein
2507	 48.33	0	2620564..2621103	-	179	157157406	-	EcE24377A_2628	-	fimbrial protein
2508	 48.06	0	2621100..2621588	-	162	157157908	-	EcE24377A_2629	-	hypothetical protein
2509	 47.62	0	2621585..2622088	-	167	157156990	-	EcE24377A_2630	-	fimbrial protein
2510	 48.90	0	2622104..2622829	-	241	157157497	-	EcE24377A_2631	-	periplasmic pilus chaperone family protein
2511	 45.50	0	2622702..2622890	+	62	157157222	-	EcE24377A_2633	-	hypothetical protein
2512	 51.13	0	2622876..2625521	-	881	157157705	-	EcE24377A_2632	-	fimbrial usher family protein
2513	 45.07	0	2625510..2626046	+	178	157156883	-	EcE24377A_2635	-	hypothetical protein
2514	 46.10	0	2625603..2626166	-	187	157156367	-	EcE24377A_2634	-	fimbrial protein
2515	 52.88	0	2626850..2627335	-	161	157155292	sixA	EcE24377A_2636	-	phosphohistidine phosphatase
2516	 51.75	0	2627538..2629682	-	714	157155802	fadJ	EcE24377A_2637	-	multifunctional fatty acid oxidation complex subunit alpha
2517	 56.06	0	2629682..2630992	-	436	157158369	fadI	EcE24377A_2638	-	3-ketoacyl-CoA thiolase
2518	 52.28	0	2631172..2631456	-	94	157158947	-	EcE24377A_2639	-	hypothetical protein
2519	 50.04	0	2631828..2633168	+	446	157157341	-	EcE24377A_2640	-	long-chain fatty acid outer membrane transporter
2520	 35.22	-2	2633535..2634593	+	352	157157915	-	EcE24377A_2641	-	hypothetical protein
2521	 51.85	0	2634775..2635530	-	251	157156646	-	EcE24377A_2642	-	VacJ family lipoprotein
2522	 47.37	0	2635556..2635726	-	56	157154743	-	EcE24377A_2643	-	hypothetical protein
2523	 48.45	0	2635824..2636756	+	310	157156775	-	EcE24377A_2644	-	hypothetical protein
2524	 43.83	-1	2637347..2638594	-	415	157154895	-	EcE24377A_2646	-	galactoside permease
2525	 52.02	0	2638666..2639580	-	304	157158692	cscK	EcE24377A_2647	-	aminoimidazole riboside kinase
2526	 29.03	-2	2639702..2639794	+	30	157159186	-	EcE24377A_2648	-	hypothetical protein
2527	 50.94	0	2639787..2641229	+	480	157158158	-	EcE24377A_2649	-	sucrose-6-phosphate hydrolase
2528	 51.81	0	2641237..2642232	-	331	157156023	-	EcE24377A_2650	-	LacI family sucrose operon repressor
2529	 48.86	0	2642475..2642693	+	72	157156581	-	EcE24377A_2651	-	hypothetical protein
2530	 50.79	0	2642711..2644039	+	442	157158819	dsdA	EcE24377A_2652	-	D-serine dehydratase
2531	 41.85	-1	2644147..2645685	-	512	157157326	emrY	EcE24377A_2653	-	DHA2 family drug:H+ antiporter-1
2532	 41.84	-1	2645685..2646848	-	387	157155084	emrK	EcE24377A_2654	-	drug resistance MFS transporter, membrane fusion protein (MFP) subunit EmrK
2533	 40.16	-1	2647264..2647878	+	204	157155607	evgA	EcE24377A_2655	-	DNA-binding transcriptional activator EvgA
2534	 40.85	-1	2647883..2651476	+	1197	157157004	evgS	EcE24377A_2657	-	hybrid sensory histidine kinase in two-component regulatory system with EvgA
2535	 41.41	-1	2651252..2651350	-	32	157156467	-	EcE24377A_2656	-	hypothetical protein
2536	 45.29	0	2651532..2652677	-	381	157155978	-	EcE24377A_2658	-	hypothetical protein
2537	 33.33	-2	2652671..2652775	+	34	157157512	-	EcE24377A_2660	-	hypothetical protein
2538	 44.87	0	2652751..2653695	-	314	157156710	-	EcE24377A_2659	-	putative transporter YfdV
2539	 46.43	0	2653765..2655459	-	564	157158048	-	EcE24377A_2661	-	putative oxalyl-CoA decarboxylase
2540	 47.08	0	2655513..2656763	-	416	157156745	frc	EcE24377A_2662	-	formyl-coenzyme A transferase
2541	 46.29	0	2657276..2657908	-	210	157157931	-	EcE24377A_2663	-	hypothetical protein
2542	 52.17	0	2658464..2658601	-	45	157157284	-	EcE24377A_2664	-	hypothetical protein
2543	 48.56	0	2658556..2658798	-	80	157156965	-	EcE24377A_2665	-	hypothetical protein
2544	 51.57	0	2659151..2660071	+	306	157156269	-	EcE24377A_2666	-	lipid A biosynthesis palmitoleoyl acyltransferase
2545	 39.32	-1	2660381..2660497	+	38	157155903	-	EcE24377A_2667	-	hypothetical protein
2546	 55.29	0	2660562..2661800	-	412	157155217	-	EcE24377A_2668	-	aminotransferase
2547	 54.81	0	2661719..2661853	-	44	157158466	-	EcE24377A_2669	-	hypothetical protein
2548	 51.07	0	2662195..2663874	+	559	157155409	-	EcE24377A_2670	-	sensor histidine kinase
2549	 47.35	0	2663889..2664623	+	244	157157403	-	EcE24377A_2671	-	response regulator
2550	 53.15	0	2664636..2665493	+	285	157155013	-	EcE24377A_2672	-	AraC family transcriptional regulator
2551	 55.25	0	2665496..2667991	-	831	157159178	fryA	EcE24377A_2673	-	multiphosphoryl transfer protein 1
2552	 58.19	+1	2668016..2669053	-	345	157157890	-	EcE24377A_2674	-	exoaminopeptidase
2553	 57.55	+1	2669053..2670138	-	361	157157245	ypdF	EcE24377A_2675	-	aminopeptidase
2554	 54.17	0	2670153..2671400	-	415	157156602	fryC	EcE24377A_2676	-	PTS system, fructose-like, IIC component
2555	 50.46	0	2671422..2671748	-	108	157158700	-	EcE24377A_2677	-	PTS system, fructose specific IIB subunit
2556	 51.24	0	2671967..2672932	-	321	157159392	glk	EcE24377A_2678	-	glucokinase
2557	 53.70	0	2673136..2674392	+	418	157157634	-	EcE24377A_2679	-	hypothetical protein
2558	 45.45	0	2674409..2674507	-	32	157157172	-	EcE24377A_2680	-	hypothetical protein
2559	 52.29	0	2674507..2674833	+	108	157155969	-	EcE24377A_2681	-	hypothetical protein
2560	 53.27	0	2674974..2676212	-	412	157155133	mntH	EcE24377A_2682	-	manganese transport protein MntH
2561	 49.96	0	2676548..2677750	+	400	157155548	nupC	EcE24377A_2683	-	nucleoside transporter NupC
2562	 48.95	0	2677800..2679989	-	729	157159235	-	EcE24377A_2684	-	diguanylate cyclase
2563	 50.14	0	2680623..2680967	+	114	157157542	-	EcE24377A_2687	-	hypothetical protein
2564	 46.31	0	2680969..2681361	+	130	157154838	-	EcE24377A_2688	-	hypothetical protein
2565	 52.61	0	2681413..2682828	-	471	157156721	gltX	EcE24377A_2689	-	glutamyl-tRNA synthetase
2566	 42.69	-1	2683605..2683946	+	113	157158730	-	EcE24377A_2695	-	hypothetical protein
2567	 54.37	0	2683937..2684863	-	308	157159187	-	EcE24377A_2694	-	LysR family transcriptional regulator
2568	 51.65	0	2684953..2685951	+	332	157157547	-	EcE24377A_2697	-	bile acid/Na+ symporter family protein
2569	 50.68	0	2685948..2686166	-	72	157155808	-	EcE24377A_2696	-	hypothetical protein
2570	 54.27	0	2686168..2688183	-	671	157156100	ligA	EcE24377A_2698	-	NAD-dependent DNA ligase LigA
2571	 55.42	0	2688254..2689240	-	328	157156810	zipA	EcE24377A_2699	-	cell division protein ZipA
2572	 49.87	0	2689470..2690231	+	253	157154763	cysZ	EcE24377A_2700	-	putative sulfate transport protein CysZ
2573	 50.10	0	2690416..2691387	+	323	157155432	cysK	EcE24377A_2701	-	cysteine synthase A
2574	 50.78	0	2691771..2692028	+	85	157158766	ptsH	EcE24377A_2702	-	phosphohistidinoprotein-hexose phosphotransferase component of PTS system (Hpr)
2575	 49.71	0	2692073..2693800	+	575	157159395	ptsI	EcE24377A_2703	-	phosphoenolpyruvate-protein phosphotransferase
2576	 46.86	0	2693841..2694350	+	169	157157951	crr	EcE24377A_2704	-	glucose-specific PTS system component
2577	 52.35	0	2694392..2695243	-	283	157158000	pdxK	EcE24377A_2705	-	pyridoxal kinase
2578	 47.70	0	2695348..2695716	+	122	157157050	-	EcE24377A_2706	-	hypothetical protein
2579	 55.59	0	2695719..2696630	-	303	157156485	cysM	EcE24377A_2707	-	cysteine synthase B
2580	 58.74	+1	2696764..2697861	-	365	157156447	cysA	EcE24377A_2708	-	sulfate/thiosulfate transporter subunit
2581	 55.71	0	2697851..2698726	-	291	157155901	cysW	EcE24377A_2709	-	sulfate/thiosulfate transporter permease subunit
2582	 56.12	0	2698726..2699559	-	277	157157732	cysT	EcE24377A_2710	-	sulfate/thiosulfate transporter subunit
2583	 53.79	0	2699559..2700575	-	338	157157262	cysP	EcE24377A_2711	-	thiosulfate transporter subunit
2584	 55.05	0	2700733..2701524	-	263	157158523	ucpA	EcE24377A_2712	-	short chain dehydrogenase
2585	 51.28	0	2701653..2702510	-	285	157157722	-	EcE24377A_2713	-	RpiR family transcriptional regulator
2586	 53.62	0	2702674..2703570	+	298	157155139	murQ	EcE24377A_2714	-	N-acetylmuramic acid-6-phosphate etherase
2587	 56.42	+1	2703574..2704998	+	474	157159046	murP	EcE24377A_2715	-	N-acetylmuramic acid phosphotransfer permease
2588	 52.72	0	2705003..2706307	+	434	157155824	-	EcE24377A_2716	-	hypothetical protein
2589	 55.89	0	2706365..2707264	-	299	157157932	-	EcE24377A_2717	-	dyp-type peroxidase family protein
2590	 50.52	0	2707360..2707935	-	191	157156298	-	EcE24377A_2718	-	hypothetical protein
2591	 52.89	0	2707996..2708445	-	149	157155845	-	EcE24377A_2719	-	putative inner membrane protein YfeZ
2592	 51.64	0	2708432..2708857	-	141	157155283	-	EcE24377A_2720	-	putative acetyltransferase
2593	 50.46	0	2709071..2709940	+	289	157156944	amiA	EcE24377A_2721	-	N-acetylmuramoyl-l-alanine amidase I
2594	 54.78	0	2709944..2710843	+	299	157156271	hemF	EcE24377A_2722	-	coproporphyrinogen III oxidase
2595	 53.56	0	2710849..2711901	-	350	157155855	-	EcE24377A_2723	-	transcriptional regulator EutR
2596	 58.08	+1	2711947..2712447	-	166	157155205	-	EcE24377A_2724	-	putative ethanolamine utilization protein EutK
2597	 55.76	0	2712460..2713119	-	219	157158984	-	EcE24377A_2725	-	putative ethanolamine utilization protein EutL
50.48	MEAN

5.64	STD DEV
