IslandPath Analysis: Escherichia coli E24377A

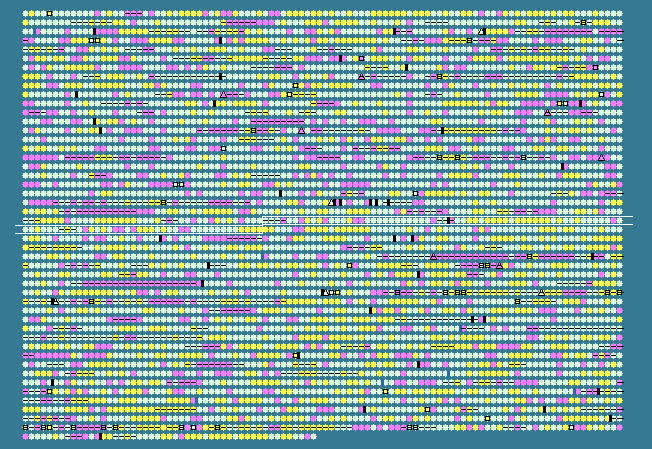

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2341	 52.10	0	2439178..2440035	+	285	157158335	nfo	EcE24377A_2456	-	endonuclease IV
2342	 50.44	0	2441183..2442433	-	416	157158606	-	EcE24377A_2458	-	NupC family nucleoside transporter
2343	 52.34	0	2442533..2443474	-	313	157155576	-	EcE24377A_2459	-	ribonucleoside hydrolase 2
2344	 45.30	0	2443643..2444302	+	219	157154911	nsr	EcE24377A_2460	-	DNA-binding transcriptional activator YeiL
2345	 49.48	0	2444373..2445623	-	416	157156640	yeiM	EcE24377A_2461	-	NupC family nucleoside transporter
2346	 48.67	0	2445717..2446655	-	312	157155991	-	EcE24377A_2462	-	indigoidine synthase A like protein
2347	 46.39	0	2446643..2447584	-	313	157156425	-	EcE24377A_2463	-	hypothetical protein
2348	 55.67	0	2448008..2449699	-	563	157157802	fruA	EcE24377A_2464	-	fructose-specific PTS system IIBC component
2349	 53.14	0	2449716..2450654	-	312	157157517	fruK	EcE24377A_2465	-	1-phosphofructokinase
2350	 55.61	0	2450654..2451784	-	376	157159448	fruB	EcE24377A_2466	-	bifunctional fructose-specific PTS IIA/HPr protein
2351	 40.91	-1	2451950..2452081	+	43	157155219	-	EcE24377A_2467	-	hypothetical protein
2352	 52.88	0	2452152..2453333	+	393	157155722	setB	EcE24377A_2468	-	sugar efflux transporter B
2353	 50.48	0	2453484..2454311	+	275	157156343	-	EcE24377A_2469	-	elongation factor P
2354	 51.94	0	2454534..2456000	+	488	157156832	-	EcE24377A_2470	-	mannitol dehydrogenase family protein
2355	 54.41	0	2456118..2457104	+	328	157157928	-	EcE24377A_2471	-	CobW/P47K family protein
2356	 44.26	-1	2457143..2457856	+	237	157158442	-	EcE24377A_2472	-	PAP2 family protein
2357	 46.74	0	2458268..2458834	+	188	157156071	-	EcE24377A_2473	-	putative outer membrane lipoprotein
2358	 50.55	0	2459015..2460571	+	518	157155463	-	EcE24377A_2474	-	hypothetical protein
2359	 50.74	0	2460653..2462467	+	604	157157339	-	EcE24377A_2475	-	ABC transporter, peripllasmic solute-binding proteins
2360	 51.42	0	2462468..2463562	+	364	157156772	-	EcE24377A_2476	-	ABC transporter, permease protein
2361	 52.73	0	2463562..2464587	+	341	157158803	-	EcE24377A_2477	-	ABC transporter, permease protein
2362	 51.45	0	2464589..2466178	+	529	157155364	-	EcE24377A_2478	-	ABC transporter, ATP-binding protein
2363	 48.70	0	2466182..2466526	-	114	157156668	-	EcE24377A_2479	-	hypothetical protein
2364	 53.57	0	2466859..2468049	-	396	157158188	bcr	EcE24377A_2480	-	bicyclomycin/multidrug efflux system
2365	 52.59	0	2468077..2468772	-	231	157155587	rsuA	EcE24377A_2481	-	16S rRNA pseudouridylate synthase A
2366	 52.92	0	2468921..2470681	+	586	157154738	-	EcE24377A_2482	-	putative helicase
2367	 50.53	0	2470806..2471090	+	94	157158450	rplY	EcE24377A_2483	-	50S ribosomal protein L25
2368	 52.48	0	2471229..2472236	-	335	157158201	ndpA	EcE24377A_2484	-	nucleoid-associated protein NdpA
2369	 38.33	-2	2472281..2472400	-	39	157158345	-	EcE24377A_2485	-	hypothetical protein
2370	 49.56	0	2472418..2472645	+	75	157156880	-	EcE24377A_2486	-	hypothetical protein
2371	 52.36	0	2472665..2474425	+	586	157155141	-	EcE24377A_2487	-	sulfatase family protein
2372	 34.38	-2	2477387..2477482	+	31	157158735	-	EcE24377A_2491	-	hypothetical protein
2373	 52.01	0	2477591..2478238	+	215	157156289	narP	EcE24377A_2492	-	transcriptional regulator NarP
2374	 53.66	0	2478273..2479325	-	350	157156945	-	EcE24377A_2493	-	cytochrome c-type biogenesis family protein
2375	 54.66	0	2479322..2479879	-	185	157157963	dsbE	EcE24377A_2494	-	thiol:disulfide interchange protein DsbE
2376	 57.20	+1	2479876..2481819	-	647	157158675	ccmF	EcE24377A_2495	-	cytochrome c-type biogenesis protein CcmF
2377	 53.96	0	2481816..2482295	-	159	157158146	ccmE	EcE24377A_2496	-	cytochrome c-type biogenesis protein CcmE
2378	 57.14	+1	2482292..2482501	-	69	157157647	ccmD	EcE24377A_2497	-	heme exporter protein D
2379	 55.28	0	2482498..2483235	-	245	157155253	ccmC	EcE24377A_2498	-	heme exporter protein C
2380	 55.96	0	2483277..2483939	-	220	157155955	ccmB	EcE24377A_2499	-	heme exporter protein CcmB
2381	 55.66	0	2483936..2484553	-	205	157155394	ccmA	EcE24377A_2500	-	cytochrome c biogenesis protein CcmA
2382	 51.58	0	2484572..2485174	-	200	157154917	napC	EcE24377A_2501	-	cytochrome c-type protein NapC
2383	 55.56	0	2485184..2485633	-	149	157155939	napB	EcE24377A_2502	-	diheme cytochrome c550
2384	 56.25	+1	2485630..2486493	-	287	157157831	napH	EcE24377A_2503	-	quinol dehydrogenase membrane component
2385	 58.91	+1	2486480..2487175	-	231	157154989	-	EcE24377A_2504	-	quinol dehydrogenase periplasmic component
2386	 55.93	0	2487182..2489668	-	828	157155597	napA	EcE24377A_2505	-	nitrate reductase
2387	 54.55	0	2489665..2489928	-	87	157157310	napD	EcE24377A_2506	-	assembly protein for periplasmic nitrate reductase
2388	 54.55	0	2489918..2490412	-	164	157159007	napF	EcE24377A_2507	-	ferredoxin-type protein
2389	 49.90	0	2490820..2491308	+	162	157157746	eco	EcE24377A_2508	-	ecotin precursor
2390	 54.22	0	2491457..2493103	-	548	157157678	mqo	EcE24377A_2509	-	malate:quinone oxidoreductase
2391	 53.35	0	2493321..2494964	-	547	157157028	-	EcE24377A_2510	-	multidrug transporter membrane component/ATP-binding component
2392	 52.53	0	2495040..2495690	-	216	157156371	alkB	EcE24377A_2511	-	alkylated DNA repair protein AlkB
2393	 57.37	+1	2495690..2496754	-	354	157156573	ada	EcE24377A_2512	-	regulatory protein Ada
2394	 52.75	0	2496828..2497883	-	351	157156220	apbE	EcE24377A_2513	-	thiamine biosynthesis lipoprotein ApbE
2395	 50.64	0	2497995..2499086	-	363	157157896	ompC	EcE24377A_2514	-	outer membrane porin protein C
2396	 49.35	0	2499825..2502497	+	890	157154810	yojN	EcE24377A_2515	-	phosphotransfer intermediate protein in two-component regulatory system with RcsBC
2397	 47.77	0	2502514..2503164	+	216	157155457	rcsB	EcE24377A_2517	-	transcriptional regulator RcsB
2398	 50.98	0	2503161..2503262	-	33	157156212	-	EcE24377A_2516	-	hypothetical protein
2399	 44.79	-1	2503193..2503288	+	31	157156685	-	EcE24377A_2518	-	hypothetical protein
2400	 50.84	0	2503364..2506213	-	949	157154824	rcsC	EcE24377A_2519	-	hybrid sensory kinase in two-component regulatory system with RcsB and YojN
2401	 48.96	0	2506383..2506478	+	31	157155592	-	EcE24377A_2520	-	hypothetical protein
2402	 52.51	0	2506488..2507264	-	258	157158749	-	EcE24377A_2521	-	hypothetical protein
2403	 54.79	0	2507269..2508918	-	549	157158399	-	EcE24377A_2522	-	hypothetical protein
2404	 53.78	0	2508919..2513433	-	1504	157157431	-	EcE24377A_2523	-	alpha-2-macroglobulin family protein
2405	 52.23	0	2513457..2514107	-	216	157156164	-	EcE24377A_2524	-	hypothetical protein
2406	 50.98	0	2514077..2515765	-	562	157158702	-	EcE24377A_2525	-	hypothetical protein
2407	 53.81	0	2515914..2518541	-	875	157154912	gyrA	EcE24377A_2526	-	DNA gyrase subunit A
2408	 54.08	0	2518688..2519410	+	240	157154839	ubiG	EcE24377A_2527	-	3-demethylubiquinone-9 3-methyltransferase
2409	 51.48	0	2519471..2523229	-	1252	157155352	-	EcE24377A_2528	-	adhesin
2410	 50.51	0	2522981..2523079	+	32	157158041	-	EcE24377A_2529	-	hypothetical protein
2411	 30.11	-2	2523590..2523682	+	30	157158872	-	EcE24377A_2530	-	hypothetical protein
2412	 53.98	0	2523925..2526210	+	761	157156706	nrdA	EcE24377A_2531	-	ribonucleotide-diphosphate reductase subunit alpha
2413	 50.49	0	2526299..2527429	+	376	157157492	nrdB	EcE24377A_2532	-	ribonucleotide-diphosphate reductase subunit beta
2414	 56.08	0	2527429..2527683	+	84	157155326	-	EcE24377A_2533	-	2Fe-2S ferredoxin YfaE
2415	 49.46	0	2527737..2528387	-	216	157158946	inaA	EcE24377A_2534	-	hypothetical protein
2416	 42.51	-1	2528602..2528808	+	68	157157241	-	EcE24377A_2535	-	hypothetical protein
2417	 45.78	0	2528850..2529926	-	358	157157861	glpQ	EcE24377A_2536	-	glycerophosphodiester phosphodiesterase
2418	 52.54	0	2529931..2531289	-	452	157156117	glpT	EcE24377A_2537	-	sn-glycerol-3-phosphate transporter
2419	 34.85	-2	2531340..2531537	+	65	157156931	-	EcE24377A_2538	-	hypothetical protein
2420	 57.34	+1	2531562..2533190	+	542	157155213	glpA	EcE24377A_2539	-	sn-glycerol-3-phosphate dehydrogenase subunit A
2421	 56.03	0	2533180..2534439	+	419	157155773	glpB	EcE24377A_2540	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
2422	 54.07	0	2534436..2535626	+	396	157156419	glpC	EcE24377A_2541	-	sn-glycerol-3-phosphate dehydrogenase subunit C
2423	 48.84	0	2535820..2536722	+	300	157156837	-	EcE24377A_2542	-	hypothetical protein
2424	 54.97	0	2536763..2537275	-	170	157156572	-	EcE24377A_2543	-	HpcH/HpaI aldolase/citrate lyase family protein
2425	 53.95	0	2537288..2538490	-	400	157158520	-	EcE24377A_2544	-	competence damage-inducible protein A
2426	 53.78	0	2538590..2539132	-	180	157156254	-	EcE24377A_2545	-	outer membrane protein, YfaZ
2427	 46.71	0	2539411..2539836	+	141	157156936	-	EcE24377A_2546	-	NUDIX family hydrolase
2428	 43.62	-1	2539875..2540477	-	200	157159312	-	EcE24377A_2547	-	phosphoglycerate mutase family protein
2429	 51.67	0	2540785..2541924	+	379	157155035	arnB	EcE24377A_2548	-	UDP-4-amino-4-deoxy-L-arabinose--oxoglutarate aminotransferase
2430	 49.85	0	2541928..2542896	+	322	157158548	arnC	EcE24377A_2549	-	undecaprenyl phosphate 4-deoxy-4-formamido-L-arabinose transferase
2431	 51.29	0	2542896..2544878	+	660	157159038	arnA	EcE24377A_2550	-	bifunctional UDP-glucuronic acid decarboxylase/UDP-4-amino-4-deoxy-L-arabinose formyltransferase
2432	 52.64	0	2544875..2545765	+	296	157155478	-	EcE24377A_2551	-	polysaccharide deacetylase domain-containing protein
2433	 51.00	0	2545765..2547417	+	550	157154965	arnT	EcE24377A_2552	-	4-amino-4-deoxy-L-arabinose transferase
2434	 53.57	0	2547414..2547749	+	111	157155030	-	EcE24377A_2553	-	SMR family multidrug efflux pump
2435	 48.06	0	2547749..2548135	+	128	157158788	-	EcE24377A_2555	-	hypothetical protein
2436	 47.57	0	2548129..2548395	-	88	157157275	pmrD	EcE24377A_2554	-	polymyxin B resistance protein pmrD
2437	 56.42	+1	2548505..2549860	-	451	157158327	menE	EcE24377A_2556	-	O-succinylbenzoic acid--CoA ligase
2438	 59.61	+1	2549857..2550819	-	320	157158055	menC	EcE24377A_2557	-	O-succinylbenzoate synthase
2439	 54.90	0	2550819..2551676	-	285	157157379	menB	EcE24377A_2558	-	naphthoate synthase
2440	 56.52	+1	2551691..2552449	-	252	157159079	-	EcE24377A_2559	-	acyl-CoA thioester hydrolase YfbB
50.48	MEAN

5.64	STD DEV
