IslandPath Analysis: Escherichia coli E24377A

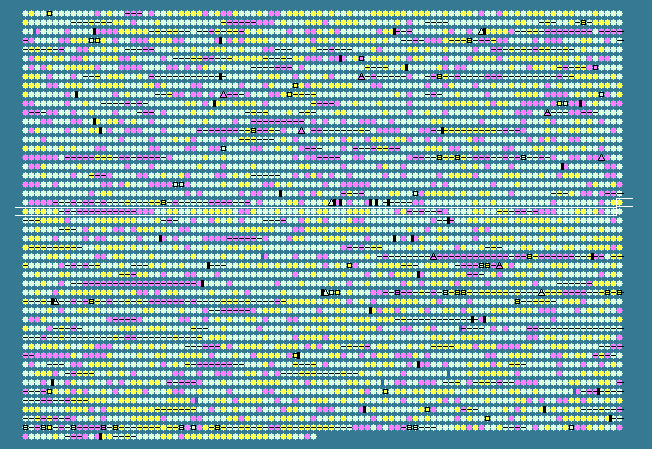

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2200	 57.16	+1	2273760..2275064	+	434	157158130	hisD	EcE24377A_2311	-	histidinol dehydrogenase
2201	 54.81	0	2275061..2276131	+	356	157156128	hisC	EcE24377A_2312	-	histidinol-phosphate aminotransferase
2202	 53.93	0	2276131..2277198	+	355	157155752	hisB	EcE24377A_2313	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
2203	 55.84	0	2277198..2277788	+	196	157154822	hisH	EcE24377A_2314	-	imidazole glycerol phosphate synthase subunit HisH
2204	 56.64	+1	2277788..2278525	+	245	157157485	hisA	EcE24377A_2315	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2205	 52.64	0	2278507..2279283	+	258	157159234	hisF	EcE24377A_2316	-	imidazole glycerol phosphate synthase subunit HisF
2206	 54.08	0	2279277..2279888	+	203	157156809	hisIE	EcE24377A_2317	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
2207	 47.63	0	2279985..2281019	-	344	157156091	-	EcE24377A_2318	-	chain length determinant protein
2208	 43.19	-1	2281109..2282275	-	388	157154758	ugd	EcE24377A_2319	-	UDP-glucose 6-dehydrogenase
2209	 50.04	0	2282520..2283926	-	468	157157026	gnd	EcE24377A_2320	-	6-phosphogluconate dehydrogenase
2210	 29.17	-2	2284294..2285181	-	295	157158578	-	EcE24377A_2321	-	hypothetical protein
2211	 29.71	-2	2285178..2286419	-	413	157158956	-	EcE24377A_2322	-	hypothetical protein
2212	 26.83	-2	2286419..2287171	-	250	157156116	-	EcE24377A_2323	-	hypothetical protein
2213	 34.79	-2	2287268..2288299	-	343	157155425	vipB	EcE24377A_2324	-	VI polysaccharide biosynthesis protein vipB/tviC
2214	 34.59	-2	2288314..2289588	-	424	157155490	vipA	EcE24377A_2325	-	VI polysaccharide biosynthesis protein VipA/tviB
2215	 27.81	-2	2289707..2290720	-	337	157154752	-	EcE24377A_2326	-	hypothetical protein
2216	 29.84	-2	2290736..2291479	-	247	157156787	-	EcE24377A_2327	-	glycosyl transferase, group 2 family protein
2217	 29.26	-2	2291476..2292456	-	326	157156098	-	EcE24377A_2328	-	glycosyl transferase group 2 family protein
2218	 39.71	-1	2292512..2293060	-	182	157158061	rfbC	EcE24377A_2329	-	dTDP-4-dehydrorhamnose 3,5-epimerase
2219	 43.23	-1	2293065..2293943	-	292	157157449	rfbA1	EcE24377A_2330	-	glucose-1-phosphate thymidylyltransferase
2220	 46.33	0	2294001..2294900	-	299	157158895	rfbD	EcE24377A_2331	-	dTDP-4-dehydrorhamnose reductase
2221	 43.37	-1	2294900..2295985	-	361	157154898	rfbB2	EcE24377A_2332	-	dTDP-glucose 4,6 dehydratase
2222	 34.38	-2	2296214..2296309	-	31	157159205	-	EcE24377A_2333	-	hypothetical protein
2223	 50.34	0	2296357..2297250	-	297	157158858	galF	EcE24377A_2334	-	UTP--glucose-1-phosphate uridylyltransferase subunit GalF
2224	 47.53	0	2297425..2298819	-	464	157159381	wcaM	EcE24377A_2335	-	putative colanic acid biosynthesis protein
2225	 54.30	0	2298830..2300050	-	406	157158914	wcaL	EcE24377A_2336	-	colanic acid biosynthesis glycosyl transferase WcaL
2226	 54.02	0	2300047..2301327	-	426	157156059	wcaK	EcE24377A_2337	-	putative pyruvyl transferase
2227	 53.82	0	2301603..2303081	-	492	157156699	wzxC	EcE24377A_2338	-	colanic acid exporter
2228	 53.84	0	2303083..2304477	-	464	157157993	-	EcE24377A_2339	-	putative UDP-glucose lipid carrier transferase
2229	 54.70	0	2304532..2305902	-	456	157155689	-	EcE24377A_2340	-	phosphomannomutase
2230	 51.57	0	2305928..2306086	+	52	157159024	-	EcE24377A_2341	-	hypothetical protein
2231	 55.39	0	2306095..2307531	-	478	157157123	manC	EcE24377A_2342	-	mannose-1-phosphate guanylyltransferase
2232	 55.56	0	2307534..2308757	-	407	157157792	wcaI	EcE24377A_2343	-	predicted glycosyl transferase
2233	 56.25	+1	2308754..2309233	-	159	157158307	nudD	EcE24377A_2344	-	GDP-mannose mannosyl hydrolase
2234	 56.21	+1	2309236..2310201	-	321	157159074	fcl	EcE24377A_2345	-	GDP-L-fucose synthetase
2235	 54.46	0	2310204..2311325	-	373	157155501	gmd	EcE24377A_2346	-	GDP-mannose 4,6-dehydratase
2236	 48.09	0	2311351..2311899	-	182	157155740	-	EcE24377A_2347	-	putative colanic acid biosynthesis acetyltransferase WcaF
2237	 46.30	0	2311915..2312670	-	251	157156247	wcaE	EcE24377A_2348	-	predicted glycosyl transferase
2238	 42.61	-1	2312681..2313898	-	405	157157053	wcaD	EcE24377A_2349	-	putative colanic acid biosynthesis protein
2239	 54.02	0	2313873..2315090	-	405	157158677	wcaC	EcE24377A_2350	-	predicted glycosyl transferase
2240	 53.58	0	2315087..2315575	-	162	157159359	-	EcE24377A_2351	-	putative colanic acid biosynthesis acetyltransferase WcaB
2241	 51.43	0	2315578..2316417	-	279	157154928	wcaA	EcE24377A_2352	-	predicted glycosyl transferase
2242	 52.66	0	2316595..2318757	-	720	157155608	wzc	EcE24377A_2353	-	tyrosine kinase
2243	 54.28	0	2318760..2319203	-	147	157158537	wzb	EcE24377A_2354	-	tyrosine phosphatase
2244	 53.25	0	2319209..2320348	-	379	157158902	-	EcE24377A_2355	-	polysaccharide biosynthesis/export protein
2245	 53.09	0	2321007..2322590	+	527	157155056	-	EcE24377A_2356	-	TerC family/CBS/transporter associated domain-containing protein
2246	 52.64	0	2322864..2324717	-	617	157155494	asmA	EcE24377A_2357	-	putative assembly protein
2247	 59.97	+1	2324739..2325320	-	193	157157097	dcd	EcE24377A_2358	-	deoxycytidine triphosphate deaminase
2248	 48.75	0	2325412..2326053	-	213	157155008	udk	EcE24377A_2359	-	uridine kinase
2249	 52.35	0	2326371..2329688	+	1105	157155968	-	EcE24377A_2360	-	putative sensor protein
2250	 55.01	0	2329727..2330584	-	285	157157936	alkA	EcE24377A_2361	-	3-methyl-adenine DNA glycosylase II
2251	 56.17	+1	2330718..2332070	+	450	157154954	-	EcE24377A_2362	-	putative chaperone
2252	 51.11	0	2332082..2334022	-	646	157156242	-	EcE24377A_2363	-	hypothetical protein
2253	 51.05	0	2334019..2334780	-	253	157155826	-	EcE24377A_2364	-	hypothetical protein
2254	 52.88	0	2334777..2335436	-	219	157155169	-	EcE24377A_2365	-	von Willebrand factor type A domain-containing protein
2255	 55.05	0	2336652..2337899	+	415	157159391	mdtA	EcE24377A_2366	-	multidrug efflux system subunit MdtA
2256	 56.39	+1	2337899..2341021	+	1040	157158287	mdtB	EcE24377A_2367	-	multidrug efflux system subunit MdtB
2257	 56.56	+1	2341022..2344099	+	1025	157157887	mdtC	EcE24377A_2368	-	multidrug efflux system subunit MdtC
2258	 55.30	0	2344100..2345515	+	471	157157401	-	EcE24377A_2369	-	multidrug efflux system protein MdtE
2259	 53.77	0	2345512..2346915	+	467	157157885	baeS	EcE24377A_2370	-	signal transduction histidine-protein kinase BaeS
2260	 53.94	0	2346912..2347634	+	240	157155282	baeR	EcE24377A_2371	-	DNA-binding transcriptional regulator BaeR
2261	 48.65	0	2347825..2348157	+	110	157159209	-	EcE24377A_2372	-	hypothetical protein
2262	 48.48	0	2348366..2348662	+	98	157155938	-	EcE24377A_2373	-	CC2985 family addiction module antidote protein
2263	 42.09	-1	2348664..2348960	+	98	157155871	-	EcE24377A_2374	-	RelE/ParE family plasmid stabilization system protein
2264	 54.19	0	2349063..2350424	+	453	157157728	-	EcE24377A_2375	-	U32 family peptidase
2265	 38.36	-2	2350754..2351131	-	125	157157198	-	EcE24377A_2376	-	hypothetical protein
2266	 49.78	0	2351477..2352376	+	299	157159052	-	EcE24377A_2377	-	lipid kinase
2267	 46.51	0	2352458..2353231	-	257	157158546	gatR	EcE24377A_2378	-	galactitol utilization operon repressor
2268	 48.51	0	2353337..2354377	-	346	157157813	gatD	EcE24377A_2379	-	galactitol-1-phosphate dehydrogenase
2269	 50.88	0	2354425..2355780	-	451	157158630	gatC	EcE24377A_2380	-	PTS system, galactitol-specific IIC component
2270	 42.11	-1	2355784..2356068	-	94	157156954	gatB	EcE24377A_2381	-	galactitol-specific PTS system component IIB
2271	 42.83	-1	2356099..2356551	-	150	157155146	gatA	EcE24377A_2382	-	galactitol-specific PTS system component IIA
2272	 49.09	0	2356561..2357823	-	420	157156384	-	EcE24377A_2383	-	D-tagatose-bisphosphate aldolase, class II, non-catalytic subunit
2273	 53.10	0	2357852..2358706	-	284	157156604	-	EcE24377A_2384	-	tagatose-bisphosphate aldolase
2274	 51.09	0	2359014..2360066	-	350	157157113	fbaB	EcE24377A_2385	-	fructose-bisphosphate aldolase
2275	 50.00	0	2360323..2361600	+	425	157157737	yegT	EcE24377A_2386	-	nucleoside transporter
2276	 55.62	0	2361597..2362601	+	334	157158412	-	EcE24377A_2387	-	ADP-ribosylglycohydrolase family protein
2277	 57.04	+1	2362598..2363563	+	321	157156849	-	EcE24377A_2389	-	PfkB family kinase
2278	 51.00	0	2363537..2364283	-	248	157159078	-	EcE24377A_2388	-	GntR family transcriptional regulator
2279	 48.47	0	2364335..2365153	-	272	157158602	-	EcE24377A_2390	-	glycosy hydrolase family protein
2280	 55.43	0	2365218..2366018	-	266	157154867	thiD	EcE24377A_2391	-	phosphomethylpyrimidine kinase
2281	 54.12	0	2366015..2366803	-	262	157155537	thiM	EcE24377A_2392	-	hydroxyethylthiazole kinase
2282	 48.35	0	2367026..2367298	-	90	157155925	rcnR	EcE24377A_2393	-	transcriptional repressor RcnR
2283	 46.24	0	2368282..2368800	+	172	157158108	-	EcE24377A_2395	-	hypothetical protein
2284	 38.16	-2	2368882..2369916	-	344	157158877	-	EcE24377A_2396	-	hypothetical protein
2285	 49.09	0	2369435..2369599	+	54	157159371	-	EcE24377A_2397	-	hypothetical protein
2286	 45.55	0	2369930..2372410	-	826	157157729	-	EcE24377A_2399	-	fimbrial usher protein
2287	 38.96	-2	2372426..2373100	-	224	157156869	-	EcE24377A_2400	-	pilus assembly chaperone
2288	 40.54	-1	2372793..2372903	+	36	157156309	-	EcE24377A_2401	-	hypothetical protein
2289	 40.52	-1	2373181..2373723	-	180	157158851	-	EcE24377A_2402	-	fimbrial protein
2290	 53.87	0	2374560..2375669	-	369	157155630	-	EcE24377A_2403	-	putative ATPase
2291	 53.00	0	2375801..2377834	+	677	157157217	metG	EcE24377A_2404	-	methionyl-tRNA synthetase
2292	 50.30	0	2377975..2381769	+	1264	157159379	molR	EcE24377A_2405	-	molybdate metabolism regulator
2293	 54.82	0	2386975..2388063	+	362	157158503	-	EcE24377A_2407	-	AAA family ATPase
2294	 55.31	0	2388074..2390353	+	759	157155415	-	EcE24377A_2408	-	hypothetical protein
2295	 53.83	0	2390346..2391482	+	378	157156675	-	EcE24377A_2409	-	von Willebrand factor type A domain-containing protein
2296	 54.57	0	2391479..2393479	+	666	157158183	-	EcE24377A_2410	-	hypothetical protein
2297	 41.99	-1	2393604..2394065	+	153	157155584	-	EcE24377A_2411	-	putative lipoprotein
2298	 49.04	0	2394106..2394576	-	156	157154750	-	EcE24377A_2412	-	hypothetical protein
2299	 49.44	0	2394623..2395342	-	239	157159247	-	EcE24377A_2413	-	putative two-component response-regulatory protein YehT
50.48	MEAN

5.64	STD DEV
