IslandPathversion 1.0

IslandPath Analysis: Escherichia coli E24377A

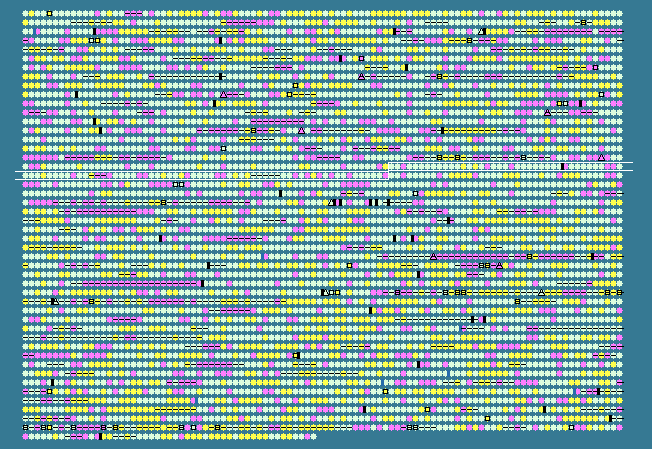

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1762	 51.07	0	1845710..1846177	+	155	157154835	slyB	EcE24377A_1851	-	outer membrane lipoprotein SlyB
1763	 47.82	0	1846224..1846658	-	144	157157476	-	EcE24377A_1852	-	transcriptional regulator SlyA
1764	 35.00	-2	1846683..1846802	-	39	157156214	-	EcE24377A_1853	-	hypothetical protein
1765	 48.95	0	1846859..1847095	+	78	157155248	-	EcE24377A_1854	-	hypothetical protein
1766	 50.00	0	1847098..1847955	+	285	157155760	-	EcE24377A_1855	-	MFP family transporter
1767	 52.81	0	1847955..1849967	+	670	157158986	-	EcE24377A_1856	-	fusaric acid resistance domain-containing protein
1768	 52.87	0	1849968..1850489	-	173	157157140	sodC	EcE24377A_1857	-	superoxide dismutase
1769	 52.40	0	1850570..1851466	-	298	157157397	ydhF	EcE24377A_1858	-	oxidoreductase YdhF
1770	 48.33	0	1851526..1851645	+	39	157157916	-	EcE24377A_1859	-	hypothetical protein
1771	 52.17	0	1851857..1852456	+	199	157156310	-	EcE24377A_1860	-	TetR family transcriptional regulator
1772	 53.55	0	1852493..1853590	+	365	157156831	nemA	EcE24377A_1861	-	N-ethylmaleimide reductase, FMN-linked
1773	 50.98	0	1853671..1854078	+	135	157158384	gloA	EcE24377A_1862	-	glyoxalase I
1774	 54.78	0	1854181..1854828	+	215	157159164	rnt	EcE24377A_1863	-	ribonuclease T
1775	 49.55	0	1854859..1854969	-	36	157157138	-	EcE24377A_1864	-	hypothetical protein
1776	 56.86	+1	1854921..1859537	+	1538	157158101	lhr	EcE24377A_1865	-	putative ATP-dependent helicase Lhr
1777	 52.59	0	1859588..1859935	-	115	157155524	-	EcE24377A_1866	-	hypothetical protein
1778	 36.60	-2	1860017..1860169	-	50	157156841	-	EcE24377A_1867	-	hypothetical protein
1779	 47.79	0	1860269..1861084	+	271	157158934	-	EcE24377A_1868	-	NlpC/P60 family protein
1780	 49.83	0	1861212..1861793	+	193	157154847	sodB	EcE24377A_1869	-	superoxide dismutase
1781	 53.33	0	1861939..1863108	-	389	157158785	-	EcE24377A_1870	-	major facilitator transporter
1782	 45.83	0	1863274..1863393	-	39	157159444	-	EcE24377A_1871	-	hypothetical protein
1783	 53.51	0	1863662..1864687	+	341	157157434	purR	EcE24377A_1873	-	DNA-binding transcriptional repressor PurR
1784	 53.91	0	1864684..1865616	-	310	157158107	-	EcE24377A_1872	-	putative DNA-binding transcriptional regulator
1785	 53.47	0	1865729..1866940	+	403	157155479	ydhC	EcE24377A_1874	-	inner membrane transport protein YdhC
1786	 48.13	0	1867231..1868379	+	382	157155437	cfa	EcE24377A_1875	-	cyclopropane fatty acyl phospholipid synthase
1787	 47.66	0	1868419..1869060	-	213	157154765	ribE	EcE24377A_1876	-	riboflavin synthase subunit alpha
1788	 52.84	0	1869275..1870648	+	457	157155199	-	EcE24377A_1877	-	multidrug efflux protein
1789	 51.95	0	1870689..1871945	-	418	157156334	-	EcE24377A_1878	-	hypothetical protein
1790	 47.92	0	1872147..1872242	-	31	157158008	-	EcE24377A_1879	-	hypothetical protein
1791	 44.44	-1	1872518..1872823	+	101	157157363	-	EcE24377A_1882	-	hypothetical protein
1792	 52.89	0	1874565..1875377	-	270	157154858	-	EcE24377A_1884	-	hypothetical protein
1793	 49.36	0	1875381..1876166	-	261	157156596	-	EcE24377A_1885	-	nickel-dependent hydrogenase, b-type cytochrome subunit
1794	 50.14	0	1876163..1876882	-	239	157157694	-	EcE24377A_1886	-	iron-sulfur cluster-binding protein
1795	 52.78	0	1876895..1877542	-	215	157155753	-	EcE24377A_1887	-	hypothetical protein
1796	 48.17	0	1877546..1879648	-	700	157155246	-	EcE24377A_1888	-	putative oxidoreductase
1797	 49.28	0	1879669..1880295	-	208	157156899	-	EcE24377A_1889	-	hypothetical protein
1798	 40.58	-1	1880323..1880460	+	45	157156314	-	EcE24377A_1890	-	hypothetical protein
1799	 46.67	0	1880751..1880960	-	69	157156095	-	EcE24377A_1891	-	hypothetical protein
1800	 49.89	0	1881517..1882929	+	470	157157921	pykF	EcE24377A_1892	-	pyruvate kinase
1801	 50.63	0	1883240..1883476	+	78	157157328	lpp	EcE24377A_1893	-	major outer membrane lipoprotein
1802	 51.64	0	1883540..1884544	-	334	157159013	-	EcE24377A_1894	-	LysM/ErfK/YbiS/YcfS/YnhG family protein
1803	 49.64	0	1884693..1885109	-	138	157158751	sufE	EcE24377A_1895	-	cysteine desufuration protein SufE
1804	 54.79	0	1885122..1886342	-	406	157158206	sufS	EcE24377A_1896	-	selenocysteine lyase
1805	 52.99	0	1886339..1887610	-	423	157154860	sufD	EcE24377A_1897	-	cysteine desulfurase activator complex subunit SufD
1806	 50.33	0	1887585..1888331	-	248	157159125	sufC	EcE24377A_1898	-	cysteine desulfurase ATPase component
1807	 51.81	0	1888341..1889828	-	495	157156777	sufB	EcE24377A_1899	-	cysteine desulfurase activator complex subunit SufB
1808	 53.66	0	1889837..1890205	-	122	157156081	sufA	EcE24377A_1900	-	iron-sulfur cluster assembly scaffold protein
1809	 44.44	-1	1890754..1891023	-	89	157157511	-	EcE24377A_1901	-	hypothetical protein
1810	 51.58	0	1891042..1891452	-	136	157156892	ydiL	EcE24377A_1902	-	hypothetical protein
1811	 53.75	0	1891449..1894505	-	1018	157158246	-	EcE24377A_1903	-	oxidoreductase, FAD-binding
1812	 54.90	0	1894894..1896006	+	370	157157163	ydiK	EcE24377A_1904	-	putative inner membrane protein
1813	 45.57	0	1896408..1896791	+	127	157159427	-	EcE24377A_1905	-	hypothetical protein
1814	 44.61	-1	1896891..1898105	+	404	157158719	ydiM	EcE24377A_1906	-	major facilitator family transporter
1815	 45.28	0	1898326..1899597	+	423	157157413	-	EcE24377A_1907	-	major facilitator transporter
1816	 47.64	0	1899609..1900475	+	288	157159422	-	EcE24377A_1908	-	quinate/shikimate dehydrogenase
1817	 50.07	0	1900506..1901264	+	252	157158795	aroD	EcE24377A_1909	-	3-dehydroquinate dehydratase
1818	 47.56	0	1901408..1903003	+	531	157155387	-	EcE24377A_1910	-	CoA-transferase
1819	 51.82	0	1903017..1904168	+	383	157154739	-	EcE24377A_1911	-	putative acyl-CoA dehydrogenase
1820	 41.89	-1	1904211..1905122	-	303	157156762	-	EcE24377A_1912	-	AraC family transcriptional regulator
1821	 40.68	-1	1905225..1905401	-	58	157156111	-	EcE24377A_1913	-	hypothetical protein
1822	 51.37	0	1905438..1906202	+	254	157159343	fixA	EcE24377A_1914	-	putative electron transfer flavoprotein YdiQ
1823	 53.14	0	1906222..1907160	+	312	157157549	-	EcE24377A_1915	-	electron transfer flavoprotein subunit YdiR
1824	 54.19	0	1907216..1908505	+	429	157154713	-	EcE24377A_1916	-	hypothetical protein
1825	 48.98	0	1908502..1908795	+	97	157155358	-	EcE24377A_1917	-	iron-sulfur cluster-binding protein
1826	 50.21	0	1908852..1910498	+	548	157156226	fadK	EcE24377A_1918	-	short chain acyl-CoA synthetase
1827	 54.27	0	1910555..1912933	-	792	157156730	ppsA	EcE24377A_1919	-	phosphoenolpyruvate synthase
1828	 33.33	-2	1912987..1913154	-	55	157157496	-	EcE24377A_1920	-	hypothetical protein
1829	 50.60	0	1913266..1914099	+	277	157158010	-	EcE24377A_1921	-	hypothetical protein
1830	 52.91	0	1914256..1915302	+	348	157157604	aroH	EcE24377A_1922	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1831	 50.52	0	1915434..1915625	+	63	157158001	-	EcE24377A_1923	-	hypothetical protein
1832	 52.33	0	1915629..1917065	-	478	157156707	-	EcE24377A_1924	-	hypothetical protein
1833	 43.14	-1	1916156..1916257	+	33	157155976	-	EcE24377A_1925	-	hypothetical protein
1834	 41.74	-1	1917128..1917841	-	237	157154728	-	EcE24377A_1926	-	hypothetical protein
1835	 49.03	0	1918088..1918552	-	154	157159105	-	EcE24377A_1927	-	NlpC/P60 family lipoprotein
1836	 54.80	0	1918630..1919379	-	249	157156393	btuD	EcE24377A_1928	-	vitamin B12-transporter ATPase
1837	 49.46	0	1919379..1919930	-	183	157155390	btuE	EcE24377A_1929	-	putative glutathione peroxidase
1838	 55.05	0	1919993..1920973	-	326	157158270	btuC	EcE24377A_1930	-	vtamin B12-transporter permease
1839	 50.00	0	1921074..1921373	-	99	157159273	ihfA	EcE24377A_1931	-	integration host factor subunit alpha
1840	 53.85	0	1921378..1923765	-	795	157158594	pheT	EcE24377A_1932	-	phenylalanyl-tRNA synthetase subunit beta
1841	 53.96	0	1923780..1924763	-	327	157158955	pheS	EcE24377A_1933	-	phenylalanyl-tRNA synthetase subunit alpha
1842	 48.96	0	1924877..1924972	-	31	157154737	-	EcE24377A_1934	-	hypothetical protein
1843	 48.46	0	1925214..1925570	-	118	157155376	rplT	EcE24377A_1935	-	50S ribosomal protein L20
1844	 47.82	0	1925917..1926351	-	144	157156228	infC	EcE24377A_1936	-	translation initiation factor IF-3
1845	 49.97	0	1926463..1928391	-	642	157158126	thrS	EcE24377A_1937	-	threonyl-tRNA synthetase
1846	 32.43	-2	1930808..1930918	-	36	157157478	-	EcE24377A_1939	-	hypothetical protein
1847	 48.88	0	1931149..1931907	-	252	157158105	-	EcE24377A_1941	-	hypothetical protein
1848	 24.07	-2	1932048..1932155	+	35	157159076	-	EcE24377A_1942	-	hypothetical protein
1849	 54.19	0	1932194..1933123	+	309	157159329	pfkB	EcE24377A_1943	-	6-phosphofructokinase 2
1850	 43.99	-1	1933224..1933514	+	96	157158813	-	EcE24377A_1944	-	hypothetical protein
1851	 51.80	0	1933620..1934480	+	286	157155902	-	EcE24377A_1945	-	fructosamine kinase
1852	 43.95	-1	1934521..1935057	-	178	157155190	-	EcE24377A_1946	-	hypothetical protein
1853	 51.42	0	1935204..1935872	+	222	157156625	-	EcE24377A_1947	-	2-deoxyglucose-6-phosphatase
1854	 51.27	0	1936035..1936625	+	196	157157851	-	EcE24377A_1949	-	hypothetical protein
1855	 36.43	-2	1936557..1936685	-	42	157156187	-	EcE24377A_1948	-	hypothetical protein
1856	 52.95	0	1936758..1938149	+	463	157158064	-	EcE24377A_1950	-	sodium/dicarboxylate symporter family protein
1857	 53.09	0	1939245..1939487	-	80	157155560	cedA	EcE24377A_1952	-	cell division modulator
1858	 51.64	0	1939691..1941952	+	753	157154864	katE	EcE24377A_1953	-	hydroperoxidase II
1859	 49.93	0	1941999..1942757	-	252	157156630	-	EcE24377A_1954	-	hypothetical protein
1860	 47.01	0	1942770..1944122	-	450	157156065	chbF	EcE24377A_1955	-	6-phospho-beta-glucosidase
1861	 41.55	-1	1944227..1945066	-	279	157158276	chbR	EcE24377A_1956	-	DNA-binding transcriptional regulator ChbR
50.48	MEAN

5.64	STD DEV
