IslandPath Analysis: Escherichia coli E24377A

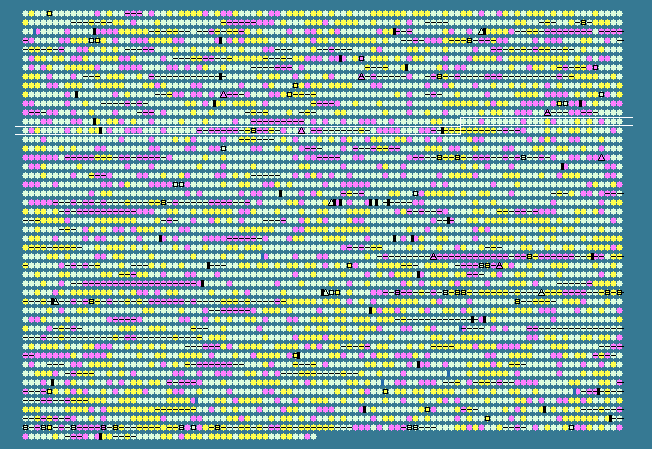

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1274	 50.61	0	1334475..1335209	-	244	157159385	-	EcE24377A_1339	-	putative type IV pilus assembly protein PilZ
1275	 53.73	0	1335410..1335664	+	84	157157734	-	EcE24377A_1341	-	transglycosylase-associated protein
1276	 53.70	0	1335464..1335733	-	89	157157294	-	EcE24377A_1340	-	hypothetical protein
1277	 41.27	-1	1335842..1336282	+	146	157158329	-	EcE24377A_1342	-	hypothetical protein
1278	 52.12	0	1336361..1338058	-	565	157159159	treA	EcE24377A_1343	-	trehalase
1279	 49.82	0	1338378..1339796	-	472	157157322	dhaM	EcE24377A_1344	-	dihydroxyacetone kinase subunit M
1280	 53.40	0	1339807..1340439	-	210	157155726	-	EcE24377A_1345	-	dihydroxyacetone kinase ADP-binding subunit
1281	 52.75	0	1340450..1341520	-	356	157158476	dhaK	EcE24377A_1346	-	dihydroxyacetone kinase subunit DhaK
1282	 51.25	0	1341748..1343667	+	639	157159109	dhaR	EcE24377A_1347	-	DNA-binding transcriptional regulator DhaR
1283	 49.65	0	1343767..1346652	-	961	157157255	-	EcE24377A_1348	-	putative outer membrane autotransporter
1284	 36.76	-2	1346997..1347200	+	67	157157620	-	EcE24377A_1349	-	hypothetical protein
1285	 51.01	0	1347493..1348584	-	363	157157840	engD	EcE24377A_1350	-	translation-associated GTPase
1286	 49.91	0	1348701..1349285	-	194	157156333	pth	EcE24377A_1351	-	peptidyl-tRNA hydrolase
1287	 53.05	0	1349563..1349841	+	92	157155770	-	EcE24377A_1352	-	putative inner membrane protein
1288	 55.05	0	1349896..1351548	-	550	157158365	ychM	EcE24377A_1353	-	putative sulfate transporter YchM
1289	 44.72	-1	1351481..1351603	-	40	157156600	-	EcE24377A_1354	-	hypothetical protein
1290	 52.64	0	1351700..1352647	-	315	157156694	prs	EcE24377A_1355	-	ribose-phosphate pyrophosphokinase
1291	 53.40	0	1352798..1353649	-	283	157157479	ispE	EcE24377A_1356	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
1292	 51.28	0	1353649..1354272	-	207	157158274	lolB	EcE24377A_1357	-	outer membrane lipoprotein LolB
1293	 54.18	0	1354486..1355742	+	418	157158798	hemA	EcE24377A_1358	-	glutamyl-tRNA reductase
1294	 53.09	0	1355784..1356866	+	360	157158410	prfA	EcE24377A_1359	-	peptide chain release factor 1
1295	 55.16	0	1356866..1357699	+	277	157156593	hemK	EcE24377A_1360	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1296	 47.58	0	1357696..1358088	+	130	157154746	-	EcE24377A_1361	-	putative transcriptional regulator
1297	 46.67	0	1358092..1358901	+	269	157156818	sirB1	EcE24377A_1362	-	putative transcriptional regulator
1298	 51.58	0	1358937..1359791	+	284	157158072	kdsA	EcE24377A_1363	-	2-dehydro-3-deoxyphosphooctonate aldolase
1299	 53.33	0	1359940..1360074	-	44	157156804	-	EcE24377A_1364	-	hypothetical protein
1300	 53.33	0	1360475..1360609	-	44	157155447	-	EcE24377A_1365	-	hypothetical protein
1301	 48.86	0	1360988..1362088	-	366	157157160	-	EcE24377A_1366	-	calcium/sodium:proton antiporter
1302	 45.89	0	1362358..1362588	+	76	157158720	-	EcE24377A_1367	-	cation transport regulator
1303	 55.09	0	1362725..1363441	+	238	157159256	-	EcE24377A_1368	-	chaC protein
1304	 51.69	0	1363485..1363838	-	117	157155825	-	EcE24377A_1369	-	dsrE family protein
1305	 50.39	0	1364023..1365417	+	464	157155078	-	EcE24377A_1370	-	hypothetical protein
1306	 51.77	0	1365418..1366068	-	216	157155985	narL	EcE24377A_1371	-	transcriptional regulator NarL
1307	 53.31	0	1366061..1367857	-	598	157156669	narX	EcE24377A_1372	-	nitrate/nitrite sensor protein NarX
1308	 38.36	-2	1367883..1368101	+	72	157157893	-	EcE24377A_1373	-	hypothetical protein
1309	 53.82	0	1368196..1369581	+	461	157157386	narK	EcE24377A_1374	-	nitrite extrusion protein 1
1310	 54.97	0	1370102..1373845	+	1247	157155191	narG	EcE24377A_1375	-	nitrate reductase, alpha subunit
1311	 53.67	0	1373842..1375380	+	512	157159405	narH	EcE24377A_1376	-	nitrate reductase, beta subunit
1312	 54.85	0	1375377..1376087	+	236	157156515	narJ	EcE24377A_1377	-	nitrate reductase molybdenum cofactor assembly chaperone
1313	 56.05	0	1376087..1376764	+	225	157155384	narI1	EcE24377A_1378	-	respiratory nitrate reductase, gamma subunit
1314	 47.33	0	1377844..1378686	-	280	157156756	purU	EcE24377A_1381	-	formyltetrahydrofolate deformylase
1315	 46.41	0	1378736..1379194	-	152	157155665	-	EcE24377A_1382	-	hypothetical protein
1316	 50.55	0	1379307..1380212	+	301	157157525	-	EcE24377A_1383	-	hypothetical protein
1317	 48.82	0	1380304..1381317	+	337	157156877	-	EcE24377A_1384	-	response regulator of RpoS
1318	 46.97	0	1381519..1382427	+	302	157157142	galU	EcE24377A_1385	-	UTP--glucose-1-phosphate uridylyltransferase subunit GalU
1319	 46.86	0	1382571..1382984	-	137	157157780	hns	EcE24377A_1386	-	global DNA-binding transcriptional dual regulator H-NS
1320	 42.39	-1	1383589..1384206	+	205	157159009	tdk	EcE24377A_1387	-	thymidine kinase
1321	 50.71	0	1385501..1388182	-	893	157155679	adhE	EcE24377A_1389	-	bifunctional acetaldehyde-CoA/alcohol dehydrogenase
1322	 48.30	0	1388659..1389306	+	215	157157980	-	EcE24377A_1390	-	hypothetical protein
1323	 47.67	0	1390044..1391675	+	543	157157312	oppA	EcE24377A_1391	-	oligopeptide ABC transporter, periplasmic oligopeptide-binding protein
1324	 46.47	0	1391761..1392681	+	306	157156245	oppB	EcE24377A_1392	-	oligopeptide transporter permease
1325	 52.26	0	1392696..1393604	+	302	157157719	oppC	EcE24377A_1393	-	oligopeptide ABC transporter, permease protein OppC
1326	 51.28	0	1393616..1394629	+	337	157156418	oppD	EcE24377A_1394	-	oligopeptide transporter ATP-binding component
1327	 52.14	0	1394626..1395630	+	334	157157088	oppF	EcE24377A_1395	-	oligopeptide ABC transporter, ATP-binding protein OppF
1328	 47.58	0	1395683..1396012	-	109	157155070	-	EcE24377A_1396	-	dsDNA-mimic protein
1329	 51.81	0	1396047..1397507	-	486	157159055	cls	EcE24377A_1397	-	cardiolipin synthetase
1330	 42.34	-1	1397878..1399131	-	417	157159270	kch	EcE24377A_1398	-	voltage-gated potassium channel
1331	 48.48	0	1399430..1399726	-	98	157157428	-	EcE24377A_1399	-	YciI-like protein
1332	 46.64	0	1401710..1402378	+	222	157158217	-	EcE24377A_1400	-	phage N-6-adenine-methyltransferase
1333	 37.26	-2	1402742..1403734	+	330	157156044	-	EcE24377A_1401	-	hypothetical protein
1334	 33.81	-2	1404867..1405076	+	69	157156553	-	EcE24377A_1402	-	hypothetical protein
1335	 39.10	-2	1406063..1406773	+	236	157156543	-	EcE24377A_1403	-	hypothetical protein
1336	 41.21	-1	1407125..1409257	+	710	157157072	-	EcE24377A_1404	-	hypothetical protein
1337	 51.79	0	1409617..1410006	+	129	157156436	-	EcE24377A_1405	-	IS66 family orf1
1338	 58.62	+1	1410003..1410350	+	115	157158138	-	EcE24377A_1406	-	IS66 family orf2
1339	 58.74	+1	1410400..1411938	+	512	157157306	-	EcE24377A_1407	-	IS66 family transposase
1340	 40.94	-1	1411961..1412644	+	227	157159212	-	EcE24377A_1408	-	hypothetical protein
1341	 44.25	-1	1412677..1414197	-	506	157158350	-	EcE24377A_1409	-	putative recombinase
1342	 54.72	0	1414288..1415007	+	239	157155811	tonB	EcE24377A_1410	-	transport protein TonB
1343	 48.87	0	1415047..1415445	-	132	157155297	yciA	EcE24377A_1411	-	acyl-CoA thioester hydrolase
1344	 46.30	0	1415550..1416089	-	179	157158909	ispZ	EcE24377A_1412	-	intracellular septation protein A
1345	 49.60	0	1416119..1416862	-	247	157158416	-	EcE24377A_1413	-	hypothetical protein
1346	 49.77	0	1417219..1417857	+	212	157157791	ompW	EcE24377A_1414	-	outer membrane protein W
1347	 46.68	0	1417903..1419033	-	376	157157141	-	EcE24377A_1415	-	phage integrase family site specific recombinase
1348	 49.47	0	1419324..1421795	-	823	157155450	-	EcE24377A_1416	-	exonuclease family protein
1349	 35.19	-2	1421767..1421874	+	35	157154767	-	EcE24377A_1417	-	hypothetical protein
1350	 44.12	-1	1421875..1422078	-	67	157159414	-	EcE24377A_1418	-	hypothetical protein
1351	 47.84	0	1422274..1423128	-	284	157158740	-	EcE24377A_1419	-	Rha family phage regulatory protein
1352	 47.62	0	1424416..1424562	-	48	157158109	-	EcE24377A_1420	-	hypothetical protein
1353	 48.19	0	1424564..1424812	-	82	157157426	-	EcE24377A_1421	-	hypothetical protein
1354	 48.63	0	1425368..1425622	+	84	157157452	-	EcE24377A_1422	-	DNA-binding transcriptional regulator DicC
1355	 47.64	0	1425606..1426157	+	183	157158011	-	EcE24377A_1423	-	hypothetical protein
1356	 49.95	0	1426129..1427169	+	346	157155135	-	EcE24377A_1424	-	hypothetical protein
1357	 56.76	+1	1426958..1427623	+	221	157155681	-	EcE24377A_1425	-	hypothetical protein
1358	 51.52	0	1427653..1428048	+	131	157156500	-	EcE24377A_1426	-	hypothetical protein
1359	 53.95	0	1428051..1428341	+	96	157157030	-	EcE24377A_1427	-	hypothetical protein
1360	 38.03	-2	1428722..1428934	+	70	157157748	-	EcE24377A_1429	-	hypothetical protein
1361	 33.12	-2	1429524..1430456	-	310	157158566	-	EcE24377A_1430	-	hypothetical protein
1362	 46.15	0	1431077..1431193	+	38	157157536	-	EcE24377A_1431	-	hypothetical protein
1363	 39.76	-1	1431258..1431506	+	82	157155997	-	EcE24377A_1433	-	hypothetical protein
1364	 53.62	0	1431853..1432902	+	349	157155483	-	EcE24377A_1434	-	hypothetical protein
1365	 51.39	0	1432915..1433274	+	119	157155088	-	EcE24377A_1435	-	crossover junction endodeoxyribonuclease RusA-like protein
1366	 47.68	0	1433271..1433960	+	229	157158789	-	EcE24377A_1436	-	phage antitermination protein Q
1367	 37.86	-2	1434030..1434869	+	279	157158263	-	EcE24377A_1437	-	protein kinase domain-containing protein
1368	 39.52	-1	1434866..1435609	+	247	157156540	-	EcE24377A_1438	-	hypothetical protein
1369	 46.67	0	1435742..1436026	+	94	157156014	-	EcE24377A_1439	-	hypothetical protein
1370	 49.09	0	1436177..1437223	+	348	157156068	-	EcE24377A_1440	-	DNA methylase
1371	 57.26	+1	1438724..1439074	+	116	157155526	-	EcE24377A_1443	-	hypothetical protein
1372	 57.94	+1	1439071..1439322	+	83	157157395	-	EcE24377A_1444	-	hypothetical protein
1373	 58.26	+1	1439331..1440413	+	360	157159232	-	EcE24377A_1445	-	lambda family phage portal protein
50.48	MEAN

5.64	STD DEV
