IslandPath Analysis: Escherichia coli E24377A

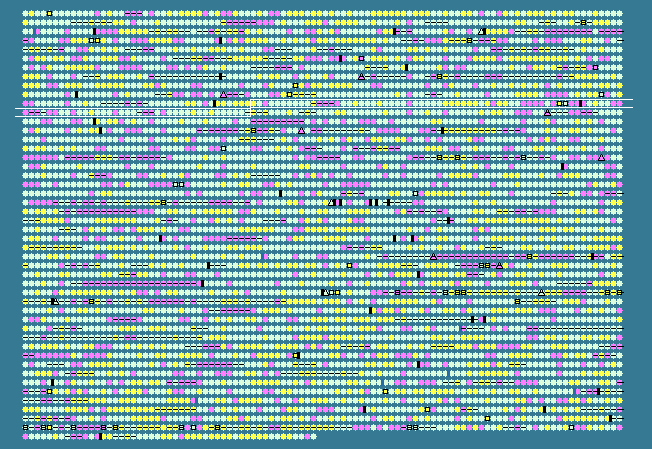

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1039	 53.98	0	1116401..1117945	+	514	157155682	appC	EcE24377A_1093	-	cytochrome bd-II oxidase, subunit I
1040	 53.30	0	1117957..1119093	+	378	157158801	appB	EcE24377A_1094	-	cytochrome bd-II oxidase, subunit II
1041	 46.24	0	1119106..1119198	+	30	157158417	-	EcE24377A_1095	-	putative cyd operon protein YbgT
1042	 53.81	0	1119278..1120576	+	432	157159123	appA	EcE24377A_1096	-	phosphoanhydride phosphorylase
1043	 50.53	0	1120691..1122871	-	726	157154890	etk	EcE24377A_1097	-	cryptic autophosphorylating protein tyrosine kinase Etk
1044	 52.13	0	1122891..1123337	-	148	157155359	-	EcE24377A_1098	-	phosphotyrosine-protein phosphatase
1045	 50.56	0	1123325..1124485	-	386	157156218	yccZ	EcE24377A_1099	-	outer membrane lipoprotein, group 4 capsule (G4C) polysaccharide
1046	 51.88	0	1124510..1126606	-	698	157157653	-	EcE24377A_1100	-	putative lipoprotein
1047	 52.07	0	1126606..1127352	-	248	157158170	-	EcE24377A_1101	-	hypothetical protein
1048	 47.75	0	1127349..1127993	-	214	157156862	ymcC	EcE24377A_1102	-	group 4 capsule (G4C) polysaccharide, lipoprotein YmcC
1049	 55.56	0	1128100..1128423	-	107	157156316	-	EcE24377A_1103	-	putative inner membrane protein
1050	 46.95	0	1128847..1129059	-	70	157158514	-	EcE24377A_1104	-	cold shock DNA-binding protein
1051	 44.13	-1	1129345..1129557	+	70	157157933	-	EcE24377A_1105	-	cold shock protein CspG
1052	 39.66	-1	1129951..1130124	+	57	157157632	-	EcE24377A_1107	-	GnsA/GnsB family transcriptional regulator
1053	 39.66	-1	1129966..1130139	-	57	157158171	-	EcE24377A_1106	-	hypothetical protein
1054	 49.07	0	1130172..1131245	-	357	157156552	-	EcE24377A_1108	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1055	 52.12	0	1131119..1131283	-	54	157156051	-	EcE24377A_1109	-	hypothetical protein
1056	 54.06	0	1131317..1134061	-	914	157158585	torS	EcE24377A_1110	-	hybrid sensory histidine kinase TorS
1057	 52.77	0	1134144..1135172	+	342	157155126	torT	EcE24377A_1112	-	periplasmic sensory protein associated with the TorRS two-component regulatory system
1058	 52.53	0	1135145..1135837	-	230	157158972	torR	EcE24377A_1111	-	DNA-binding transcriptional regulator TorR
1059	 51.24	0	1135967..1137139	+	390	157155491	torC	EcE24377A_1113	-	cytochrome c-type protein torC
1060	 55.44	0	1137139..1139685	+	848	157155850	torA	EcE24377A_1114	-	trimethylamine-N-oxide reductase
1061	 52.83	0	1139682..1140281	+	199	157156231	torD	EcE24377A_1116	-	chaperone protein TorD
1062	 52.67	0	1140221..1140370	-	49	157156655	-	EcE24377A_1115	-	hypothetical protein
1063	 53.59	0	1140374..1140679	-	101	157158092	cbpM	EcE24377A_1117	-	chaperone-modulator protein CbpM
1064	 53.09	0	1140679..1141599	-	306	157157841	cbpA	EcE24377A_1118	-	curved DNA-binding protein CbpA
1065	 33.97	-2	1141859..1143118	+	419	157157400	-	EcE24377A_1119	-	hypothetical protein
1066	 51.29	0	1143409..1144650	+	413	157158962	agp	EcE24377A_1120	-	glucose-1-phosphatase/inositol phosphatase
1067	 47.37	0	1144688..1144915	-	75	157158367	-	EcE24377A_1121	-	hypothetical protein
1068	 53.77	0	1144936..1145532	-	198	157158115	wrbA	EcE24377A_1122	-	TrpR binding protein WrbA
1069	 51.72	0	1145905..1146078	+	57	157157480	-	EcE24377A_1123	-	hypothetical protein
1070	 53.72	0	1146161..1147489	-	442	157159382	-	EcE24377A_1124	-	putative purine permease ycdG
1071	 58.38	+1	1147510..1148004	-	164	157158870	-	EcE24377A_1125	-	putative flavin reductase rutF
1072	 55.67	0	1148015..1148605	-	196	157156722	-	EcE24377A_1126	-	hypothetical protein
1073	 58.05	+1	1148615..1149415	-	266	157154886	-	EcE24377A_1127	-	putative rutD protein
1074	 54.01	0	1149423..1149809	-	128	157155569	-	EcE24377A_1128	-	rutC protein
1075	 54.89	0	1149821..1150516	-	231	157158711	-	EcE24377A_1129	-	putative isochorismatase family protein, rutB
1076	 54.57	0	1150513..1151694	-	393	157155454	-	EcE24377A_1130	-	putative monooxygenase rutA
1077	 51.17	0	1151891..1152529	+	212	157158459	rutR	EcE24377A_1131	-	transcriptional regulator RutR
1078	 56.37	+1	1152569..1156531	-	1320	157158674	putA	EcE24377A_1132	-	trifunctional transcriptional regulator/proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1079	 35.24	-2	1156586..1156795	+	69	157157996	-	EcE24377A_1134	-	hypothetical protein
1080	 54.21	0	1156954..1158462	+	502	157156407	putP	EcE24377A_1135	-	sodium/proline symporter
1081	 54.51	0	1159004..1159834	+	276	157156355	-	EcE24377A_1136	-	FTR1 family iron permease
1082	 50.89	0	1159892..1161019	+	375	157156898	-	EcE24377A_1137	-	hypothetical protein
1083	 53.46	0	1161025..1162296	+	423	157157331	-	EcE24377A_1138	-	Tat-translocated enzyme
1084	 42.93	-1	1162363..1162560	-	65	157157900	-	EcE24377A_1139	-	hypothetical protein
1085	 44.20	-1	1163753..1164166	-	137	157158963	pgaD	EcE24377A_1141	-	biofilm PGA synthesis protein PgaD
1086	 46.46	0	1164168..1165493	-	441	157157335	pgaC	EcE24377A_1142	-	N-glycosyltransferase PgaC
1087	 44.38	-1	1165486..1167504	-	672	157157853	pgaB	EcE24377A_1143	-	biofilm PGA synthesis lipoprotein pgaB
1088	 47.07	0	1167513..1169936	-	807	157158435	pgaA	EcE24377A_1144	-	outer membrane protein PgaA
1089	 38.23	-2	1170451..1171881	+	476	157158903	-	EcE24377A_1145	-	diguanylate cyclase
1090	 55.13	0	1171922..1172788	-	288	157159400	-	EcE24377A_1146	-	IS3, transposase orfB
1091	 50.00	0	1172785..1173084	-	99	157155285	-	EcE24377A_1147	-	IS3, transposase orfA
1092	 43.99	-1	1173134..1173499	+	121	157155666	-	EcE24377A_1148	-	hypothetical protein
1093	 40.53	-1	1173489..1174475	+	328	157156350	-	EcE24377A_1149	-	hypothetical protein
1094	 39.47	-1	1175217..1175330	-	37	157157820	-	EcE24377A_1151	-	hypothetical protein
1095	 48.37	0	1176344..1177081	+	245	157154960	-	EcE24377A_1153	-	putative hydrolase
1096	 54.05	0	1177105..1177659	+	184	157155138	-	EcE24377A_1154	-	chaperone TorD
1097	 53.66	0	1177761..1178252	+	163	157155603	-	EcE24377A_1155	-	hypothetical protein
1098	 50.24	0	1178316..1179149	-	277	157157085	csgG	EcE24377A_1156	-	curli production assembly/transport subunit CsgG
1099	 41.97	-1	1179176..1179592	-	138	157156394	csgF	EcE24377A_1157	-	curli assembly protein CsgF
1100	 42.82	-1	1179617..1180006	-	129	157156361	csgE	EcE24377A_1158	-	curli assembly protein CsgE
1101	 41.47	-1	1180011..1180661	-	216	157155649	csgD	EcE24377A_1159	-	DNA-binding transcriptional regulator CsgD
1102	 37.35	-2	1181073..1181321	-	82	157155137	-	EcE24377A_1160	-	hypothetical protein
1103	 42.86	-1	1181388..1181870	+	160	157158515	csgB	EcE24377A_1161	-	curlin minor subunit
1104	 51.32	0	1181911..1182366	+	151	157157267	-	EcE24377A_1162	-	cryptic curlin major subunit
1105	 42.64	-1	1182425..1182757	+	110	157156575	csgC	EcE24377A_1163	-	putative autoagglutination protein
1106	 43.59	-1	1182878..1183189	+	103	157156416	-	EcE24377A_1164	-	hypothetical protein
1107	 51.87	0	1183284..1183817	+	177	157155706	-	EcE24377A_1165	-	hypothetical protein
1108	 50.52	0	1183810..1185240	+	476	157156460	-	EcE24377A_1166	-	phopholipase D
1109	 43.87	-1	1185248..1186405	-	385	157156321	mdoC	EcE24377A_1167	-	glucans biosynthesis protein
1110	 47.92	0	1186450..1186593	-	47	157155624	-	EcE24377A_1168	-	hypothetical protein
1111	 49.61	0	1186799..1188334	+	511	157156764	mdoG	EcE24377A_1169	-	glucan biosynthesis protein G
1112	 55.03	0	1188327..1190870	+	847	157159340	mdoH	EcE24377A_1170	-	glucosyltransferase MdoH
1113	 50.44	0	1191043..1191270	+	75	157157394	-	EcE24377A_1172	-	hypothetical protein
1114	 50.13	0	1191271..1191645	-	124	157157935	msyB	EcE24377A_1173	-	hypothetical protein
1115	 52.24	0	1191728..1192954	-	408	157156375	mdtG	EcE24377A_1174	-	drug efflux system protein MdtG
1116	 45.71	0	1192984..1193088	+	34	157156890	-	EcE24377A_1175	-	hypothetical protein
1117	 53.09	0	1193126..1194046	-	306	157155736	htrB	EcE24377A_1176	-	lipid A biosynthesis lauroyl acyltransferase
1118	 49.76	0	1194271..1195323	+	350	157158651	-	EcE24377A_1177	-	hypothetical protein
1119	 47.22	0	1195365..1195940	-	191	157159017	yceI	EcE24377A_1178	-	hypothetical protein
1120	 51.15	0	1195944..1196510	-	188	157157617	-	EcE24377A_1179	-	nickel-dependent hydrogenase b-type cytochrome subunit
1121	 27.21	-2	1196500..1196646	+	48	157157977	-	EcE24377A_1180	-	hypothetical protein
1122	 37.72	-2	1196771..1196884	-	37	157155996	-	EcE24377A_1181	-	hypothetical protein
1123	 52.55	0	1196932..1198050	-	372	157155462	solA	EcE24377A_1182	-	N-methyltryptophan oxidase
1124	 45.35	0	1198165..1198422	-	85	157158397	-	EcE24377A_1183	-	biofilm formation regulatory protein BssS
1125	 47.97	0	1198709..1198954	-	81	157158610	dinI	EcE24377A_1184	-	DNA damage-inducible protein I
1126	 52.91	0	1199028..1200074	-	348	157157354	pyrC	EcE24377A_1185	-	dihydroorotase
1127	 47.06	0	1200180..1200740	-	186	157154992	-	EcE24377A_1186	-	hypothetical protein
1128	 49.07	0	1200874..1201521	-	215	157155546	grxB	EcE24377A_1187	-	glutaredoxin 2
1129	 55.50	0	1201585..1202793	-	402	157155944	mdtH	EcE24377A_1188	-	multidrug resistance protein MdtH
1130	 49.57	0	1203029..1203613	+	194	157156754	rimJ	EcE24377A_1189	-	ribosomal-protein-S5-alanine N-acetyltransferase
1131	 52.31	0	1203624..1204271	+	215	157155438	-	EcE24377A_1190	-	hypothetical protein
1132	 54.76	0	1204273..1205196	+	307	157158513	-	EcE24377A_1191	-	oxidoreductase family protein
1133	 53.65	0	1205306..1206841	+	511	157157105	mviN	EcE24377A_1192	-	integral membrane protein MviN
1134	 48.20	0	1206881..1207297	-	138	157154753	flgN	EcE24377A_1193	-	flagella synthesis protein FlgN
1135	 52.72	0	1207302..1207595	-	97	157157558	flgM	EcE24377A_1194	-	anti-sigma28 factor FlgM
1136	 52.27	0	1207671..1208330	-	219	157158222	flgA	EcE24377A_1195	-	flagellar basal body P-ring biosynthesis protein FlgA
1137	 53.72	0	1208485..1208901	+	138	157157889	flgB	EcE24377A_1196	-	flagellar basal body rod protein FlgB
1138	 52.84	0	1208905..1209309	+	134	157158527	flgC	EcE24377A_1197	-	flagellar basal body rod protein FlgC
50.48	MEAN

5.64	STD DEV
