IslandPath Analysis: Escherichia coli E24377A

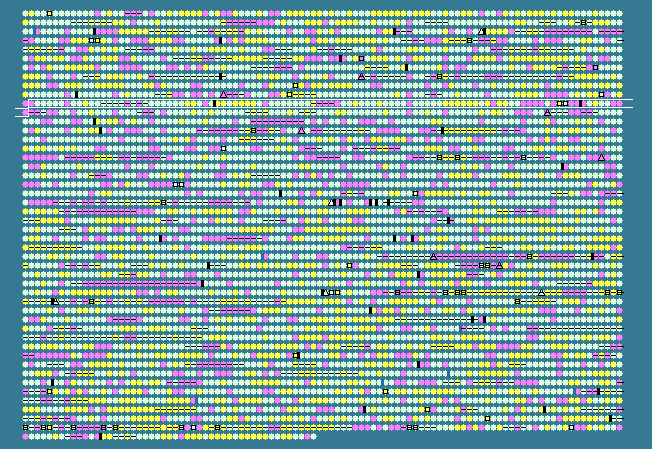

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.48 STD DEV: 5.64
Escherichia coli E24377A, complete genome - 1..4979619
4749 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1002	 45.01	0	1077140..1077841	+	233	157155029	-	EcE24377A_1054	-	periplasmic pilus chaperone family protein
1003	 47.94	0	1077866..1080466	+	866	157156978	fimD2	EcE24377A_1055	-	outer membrane usher protein fimD
1004	 48.55	0	1080457..1081527	+	356	157156290	-	EcE24377A_1056	-	putative fimbrial protein
1005	 47.15	0	1081539..1082081	+	180	157157964	-	EcE24377A_1057	-	fimbrial protein
1006	 47.67	0	1082089..1082604	+	171	157159298	-	EcE24377A_1058	-	fimbrial protein
1007	 51.49	0	1082570..1083307	+	245	157157571	-	EcE24377A_1059	-	hypotheical protein
1008	 46.88	0	1083418..1084428	+	336	157158241	pyrD	EcE24377A_1060	-	dihydroorotate dehydrogenase 2
1009	 49.57	0	1084566..1085144	+	192	157156639	-	EcE24377A_1062	-	hypothetical protein
1010	 50.54	0	1085141..1086250	-	369	157154931	-	EcE24377A_1061	-	MOSC domain-containing protein
1011	 54.15	0	1086494..1088602	+	702	157155561	-	EcE24377A_1063	-	23S rRNA m(2)G2445 methyltransferase
1012	 52.62	0	1088614..1090521	+	635	157158467	uup	EcE24377A_1064	-	ABC transporter ATPase component
1013	 52.15	0	1090651..1091904	+	417	157155514	pqiA	EcE24377A_1065	-	paraquat-inducible protein A
1014	 50.21	0	1091909..1093549	+	546	157155915	pqiB	EcE24377A_1066	-	paraquat-inducible protein B
1015	 52.13	0	1093546..1094109	+	187	157156583	-	EcE24377A_1067	-	hypothetical protein
1016	 52.99	0	1094602..1095120	-	172	157157557	fabA	EcE24377A_1068	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
1017	 51.85	0	1095189..1096949	-	586	157158226	-	EcE24377A_1069	-	S16 family peptidase
1018	 46.36	0	1097135..1097587	+	150	157158645	-	EcE24377A_1070	-	hypothetical protein
1019	 53.37	0	1097662..1098714	-	350	157159269	ompA	EcE24377A_1071	-	outer membrane protein A
1020	 36.53	-2	1098869..1099087	+	72	157158822	-	EcE24377A_1073	-	hypothetical protein
1021	 48.24	0	1099071..1099580	-	169	157158913	sulA	EcE24377A_1072	-	SOS cell division inhibitor
1022	 48.10	0	1099799..1100428	+	209	157159114	-	EcE24377A_1075	-	TfoX family protein
1023	 52.20	0	1100391..1102553	-	720	157157855	-	EcE24377A_1074	-	hypothetical protein
1024	 48.32	0	1102563..1103009	-	148	157155098	-	EcE24377A_1076	-	hypothetical protein
1025	 52.70	0	1103132..1105186	+	684	157155618	helD	EcE24377A_1077	-	DNA helicase IV
1026	 52.51	0	1105218..1105676	-	152	157156482	mgsA	EcE24377A_1078	-	methylglyoxal synthase
1027	 50.68	0	1105772..1106434	-	220	157156641	-	EcE24377A_1079	-	hypothetical protein
1028	 55.31	0	1106607..1107020	+	137	157156884	-	EcE24377A_1080	-	putative CoA-binding protein
1029	 56.29	+1	1107065..1107382	-	105	157156189	-	EcE24377A_1081	-	hemimethylated DNA-binding protein
1030	 51.72	0	1107440..1108630	-	396	157155655	-	EcE24377A_1082	-	hypothetical protein
1031	 46.36	0	1109000..1109329	-	109	157155117	tusE	EcE24377A_1083	-	sulfurtransferase TusE
1032	 50.91	0	1109420..1110079	-	219	157159032	-	EcE24377A_1084	-	hypothetical protein
1033	 55.94	0	1110800..1111918	+	372	157155331	hyaA	EcE24377A_1087	-	nickel-dependent hydrogenase, small subunit
1034	 56.74	+1	1111915..1113708	+	597	157158524	hyaB	EcE24377A_1088	-	hydrogenase 1 large subunit
1035	 51.84	0	1113727..1114434	+	235	157157370	hyaC	EcE24377A_1089	-	hydrogenase 1 b-type cytochrome subunit
1036	 57.99	+1	1114431..1115018	+	195	157157868	hyaD	EcE24377A_1090	-	hydrogenase 1 maturation protease
1037	 56.64	+1	1115015..1115413	+	132	157156331	hyaE	EcE24377A_1091	-	hydrogenase-1 operon protein HyaE
1038	 54.66	0	1115410..1116267	+	285	157156865	hyaF	EcE24377A_1092	-	hydrogenase-1 operon protein HyaF
1039	 53.98	0	1116401..1117945	+	514	157155682	appC	EcE24377A_1093	-	cytochrome bd-II oxidase, subunit I
1040	 53.30	0	1117957..1119093	+	378	157158801	appB	EcE24377A_1094	-	cytochrome bd-II oxidase, subunit II
1041	 46.24	0	1119106..1119198	+	30	157158417	-	EcE24377A_1095	-	putative cyd operon protein YbgT
1042	 53.81	0	1119278..1120576	+	432	157159123	appA	EcE24377A_1096	-	phosphoanhydride phosphorylase
1043	 50.53	0	1120691..1122871	-	726	157154890	etk	EcE24377A_1097	-	cryptic autophosphorylating protein tyrosine kinase Etk
1044	 52.13	0	1122891..1123337	-	148	157155359	-	EcE24377A_1098	-	phosphotyrosine-protein phosphatase
1045	 50.56	0	1123325..1124485	-	386	157156218	yccZ	EcE24377A_1099	-	outer membrane lipoprotein, group 4 capsule (G4C) polysaccharide
1046	 51.88	0	1124510..1126606	-	698	157157653	-	EcE24377A_1100	-	putative lipoprotein
1047	 52.07	0	1126606..1127352	-	248	157158170	-	EcE24377A_1101	-	hypothetical protein
1048	 47.75	0	1127349..1127993	-	214	157156862	ymcC	EcE24377A_1102	-	group 4 capsule (G4C) polysaccharide, lipoprotein YmcC
1049	 55.56	0	1128100..1128423	-	107	157156316	-	EcE24377A_1103	-	putative inner membrane protein
1050	 46.95	0	1128847..1129059	-	70	157158514	-	EcE24377A_1104	-	cold shock DNA-binding protein
1051	 44.13	-1	1129345..1129557	+	70	157157933	-	EcE24377A_1105	-	cold shock protein CspG
1052	 39.66	-1	1129951..1130124	+	57	157157632	-	EcE24377A_1107	-	GnsA/GnsB family transcriptional regulator
1053	 39.66	-1	1129966..1130139	-	57	157158171	-	EcE24377A_1106	-	hypothetical protein
1054	 49.07	0	1130172..1131245	-	357	157156552	-	EcE24377A_1108	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1055	 52.12	0	1131119..1131283	-	54	157156051	-	EcE24377A_1109	-	hypothetical protein
1056	 54.06	0	1131317..1134061	-	914	157158585	torS	EcE24377A_1110	-	hybrid sensory histidine kinase TorS
1057	 52.77	0	1134144..1135172	+	342	157155126	torT	EcE24377A_1112	-	periplasmic sensory protein associated with the TorRS two-component regulatory system
1058	 52.53	0	1135145..1135837	-	230	157158972	torR	EcE24377A_1111	-	DNA-binding transcriptional regulator TorR
1059	 51.24	0	1135967..1137139	+	390	157155491	torC	EcE24377A_1113	-	cytochrome c-type protein torC
1060	 55.44	0	1137139..1139685	+	848	157155850	torA	EcE24377A_1114	-	trimethylamine-N-oxide reductase
1061	 52.83	0	1139682..1140281	+	199	157156231	torD	EcE24377A_1116	-	chaperone protein TorD
1062	 52.67	0	1140221..1140370	-	49	157156655	-	EcE24377A_1115	-	hypothetical protein
1063	 53.59	0	1140374..1140679	-	101	157158092	cbpM	EcE24377A_1117	-	chaperone-modulator protein CbpM
1064	 53.09	0	1140679..1141599	-	306	157157841	cbpA	EcE24377A_1118	-	curved DNA-binding protein CbpA
1065	 33.97	-2	1141859..1143118	+	419	157157400	-	EcE24377A_1119	-	hypothetical protein
1066	 51.29	0	1143409..1144650	+	413	157158962	agp	EcE24377A_1120	-	glucose-1-phosphatase/inositol phosphatase
1067	 47.37	0	1144688..1144915	-	75	157158367	-	EcE24377A_1121	-	hypothetical protein
1068	 53.77	0	1144936..1145532	-	198	157158115	wrbA	EcE24377A_1122	-	TrpR binding protein WrbA
1069	 51.72	0	1145905..1146078	+	57	157157480	-	EcE24377A_1123	-	hypothetical protein
1070	 53.72	0	1146161..1147489	-	442	157159382	-	EcE24377A_1124	-	putative purine permease ycdG
1071	 58.38	+1	1147510..1148004	-	164	157158870	-	EcE24377A_1125	-	putative flavin reductase rutF
1072	 55.67	0	1148015..1148605	-	196	157156722	-	EcE24377A_1126	-	hypothetical protein
1073	 58.05	+1	1148615..1149415	-	266	157154886	-	EcE24377A_1127	-	putative rutD protein
1074	 54.01	0	1149423..1149809	-	128	157155569	-	EcE24377A_1128	-	rutC protein
1075	 54.89	0	1149821..1150516	-	231	157158711	-	EcE24377A_1129	-	putative isochorismatase family protein, rutB
1076	 54.57	0	1150513..1151694	-	393	157155454	-	EcE24377A_1130	-	putative monooxygenase rutA
1077	 51.17	0	1151891..1152529	+	212	157158459	rutR	EcE24377A_1131	-	transcriptional regulator RutR
1078	 56.37	+1	1152569..1156531	-	1320	157158674	putA	EcE24377A_1132	-	trifunctional transcriptional regulator/proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
1079	 35.24	-2	1156586..1156795	+	69	157157996	-	EcE24377A_1134	-	hypothetical protein
1080	 54.21	0	1156954..1158462	+	502	157156407	putP	EcE24377A_1135	-	sodium/proline symporter
1081	 54.51	0	1159004..1159834	+	276	157156355	-	EcE24377A_1136	-	FTR1 family iron permease
1082	 50.89	0	1159892..1161019	+	375	157156898	-	EcE24377A_1137	-	hypothetical protein
1083	 53.46	0	1161025..1162296	+	423	157157331	-	EcE24377A_1138	-	Tat-translocated enzyme
1084	 42.93	-1	1162363..1162560	-	65	157157900	-	EcE24377A_1139	-	hypothetical protein
1085	 44.20	-1	1163753..1164166	-	137	157158963	pgaD	EcE24377A_1141	-	biofilm PGA synthesis protein PgaD
1086	 46.46	0	1164168..1165493	-	441	157157335	pgaC	EcE24377A_1142	-	N-glycosyltransferase PgaC
1087	 44.38	-1	1165486..1167504	-	672	157157853	pgaB	EcE24377A_1143	-	biofilm PGA synthesis lipoprotein pgaB
1088	 47.07	0	1167513..1169936	-	807	157158435	pgaA	EcE24377A_1144	-	outer membrane protein PgaA
1089	 38.23	-2	1170451..1171881	+	476	157158903	-	EcE24377A_1145	-	diguanylate cyclase
1090	 55.13	0	1171922..1172788	-	288	157159400	-	EcE24377A_1146	-	IS3, transposase orfB
1091	 50.00	0	1172785..1173084	-	99	157155285	-	EcE24377A_1147	-	IS3, transposase orfA
1092	 43.99	-1	1173134..1173499	+	121	157155666	-	EcE24377A_1148	-	hypothetical protein
1093	 40.53	-1	1173489..1174475	+	328	157156350	-	EcE24377A_1149	-	hypothetical protein
1094	 39.47	-1	1175217..1175330	-	37	157157820	-	EcE24377A_1151	-	hypothetical protein
1095	 48.37	0	1176344..1177081	+	245	157154960	-	EcE24377A_1153	-	putative hydrolase
1096	 54.05	0	1177105..1177659	+	184	157155138	-	EcE24377A_1154	-	chaperone TorD
1097	 53.66	0	1177761..1178252	+	163	157155603	-	EcE24377A_1155	-	hypothetical protein
1098	 50.24	0	1178316..1179149	-	277	157157085	csgG	EcE24377A_1156	-	curli production assembly/transport subunit CsgG
1099	 41.97	-1	1179176..1179592	-	138	157156394	csgF	EcE24377A_1157	-	curli assembly protein CsgF
1100	 42.82	-1	1179617..1180006	-	129	157156361	csgE	EcE24377A_1158	-	curli assembly protein CsgE
1101	 41.47	-1	1180011..1180661	-	216	157155649	csgD	EcE24377A_1159	-	DNA-binding transcriptional regulator CsgD
50.48	MEAN

5.64	STD DEV
