IslandPath Analysis: Escherichia coli APEC O1

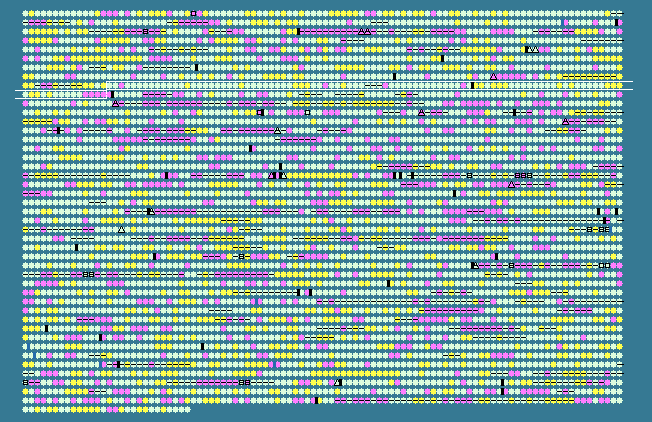

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
815	 51.76	0	954178..954432	+	84	117623120	ogr	APECO1_14	-	DNA-binding transcriptional regulator
816	 51.20	0	954751..957033	-	760	117623121	pflB	APECO1_15	-	PflB
817	 43.27	-1	957088..958284	-	398	117623122	focA	APECO1_16	-	formate transporter
818	 50.79	0	958351..960120	-	589	117623123	ycaO	APECO1_17	-	YcaO
819	 47.62	0	960241..960933	+	230	117623124	ycaP	APECO1_18	-	YcaP
820	 49.68	0	961132..962220	+	362	117623125	serC	APECO1_19	-	phosphoserine aminotransferase
821	 49.92	0	962291..963574	+	427	117623126	aroA	APECO1_20	-	3-phosphoshikimate 1-carboxyvinyltransferase
822	 48.84	0	963735..964508	+	257	117623127	ycaL	APECO1_21	-	YcaL
823	 53.65	0	964681..965364	+	227	117623128	cmk	APECO1_22	-	cytidylate kinase
824	 51.25	0	965475..967148	+	557	117623129	rpsA	APECO1_23	-	30S ribosomal protein S1
825	 48.22	0	967317..967625	-	102	117623130	-	APECO1_24	-	hypothetical protein
826	 49.89	0	967798..969663	+	621	117623131	ycaI	APECO1_25	-	YcaI
827	 50.43	0	970093..971841	+	582	117623132	msbA	APECO1_26	-	lipid transporter ATP-binding/permease protein
828	 55.22	0	971838..972824	+	328	117623133	lpxK	APECO1_27	-	tetraacyldisaccharide 4'-kinase
829	 52.55	0	972861..974093	+	410	117623134	ycaQ	APECO1_28	-	YcaQ
830	 48.89	0	974150..974419	-	89	117623135	-	APECO1_29	-	hypothetical protein
831	 52.61	0	974324..975070	+	248	117623136	kdsB	APECO1_30	-	3-deoxy-manno-octulosonate cytidylyltransferase
832	 51.90	0	975224..976117	+	297	117623137	ycbJ	APECO1_31	-	hypothetical protein
833	 52.18	0	976094..976873	-	259	117623138	ycbC	APECO1_32	-	hypothetical protein
834	 51.63	0	976997..977794	+	265	117623139	smtA	APECO1_33	-	putative metallothionein SmtA
835	 52.53	0	977791..979113	+	440	117623140	mukF	APECO1_34	-	condesin subunit F
836	 51.78	0	979067..979798	+	243	117623141	mukE	APECO1_35	-	condesin subunit E
837	 55.55	0	979798..984258	+	1486	117623142	mukB	APECO1_36	-	cell division protein MukB
838	 52.87	0	984519..986366	+	615	117623143	ycbB	APECO1_37	-	hypothetical protein
839	 50.64	0	986547..987095	+	182	117623144	ycbK	APECO1_38	-	YcbK
840	 51.85	0	987122..987769	+	215	117623145	ycbL	APECO1_39	-	YcbL
841	 52.31	0	987819..989009	-	396	117623146	aspC	APECO1_40	-	aromatic amino acid aminotransferase
842	 47.75	0	989194..990282	-	362	117623147	ompF	APECO1_41	-	outer membrane protein F
843	 52.46	0	990884..992284	-	466	162317582	asnC	APECO1_42	-	asparaginyl-tRNA synthetase
844	 51.56	0	992453..993703	-	416	117623149	pncB	APECO1_43	-	nicotinate phosphoribosyltransferase
845	 53.43	0	993921..996533	+	870	117623150	pepN	APECO1_44	-	aminopeptidase N
846	 56.51	+1	996728..997495	-	255	117623151	ssuB	APECO1_45	-	aliphatic sulfonates transport ATP-binding subunit
847	 54.97	0	997492..998286	-	264	117623152	ssuC	APECO1_46	-	alkanesulfonate transporter permease subunit
848	 56.98	+1	998295..999440	-	381	117623153	ssuD	APECO1_47	-	alkanesulfonate monooxygenase
849	 52.69	0	999437..1000438	-	333	117623154	ssuA	APECO1_48	-	alkanesulfonate transporter substrate-binding subunit
850	 54.34	0	1000389..1000964	-	191	117623155	ssuE	APECO1_49	-	NAD(P)H-dependent FMN reductase
851	 46.29	0	1001201..1002211	+	336	117623156	pyrD	APECO1_50	-	dihydroorotate dehydrogenase 2
852	 48.19	0	1002349..1002927	+	192	117623157	ycbW	APECO1_51	-	hypothetical protein
853	 50.18	0	1002924..1004033	-	369	117623158	ycbX	APECO1_52	-	YcbX
854	 54.43	0	1004131..1006239	+	702	117623159	ycbY	APECO1_53	-	23S rRNA m(2)G2445 methyltransferase
855	 52.10	0	1006251..1008158	+	635	117623160	uup	APECO1_55	-	ABC transporter ATPase component
856	 51.91	0	1008288..1009541	+	417	117623161	pqiA	APECO1_56	-	paraquat-inducible protein A
857	 50.09	0	1009528..1011186	+	552	117623162	pqiB	APECO1_57	-	paraquat-inducible protein B
858	 52.84	0	1011183..1011746	+	187	117623163	-	APECO1_58	-	hypothetical protein
859	 51.60	0	1012239..1012955	-	238	117623164	fabA	APECO1_59	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
860	 52.24	0	1012826..1014412	-	528	117623165	ycbZ	APECO1_60	-	YcbZ
861	 47.02	0	1014772..1015224	+	150	117623166	ycbG	APECO1_61	-	hypothetical protein
862	 52.11	0	1015302..1016414	-	370	117623167	ompA	APECO1_62	-	outer membrane protein A
863	 48.43	0	1016698..1017207	-	169	117623168	sulA	APECO1_63	-	SOS cell division inhibitor
864	 47.78	0	1017426..1018055	+	209	117623169	yccR	APECO1_64	-	hypothetical protein
865	 51.92	0	1018018..1020180	-	720	117623170	yccS	APECO1_65	-	YccS
866	 48.77	0	1020190..1020636	-	148	117623171	yccF	APECO1_66	-	hypothetical protein
867	 51.96	0	1020666..1022813	+	715	117623172	helD	APECO1_67	-	DNA helicase IV
868	 51.28	0	1022845..1023312	-	155	117623173	mgsA	APECO1_68	-	methylglyoxal synthase
869	 50.23	0	1023399..1024061	-	220	117623174	-	APECO1_69	-	hypothetical protein
870	 54.06	0	1024180..1024647	+	155	117623175	-	APECO1_70	-	hypothetical protein
871	 53.39	0	1024692..1025060	-	122	117623176	-	APECO1_71	-	hypothetical protein
872	 51.81	0	1025067..1026257	-	396	117623177	yccW	APECO1_72	-	hypothetical protein
873	 51.22	0	1026139..1026630	+	163	117623178	yccX	APECO1_73	-	putative acylphosphatase
874	 46.97	0	1026627..1026956	-	109	117623179	yccK	APECO1_74	-	sulfurtransferase TusE
875	 51.52	0	1027048..1027707	-	219	117623180	yccA	APECO1_75	-	hypothetical protein
876	 56.20	+1	1028401..1029546	+	381	117623181	hyaA	APECO1_76	-	hydrogenase 1, small subunit
877	 56.19	+1	1029543..1031336	+	597	117623182	hyaB	APECO1_77	-	hydrogenase 1 large subunit
878	 51.55	0	1031355..1032062	+	235	117623183	hyaC	APECO1_78	-	hydrogenase 1 b-type cytochrome subunit
879	 59.35	+1	1032059..1032646	+	195	117623184	hyaD	APECO1_79	-	hydrogenase 1 maturation protease
880	 54.89	0	1032643..1033041	+	132	117623185	hyaE	APECO1_80	-	hydrogenase-1 operon protein HyaE
881	 55.34	0	1032978..1033895	+	305	117623186	hyaF	APECO1_81	-	hydrogenase-1 operon protein HyaF
882	 53.90	0	1034023..1035573	+	516	117623187	appC	APECO1_82	-	cytochrome bd-II oxidase, subunit I
883	 53.12	0	1035585..1036721	+	378	117623188	appB	APECO1_83	-	cytochrome bd-II oxidase, subunit II
884	 53.69	0	1036876..1038216	+	446	117623189	appA	APECO1_84	-	phosphoanhydride phosphorylase
885	 48.60	0	1039530..1040603	-	357	117623190	yccM	APECO1_85	-	putative electron transport protein YccM
886	 54.04	0	1040686..1043418	-	910	117623191	torS	APECO1_86	-	hybrid sensory histidine kinase TorS
887	 53.16	0	1043501..1044529	+	342	117623192	torT	APECO1_87	-	periplasmic sensory protein associated with the TorRS two-component regulatory system
888	 53.54	0	1044502..1045194	-	230	117623193	torR	APECO1_88	-	DNA-binding transcriptional regulator TorR
889	 51.41	0	1045324..1046496	+	390	117623194	torC	APECO1_89	-	cytochrome c-type protein TorC
890	 55.28	0	1046496..1049042	+	848	117623195	torA	APECO1_90	-	trimethylamine-N-oxide reductase 1 precursor
891	 52.29	0	1049006..1049638	+	210	117623196	torD	APECO1_91	-	chaperone protein TorD
892	 54.90	0	1049994..1050299	-	101	117623197	yccD	APECO1_92	-	chaperone-modulator protein CbpM
893	 53.20	0	1050299..1051219	-	306	117623198	cbpA	APECO1_93	-	curved DNA-binding protein CbpA
894	 51.05	0	1051754..1052995	+	413	117623199	agp	APECO1_94	-	glucose-1-phosphatase/inositol phosphatase
895	 53.94	0	1053281..1053877	-	198	117623200	wrbA	APECO1_95	-	TrpR binding protein WrbA
896	 53.74	0	1054506..1055201	-	231	117623201	ycdG	APECO1_96	-	transport protein
897	 54.10	0	1055198..1055794	-	198	117623202	-	APECO1_97	-	hypothetical protein
898	 57.64	+1	1055749..1056324	-	191	117623203	ycdH	APECO1_98	-	oxidoreductase, flavin:NADH component
899	 56.68	+1	1056254..1056844	-	196	117623204	ycdI	APECO1_99	-	hypothetical protein
900	 57.68	+1	1056854..1057654	-	266	117623205	rarA	APECO1_100	-	hydrolase
901	 53.75	0	1057662..1058048	-	128	117623206	ycdK	APECO1_101	-	hypothetical protein
902	 56.33	+1	1058060..1058794	-	244	117623207	-	APECO1_102	-	hypothetical protein
903	 54.83	0	1058752..1059900	-	382	117623208	ycdM	APECO1_103	-	putative monooxygenase YcdM
904	 50.70	0	1060130..1060768	+	212	117623209	ycdC	APECO1_104	-	transcriptional regulator YcdC
905	 56.17	+1	1060808..1064770	-	1320	117623210	putA	APECO1_105	-	trifunctional transcriptional regulator/proline dehydrogenase/pyrroline-5-carboxylate dehydrogenase
906	 53.55	0	1065193..1066701	+	502	117623211	putP	APECO1_106	-	proline:sodium symporter
907	 54.05	0	1066912..1067751	+	279	117623212	ycdN	APECO1_107	-	hypothetical protein
908	 50.89	0	1067809..1068936	+	375	117623213	ycdO	APECO1_108	-	hypothetical protein
909	 53.69	0	1068942..1070213	+	423	117623214	ycdB	APECO1_110	-	hypothetical protein
910	 52.60	0	1070704..1071627	+	307	117623215	phoH	APECO1_111	-	hypothetical protein
911	 43.72	-1	1071677..1072090	-	137	117623216	ycdP	APECO1_112	-	inner membrane protein
912	 46.98	0	1072092..1073417	-	441	117623217	ycdQ	APECO1_113	-	N-glycosyltransferase PgaC
913	 44.43	-1	1073410..1075428	-	672	117623218	ycdR	APECO1_114	-	hypothetical protein
914	 46.95	0	1075437..1077860	-	807	117623219	ycdS	APECO1_115	-	outer membrane protein PgaA
50.94	MEAN

4.72	STD DEV
