IslandPath Analysis: Escherichia coli APEC O1

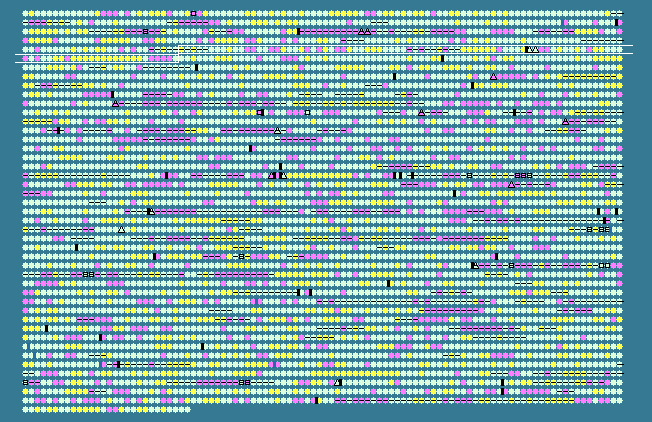

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
427	 57.30	+1	507821..509752	+	643	117622727	dnaX	APECO1_1545	-	DNA polymerase III subunits gamma and tau
428	 52.42	0	509805..510134	+	109	117622728	-	APECO1_1544	-	hypothetical protein
429	 56.93	+1	510134..510739	+	201	117622729	recR	APECO1_1543	-	recombination protein RecR
430	 52.80	0	510849..512723	+	624	117622730	htpG	APECO1_1542	-	heat shock protein 90
431	 51.42	0	512847..513548	+	233	117622731	adk	APECO1_1541	-	adenylate kinase
432	 53.37	0	513680..514642	+	320	117622732	hemH	APECO1_1540	-	ferrochelatase
433	 51.46	0	514639..515598	-	319	117622733	ybaC	APECO1_1539	-	acetyl esterase
434	 52.41	0	515750..517054	+	434	117622734	gsk	APECO1_1538	-	inosine-guanosine kinase
435	 55.46	0	517184..518860	-	558	117622735	ybaL	APECO1_1537	-	putative cation:proton antiport protein
436	 52.17	0	519099..520319	-	406	117622736	fsr	APECO1_1536	-	fosmidomycin resistance protein
437	 50.64	0	520537..522189	+	550	117622737	ushA	APECO1_1535	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
438	 39.88	-2	522227..522730	-	167	117622738	-	APECO1_1534	-	hypothetical protein
439	 46.07	-1	522727..523527	-	266	117622739	-	APECO1_1533	-	hypothetical protein
440	 50.00	0	523551..524030	-	159	117622740	ybaK	APECO1_1532	-	hypothetical protein
441	 53.96	0	524234..525028	-	264	117622741	ybaP	APECO1_1531	-	putative ligase
442	 41.91	-1	525161..525463	+	100	117622742	-	APECO1_1530	-	hypothetical protein
443	 45.03	-1	525499..525840	+	113	117622743	ybaQ	APECO1_1529	-	DNA-binding transcriptional regulator
444	 58.32	+1	525898..528402	-	834	117622744	ybaR	APECO1_1528	-	copper exporting ATPase
445	 53.05	0	528664..529596	+	310	117622745	ybaS	APECO1_1527	-	glutaminase
446	 53.75	0	529599..530891	+	430	117622746	ybaT	APECO1_1526	-	transporter
447	 56.62	+1	531016..531423	+	135	117622747	ybbI	APECO1_1525	-	DNA-binding transcriptional regulator CueR
448	 43.50	-1	531627..532049	-	140	117622748	-	APECO1_1524	-	hypothetical protein
449	 48.48	0	532135..533151	-	338	117622749	-	APECO1_1523	-	adhesin/invasin-like protein
450	 42.70	-1	533518..533880	+	120	117622750	-	APECO1_1522	-	hypothetical protein
451	 57.52	+1	533983..534441	-	152	117622751	ybbJ	APECO1_1521	-	hypothetical protein
452	 52.61	0	534438..535355	-	305	117622752	ybbK	APECO1_1520	-	putative protease YbbK
453	 45.43	-1	535501..536178	+	225	117622753	ybbL	APECO1_1519	-	putative ABC transporter ATP-binding protein YbbL
454	 46.22	0	536138..536944	+	268	117622754	ybbM	APECO1_1518	-	putative metal resistance protein
455	 55.33	0	537007..537897	-	296	117622755	ybbN	APECO1_1517	-	thioredoxin domain-containing protein
456	 53.70	0	537922..538731	-	269	117622756	ybbO	APECO1_1516	-	short chain dehydrogenase
457	 52.97	0	538721..539377	-	218	117622757	tesA	APECO1_1515	-	multifunctional acyl-CoA thioesterase I and protease I and lysophospholipase L1
458	 55.75	+1	539315..540001	+	228	117622758	ybbA	APECO1_1513	-	putative ABC transporter ATP-binding protein YbbA
459	 57.81	+1	539998..542412	+	804	117622759	ybbP	APECO1_1512	-	hypothetical protein
460	 55.25	0	542471..543565	-	364	117622760	ybbB	APECO1_1511	-	tRNA 2-selenouridine synthase
461	 52.32	0	543634..544560	-	308	117622761	ybbS	APECO1_1510	-	DNA-binding transcriptional activator AllS
462	 50.10	0	544790..545272	+	160	117622762	allA	APECO1_1509	-	ureidoglycolate hydrolase
463	 52.94	0	545350..546165	+	271	117622763	ybbU	APECO1_1508	-	DNA-binding transcriptional repressor AllR
464	 52.51	0	546165..548036	+	623	117622764	gcl	APECO1_1507	-	glyoxylate carboligase
465	 44.27	-1	548049..548825	+	258	117622765	hyi	APECO1_1506	-	hydroxypyruvate isomerase
466	 50.63	0	548925..549803	+	292	117622766	ybbQ	APECO1_1505	-	2-hydroxy-3-oxopropionate reductase
467	 47.22	0	549973..551427	+	484	117622767	ybbW	APECO1_1504	-	allantoin permease
468	 51.54	0	551487..552848	+	453	117622768	allB	APECO1_1503	-	allantoinase
469	 51.45	0	552898..554205	+	435	117622769	ybbY	APECO1_1502	-	putative purine permease YbbY
470	 56.20	+1	554227..555372	+	381	117622770	glxK	APECO1_1501	-	glycerate kinase II
471	 46.18	-1	555501..556286	-	261	117622771	ylbA	APECO1_1500	-	hypothetical protein
472	 51.70	0	556297..557532	-	411	117622772	allC	APECO1_1499	-	allantoate amidohydrolase
473	 52.29	0	557554..558603	-	349	117622773	allD	APECO1_1498	-	ureidoglycolate dehydrogenase
474	 55.58	0	558920..560587	+	555	117622774	fdrA	APECO1_1497	-	membrane protein FdrA
475	 57.30	+1	560597..561856	+	419	117622775	ylbE	APECO1_1496	-	hypothetical protein
476	 57.60	+1	561867..562682	+	271	117622776	ylbF	APECO1_1495	-	hypothetical protein
477	 57.38	+1	562679..563572	+	297	117622777	arcC	APECO1_1494	-	carbamate kinase
478	 56.09	+1	563725..564792	-	355	117622778	purK	APECO1_1493	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
479	 58.24	+1	564789..565298	-	169	117622779	purE	APECO1_1492	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
480	 44.55	-1	565394..565723	-	109	117622780	-	APECO1_1491	-	hypothetical protein
481	 53.80	0	565834..566556	-	240	117622781	ybbF	APECO1_1490	-	UDP-2,3-diacylglucosamine hydrolase
482	 54.33	0	567227..568612	+	461	117622783	cysS	APECO1_1488	-	cysteinyl-tRNA synthetase
483	 52.87	0	568648..569169	-	173	117622784	-	APECO1_1487	-	hypothetical protein
484	 54.56	0	569491..570357	-	288	117622785	folD	APECO1_1486	-	bifunctional 5,10-methylene-tetrahydrofolate dehydrogenase/ 5,10-methylene-tetrahydrofolate cyclohydrolase
485	 48.03	0	570712..571092	-	126	117622786	intD	APECO1_1485	-	prophage DLP12 integrase
486	 47.79	0	571040..571447	-	135	117622787	intD	APECO1_1484	-	prophage DLP12 integrase
487	 40.99	-2	571757..572422	-	221	117622788	ybcY	APECO1_1483	-	hypothetical protein
488	 43.50	-1	572657..573610	-	317	117622789	ompT	APECO1_1482	-	outer membrane protease
489	 51.74	0	574268..575158	-	296	117622790	ybcH	APECO1_1481	-	hypothetical protein
490	 55.13	0	575159..578131	-	990	117622791	nfrA	APECO1_1480	-	bacteriophage N4 receptor, outer membrane subunit
491	 52.37	0	578118..580355	-	745	117622792	nfrB	APECO1_1479	-	bacteriophage N4 adsorption protein B
492	 51.84	0	580505..581947	-	480	117622793	cusS	APECO1_1478	-	sensor kinase CusS
493	 54.53	0	581937..582620	-	227	117622794	ylcA	APECO1_1477	-	DNA-binding transcriptional activator CusR
494	 51.55	0	582777..584159	+	460	117622795	cusC	APECO1_1476	-	copper/silver efflux system outer membrane protein CusC
495	 45.05	-1	584183..584515	+	110	117622796	-	APECO1_1475	-	periplasmic copper-binding protein
496	 55.80	+1	584531..585754	+	407	117622797	cusB	APECO1_1474	-	copper/silver efflux system membrane fusion protein CusB
497	 55.60	0	585766..588909	+	1047	117622798	cusA	APECO1_1473	-	copper/silver efflux system, membrane component
498	 52.87	0	588975..590387	+	470	117622799	pheP	APECO1_1472	-	phenylalanine transporter
499	 47.76	0	590469..591716	-	415	117622800	ybdG	APECO1_1471	-	hypothetical protein
500	 51.83	0	591824..592477	-	217	117622801	nfnB	APECO1_1470	-	dihydropteridine reductase
501	 47.40	0	592556..592939	-	127	117622802	ybdF	APECO1_1469	-	hypothetical protein
502	 51.74	0	593318..594436	-	372	117622803	ybdK	APECO1_1468	-	carboxylate-amine ligase
503	 44.44	-1	594652..594921	-	89	117622804	-	APECO1_1467	-	hypothetical protein
504	 48.51	0	595164..595934	-	256	117622805	entD	APECO1_1466	-	phosphopantetheinyltransferase component of enterobactin synthase multienzyme complex
505	 53.66	0	596253..598259	-	668	117622806	fepA	APECO1_1465	-	ferrienterobactin receptor precursor
506	 55.03	0	598442..599644	+	400	117622807	fes	APECO1_1464	-	enterobactin/ferric enterobactin esterase
507	 56.54	+1	599724..603743	+	1339	117622808	entF	APECO1_1463	-	enterobactin synthase subunit F
508	 44.66	-1	603839..605092	+	417	117622809	fepE	APECO1_1462	-	ferric enterobactin transport protein FepE
509	 56.00	+1	605089..606222	-	377	117622810	fepC	APECO1_1461	-	iron-enterobactin transporter ATP-binding protein
510	 57.60	+1	605901..606893	-	330	117622811	fepG	APECO1_1460	-	iron-enterobactin transporter permease
511	 59.98	+1	606890..607906	-	338	117622812	fepD	APECO1_1459	-	iron-enterobactin transporter membrane protein
512	 57.71	+1	608005..609255	+	416	117622813	ybdA	APECO1_1458	-	enterobactin exporter EntS
513	 55.69	+1	609259..610215	-	318	117622814	fepB	APECO1_1457	-	iron-enterobactin transporter periplasmic binding protein
514	 55.81	+1	610392..611579	+	395	117622815	entC	APECO1_1456	-	isochorismate synthase
515	 56.49	+1	611589..613199	+	536	117622816	entE	APECO1_1455	-	enterobactin synthase subunit E
516	 54.90	0	613213..614070	+	285	117622817	entB	APECO1_1454	-	2,3-dihydro-2,3-dihydroxybenzoate synthetase, isochroismatase
517	 57.01	+1	614040..614816	+	258	117622818	entA	APECO1_1453	-	2,3-dihydroxybenzoate-2,3-dehydrogenase
518	 58.45	+1	614819..615232	+	137	117622819	-	APECO1_1452	-	hypothetical protein
519	 57.17	+1	615413..617518	+	701	117622820	cstA	APECO1_1451	-	carbon starvation protein
520	 55.37	0	617838..618926	-	362	117622821	ybdH	APECO1_1450	-	hypothetical protein
521	 54.18	0	618998..620206	+	402	117622822	ybdL	APECO1_1449	-	putative aminotransferase
522	 46.35	0	620207..620836	-	209	117622823	ybdM	APECO1_1448	-	hypothetical protein
523	 46.52	0	620809..622029	-	406	117622824	ybdN	APECO1_1447	-	hypothetical protein
524	 37.17	-2	622176..623114	-	312	117622825	ybdO	APECO1_1446	-	putative transcriptional regulator YbdO
525	 46.10	-1	623283..624089	-	268	117622826	dsbG	APECO1_1445	-	disulfide isomerase/thiol-disulfide oxidase
526	 49.65	0	624401..624964	+	187	117622827	ahpC	APECO1_1444	-	alkyl hydroperoxide reductase subunit C
50.94	MEAN

4.72	STD DEV
