IslandPathversion 1.0

IslandPath Analysis: Escherichia coli APEC O1

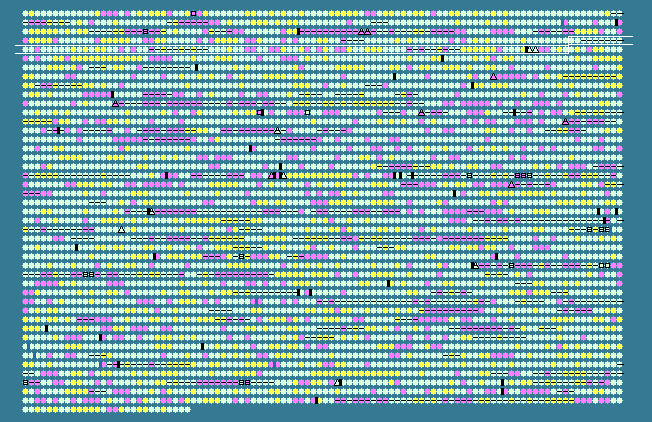

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
392	 50.68	0	466371..467327	-	318	117622692	cyoA	APECO1_1579	-	cytochrome o ubiquinol oxidase subunit II
393	 53.66	0	467786..469261	-	491	117622693	ampG	APECO1_1578	-	muropeptide transporter
394	 50.37	0	469305..469985	-	226	117622694	yajG	APECO1_1577	-	hypothetical protein
395	 48.43	0	470188..470505	+	105	162317585	bolA	APECO1_1576	-	transcriptional regulator BolA
396	 51.32	0	470849..472138	+	429	117622696	tig	APECO1_1575	-	trigger factor
397	 50.16	0	472393..473016	+	207	117622697	clpP	APECO1_1574	-	ATP-dependent Clp protease proteolytic subunit
398	 51.92	0	473142..474416	+	424	117622698	clpX	APECO1_1573	-	ATP-dependent protease ATP-binding subunit
399	 52.38	0	474559..476958	+	799	117622699	lon	APECO1_1572	-	DNA-binding ATP-dependent protease La
400	 49.08	0	477167..477439	+	90	117622700	hupB	APECO1_1571	-	transcriptional regulator HU subunit beta
401	 52.14	0	477631..479502	+	623	117622701	ppiD	APECO1_1570	-	peptidyl-prolyl cis-trans isomerase (rotamase D)
402	 54.03	0	479653..480024	+	123	117622702	ybaV	APECO1_1569	-	hypothetical protein
403	 46.12	-1	480130..480528	+	132	117622703	ybaW	APECO1_1568	-	hypothetical protein
404	 51.58	0	480580..481275	-	231	117622704	-	APECO1_1567	-	queuosine biosynthesis protein QueC
405	 52.85	0	481340..483040	-	566	117622705	ybaE	APECO1_1566	-	hypothetical protein
406	 50.54	0	483128..483958	+	276	117622706	cof	APECO1_1565	-	hypothetical protein
407	 48.53	0	483958..484569	+	203	117622707	ybaO	APECO1_1564	-	putative transcriptional regulator YbaO
408	 53.07	0	484599..486371	+	590	117622708	mdlA	APECO1_1563	-	putative multidrug transporter membrane\ATP-binding components
409	 56.01	+1	486250..488145	+	631	117622709	mdlB	APECO1_1562	-	putative multidrug transporter membrane\ATP-binding components
410	 48.85	0	488188..488664	+	158	117622710	glnK	APECO1_1561	-	glutamine synthetase activity regulation protein
411	 55.94	+1	488694..489980	+	428	117622711	amtB	APECO1_1560	-	ammonium transporter
412	 52.15	0	490029..490889	-	286	117622712	tesB	APECO1_1559	-	acyl-CoA thioesterase II
413	 54.45	0	491107..491679	+	190	117622713	ybaY	APECO1_1558	-	lipoprotein
414	 54.62	0	491710..492099	-	129	117622714	ybaZ	APECO1_1557	-	hypothetical protein
415	 48.59	0	492400..492753	+	117	117622715	-	APECO1_1556	-	hypothetical protein
416	 47.98	0	492795..494351	-	518	117622716	ylaB	APECO1_1555	-	hypothetical protein
417	 46.67	0	494509..495018	-	169	117622717	ylaC	APECO1_1554	-	hypothetical protein
418	 47.64	0	495095..495646	-	183	117622718	maa	APECO1_15532	-	maltose O-acetyltransferase
419	 39.29	-2	495820..496239	-	139	117622719	hha	APECO1_1553	-	Hha protein
420	 53.43	0	496983..500132	-	1049	117622720	acrB	APECO1_1552	-	acridine efflux pump
421	 53.69	0	500155..501348	-	397	117622721	acrA	APECO1_1551	-	acriflavine resistance protein A precursor
422	 45.68	-1	501490..502137	+	215	117622722	acrR	APECO1_1550	-	DNA-binding transcriptional repressor AcrR
423	 51.86	0	502265..505627	+	1120	117622723	kefA	APECO1_1549	-	potassium efflux protein KefA
424	 58.71	+1	506014..506541	-	175	117622724	priC	APECO1_1548	-	primosomal replication protein N''
425	 51.32	0	506611..506988	+	125	117622725	ybaN	APECO1_1547	-	hypothetical protein
426	 53.50	0	507108..507692	+	194	117622726	apt	APECO1_1546	-	adenine phosphoribosyltransferase
427	 57.30	+1	507821..509752	+	643	117622727	dnaX	APECO1_1545	-	DNA polymerase III subunits gamma and tau
428	 52.42	0	509805..510134	+	109	117622728	-	APECO1_1544	-	hypothetical protein
429	 56.93	+1	510134..510739	+	201	117622729	recR	APECO1_1543	-	recombination protein RecR
430	 52.80	0	510849..512723	+	624	117622730	htpG	APECO1_1542	-	heat shock protein 90
431	 51.42	0	512847..513548	+	233	117622731	adk	APECO1_1541	-	adenylate kinase
432	 53.37	0	513680..514642	+	320	117622732	hemH	APECO1_1540	-	ferrochelatase
433	 51.46	0	514639..515598	-	319	117622733	ybaC	APECO1_1539	-	acetyl esterase
434	 52.41	0	515750..517054	+	434	117622734	gsk	APECO1_1538	-	inosine-guanosine kinase
435	 55.46	0	517184..518860	-	558	117622735	ybaL	APECO1_1537	-	putative cation:proton antiport protein
436	 52.17	0	519099..520319	-	406	117622736	fsr	APECO1_1536	-	fosmidomycin resistance protein
437	 50.64	0	520537..522189	+	550	117622737	ushA	APECO1_1535	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
438	 39.88	-2	522227..522730	-	167	117622738	-	APECO1_1534	-	hypothetical protein
439	 46.07	-1	522727..523527	-	266	117622739	-	APECO1_1533	-	hypothetical protein
440	 50.00	0	523551..524030	-	159	117622740	ybaK	APECO1_1532	-	hypothetical protein
441	 53.96	0	524234..525028	-	264	117622741	ybaP	APECO1_1531	-	putative ligase
442	 41.91	-1	525161..525463	+	100	117622742	-	APECO1_1530	-	hypothetical protein
443	 45.03	-1	525499..525840	+	113	117622743	ybaQ	APECO1_1529	-	DNA-binding transcriptional regulator
444	 58.32	+1	525898..528402	-	834	117622744	ybaR	APECO1_1528	-	copper exporting ATPase
445	 53.05	0	528664..529596	+	310	117622745	ybaS	APECO1_1527	-	glutaminase
446	 53.75	0	529599..530891	+	430	117622746	ybaT	APECO1_1526	-	transporter
447	 56.62	+1	531016..531423	+	135	117622747	ybbI	APECO1_1525	-	DNA-binding transcriptional regulator CueR
448	 43.50	-1	531627..532049	-	140	117622748	-	APECO1_1524	-	hypothetical protein
449	 48.48	0	532135..533151	-	338	117622749	-	APECO1_1523	-	adhesin/invasin-like protein
450	 42.70	-1	533518..533880	+	120	117622750	-	APECO1_1522	-	hypothetical protein
451	 57.52	+1	533983..534441	-	152	117622751	ybbJ	APECO1_1521	-	hypothetical protein
452	 52.61	0	534438..535355	-	305	117622752	ybbK	APECO1_1520	-	putative protease YbbK
453	 45.43	-1	535501..536178	+	225	117622753	ybbL	APECO1_1519	-	putative ABC transporter ATP-binding protein YbbL
454	 46.22	0	536138..536944	+	268	117622754	ybbM	APECO1_1518	-	putative metal resistance protein
455	 55.33	0	537007..537897	-	296	117622755	ybbN	APECO1_1517	-	thioredoxin domain-containing protein
456	 53.70	0	537922..538731	-	269	117622756	ybbO	APECO1_1516	-	short chain dehydrogenase
457	 52.97	0	538721..539377	-	218	117622757	tesA	APECO1_1515	-	multifunctional acyl-CoA thioesterase I and protease I and lysophospholipase L1
458	 55.75	+1	539315..540001	+	228	117622758	ybbA	APECO1_1513	-	putative ABC transporter ATP-binding protein YbbA
459	 57.81	+1	539998..542412	+	804	117622759	ybbP	APECO1_1512	-	hypothetical protein
460	 55.25	0	542471..543565	-	364	117622760	ybbB	APECO1_1511	-	tRNA 2-selenouridine synthase
461	 52.32	0	543634..544560	-	308	117622761	ybbS	APECO1_1510	-	DNA-binding transcriptional activator AllS
462	 50.10	0	544790..545272	+	160	117622762	allA	APECO1_1509	-	ureidoglycolate hydrolase
463	 52.94	0	545350..546165	+	271	117622763	ybbU	APECO1_1508	-	DNA-binding transcriptional repressor AllR
464	 52.51	0	546165..548036	+	623	117622764	gcl	APECO1_1507	-	glyoxylate carboligase
465	 44.27	-1	548049..548825	+	258	117622765	hyi	APECO1_1506	-	hydroxypyruvate isomerase
466	 50.63	0	548925..549803	+	292	117622766	ybbQ	APECO1_1505	-	2-hydroxy-3-oxopropionate reductase
467	 47.22	0	549973..551427	+	484	117622767	ybbW	APECO1_1504	-	allantoin permease
468	 51.54	0	551487..552848	+	453	117622768	allB	APECO1_1503	-	allantoinase
469	 51.45	0	552898..554205	+	435	117622769	ybbY	APECO1_1502	-	putative purine permease YbbY
470	 56.20	+1	554227..555372	+	381	117622770	glxK	APECO1_1501	-	glycerate kinase II
471	 46.18	-1	555501..556286	-	261	117622771	ylbA	APECO1_1500	-	hypothetical protein
472	 51.70	0	556297..557532	-	411	117622772	allC	APECO1_1499	-	allantoate amidohydrolase
473	 52.29	0	557554..558603	-	349	117622773	allD	APECO1_1498	-	ureidoglycolate dehydrogenase
474	 55.58	0	558920..560587	+	555	117622774	fdrA	APECO1_1497	-	membrane protein FdrA
475	 57.30	+1	560597..561856	+	419	117622775	ylbE	APECO1_1496	-	hypothetical protein
476	 57.60	+1	561867..562682	+	271	117622776	ylbF	APECO1_1495	-	hypothetical protein
477	 57.38	+1	562679..563572	+	297	117622777	arcC	APECO1_1494	-	carbamate kinase
478	 56.09	+1	563725..564792	-	355	117622778	purK	APECO1_1493	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
479	 58.24	+1	564789..565298	-	169	117622779	purE	APECO1_1492	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
480	 44.55	-1	565394..565723	-	109	117622780	-	APECO1_1491	-	hypothetical protein
481	 53.80	0	565834..566556	-	240	117622781	ybbF	APECO1_1490	-	UDP-2,3-diacylglucosamine hydrolase
482	 54.33	0	567227..568612	+	461	117622783	cysS	APECO1_1488	-	cysteinyl-tRNA synthetase
483	 52.87	0	568648..569169	-	173	117622784	-	APECO1_1487	-	hypothetical protein
484	 54.56	0	569491..570357	-	288	117622785	folD	APECO1_1486	-	bifunctional 5,10-methylene-tetrahydrofolate dehydrogenase/ 5,10-methylene-tetrahydrofolate cyclohydrolase
485	 48.03	0	570712..571092	-	126	117622786	intD	APECO1_1485	-	prophage DLP12 integrase
486	 47.79	0	571040..571447	-	135	117622787	intD	APECO1_1484	-	prophage DLP12 integrase
487	 40.99	-2	571757..572422	-	221	117622788	ybcY	APECO1_1483	-	hypothetical protein
488	 43.50	-1	572657..573610	-	317	117622789	ompT	APECO1_1482	-	outer membrane protease
489	 51.74	0	574268..575158	-	296	117622790	ybcH	APECO1_1481	-	hypothetical protein
490	 55.13	0	575159..578131	-	990	117622791	nfrA	APECO1_1480	-	bacteriophage N4 receptor, outer membrane subunit
491	 52.37	0	578118..580355	-	745	117622792	nfrB	APECO1_1479	-	bacteriophage N4 adsorption protein B
50.94	MEAN

4.72	STD DEV
