IslandPathversion 1.0

IslandPath Analysis: Escherichia coli APEC O1

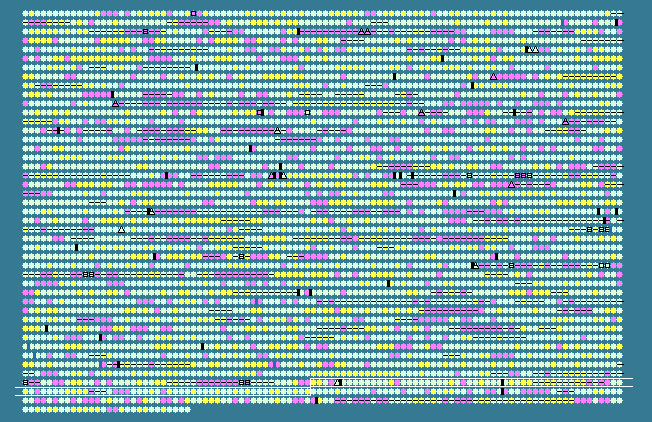

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4149	 54.74	0	4766031..4766357	-	108	117626480	-	APECO1_2258	-	hypothetical protein
4150	 54.96	0	4766398..4766901	-	167	117626481	insB	APECO1_2257	-	IS1 InsB protein
4151	 52.17	0	4766820..4767095	-	91	117626482	insA	APECO1_2256	-	IS1 InsA protein
4152	 45.62	-1	4767625..4768698	-	357	117626483	shiA	APECO1_2255	-	ShiA-like protein
4153	 48.74	0	4768924..4770189	-	421	117626484	int	APECO1_2254	-	Int (putative P4-type integrase)
4154	 53.50	0	4770569..4771168	-	199	117626485	yjdC	APECO1_2253	-	putative transcriptional regulator
4155	 53.29	0	4771181..4772959	-	592	117626486	dipZ	APECO1_2252	-	thiol:disulfide interchange protein precursor
4156	 52.38	0	4773308..4774609	-	433	117626487	dcuA	APECO1_2251	-	anaerobic C4-dicarboxylate transporter
4157	 48.79	0	4774727..4776208	-	493	117626488	aspA	APECO1_2250	-	aspartate ammonia-lyase
4158	 50.00	0	4776599..4776976	+	125	117626489	fxsA	APECO1_2249	-	FxsA
4159	 51.71	0	4776992..4778308	-	438	117626490	yjeH	APECO1_2248	-	inner membrane protein YjeH
4160	 50.93	0	4778391..4778714	-	107	117626491	-	APECO1_2247	-	hypothetical protein
4161	 53.07	0	4778861..4780507	+	548	117626492	groEL	APECO1_2246	-	chaperonin GroEL
4162	 54.52	0	4780612..4780998	+	128	117626493	yjeI	APECO1_2245	-	hypothetical protein
4163	 45.29	-1	4781048..4781917	-	289	117626494	yjeJ	APECO1_2244	-	hypothetical protein
4164	 53.16	0	4782152..4783180	-	342	117626495	yjeK	APECO1_2243	-	putative lysine aminomutase
4165	 49.74	0	4783222..4783788	+	188	117626496	efp	APECO1_2242	-	elongation factor P
4166	 53.14	0	4784398..4784715	+	105	117626497	sugE	APECO1_2241	-	quaternary ammonium compound-resistance protein SugE
4167	 53.37	0	4784712..4785245	-	177	117626498	blc	APECO1_2240	-	outer membrane lipoprotein Blc
4168	 49.64	0	4785334..4786596	-	420	117626499	ampC	APECO1_2239	-	beta-lactamase
4169	 53.61	0	4786530..4786889	-	119	117626500	frdD	APECO1_2238	-	fumarate reductase subunit D
4170	 49.24	0	4786900..4787295	-	131	117626501	frdC	APECO1_2237	-	fumarate reductase subunit C
4171	 53.99	0	4787306..4788031	-	241	117626502	frdB	APECO1_2236	-	fumarate reductase iron-sulfur subunit
4172	 56.33	+1	4788033..4789841	-	602	117626503	frdA	APECO1_2235	-	fumarate reductase flavoprotein subunit
4173	 52.18	0	4790136..4791143	+	335	117626504	yjeA	APECO1_2234	-	lysyl-tRNA synthetase
4174	 46.80	0	4791320..4792864	+	514	117626505	yjeM	APECO1_2233	-	putative transporter
4175	 49.21	0	4792927..4793241	+	104	117626506	yjeN	APECO1_2232	-	hypothetical protein
4176	 47.62	0	4793238..4793552	+	104	117626507	yjeO	APECO1_2231	-	hypothetical protein
4177	 55.69	+1	4793583..4796906	-	1107	117626508	yjeP	APECO1_2230	-	hypothetical protein
4178	 54.20	0	4796970..4797851	+	293	117626509	-	APECO1_2229	-	hypothetical protein
4179	 53.35	0	4797993..4799006	-	337	117626510	yjeQ	APECO1_2228	-	ribosome-associated GTPase
4180	 52.20	0	4799071..4799685	+	204	117626511	orn	APECO1_2227	-	oligoribonuclease
4181	 53.12	0	4800464..4801711	-	415	117626513	yjeS	APECO1_2225	-	putative electron transport protein YjeS
4182	 57.11	+1	4801602..4803149	+	515	117626514	yjeF	APECO1_2224	-	hypothetical protein
4183	 51.52	0	4803121..4803582	+	153	117626515	yjeE	APECO1_2223	-	putative ATPase
4184	 54.56	0	4803601..4804938	+	445	117626516	amiB	APECO1_2222	-	N-acetylmuramoyl-l-alanine amidase II
4185	 56.06	+1	4804948..4806795	+	615	117626517	mutL	APECO1_2221	-	DNA mismatch repair protein
4186	 52.89	0	4806788..4807738	+	316	117626518	miaA	APECO1_2220	-	tRNA delta(2)-isopentenylpyrophosphate transferase
4187	 48.22	0	4807824..4808132	+	102	117626519	hfq	APECO1_2219	-	RNA-binding protein Hfq
4188	 54.54	0	4808277..4809488	+	403	117626520	hflX	APECO1_2218	-	putative GTPase HflX
4189	 56.27	+1	4809574..4810833	+	419	117626521	hflK	APECO1_2217	-	FtsH protease regulator HflK
4190	 52.34	0	4810836..4811840	+	334	117626522	hflC	APECO1_2216	-	FtsH protease regulator HflC
4191	 53.89	0	4812223..4813521	+	432	117626523	purA	APECO1_2215	-	adenylosuccinate synthetase
4192	 48.36	0	4813726..4814151	+	141	117626524	yjeB	APECO1_2214	-	transcriptional repressor NsrR
4193	 54.63	0	4814148..4816631	+	827	117626525	rnr	APECO1_2213	-	exoribonuclease R
4194	 55.46	0	4816723..4817454	+	243	117626526	yjfH	APECO1_2212	-	23S rRNA (guanosine-2'-O-)-methyltransferase
4195	 38.81	-2	4817581..4817982	+	133	117626527	yjfI	APECO1_2211	-	hypothetical protein
4196	 50.93	0	4818001..4818699	+	232	117626528	yjfJ	APECO1_2210	-	transcriptional regulator effector protein
4197	 47.27	0	4818749..4819408	+	219	117626529	yjfK	APECO1_2209	-	hypothetical protein
4198	 44.58	-1	4819345..4819824	+	159	117626530	yjfL	APECO1_2208	-	hypothetical protein
4199	 49.30	0	4819834..4820472	+	212	117626531	yjfM	APECO1_2207	-	hypothetical protein
4200	 52.41	0	4820475..4821638	+	387	117626532	yjfC	APECO1_2206	-	putative synthetase/amidase
4201	 54.78	0	4821707..4823347	+	546	117626533	aidB	APECO1_2205	-	isovaleryl CoA dehydrogenase
4202	 51.49	0	4823464..4823766	-	100	117626534	yjfN	APECO1_2204	-	hypothetical protein
4203	 47.32	0	4823888..4824316	-	142	117626535	-	APECO1_2203	-	hypothetical protein
4204	 53.20	0	4824399..4825148	+	249	117626536	-	APECO1_2202	-	esterase
4205	 50.40	0	4825145..4825900	-	251	117626537	yjfQ	APECO1_2201	-	transcriptional repressor UlaR
4206	 51.91	0	4826008..4827078	-	356	117626538	ulaG	APECO1_2200	-	putative L-ascorbate 6-phosphate lactonase
4207	 52.72	0	4827427..4828824	+	465	162317558	ulaA	APECO1_2199	-	ascorbate-specific PTS system enzyme IIC
4208	 55.86	+1	4829161..4829493	-	110	117626541	-	APECO1_2197	-	hypothetical protein
4209	 56.07	+1	4829633..4830283	+	216	162317557	ulaD	APECO1_2196	-	3-keto-L-gulonate-6-phosphate decarboxylase
4210	 56.26	+1	4830293..4831147	+	284	117626543	ulaE	APECO1_2195	-	L-xylulose 5-phosphate 3-epimerase
4211	 55.90	+1	4831147..4831833	+	228	117626544	sgaE	APECO1_2194	-	L-ribulose-5-phosphate 4-epimerase
4212	 47.10	0	4831962..4832237	-	91	117626545	yjfY	APECO1_2193	-	hypothetical protein
4213	 52.78	0	4832565..4832960	+	131	117626546	rpsF	APECO1_2192	-	30S ribosomal protein S6
4214	 52.06	0	4832967..4833281	+	104	117626547	priB	APECO1_2191	-	primosomal replication protein N
4215	 49.78	0	4833555..4834004	+	149	117626548	rplI	APECO1_2190	-	50S ribosomal protein L9
4216	 44.51	-1	4834406..4834897	+	163	117626549	-	APECO1_2189	-	hypothetical protein
4217	 44.92	-1	4834900..4836168	+	422	117626550	-	APECO1_2188	-	hypothetical protein
4218	 46.40	0	4836311..4837588	-	425	117626551	-	APECO1_2187	-	putative hexuronate transporter
4219	 51.91	0	4837681..4839753	-	690	117626552	-	APECO1_2186	-	putative oxidoreductase
4220	 52.85	0	4839750..4841291	-	513	117626553	-	APECO1_2185	-	putative acetyl-CoA:acetoacetyl-CoA transferase
4221	 49.55	0	4841301..4842077	-	258	117626554	-	APECO1_2184	-	hypothetical protein
4222	 54.65	0	4842080..4842928	-	282	117626555	-	APECO1_2183	-	hypothetical protein
4223	 53.03	0	4842938..4843729	-	263	162317556	-	APECO1_2182	-	3-ketoacyl-(acyl-carrier-protein) reductase
4224	 41.23	-2	4843905..4844588	+	227	117626557	-	APECO1_2181	-	putative transcriptional regulator
4225	 55.26	0	4844572..4845246	-	224	117626558	ytfB	APECO1_2180	-	putative cell envelope opacity-associated protein
4226	 53.08	0	4845269..4846048	+	259	117626559	fklB	APECO1_2179	-	peptidyl-prolyl cis-trans isomerase
4227	 51.73	0	4846357..4847769	+	470	117626560	cycA	APECO1_2178	-	D-alanine/D-serine/glycine permease
4228	 53.09	0	4847814..4848476	-	220	117626561	ytfE	APECO1_2177	-	cell morphogenesis/cell wall metabolism regulator
4229	 55.79	+1	4848584..4849558	-	324	117626562	ytfF	APECO1_2176	-	putative inner membrane protein
4230	 53.54	0	4849657..4850517	-	286	117626563	ytfG	APECO1_2175	-	hypothetical protein
4231	 51.63	0	4850495..4850986	+	163	117626564	ytfH	APECO1_2174	-	hypothetical protein
4232	 49.82	0	4851115..4853067	-	650	117626565	cpdB	APECO1_2173	-	bifunctional 2',3'-cyclic nucleotide 2'-phosphodiesterase/3'-nucleotidase periplasmic precursor protein
4233	 55.06	0	4853248..4853988	+	246	117626566	cysQ	APECO1_2172	-	PAPS (adenosine 3'-phosphate 5'-phosphosulfate) 3'(2'),5'-bisphosphate nucleotidase
4234	 50.90	0	4853978..4854535	-	185	117626567	ytfJ	APECO1_2171	-	hypothetical protein
4235	 50.00	0	4855144..4856487	-	447	117626568	ytfL	APECO1_2170	-	putative transport protein
4236	 54.95	0	4856810..4857475	-	221	117626569	msrA	APECO1_2169	-	methionine sulfoxide reductase A
4237	 53.81	0	4857654..4859387	+	577	117626570	ytfM	APECO1_2168	-	putative outer membrane protein and surface antigen
4238	 55.34	0	4859384..4863163	+	1259	117626571	ytfN	APECO1_2167	-	hypothetical protein
4239	 50.88	0	4863166..4863507	+	113	117626572	-	APECO1_2166	-	hypothetical protein
4240	 51.22	0	4863887..4864417	-	176	117626573	ppa	APECO1_2165	-	inorganic pyrophosphatase
4241	 50.05	0	4864727..4865683	+	318	117626574	ytfQ	APECO1_2164	-	ABC transporter periplasmic binding protein YtfQ
4242	 55.42	0	4865823..4867325	+	500	117626575	ytfR	APECO1_2163	-	putative ATP-binding component of a transport system
4243	 57.12	+1	4867336..4868361	+	341	117626576	ytfT	APECO1_2162	-	putative ABC transporter permease protein YtfT
4244	 51.41	0	4868348..4869343	+	331	117626577	yjfF	APECO1_2161	-	inner membrane ABC transporter permease protein YjfF
4245	 50.95	0	4869376..4870374	-	332	117626578	fbp	APECO1_2160	-	fructose-1,6-bisphosphatase
4246	 55.17	0	4870550..4871923	+	457	117626579	mpl	APECO1_2159	-	UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso-diaminopimelat e ligase
4247	 52.90	0	4872081..4872632	-	183	117626580	yjgA	APECO1_2158	-	hypothetical protein
4248	 54.69	0	4872726..4874078	+	450	117626581	pmbA	APECO1_2157	-	peptidase PmbA
50.94	MEAN

4.72	STD DEV
