IslandPath Analysis: Escherichia coli APEC O1

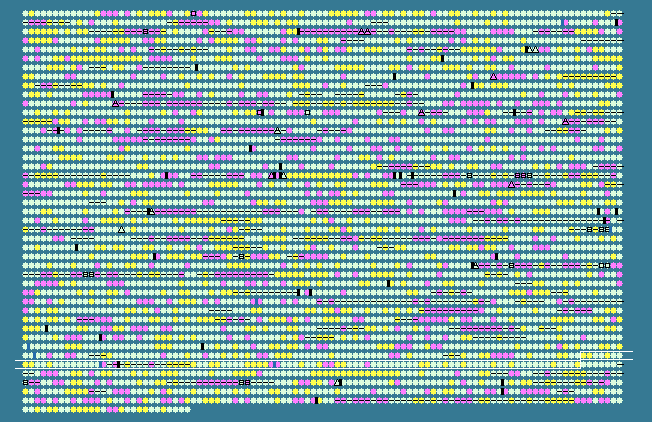

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3894	 55.17	0	4462520..4463467	+	315	117626221	pflC	APECO1_2515	-	pyruvate formate lyase II activase
3895	 54.81	0	4463406..4463810	+	134	117626222	frwD	APECO1_2514	-	putative fructose-like phosphotransferase EIIB subunit 3
3896	 53.05	0	4463797..4464648	-	283	117626223	yijO	APECO1_2513	-	DNA-binding transcriptional regulator
3897	 50.00	0	4464874..4466607	-	577	117626224	yjjP	APECO1_2512	-	hypothetical protein
3898	 55.77	+1	4466790..4469441	-	883	117626225	ppc	APECO1_2511	-	phosphoenolpyruvate carboxylase
3899	 52.06	0	4469743..4470933	-	396	117626226	argE	APECO1_2510	-	acetylornithine deacetylase
3900	 53.13	0	4471048..4472052	+	334	117626227	argC	APECO1_2509	-	N-acetyl-gamma-glutamyl-phosphate reductase
3901	 54.94	0	4472027..4472836	+	269	117626228	argB	APECO1_2508	-	acetylglutamate kinase
3902	 56.40	+1	4472897..4474270	+	457	117626229	argH	APECO1_2507	-	argininosuccinate lyase
3903	 49.10	0	4474708..4475982	+	424	117626230	rspA	APECO1_2506	-	starvation sensing protein RspA
3904	 50.93	0	4476049..4477332	+	427	117626231	yjjL	APECO1_2505	-	hypothetical protein
3905	 55.45	0	4477539..4478501	+	320	117626232	oxyR	APECO1_2504	-	DNA-binding transcriptional regulator OxyR
3906	 51.82	0	4478484..4479884	-	466	117626233	udhA	APECO1_2503	-	soluble pyridine nucleotide transhydrogenase
3907	 53.98	0	4480214..4481380	+	388	117626234	-	APECO1_2502	-	putative hippuricase
3908	 52.70	0	4481423..4482739	+	438	117626235	-	APECO1_2501	-	putative transporter
3909	 52.62	0	4482789..4483493	+	234	117626236	yijC	APECO1_2500	-	DNA-binding transcriptional repressor FabR
3910	 48.06	0	4483493..4483852	+	119	117626237	yijD	APECO1_2499	-	hypothetical protein
3911	 50.23	0	4483892..4484992	-	366	117626238	trmA	APECO1_2498	-	tRNA (uracil-5-)-methyltransferase
3912	 48.91	0	4485319..4487205	+	628	117626239	btuB	APECO1_2497	-	vitamin B12/cobalamin outer membrane transporter
3913	 51.75	0	4487150..4488007	+	285	162317562	murI	APECO1_2496	-	glutamate racemase
3914	 46.94	0	4493638..4494666	+	342	117626241	murB	APECO1_2495	-	UDP-N-acetylenolpyruvoylglucosamine reductase
3915	 49.07	0	4494663..4495628	+	321	117626242	birA	APECO1_2494	-	biotin--protein ligase
3916	 44.03	-1	4495657..4496628	-	323	117626243	coaA	APECO1_2493	-	pantothenate kinase
3917	 53.33	0	4497525..4498709	+	394	117626244	tufA	APECO1_2492	-	elongation factor Tu
3918	 54.95	0	4498939..4499322	+	127	117626245	secE	APECO1_2491	-	preprotein translocase subunit SecE
3919	 51.28	0	4499324..4499869	+	181	117626246	nusG	APECO1_2490	-	transcription antitermination protein NusG
3920	 51.50	0	4499974..4500975	-	333	117626247	-	APECO1_2489	-	hypothetical protein
3921	 52.21	0	4501456..4501953	+	165	117626248	rplJ	APECO1_2488	-	50S ribosomal protein L10
3922	 46.49	0	4502005..4502445	-	146	117626249	-	APECO1_2487	-	hypothetical protein
3923	 52.41	0	4502672..4506733	+	1353	117626250	rpoB	APECO1_2486	-	DNA-directed RNA polymerase subunit beta
3924	 53.67	0	4506810..4511033	+	1407	117626251	rpoC	APECO1_2485	-	DNA-directed RNA polymerase subunit beta'
3925	 54.50	0	4511273..4512406	-	377	117626252	thiH	APECO1_2484	-	thiamine biosynthesis protein ThiH
3926	 58.24	+1	4512403..4513173	-	256	162317561	thiG	APECO1_2483	-	thiazole synthase
3927	 56.42	+1	4513359..4514207	-	282	117626254	thiF	APECO1_2482	-	thiazole biosynthesis protein ThiF
3928	 58.33	+1	4514107..4514742	-	211	117626255	thiE	APECO1_24812	-	thiamine-phosphate pyrophosphorylase
3929	 55.12	0	4514742..4516637	-	631	117626256	thiC	APECO1_2481	-	thiamine biosynthesis protein ThiC
3930	 48.01	0	4516870..4517346	-	158	117626257	yjaE	APECO1_2480	-	anti-RNA polymerase sigma 70 factor
3931	 53.23	0	4517441..4518214	+	257	117626258	nudC	APECO1_2479	-	NADH pyrophosphatase
3932	 56.06	+1	4518254..4519318	+	354	117626259	hemE	APECO1_2478	-	uroporphyrinogen decarboxylase
3933	 58.78	+1	4519328..4519999	+	223	117626260	nfi	APECO1_2477	-	endonuclease V
3934	 49.24	0	4520042..4520632	+	196	117626261	yjaG	APECO1_2476	-	hypothetical protein
3935	 48.35	0	4520819..4521091	+	90	117626262	-	APECO1_2475	-	transcriptional regulator HU subunit alpha
3936	 53.85	0	4521098..4521799	+	233	117626263	yjaH	APECO1_2474	-	hypothetical protein
3937	 50.98	0	4521801..4522361	-	186	117626264	zraP	APECO1_2473	-	zinc resistance protein
3938	 54.47	0	4522458..4523834	+	458	117626265	zraS	APECO1_2472	-	sensor protein ZraS
3939	 56.64	+1	4523831..4525156	+	441	117626266	zraR	APECO1_2471	-	transcriptional regulatory protein ZraR
3940	 58.53	+1	4525153..4526442	-	429	117626267	purD	APECO1_2470	-	phosphoribosylamine--glycine ligase
3941	 55.72	+1	4526454..4528043	-	529	117626268	purH	APECO1_2469	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
3942	 46.74	0	4528359..4528619	-	86	117626269	-	APECO1_2468	-	hypothetical protein
3943	 44.79	-1	4533761..4534144	+	127	117626272	yjaA	APECO1_2465	-	hypothetical protein
3944	 53.15	0	4534208..4534651	-	147	117626273	yjaB	APECO1_2464	-	hypothetical protein
3945	 50.32	0	4534808..4535737	+	309	117626274	metA	APECO1_2463	-	homoserine O-succinyltransferase
3946	 51.17	0	4535988..4537607	+	539	117626275	aceB	APECO1_2462	-	malate synthase
3947	 55.23	0	4537622..4538941	+	439	117626276	aceA	APECO1_2461	-	isocitrate lyase
3948	 52.75	0	4538990..4540714	+	574	117626277	aceK	APECO1_2460	-	bifunctional isocitrate dehydrogenase kinase/phosphatase protein
3949	 53.94	0	4540731..4541594	-	287	117626278	iclR	APECO1_2459	-	transcriptional repressor IclR
3950	 55.74	+1	4541740..4545438	+	1232	117626279	metH	APECO1_2458	-	B12-dependent methionine synthase
3951	 34.27	-2	4545498..4545818	+	106	117626280	-	APECO1_2457	-	hypothetical protein
3952	 36.22	-2	4545861..4546310	+	149	117626281	-	APECO1_2456	-	hypothetical protein
3953	 55.09	0	4546481..4548112	+	543	117626282	yjbB	APECO1_2455	-	hypothetical protein
3954	 54.93	0	4548202..4548891	-	229	117626283	pepE	APECO1_2454	-	peptidase E
3955	 53.06	0	4549273..4550514	-	413	117626284	-	APECO1_2453	-	putative L-sorbose-1-P-reductase
3956	 54.21	0	4550554..4551396	-	280	117626285	-	APECO1_2452	-	PTS system, mannose-specific IID component
3957	 52.88	0	4551389..4552186	-	265	117626286	sorA	APECO1_2451	-	putative sorbose-permease PTS system IIC component SorA
3958	 45.05	-1	4552252..4552746	-	164	117626287	-	APECO1_2450	-	PTS system, sorbose-specific IIB component
3959	 54.41	0	4552746..4553153	-	135	117626288	-	APECO1_2449	-	putative sorbose PTS component
3960	 51.30	0	4553163..4553969	-	268	117626289	-	APECO1_2448	-	sorbitol-6-phosphate 2-dehydrogenase
3961	 49.45	0	4554039..4555031	-	330	117626290	-	APECO1_2447	-	putative transcriptional regulator of sorbose uptake and utilization genes
3962	 50.52	0	4555334..4556206	+	290	117626291	yjbC	APECO1_2446	-	23S rRNA pseudouridine synthase F
3963	 50.18	0	4556207..4556479	-	90	117626292	yjbD	APECO1_2445	-	hypothetical protein
3964	 53.85	0	4556732..4558081	-	449	117626293	lysC	APECO1_2444	-	aspartate kinase III
3965	 51.45	0	4558606..4560255	+	549	117626294	pgi	APECO1_2443	-	glucose-6-phosphate isomerase
3966	 54.11	0	4561080..4561748	+	222	117626296	yjbF	APECO1_2441	-	hypothetical protein
3967	 57.99	+1	4561745..4562482	+	245	117626297	yjbG	APECO1_2440	-	hypothetical protein
3968	 54.60	0	4562482..4564578	+	698	117626298	yjbH	APECO1_2439	-	hypothetical protein
3969	 48.39	0	4564625..4564903	-	92	117626299	-	APECO1_2438	-	hypothetical protein
3970	 48.91	0	4565118..4565528	+	136	117626300	yjbE	APECO1_2437	-	phosphate-starvation-inducible protein PsiE
3971	 54.99	0	4565622..4566512	-	296	117626301	malG	APECO1_2436	-	maltose transporter permease
3972	 52.95	0	4566527..4568086	-	519	117626302	malF	APECO1_2435	-	maltose transporter membrane protein
3973	 50.29	0	4568225..4569415	-	396	117626303	malE	APECO1_2434	-	maltose ABC transporter periplasmic protein
3974	 54.48	0	4569690..4570895	+	401	117626304	malK	APECO1_2433	-	maltose/maltodextrin transporter ATP-binding protein
3975	 51.90	0	4570967..4572307	+	446	117626305	lamB	APECO1_2432	-	maltoporin
3976	 52.58	0	4572621..4573550	+	309	117626306	malM	APECO1_2431	-	maltose regulon periplasmic protein
3977	 52.21	0	4573729..4574226	+	165	117626307	ubiC	APECO1_2430	-	chorismate pyruvate lyase
3978	 51.43	0	4574239..4575111	+	290	117626308	ubiA	APECO1_2429	-	4-hydroxybenzoate octaprenyltransferase
3979	 54.99	0	4575264..4577747	-	827	117626309	plsB	APECO1_2428	-	glycerol-3-phosphate acyltransferase
3980	 50.68	0	4577858..4578226	+	122	117626310	dgkA	APECO1_2427	-	diacylglycerol kinase DgkA
3981	 51.89	0	4578336..4578944	+	202	117626311	lexA	APECO1_2426	-	LexA repressor
3982	 54.93	0	4578963..4580342	+	459	117626312	dinF	APECO1_2425	-	DNA-damage-inducible SOS response protein
3983	 49.64	0	4580709..4581395	-	228	117626313	yjbK	APECO1_2424	-	zinc uptake transcriptional repressor
3984	 53.61	0	4581380..4582375	+	331	117626314	yjbN	APECO1_2423	-	tRNA-dihydrouridine synthase A
3985	 48.34	0	4582299..4582751	+	150	117626315	pspG	APECO1_2422	-	phage shock protein G
3986	 52.44	0	4582916..4583899	-	327	117626316	qor	APECO1_2421	-	quinone oxidoreductase, NADPH-dependent
3987	 51.77	0	4584005..4586125	-	706	117626317	-	APECO1_2420	-	putative oxidoreductase
3988	 50.96	0	4586043..4587443	-	466	117626318	-	APECO1_2419	-	putative transmembrane transport protein
3989	 56.28	+1	4587534..4588313	-	259	117626319	-	APECO1_2418	-	putative enoyl-CoA hydratase/isomerase family protein
3990	 52.54	0	4588306..4589877	-	523	117626320	-	APECO1_2417	-	putative propionate CoA-transferase
3991	 50.24	0	4590133..4591167	+	344	117626321	-	APECO1_2416	-	LacI family transcriptional regulator
3992	 52.90	0	4591240..4592655	+	471	117626322	dnaB	APECO1_2415	-	replicative DNA helicase
3993	 55.74	+1	4592708..4593787	+	359	117626323	alr	APECO1_2414	-	alanine racemase
50.94	MEAN

4.72	STD DEV
