IslandPath Analysis: Escherichia coli APEC O1

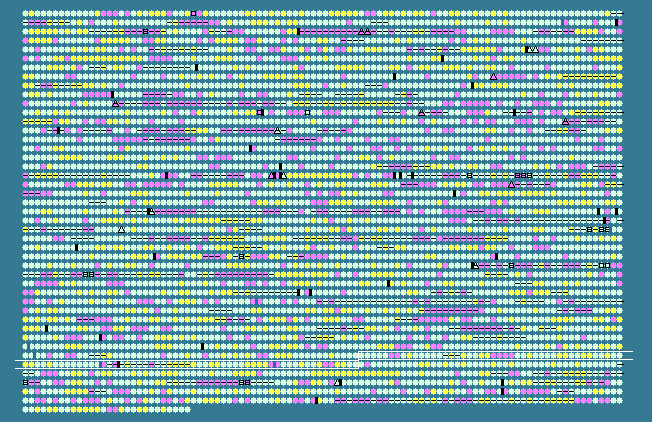

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3857	 50.61	0	4417810..4418799	+	329	117626184	sbp	APECO1_2552	-	sulfate transporter subunit
3858	 49.31	0	4418717..4419661	+	314	117626185	cdh	APECO1_2551	-	CDP-diacylglycerol pyrophosphatase
3859	 52.99	0	4419716..4420483	-	255	117626186	tpiA	APECO1_2550	-	triosephosphate isomerase
3860	 49.33	0	4420591..4421190	-	199	117626187	yiiQ	APECO1_2549	-	hypothetical protein
3861	 48.75	0	4421291..4421731	+	146	117626188	yiiR	APECO1_2548	-	hypothetical protein
3862	 47.00	0	4421943..4422242	+	99	117626189	yiiS	APECO1_2547	-	hypothetical protein
3863	 43.59	-1	4422269..4422697	+	142	117626190	yiiT	APECO1_2546	-	universal stress protein UspD
3864	 53.01	0	4422702..4423448	-	248	117626191	fpr	APECO1_2545	-	ferredoxin-NADP reductase
3865	 55.89	+1	4423545..4424555	-	336	117626192	glpX	APECO1_2544	-	fructose 1,6-bisphosphatase II
3866	 54.05	0	4424726..4426255	-	509	117626193	glpK	APECO1_2543	-	glycerol kinase
3867	 51.06	0	4426257..4427102	-	281	117626194	glpF	APECO1_2542	-	glycerol uptake facilitator protein
3868	 51.68	0	4427914..4428420	+	168	117626195	-	APECO1_2541	-	hypothetical protein
3869	 53.40	0	4428435..4429361	-	308	117626196	menA	APECO1_2540	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
3870	 52.25	0	4429428..4430759	-	443	117626197	hslU	APECO1_2539	-	ATP-dependent protease ATP-binding subunit
3871	 52.54	0	4430769..4431299	-	176	117626198	hslV	APECO1_2538	-	ATP-dependent protease peptidase subunit
3872	 57.60	+1	4431392..4432351	-	319	117626199	ftsN	APECO1_2537	-	essential cell division protein
3873	 51.55	0	4432443..4433474	-	343	117626200	cytR	APECO1_2536	-	DNA-binding transcriptional regulator CytR
3874	 56.58	+1	4433624..4435894	-	756	117626201	priA	APECO1_2535	-	primosome assembly protein PriA
3875	 52.71	0	4436298..4436906	-	202	117626202	yliX	APECO1_2534	-	putative peptidoglycan peptidase
3876	 50.44	0	4436966..4437421	-	151	117626203	metJ	APECO1_2533	-	transcriptional repressor protein MetJ
3877	 54.90	0	4437506..4438720	+	404	117626204	metB	APECO1_2532	-	cystathionine gamma-synthase
3878	 57.95	+1	4438723..4441155	+	810	117626205	metL	APECO1_2531	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
3879	 39.14	-2	4441373..4442233	-	286	117626206	tsx	APECO1_2530	-	nucleoside-specific channel-forming protein Tsx precursor
3880	 44.22	-1	4442310..4443935	-	541	117626207	-	APECO1_2529	-	hypothetical protein
3881	 41.06	-2	4443970..4445523	-	517	117626208	-	APECO1_2528	-	hypothetical protein
3882	 47.20	0	4445753..4446877	-	374	117626209	-	APECO1_2527	-	putative cytoplasmic protein
3883	 47.94	0	4447010..4448563	+	517	117626210	-	APECO1_2526	-	putative 5'-nucleotidase/2',3'-cyclic phosphodiesterase or related esterase
3884	 52.53	0	4448945..4449835	+	296	117626211	metF	APECO1_2525	-	5,10-methylenetetrahydrofolate reductase
3885	 55.66	+1	4450164..4452344	+	726	117626212	katG	APECO1_2524	-	catalase/hydroperoxidase HPI(I)
3886	 53.70	0	4452372..4453343	+	323	117626213	yijE	APECO1_2523	-	permease
3887	 52.59	0	4453370..4453987	-	205	117626214	yijF	APECO1_2522	-	hypothetical protein
3888	 54.42	0	4454263..4455405	-	380	117626215	gldA	APECO1_2521	-	glycerol dehydrogenase
3889	 53.39	0	4455377..4456039	-	220	117626216	fsaB	APECO1_2520	-	fructose-6-phosphate aldolase
3890	 55.04	0	4456051..4458552	-	833	117626217	ptsA	APECO1_2519	-	phosphoenolpyruvate-protein phosphotransferase PtsA
3891	 55.09	0	4458861..4459940	+	359	117626218	fruA	APECO1_2518	-	putative fructose-like permease EIIC subunit 2
3892	 52.29	0	4459988..4460314	-	108	117626219	-	APECO1_2517	-	hypothetical protein
3893	 53.09	0	4460326..4462623	+	765	117626220	pflD	APECO1_2516	-	putative formate acetyltransferase 2
3894	 55.17	0	4462520..4463467	+	315	117626221	pflC	APECO1_2515	-	pyruvate formate lyase II activase
3895	 54.81	0	4463406..4463810	+	134	117626222	frwD	APECO1_2514	-	putative fructose-like phosphotransferase EIIB subunit 3
3896	 53.05	0	4463797..4464648	-	283	117626223	yijO	APECO1_2513	-	DNA-binding transcriptional regulator
3897	 50.00	0	4464874..4466607	-	577	117626224	yjjP	APECO1_2512	-	hypothetical protein
3898	 55.77	+1	4466790..4469441	-	883	117626225	ppc	APECO1_2511	-	phosphoenolpyruvate carboxylase
3899	 52.06	0	4469743..4470933	-	396	117626226	argE	APECO1_2510	-	acetylornithine deacetylase
3900	 53.13	0	4471048..4472052	+	334	117626227	argC	APECO1_2509	-	N-acetyl-gamma-glutamyl-phosphate reductase
3901	 54.94	0	4472027..4472836	+	269	117626228	argB	APECO1_2508	-	acetylglutamate kinase
3902	 56.40	+1	4472897..4474270	+	457	117626229	argH	APECO1_2507	-	argininosuccinate lyase
3903	 49.10	0	4474708..4475982	+	424	117626230	rspA	APECO1_2506	-	starvation sensing protein RspA
3904	 50.93	0	4476049..4477332	+	427	117626231	yjjL	APECO1_2505	-	hypothetical protein
3905	 55.45	0	4477539..4478501	+	320	117626232	oxyR	APECO1_2504	-	DNA-binding transcriptional regulator OxyR
3906	 51.82	0	4478484..4479884	-	466	117626233	udhA	APECO1_2503	-	soluble pyridine nucleotide transhydrogenase
3907	 53.98	0	4480214..4481380	+	388	117626234	-	APECO1_2502	-	putative hippuricase
3908	 52.70	0	4481423..4482739	+	438	117626235	-	APECO1_2501	-	putative transporter
3909	 52.62	0	4482789..4483493	+	234	117626236	yijC	APECO1_2500	-	DNA-binding transcriptional repressor FabR
3910	 48.06	0	4483493..4483852	+	119	117626237	yijD	APECO1_2499	-	hypothetical protein
3911	 50.23	0	4483892..4484992	-	366	117626238	trmA	APECO1_2498	-	tRNA (uracil-5-)-methyltransferase
3912	 48.91	0	4485319..4487205	+	628	117626239	btuB	APECO1_2497	-	vitamin B12/cobalamin outer membrane transporter
3913	 51.75	0	4487150..4488007	+	285	162317562	murI	APECO1_2496	-	glutamate racemase
3914	 46.94	0	4493638..4494666	+	342	117626241	murB	APECO1_2495	-	UDP-N-acetylenolpyruvoylglucosamine reductase
3915	 49.07	0	4494663..4495628	+	321	117626242	birA	APECO1_2494	-	biotin--protein ligase
3916	 44.03	-1	4495657..4496628	-	323	117626243	coaA	APECO1_2493	-	pantothenate kinase
3917	 53.33	0	4497525..4498709	+	394	117626244	tufA	APECO1_2492	-	elongation factor Tu
3918	 54.95	0	4498939..4499322	+	127	117626245	secE	APECO1_2491	-	preprotein translocase subunit SecE
3919	 51.28	0	4499324..4499869	+	181	117626246	nusG	APECO1_2490	-	transcription antitermination protein NusG
3920	 51.50	0	4499974..4500975	-	333	117626247	-	APECO1_2489	-	hypothetical protein
3921	 52.21	0	4501456..4501953	+	165	117626248	rplJ	APECO1_2488	-	50S ribosomal protein L10
3922	 46.49	0	4502005..4502445	-	146	117626249	-	APECO1_2487	-	hypothetical protein
3923	 52.41	0	4502672..4506733	+	1353	117626250	rpoB	APECO1_2486	-	DNA-directed RNA polymerase subunit beta
3924	 53.67	0	4506810..4511033	+	1407	117626251	rpoC	APECO1_2485	-	DNA-directed RNA polymerase subunit beta'
3925	 54.50	0	4511273..4512406	-	377	117626252	thiH	APECO1_2484	-	thiamine biosynthesis protein ThiH
3926	 58.24	+1	4512403..4513173	-	256	162317561	thiG	APECO1_2483	-	thiazole synthase
3927	 56.42	+1	4513359..4514207	-	282	117626254	thiF	APECO1_2482	-	thiazole biosynthesis protein ThiF
3928	 58.33	+1	4514107..4514742	-	211	117626255	thiE	APECO1_24812	-	thiamine-phosphate pyrophosphorylase
3929	 55.12	0	4514742..4516637	-	631	117626256	thiC	APECO1_2481	-	thiamine biosynthesis protein ThiC
3930	 48.01	0	4516870..4517346	-	158	117626257	yjaE	APECO1_2480	-	anti-RNA polymerase sigma 70 factor
3931	 53.23	0	4517441..4518214	+	257	117626258	nudC	APECO1_2479	-	NADH pyrophosphatase
3932	 56.06	+1	4518254..4519318	+	354	117626259	hemE	APECO1_2478	-	uroporphyrinogen decarboxylase
3933	 58.78	+1	4519328..4519999	+	223	117626260	nfi	APECO1_2477	-	endonuclease V
3934	 49.24	0	4520042..4520632	+	196	117626261	yjaG	APECO1_2476	-	hypothetical protein
3935	 48.35	0	4520819..4521091	+	90	117626262	-	APECO1_2475	-	transcriptional regulator HU subunit alpha
3936	 53.85	0	4521098..4521799	+	233	117626263	yjaH	APECO1_2474	-	hypothetical protein
3937	 50.98	0	4521801..4522361	-	186	117626264	zraP	APECO1_2473	-	zinc resistance protein
3938	 54.47	0	4522458..4523834	+	458	117626265	zraS	APECO1_2472	-	sensor protein ZraS
3939	 56.64	+1	4523831..4525156	+	441	117626266	zraR	APECO1_2471	-	transcriptional regulatory protein ZraR
3940	 58.53	+1	4525153..4526442	-	429	117626267	purD	APECO1_2470	-	phosphoribosylamine--glycine ligase
3941	 55.72	+1	4526454..4528043	-	529	117626268	purH	APECO1_2469	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
3942	 46.74	0	4528359..4528619	-	86	117626269	-	APECO1_2468	-	hypothetical protein
3943	 44.79	-1	4533761..4534144	+	127	117626272	yjaA	APECO1_2465	-	hypothetical protein
3944	 53.15	0	4534208..4534651	-	147	117626273	yjaB	APECO1_2464	-	hypothetical protein
3945	 50.32	0	4534808..4535737	+	309	117626274	metA	APECO1_2463	-	homoserine O-succinyltransferase
3946	 51.17	0	4535988..4537607	+	539	117626275	aceB	APECO1_2462	-	malate synthase
3947	 55.23	0	4537622..4538941	+	439	117626276	aceA	APECO1_2461	-	isocitrate lyase
3948	 52.75	0	4538990..4540714	+	574	117626277	aceK	APECO1_2460	-	bifunctional isocitrate dehydrogenase kinase/phosphatase protein
3949	 53.94	0	4540731..4541594	-	287	117626278	iclR	APECO1_2459	-	transcriptional repressor IclR
3950	 55.74	+1	4541740..4545438	+	1232	117626279	metH	APECO1_2458	-	B12-dependent methionine synthase
3951	 34.27	-2	4545498..4545818	+	106	117626280	-	APECO1_2457	-	hypothetical protein
3952	 36.22	-2	4545861..4546310	+	149	117626281	-	APECO1_2456	-	hypothetical protein
3953	 55.09	0	4546481..4548112	+	543	117626282	yjbB	APECO1_2455	-	hypothetical protein
3954	 54.93	0	4548202..4548891	-	229	117626283	pepE	APECO1_2454	-	peptidase E
3955	 53.06	0	4549273..4550514	-	413	117626284	-	APECO1_2453	-	putative L-sorbose-1-P-reductase
3956	 54.21	0	4550554..4551396	-	280	117626285	-	APECO1_2452	-	PTS system, mannose-specific IID component
50.94	MEAN

4.72	STD DEV
