IslandPath Analysis: Escherichia coli APEC O1

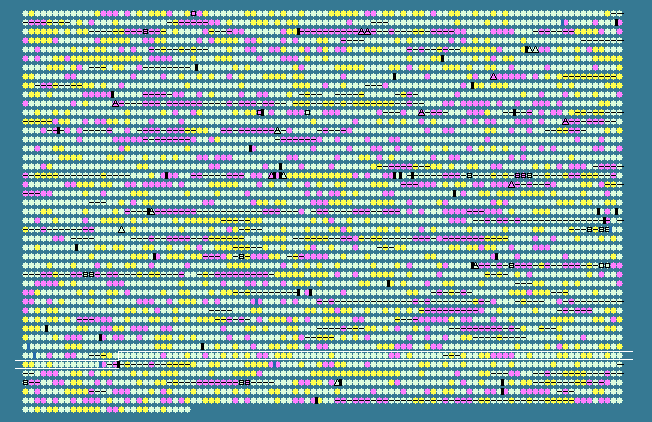

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3817	 53.29	0	4376376..4378199	+	607	117626144	bipA	APECO1_2591	-	GTP-binding protein
3818	 50.19	0	4378306..4379094	-	262	117626145	-	APECO1_2590	-	putative regulatory protein
3819	 49.89	0	4379134..4380081	-	315	117626146	-	APECO1_2589	-	hypothetical protein
3820	 50.21	0	4380133..4381080	+	315	117626147	-	APECO1_2588	-	hypothetical protein
3821	 52.25	0	4381105..4381992	+	295	117626148	-	APECO1_2587	-	hypothetical protein
3822	 52.92	0	4382025..4383035	+	336	117626149	-	APECO1_2586	-	putative dehydrogenase
3823	 49.58	0	4383105..4384538	+	477	117626150	-	APECO1_2585	-	hypothetical protein
3824	 46.30	0	4384637..4385986	+	449	117626151	-	APECO1_2584	-	putative shikimate transporter
3825	 49.41	0	4385931..4386863	+	310	117626152	-	APECO1_2583	-	hypothetical protein
3826	 49.44	0	4386983..4387603	+	206	117626153	-	APECO1_2582	-	phosphatase
3827	 51.09	0	4387597..4388469	+	290	117626154	rbn	APECO1_2581	-	ribonuclease BN
3828	 54.79	0	4388466..4388903	+	145	117626155	dtd	APECO1_2580	-	D-tyrosyl-tRNA deacylase
3829	 54.04	0	4388900..4389889	+	329	117626156	yiiD	APECO1_2579	-	acetyltransferase
3830	 51.02	0	4389953..4390936	-	327	117626157	-	APECO1_2578	-	putative lipase
3831	 40.71	-2	4391090..4391401	+	103	117626158	-	APECO1_2577	-	hypothetical protein
3832	 48.80	0	4391402..4391692	+	96	117626159	-	APECO1_2576	-	hypothetical protein
3833	 48.39	0	4392051..4392329	+	92	117626160	-	APECO1_2575	-	hypothetical protein
3834	 54.73	0	4393159..4394088	-	309	117626161	fdhE	APECO1_2574	-	formate dehydrogenase accessory protein FdhE
3835	 52.52	0	4394085..4394720	-	211	117626162	fdoI	APECO1_2573	-	formate dehydrogenase-O subunit gamma
3836	 55.59	0	4394717..4395619	-	300	117626163	fdoH	APECO1_2572	-	formate dehydrogenase-O, Fe-S subunit
3837	 54.37	0	4395632..4398046	-	804	117626164	fdoG	APECO1_25712	-	formate dehydrogenase-O, large subunit
3838	 55.61	0	4398095..4398682	-	195	117626165	fdoG	APECO1_2571	-	formate dehydrogenase-O, large subunit
3839	 53.48	0	4398876..4399709	+	277	117626166	fdhD	APECO1_2570	-	formate dehydrogenase accessory protein
3840	 44.62	-1	4400105..4400485	+	126	117626167	yiiG	APECO1_2569	-	hypothetical protein
3841	 44.87	-1	4400839..4402233	+	464	117626168	-	APECO1_2568	-	putative glycoporin
3842	 49.52	0	4402274..4402588	-	104	117626169	yiiL	APECO1_2567	-	hypothetical protein
3843	 55.15	0	4402598..4403422	-	274	117626170	rhaD	APECO1_2566	-	rhamnulose-1-phosphate aldolase
3844	 55.16	0	4403699..4404958	-	419	117626171	rhaA	APECO1_2565	-	L-rhamnose isomerase
3845	 54.63	0	4404955..4406424	-	489	117626172	rhaB	APECO1_2564	-	rhamnulokinase
3846	 51.73	0	4406712..4407548	+	278	117626173	rhaS	APECO1_2563	-	transcriptional activator RhaS
3847	 49.84	0	4407532..4408470	+	312	117626174	rhaR	APECO1_2562	-	transcriptional activator RhaR
3848	 51.98	0	4408467..4409501	-	344	117626175	rhaT	APECO1_2561	-	rhamnose-proton symporter
3849	 53.11	0	4409780..4410406	+	208	117626176	sodA	APECO1_2560	-	superoxide dismutase
3850	 52.74	0	4410666..4411649	+	327	162317563	kdgT	APECO1_2559	-	2-keto-3-deoxygluconate permease
3851	 51.74	0	4411783..4412472	+	229	117626178	yiiM	APECO1_2558	-	hypothetical protein
3852	 54.66	0	4412578..4413951	-	457	117626179	cpxA	APECO1_2557	-	two-component sensor protein
3853	 51.07	0	4413948..4414646	-	232	117626180	cpxR	APECO1_2556	-	DNA-binding transcriptional regulator CpxR
3854	 50.00	0	4414793..4415296	+	167	117626181	cpxP	APECO1_2555	-	periplasmic repressor CpxP
3855	 52.60	0	4415445..4416347	+	300	117626182	fieF	APECO1_2554	-	ferrous iron efflux protein F
3856	 52.98	0	4416468..4417490	+	340	117626183	pfkA	APECO1_2553	-	6-phosphofructokinase
3857	 50.61	0	4417810..4418799	+	329	117626184	sbp	APECO1_2552	-	sulfate transporter subunit
3858	 49.31	0	4418717..4419661	+	314	117626185	cdh	APECO1_2551	-	CDP-diacylglycerol pyrophosphatase
3859	 52.99	0	4419716..4420483	-	255	117626186	tpiA	APECO1_2550	-	triosephosphate isomerase
3860	 49.33	0	4420591..4421190	-	199	117626187	yiiQ	APECO1_2549	-	hypothetical protein
3861	 48.75	0	4421291..4421731	+	146	117626188	yiiR	APECO1_2548	-	hypothetical protein
3862	 47.00	0	4421943..4422242	+	99	117626189	yiiS	APECO1_2547	-	hypothetical protein
3863	 43.59	-1	4422269..4422697	+	142	117626190	yiiT	APECO1_2546	-	universal stress protein UspD
3864	 53.01	0	4422702..4423448	-	248	117626191	fpr	APECO1_2545	-	ferredoxin-NADP reductase
3865	 55.89	+1	4423545..4424555	-	336	117626192	glpX	APECO1_2544	-	fructose 1,6-bisphosphatase II
3866	 54.05	0	4424726..4426255	-	509	117626193	glpK	APECO1_2543	-	glycerol kinase
3867	 51.06	0	4426257..4427102	-	281	117626194	glpF	APECO1_2542	-	glycerol uptake facilitator protein
3868	 51.68	0	4427914..4428420	+	168	117626195	-	APECO1_2541	-	hypothetical protein
3869	 53.40	0	4428435..4429361	-	308	117626196	menA	APECO1_2540	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
3870	 52.25	0	4429428..4430759	-	443	117626197	hslU	APECO1_2539	-	ATP-dependent protease ATP-binding subunit
3871	 52.54	0	4430769..4431299	-	176	117626198	hslV	APECO1_2538	-	ATP-dependent protease peptidase subunit
3872	 57.60	+1	4431392..4432351	-	319	117626199	ftsN	APECO1_2537	-	essential cell division protein
3873	 51.55	0	4432443..4433474	-	343	117626200	cytR	APECO1_2536	-	DNA-binding transcriptional regulator CytR
3874	 56.58	+1	4433624..4435894	-	756	117626201	priA	APECO1_2535	-	primosome assembly protein PriA
3875	 52.71	0	4436298..4436906	-	202	117626202	yliX	APECO1_2534	-	putative peptidoglycan peptidase
3876	 50.44	0	4436966..4437421	-	151	117626203	metJ	APECO1_2533	-	transcriptional repressor protein MetJ
3877	 54.90	0	4437506..4438720	+	404	117626204	metB	APECO1_2532	-	cystathionine gamma-synthase
3878	 57.95	+1	4438723..4441155	+	810	117626205	metL	APECO1_2531	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
3879	 39.14	-2	4441373..4442233	-	286	117626206	tsx	APECO1_2530	-	nucleoside-specific channel-forming protein Tsx precursor
3880	 44.22	-1	4442310..4443935	-	541	117626207	-	APECO1_2529	-	hypothetical protein
3881	 41.06	-2	4443970..4445523	-	517	117626208	-	APECO1_2528	-	hypothetical protein
3882	 47.20	0	4445753..4446877	-	374	117626209	-	APECO1_2527	-	putative cytoplasmic protein
3883	 47.94	0	4447010..4448563	+	517	117626210	-	APECO1_2526	-	putative 5'-nucleotidase/2',3'-cyclic phosphodiesterase or related esterase
3884	 52.53	0	4448945..4449835	+	296	117626211	metF	APECO1_2525	-	5,10-methylenetetrahydrofolate reductase
3885	 55.66	+1	4450164..4452344	+	726	117626212	katG	APECO1_2524	-	catalase/hydroperoxidase HPI(I)
3886	 53.70	0	4452372..4453343	+	323	117626213	yijE	APECO1_2523	-	permease
3887	 52.59	0	4453370..4453987	-	205	117626214	yijF	APECO1_2522	-	hypothetical protein
3888	 54.42	0	4454263..4455405	-	380	117626215	gldA	APECO1_2521	-	glycerol dehydrogenase
3889	 53.39	0	4455377..4456039	-	220	117626216	fsaB	APECO1_2520	-	fructose-6-phosphate aldolase
3890	 55.04	0	4456051..4458552	-	833	117626217	ptsA	APECO1_2519	-	phosphoenolpyruvate-protein phosphotransferase PtsA
3891	 55.09	0	4458861..4459940	+	359	117626218	fruA	APECO1_2518	-	putative fructose-like permease EIIC subunit 2
3892	 52.29	0	4459988..4460314	-	108	117626219	-	APECO1_2517	-	hypothetical protein
3893	 53.09	0	4460326..4462623	+	765	117626220	pflD	APECO1_2516	-	putative formate acetyltransferase 2
3894	 55.17	0	4462520..4463467	+	315	117626221	pflC	APECO1_2515	-	pyruvate formate lyase II activase
3895	 54.81	0	4463406..4463810	+	134	117626222	frwD	APECO1_2514	-	putative fructose-like phosphotransferase EIIB subunit 3
3896	 53.05	0	4463797..4464648	-	283	117626223	yijO	APECO1_2513	-	DNA-binding transcriptional regulator
3897	 50.00	0	4464874..4466607	-	577	117626224	yjjP	APECO1_2512	-	hypothetical protein
3898	 55.77	+1	4466790..4469441	-	883	117626225	ppc	APECO1_2511	-	phosphoenolpyruvate carboxylase
3899	 52.06	0	4469743..4470933	-	396	117626226	argE	APECO1_2510	-	acetylornithine deacetylase
3900	 53.13	0	4471048..4472052	+	334	117626227	argC	APECO1_2509	-	N-acetyl-gamma-glutamyl-phosphate reductase
3901	 54.94	0	4472027..4472836	+	269	117626228	argB	APECO1_2508	-	acetylglutamate kinase
3902	 56.40	+1	4472897..4474270	+	457	117626229	argH	APECO1_2507	-	argininosuccinate lyase
3903	 49.10	0	4474708..4475982	+	424	117626230	rspA	APECO1_2506	-	starvation sensing protein RspA
3904	 50.93	0	4476049..4477332	+	427	117626231	yjjL	APECO1_2505	-	hypothetical protein
3905	 55.45	0	4477539..4478501	+	320	117626232	oxyR	APECO1_2504	-	DNA-binding transcriptional regulator OxyR
3906	 51.82	0	4478484..4479884	-	466	117626233	udhA	APECO1_2503	-	soluble pyridine nucleotide transhydrogenase
3907	 53.98	0	4480214..4481380	+	388	117626234	-	APECO1_2502	-	putative hippuricase
3908	 52.70	0	4481423..4482739	+	438	117626235	-	APECO1_2501	-	putative transporter
3909	 52.62	0	4482789..4483493	+	234	117626236	yijC	APECO1_2500	-	DNA-binding transcriptional repressor FabR
3910	 48.06	0	4483493..4483852	+	119	117626237	yijD	APECO1_2499	-	hypothetical protein
3911	 50.23	0	4483892..4484992	-	366	117626238	trmA	APECO1_2498	-	tRNA (uracil-5-)-methyltransferase
3912	 48.91	0	4485319..4487205	+	628	117626239	btuB	APECO1_2497	-	vitamin B12/cobalamin outer membrane transporter
3913	 51.75	0	4487150..4488007	+	285	162317562	murI	APECO1_2496	-	glutamate racemase
3914	 46.94	0	4493638..4494666	+	342	117626241	murB	APECO1_2495	-	UDP-N-acetylenolpyruvoylglucosamine reductase
3915	 49.07	0	4494663..4495628	+	321	117626242	birA	APECO1_2494	-	biotin--protein ligase
3916	 44.03	-1	4495657..4496628	-	323	117626243	coaA	APECO1_2493	-	pantothenate kinase
50.94	MEAN

4.72	STD DEV
