IslandPath Analysis: Escherichia coli APEC O1

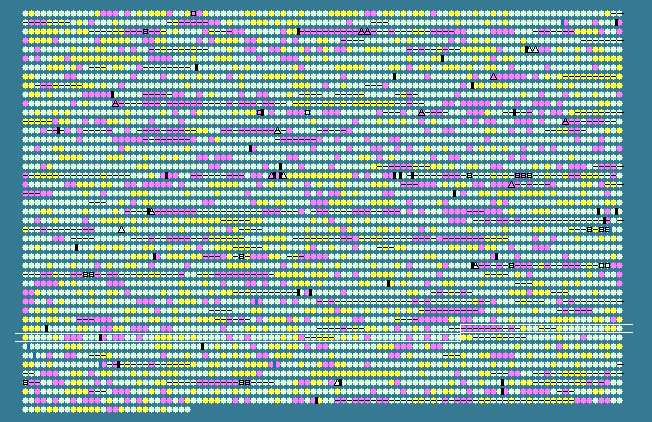

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3574	 33.89	-2	4090318..4091571	-	417	117625899	waaL	APECO1_2834	-	lipid A-core, surface polymer ligase
3575	 32.52	-2	4091617..4092600	-	327	117625900	waaV	APECO1_2833	-	beta-1,3-glucosyltransferase
3576	 37.03	-2	4092682..4093710	-	342	117625901	rfaJ	APECO1_2832	-	UDP-galactose:(galactosyl) LPS alpha1,2-galactosyltransferase
3577	 36.22	-2	4093736..4094428	-	230	117625902	-	APECO1_2831	-	lipopolysaccharide core biosynthesis protein
3578	 35.24	-2	4094438..4095433	-	331	117625903	rfaJ	APECO1_2830	-	lipopolysaccharide 1,2-glucosyltransferase
3579	 38.15	-2	4095450..4096466	-	338	117625904	rafI	APECO1_2829	-	lipopolysaccharide 1,3-galactosyltransferase
3580	 47.09	0	4096482..4097288	-	268	117625905	rfaP	APECO1_2828	-	lipopolysaccharide core biosynthesis protein RfaP
3581	 48.18	0	4097272..4098396	-	374	117625906	rfaG	APECO1_2827	-	lipopolysaccharide core biosynthesis glucosyltransferase I
3582	 46.55	0	4098393..4099451	-	352	117625907	rfaQ	APECO1_2826	-	lipopolysaccharide core biosynthesis protein
3583	 54.07	0	4099864..4101141	+	425	117625908	kdtA	APECO1_2825	-	3-deoxy-D-manno-octulosonic-acid transferase
3584	 54.69	0	4101667..4102476	-	269	117625909	mutM	APECO1_2824	-	formamidopyrimidine-DNA glycosylase
3585	 48.59	0	4103215..4103889	-	224	117625910	radC	APECO1_2823	-	DNA repair protein RadC
3586	 52.82	0	4103983..4105275	+	430	117625911	dfp	APECO1_2822	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
3587	 54.47	0	4105253..4105711	+	152	117625912	dut	APECO1_2821	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
3588	 52.90	0	4105776..4106414	+	212	117625913	slmA	APECO1_2820	-	nucleoid occlusion protein
3589	 52.66	0	4106451..4107107	-	218	117625914	pyrE	APECO1_2819	-	orotate phosphoribosyltransferase
3590	 56.49	+1	4107158..4107874	-	238	117625915	rph	APECO1_2818	-	ribonuclease PH
3591	 53.59	0	4108001..4108864	+	287	117625916	yicC	APECO1_2817	-	hypothetical protein
3592	 47.91	0	4109074..4109910	+	278	117625917	dinD	APECO1_2816	-	DNA-damage-inducible protein D
3593	 52.53	0	4110148..4110819	+	223	117625918	-	APECO1_2815	-	hypothetical protein
3594	 52.81	0	4110816..4112504	-	562	117625919	ligB	APECO1_2814	-	NAD-dependent DNA ligase LigB
3595	 47.72	0	4112699..4113379	+	226	117625920	gmk	APECO1_2813	-	guanylate kinase
3596	 53.26	0	4113434..4113709	+	91	117625921	rpoZ	APECO1_2812	-	DNA-directed RNA polymerase subunit omega
3597	 54.03	0	4113875..4115836	+	653	117625922	spoT	APECO1_2811	-	bifunctional (p)ppGpp synthetase II/ guanosine-3',5'-bis pyrophosphate 3'-pyrophosphohydrolase
3598	 55.65	0	4115843..4116532	+	229	117625923	spoU	APECO1_2810	-	tRNA guanosine-2'-O-methyltransferase
3599	 56.88	+1	4116505..4118619	+	704	117625924	recG	APECO1_2809	-	ATP-dependent DNA helicase RecG
3600	 54.06	0	4118653..4119858	-	401	117625925	-	APECO1_2808	-	glutamate transport protein
3601	 54.81	0	4120138..4121529	+	463	117625926	yicE	APECO1_2807	-	putative purine permease YicE
3602	 53.81	0	4121626..4123359	+	577	117625927	yicH	APECO1_2806	-	hypothetical protein
3603	 50.69	0	4123403..4124122	-	239	117625928	-	APECO1_2805	-	hypothetical protein
3604	 53.11	0	4124064..4125029	-	321	117625929	yajF	APECO1_2804	-	hypothetical protein
3605	 52.50	0	4125044..4125904	-	286	117625930	-	APECO1_2803	-	hypothetical protein
3606	 56.34	+1	4125985..4126836	-	283	117625931	-	APECO1_2802	-	putative aldolase
3607	 52.29	0	4126848..4127939	-	363	117625932	-	APECO1_2801	-	putative PTS enzyme-II fructose
3608	 41.59	-1	4127964..4128278	-	104	117625933	-	APECO1_2800	-	PTS system, fructose-like-2 IIB component 1
3609	 43.95	-1	4128296..4128766	-	156	117625934	-	APECO1_2799	-	putative phosphotransferase system (PTS), fructose-specific
3610	 41.31	-2	4128793..4130346	-	517	117625935	-	APECO1_2798	-	putative transcriptional antiterminator
3611	 51.36	0	4130641..4132959	-	772	117625936	yicI	APECO1_2797	-	alpha-xylosidase YicI
3612	 49.38	0	4132969..4134408	-	479	117625937	yicJ	APECO1_2796	-	putative transporter
3613	 50.99	0	4134662..4135828	+	388	117625938	-	APECO1_2795	-	hypothetical protein
3614	 33.60	-2	4136398..4136766	+	122	117625939	-	APECO1_2794	-	hypothetical protein
3615	 48.36	0	4137009..4137986	+	325	117625940	yicL	APECO1_2793	-	putative inner membrane protein
3616	 47.01	0	4137990..4138808	-	272	117625941	nlpA	APECO1_2792	-	cytoplasmic membrane lipoprotein-28
3617	 43.53	-1	4138961..4139323	+	120	117625942	yicS	APECO1_2791	-	hypothetical protein
3618	 53.23	0	4139364..4140554	-	396	162317565	nepI	APECO1_2790	-	ribonucleoside transporter
3619	 52.71	0	4140765..4141244	-	159	117625944	yicN	APECO1_2789	-	hypothetical protein
3620	 47.28	0	4141270..4142682	-	470	117625945	yicO	APECO1_2788	-	xanthine/uracil permase YicO
3621	 54.39	0	4142779..4144545	+	588	117625946	ade	APECO1_2787	-	cryptic adenine deaminase
3622	 52.87	0	4144592..4145983	-	463	117625947	uhpT	APECO1_2786	-	sugar phosphate antiporter
3623	 54.88	0	4146121..4147443	-	440	117625948	uhpC	APECO1_2785	-	regulatory protein UhpC
3624	 56.42	+1	4147450..4148952	-	500	117625949	uhpB	APECO1_2784	-	sensory histidine kinase UhpB
3625	 58.71	+1	4148952..4149542	-	196	117625950	uhpA	APECO1_2783	-	DNA-binding transcriptional activator UhpA
3626	 48.45	0	4149615..4149905	-	96	117625951	ilvN	APECO1_2782	-	acetolactate synthase 1 regulatory subunit
3627	 56.13	+1	4149909..4151597	-	562	117625952	ilvB	APECO1_2781	-	acetolactate synthase catalytic subunit
3628	 50.75	0	4151581..4151913	+	110	117625953	-	APECO1_2780	-	hypothetical protein
3629	 56.09	+1	4152196..4153386	+	396	117625954	emrD	APECO1_2779	-	multidrug resistance protein D
3630	 51.61	0	4153394..4153891	-	165	117625955	yidF	APECO1_2778	-	hypothetical protein
3631	 50.69	0	4153888..4154250	-	120	117625956	yidG	APECO1_2777	-	hypothetical protein
3632	 51.23	0	4154240..4154647	-	135	117625957	yidH	APECO1_2776	-	hypothetical protein
3633	 51.41	0	4154647..4156140	-	497	117625958	yidJ	APECO1_2775	-	sulfatase/phosphatase YidJ
3634	 53.38	0	4156137..4157852	-	571	117625959	yidK	APECO1_2774	-	putative symporter YidK
3635	 43.37	-1	4157989..4158885	+	298	117625960	yidL	APECO1_2773	-	DNA-binding transcriptional regulator YidL
3636	 52.49	0	4158975..4160660	-	561	117625961	yidE	APECO1_2772	-	hypothetical protein
3637	 48.51	0	4160833..4161267	-	144	117625962	ibpB	APECO1_2771	-	heat shock chaperone IbpB
3638	 47.10	0	4161373..4161786	-	137	117625963	ibpA	APECO1_2770	-	heat shock protein IbpA
3639	 49.26	0	4162017..4162424	+	135	117625964	yidQ	APECO1_2769	-	hypothetical protein
3640	 53.45	0	4162428..4163675	-	415	117625965	yidR	APECO1_2768	-	hypothetical protein
3641	 51.87	0	4163722..4164843	+	373	117625966	yidS	APECO1_2767	-	putative oxidoreductase
3642	 52.62	0	4164804..4166141	-	445	117625967	dgoT	APECO1_2766	-	D-galactonate transporter
3643	 52.83	0	4166216..4167364	-	382	117625968	dgoD	APECO1_2765	-	bifunctional 2-oxo-3-deoxygalactonate 6-phosphate aldolase/galactonate dehydratase
3644	 58.41	+1	4167361..4167978	-	205	117625969	dgoA	APECO1_2764	-	2-dehydro-3-deoxy-6-phosphogalactonate aldolase
3645	 54.04	0	4167962..4168840	-	292	117625970	dgoK	APECO1_2763	-	2-oxo-3-deoxygalactonate kinase DgoK
3646	 54.93	0	4168837..4169526	-	229	117625971	dgoR	APECO1_2762	-	putative galactonate operon transcriptional repressor DgoR
3647	 44.75	-1	4169805..4170461	+	218	117625972	-	APECO1_2761	-	hypothetical protein
3648	 50.68	0	4170505..4171317	-	270	117625973	yidA	APECO1_2760	-	sugar phosphatase
3649	 50.74	0	4171432..4171839	-	135	117625974	yidB	APECO1_2759	-	hypothetical protein
3650	 54.74	0	4172070..4174484	-	804	117625975	gyrB	APECO1_2758	-	DNA gyrase subunit B
3651	 54.84	0	4174513..4175586	-	357	117625976	recF	APECO1_2757	-	recombination protein F
3652	 54.68	0	4175586..4176686	-	366	117625977	dnaN	APECO1_2756	-	DNA polymerase III subunit beta
3653	 54.03	0	4176691..4178106	-	471	117625978	dnaA	APECO1_2755	-	chromosomal replication initiation protein
3654	 55.83	+1	4178858..4179217	+	119	117625979	rnpA	APECO1_27542	-	ribonuclease P
3655	 53.55	0	4179441..4181087	+	548	117625980	yidC	APECO1_2754	-	putative inner membrane protein translocase component YidC
3656	 57.29	+1	4181193..4182557	+	454	117625981	trmE	APECO1_2753	-	tRNA modification GTPase TrmE
3657	 50.45	0	4183079..4184509	+	476	117625982	tnaA	APECO1_2752	-	tryptophanase
3658	 45.83	-1	4184601..4185848	+	415	117625983	tnaB	APECO1_2751	-	tryptophan permease TnaB
3659	 53.40	0	4185980..4187155	+	391	117625984	mdtL	APECO1_2750	-	multidrug efflux system protein MdtL
3660	 52.08	0	4187130..4188089	+	319	117625985	yidZ	APECO1_2749	-	DNA-binding transcriptional regulator YidZ
3661	 52.10	0	4188234..4188995	+	253	117625986	yieE	APECO1_2748	-	hypothetical protein
3662	 52.20	0	4189017..4189583	+	188	117625987	yieF	APECO1_2747	-	hypothetical protein
3663	 53.96	0	4189636..4190973	-	445	117625988	yieG	APECO1_2746	-	putative membrane/transport protein
3664	 50.45	0	4191140..4191805	+	221	117625989	yieH	APECO1_2745	-	6-phosphogluconate phosphatase
3665	 43.67	-1	4191872..4192345	+	157	117625990	yieI	APECO1_2744	-	putative inner membrane protein
3666	 49.10	0	4192427..4193149	-	240	117625991	yieK	APECO1_2743	-	putative 6-phosphogluconolactonase
3667	 49.37	0	4193164..4194360	-	398	117625992	yieL	APECO1_2742	-	putative xylanase
3668	 44.84	-1	4194360..4195976	-	538	117625993	bglH	APECO1_2741	-	carbohydrate-specific outer membrane porin, cryptic
3669	 47.89	0	4196062..4197456	-	464	117625994	bglB	APECO1_2740	-	6-phospho-beta-glucosidase BglB
3670	 50.08	0	4197475..4199349	-	624	117625995	bglF	APECO1_2739	-	beta-glucoside-specific PTS system components IIABC
3671	 43.61	-1	4199483..4200319	-	278	117625996	bglG	APECO1_2738	-	transcriptional antiterminator BglG
3672	 51.79	0	4200605..4201330	-	241	117625997	phoU	APECO1_2737	-	transcriptional regulator PhoU
3673	 52.71	0	4201345..4202118	-	257	117625998	pstB	APECO1_2736	-	phosphate transporter subunit
50.94	MEAN

4.72	STD DEV
