IslandPath Analysis: Escherichia coli APEC O1

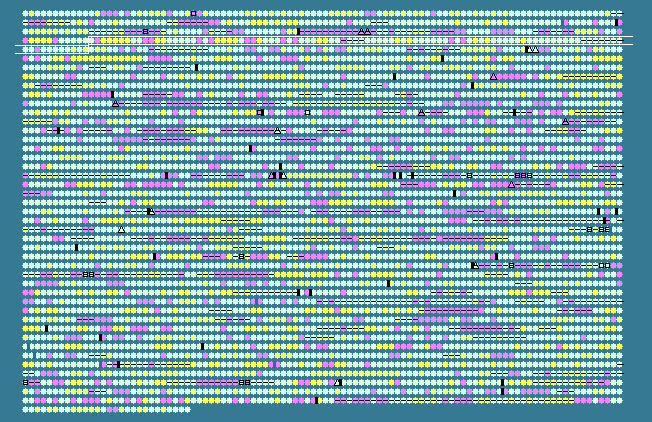

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
312	 49.26	0	377215..377886	-	223	117622611	yahN	APECO1_1660	-	putative cytochrome subunit of dehydrogenase
313	 38.77	-2	378033..378308	+	91	117622612	yahO	APECO1_1659	-	hypothetical protein
314	 55.64	0	378409..379995	-	528	117622613	prpR	APECO1_1658	-	DNA-binding transcriptional activator
315	 56.00	+1	380234..381124	+	296	117622614	prpB	APECO1_1657	-	2-methylisocitrate lyase
316	 55.47	0	381169..382338	+	389	117622615	prpC	APECO1_1656	-	methylcitrate synthase
317	 56.68	+1	382372..383823	+	483	117622616	prpD	APECO1_1655	-	2-methylcitrate dehydratase
318	 57.34	+1	383863..385749	+	628	117622617	prpE	APECO1_1654	-	propionyl-CoA synthetase
319	 54.21	0	386074..387333	+	419	117622618	codB	APECO1_1653	-	cytosine permease
320	 53.35	0	387308..388606	+	432	117622619	codA	APECO1_1652	-	cytosine deaminase
321	 43.44	-1	388727..389389	-	220	117622620	lacA	APECO1_1651	-	galactoside O-acetyltransferase
322	 46.01	-1	389404..390657	-	417	117622621	lacY	APECO1_1650	-	galactoside permease
323	 57.04	+1	390709..393783	-	1024	117622622	lacZ	APECO1_1649	-	beta-D-galactosidase
324	 56.14	+1	393907..394998	-	363	117622623	lacI	APECO1_1648	-	lac repressor
325	 48.15	0	395191..395730	+	179	117622624	yaiL	APECO1_1647	-	nucleoprotein/polynucleotide-associated enzyme
326	 48.32	0	395956..396789	-	277	117622625	yaiM	APECO1_1646	-	hypothetical protein
327	 53.42	0	396882..397991	-	369	117622626	adhC	APECO1_1645	-	alcohol dehydrogenase class III; formaldehyde dehydrogenase, glutathione-dependent
328	 53.20	0	398026..398322	-	98	117622627	frmR	APECO1_1644	-	regulator protein FrmR
329	 49.48	0	398490..399263	-	257	117622628	yaiO	APECO1_1643	-	hypothetical protein
330	 45.99	-1	399265..399975	-	236	117622629	-	APECO1_1642	-	putative transferase
331	 50.04	0	399824..401020	-	398	117622630	yaiP	APECO1_1641	-	putative glucosyltransferase
332	 42.65	-1	401030..401716	-	228	117622631	-	APECO1_1640	-	hypothetical protein
333	 54.90	0	402247..403266	+	339	117622632	tauA	APECO1_1639	-	taurine transporter substrate binding subunit
334	 55.08	0	403279..404046	+	255	117622633	tauB	APECO1_1638	-	taurine transporter ATP-binding subunit
335	 58.94	+1	404043..404870	+	275	117622634	tauC	APECO1_1637	-	taurine transporter subunit
336	 54.58	0	404867..405718	+	283	117622635	tauD	APECO1_1636	-	taurine dioxygenase
337	 53.97	0	405758..406765	-	335	117622636	hemB	APECO1_1635	-	delta-aminolevulinic acid dehydratase
338	 45.92	-1	407258..410245	+	995	117622637	-	APECO1_1634	-	putative structural protein
339	 40.21	-2	410286..410954	+	222	117622638	yaiV	APECO1_1633	-	putative DNA-binding transcriptional regulator
340	 55.26	0	410955..412085	-	376	117622639	ampH	APECO1_1632	-	beta-lactamase/D-alanine carboxypeptidase
341	 51.02	0	412458..413684	+	408	117622640	sbmA	APECO1_1631	-	transport protein
342	 53.88	0	413697..414791	+	364	117622641	yaiW	APECO1_1630	-	hypothetical protein
343	 51.46	0	414850..415158	-	102	117622642	-	APECO1_1629	-	hypothetical protein
344	 44.35	-1	415286..415630	+	114	117622643	yaiZ	APECO1_1628	-	hypothetical protein
345	 51.14	0	415654..416748	-	364	117622644	ddl	APECO1_1627	-	D-alanyl-alanine synthetase A
346	 46.74	0	417211..417471	+	86	117622645	yaiB	APECO1_1626	-	hypothetical protein
347	 53.04	0	417572..418987	+	471	117622646	phoA	APECO1_1625	-	alkaline phosphatase
348	 47.49	0	419088..419426	+	112	117622647	psiF	APECO1_1624	-	hypothetical protein
349	 53.76	0	419528..420643	+	371	117622648	-	APECO1_1623	-	diguanylate cyclase AdrA
350	 54.69	0	420660..421469	-	269	117622649	proC	APECO1_1622	-	pyrroline-5-carboxylate reductase
351	 55.34	0	421589..422047	+	152	117622650	-	APECO1_1621	-	hypothetical protein
352	 52.19	0	422230..422754	+	174	117622651	aroL	APECO1_1620	-	shikimate kinase II
353	 47.53	0	422744..423067	-	107	117622652	-	APECO1_1619	-	hypothetical protein
354	 46.61	0	423253..423930	+	225	117622653	aroM	APECO1_1618	-	hypothetical protein
355	 51.58	0	424002..424286	+	94	117622654	-	APECO1_1617	-	hypothetical protein
356	 52.45	0	424933..425790	-	285	117622655	rdgC	APECO1_1616	-	recombination associated protein
357	 53.91	0	425844..426878	+	344	117622656	yajF	APECO1_1615	-	fructokinase
358	 50.37	0	427147..428367	-	406	117622657	araJ	APECO1_1614	-	protein AraJ
359	 53.69	0	428457..431600	-	1047	117622658	sbcC	APECO1_1613	-	exonuclease subunit SbcC
360	 53.06	0	431597..432823	-	408	117622659	sbcD	APECO1_1612	-	exonuclease subunit SbcD
361	 53.91	0	432989..433678	+	229	117622660	phoB	APECO1_1611	-	transcriptional regulator PhoB
362	 53.16	0	433736..435031	+	431	117622661	phoR	APECO1_1610	-	phosphate regulon sensor protein
363	 55.53	0	435438..436757	+	439	117622662	brnQ	APECO1_1609	-	branched-chain amino-acid transport system II carrier protein
364	 52.47	0	436833..438206	+	457	117622663	proY	APECO1_1608	-	putative proline-specific permease
365	 54.57	0	438362..440179	+	605	117622664	malZ	APECO1_1607	-	maltodextrin glucosidase
366	 52.43	0	440184..440822	-	212	117622665	yajB	APECO1_1606	-	acyl carrier protein phosphodiesterase
367	 53.41	0	440984..442054	+	356	117622666	queA	APECO1_1605	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
368	 51.33	0	442109..443236	+	375	117622667	tgt	APECO1_1604	-	queuine tRNA-ribosyltransferase
369	 49.55	0	443259..443591	+	110	117622668	yajC	APECO1_1603	-	preprotein translocase subunit YajC
370	 53.19	0	443619..445466	+	615	117622669	secD	APECO1_1602	-	preprotein translocase subunit SecD
371	 51.92	0	445432..446448	+	338	117622670	secF	APECO1_1601	-	preprotein translocase subunit SecF
372	 46.04	-1	446509..446925	+	138	117622671	yajD	APECO1_1600	-	hypothetical protein
373	 50.85	0	446963..447847	-	294	117622672	tsx	APECO1_1599	-	nucleoside-specific channel-forming protein Tsx
374	 47.33	0	448145..448744	-	199	117622673	yajI	APECO1_1598	-	hypothetical protein
375	 51.11	0	448835..449284	+	149	117622674	nrdR	APECO1_1597	-	transcriptional regulator NrdR
376	 54.71	0	449288..450391	+	367	117622675	ribD	APECO1_1596	-	bifunctional diaminohydroxyphosphoribosylaminopyrimidine deaminase/5-amino-6-(5-phosphoribosylamino)uracil reductase
377	 52.38	0	450384..450950	+	188	117622676	ribH	APECO1_1595	-	riboflavin synthase subunit beta
378	 55.01	0	451467..452444	+	325	117622678	thiL	APECO1_1593	-	thiamine monophosphate kinase
379	 52.22	0	452422..452940	+	172	117622679	pgpA	APECO1_1592	-	phosphatidylglycerophosphatase A
380	 53.64	0	452994..453968	-	324	117622680	yajO	APECO1_1591	-	oxidoreductase, NAD(P)-binding
381	 54.05	0	454023..455885	-	620	117622681	dxs	APECO1_1590	-	1-deoxy-D-xylulose-5-phosphate synthase
382	 53.78	0	455910..456809	-	299	117622682	ispA	APECO1_1589	-	geranyltranstransferase
383	 52.24	0	457257..458705	+	482	117622683	thiI	APECO1_1588	-	thiamine biosynthesis protein ThiI
384	 56.62	+1	458759..459355	-	198	117622684	thiJ	APECO1_1587	-	hypothetical protein
385	 51.86	0	459312..460223	-	303	117622685	apbA	APECO1_1586	-	2-dehydropantoate 2-reductase
386	 48.43	0	460373..460882	+	169	117622686	yajQ	APECO1_1585	-	nucleotide-binding protein
387	 52.66	0	461010..462380	-	456	117622687	yajR	APECO1_1584	-	hypothetical protein
388	 53.31	0	462523..463458	-	311	117622688	cyoE	APECO1_1583	-	protoheme IX farnesyltransferase
389	 49.39	0	463425..463835	-	136	117622689	cyoD	APECO1_1582	-	cytochrome o ubiquinol oxidase subunit IV
390	 53.33	0	463754..464368	-	204	117622690	cyoC	APECO1_1581	-	cytochrome o ubiquinol oxidase subunit III
391	 53.06	0	464358..466349	-	663	117622691	cyoB	APECO1_1580	-	cytochrome o ubiquinol oxidase subunit I
392	 50.68	0	466371..467327	-	318	117622692	cyoA	APECO1_1579	-	cytochrome o ubiquinol oxidase subunit II
393	 53.66	0	467786..469261	-	491	117622693	ampG	APECO1_1578	-	muropeptide transporter
394	 50.37	0	469305..469985	-	226	117622694	yajG	APECO1_1577	-	hypothetical protein
395	 48.43	0	470188..470505	+	105	162317585	bolA	APECO1_1576	-	transcriptional regulator BolA
396	 51.32	0	470849..472138	+	429	117622696	tig	APECO1_1575	-	trigger factor
397	 50.16	0	472393..473016	+	207	117622697	clpP	APECO1_1574	-	ATP-dependent Clp protease proteolytic subunit
398	 51.92	0	473142..474416	+	424	117622698	clpX	APECO1_1573	-	ATP-dependent protease ATP-binding subunit
399	 52.38	0	474559..476958	+	799	117622699	lon	APECO1_1572	-	DNA-binding ATP-dependent protease La
400	 49.08	0	477167..477439	+	90	117622700	hupB	APECO1_1571	-	transcriptional regulator HU subunit beta
401	 52.14	0	477631..479502	+	623	117622701	ppiD	APECO1_1570	-	peptidyl-prolyl cis-trans isomerase (rotamase D)
402	 54.03	0	479653..480024	+	123	117622702	ybaV	APECO1_1569	-	hypothetical protein
403	 46.12	-1	480130..480528	+	132	117622703	ybaW	APECO1_1568	-	hypothetical protein
404	 51.58	0	480580..481275	-	231	117622704	-	APECO1_1567	-	queuosine biosynthesis protein QueC
405	 52.85	0	481340..483040	-	566	117622705	ybaE	APECO1_1566	-	hypothetical protein
406	 50.54	0	483128..483958	+	276	117622706	cof	APECO1_1565	-	hypothetical protein
407	 48.53	0	483958..484569	+	203	117622707	ybaO	APECO1_1564	-	putative transcriptional regulator YbaO
408	 53.07	0	484599..486371	+	590	117622708	mdlA	APECO1_1563	-	putative multidrug transporter membrane\ATP-binding components
409	 56.01	+1	486250..488145	+	631	117622709	mdlB	APECO1_1562	-	putative multidrug transporter membrane\ATP-binding components
410	 48.85	0	488188..488664	+	158	117622710	glnK	APECO1_1561	-	glutamine synthetase activity regulation protein
411	 55.94	+1	488694..489980	+	428	117622711	amtB	APECO1_1560	-	ammonium transporter
50.94	MEAN

4.72	STD DEV
