IslandPath Analysis: Escherichia coli APEC O1

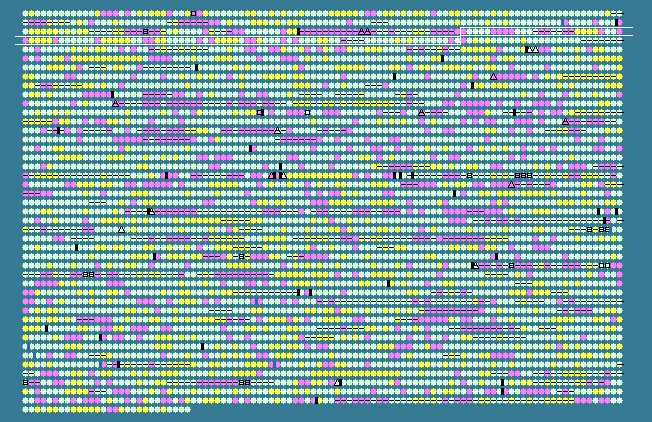

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
274	 42.53	-1	328227..329216	+	329	117622573	-	APECO1_1698	-	putative LysR-like transcriptional regulator
275	 50.26	0	329341..330309	+	322	117622574	ycjZ	APECO1_1697	-	putative transcriptional regulator
276	 50.61	0	330340..331329	-	329	117622575	-	APECO1_1696	-	putative aldo/keto reductase
277	 50.70	0	331356..332207	-	283	117622576	-	APECO1_1695	-	2,5-diketo-D-gluconic acid reductase A
278	 51.92	0	332773..337023	+	1416	117622577	eaeH	APECO1_1694	-	attaching and effacing protein, pathogenesis factor EaeH
279	 43.21	-1	337148..338038	-	296	117622578	ykgA	APECO1_1693	-	putative transcriptional regulator
280	 43.16	-1	338238..339122	+	294	117622579	-	APECO1_1692	-	2,5-diketo-D-gluconic acid reductase A
281	 44.78	-1	339282..339884	-	200	117622580	ykgB	APECO1_1691	-	hypothetical protein
282	 45.45	-1	340232..341584	-	450	117622581	ykgC	APECO1_1690	-	pyridine nucleotide-disulfide oxidoreductase
283	 50.88	0	341784..342638	+	284	117622582	ykgD	APECO1_1689	-	putative DNA-binding transcriptional regulator
284	 50.56	0	343165..343884	+	239	117622583	ykgE	APECO1_1688	-	hypothetical protein
285	 50.31	0	344022..345323	+	433	117622584	ykgG	APECO1_1687	-	hypothetical protein
286	 51.47	0	345163..346011	+	282	117622585	ykgG	APECO1_1686	-	hypothetical protein
287	 37.07	-2	346254..346922	-	222	117622586	ykgH	APECO1_1685	-	hypothetical protein
288	 46.26	0	347106..349418	-	770	117622587	-	APECO1_1684	-	hypothetical protein
289	 47.64	0	349445..350206	-	253	117622588	-	APECO1_1683	-	hypothetical protein
290	 48.93	0	350360..351154	-	264	117622589	-	APECO1_1682	-	hypothetical protein
291	 42.45	-1	351484..352086	-	200	117622590	-	APECO1_1681	-	hypothetical protein
292	 41.49	-2	352811..353092	+	93	117622591	-	APECO1_1680	-	hypothetical protein
293	 58.26	+1	353117..354721	-	534	117622592	betA	APECO1_1679	-	choline dehydrogenase
294	 57.52	+1	354819..356294	-	491	117622593	betB	APECO1_1678	-	betaine aldehyde dehydrogenase
295	 56.28	+1	356305..356901	-	198	117622594	betI	APECO1_1677	-	transcriptional regulator BetI
296	 55.01	0	357021..359054	+	677	117622595	betT	APECO1_1676	-	choline transport protein BetT
297	 45.48	-1	359926..361020	+	364	117622596	yahA	APECO1_1675	-	putative DNA-binding transcriptional regulator
298	 50.16	0	361062..361994	-	310	117622597	yahB	APECO1_1674	-	putative DNA-bindng transcriptional regulator
299	 54.02	0	362086..362583	-	165	117622598	yahC	APECO1_1673	-	hypothetical protein
300	 45.38	-1	362841..363446	+	201	117622599	yahD	APECO1_1672	-	putative transcription factor
301	 47.34	0	363486..364349	+	287	117622600	yahE	APECO1_1671	-	hypothetical protein
302	 54.84	0	364339..365886	+	515	117622601	yahF	APECO1_1670	-	acyl-CoA synthetase
303	 58.28	+1	365886..367304	+	472	117622602	-	APECO1_1669	-	hypothetical protein
304	 56.26	+1	367458..368408	+	316	117622603	yahI	APECO1_1668	-	putative carbamate kinase
305	 56.11	+1	368418..369800	+	460	117622604	yahJ	APECO1_1667	-	deaminase
306	 45.26	-1	370098..370508	+	136	117622605	-	APECO1_1666	-	hypothetical protein
307	 47.82	0	370759..371745	+	328	117622606	-	APECO1_1665	-	putative periplasmic binding protein, substrate ribose
308	 51.45	0	371794..373278	+	494	117622607	-	APECO1_1664	-	sugar ABC transporter ATP-binding protein
309	 50.82	0	373271..374242	+	323	117622608	-	APECO1_1663	-	ribose ABC transporter permease
310	 51.47	0	374209..375195	+	328	117622609	-	APECO1_1662	-	putative permease component of transport system
311	 52.76	0	375282..376331	+	349	117622610	yahK	APECO1_1661	-	putative zinc-type alcohol dehydrogenase-like protein YahK
312	 49.26	0	377215..377886	-	223	117622611	yahN	APECO1_1660	-	putative cytochrome subunit of dehydrogenase
313	 38.77	-2	378033..378308	+	91	117622612	yahO	APECO1_1659	-	hypothetical protein
314	 55.64	0	378409..379995	-	528	117622613	prpR	APECO1_1658	-	DNA-binding transcriptional activator
315	 56.00	+1	380234..381124	+	296	117622614	prpB	APECO1_1657	-	2-methylisocitrate lyase
316	 55.47	0	381169..382338	+	389	117622615	prpC	APECO1_1656	-	methylcitrate synthase
317	 56.68	+1	382372..383823	+	483	117622616	prpD	APECO1_1655	-	2-methylcitrate dehydratase
318	 57.34	+1	383863..385749	+	628	117622617	prpE	APECO1_1654	-	propionyl-CoA synthetase
319	 54.21	0	386074..387333	+	419	117622618	codB	APECO1_1653	-	cytosine permease
320	 53.35	0	387308..388606	+	432	117622619	codA	APECO1_1652	-	cytosine deaminase
321	 43.44	-1	388727..389389	-	220	117622620	lacA	APECO1_1651	-	galactoside O-acetyltransferase
322	 46.01	-1	389404..390657	-	417	117622621	lacY	APECO1_1650	-	galactoside permease
323	 57.04	+1	390709..393783	-	1024	117622622	lacZ	APECO1_1649	-	beta-D-galactosidase
324	 56.14	+1	393907..394998	-	363	117622623	lacI	APECO1_1648	-	lac repressor
325	 48.15	0	395191..395730	+	179	117622624	yaiL	APECO1_1647	-	nucleoprotein/polynucleotide-associated enzyme
326	 48.32	0	395956..396789	-	277	117622625	yaiM	APECO1_1646	-	hypothetical protein
327	 53.42	0	396882..397991	-	369	117622626	adhC	APECO1_1645	-	alcohol dehydrogenase class III; formaldehyde dehydrogenase, glutathione-dependent
328	 53.20	0	398026..398322	-	98	117622627	frmR	APECO1_1644	-	regulator protein FrmR
329	 49.48	0	398490..399263	-	257	117622628	yaiO	APECO1_1643	-	hypothetical protein
330	 45.99	-1	399265..399975	-	236	117622629	-	APECO1_1642	-	putative transferase
331	 50.04	0	399824..401020	-	398	117622630	yaiP	APECO1_1641	-	putative glucosyltransferase
332	 42.65	-1	401030..401716	-	228	117622631	-	APECO1_1640	-	hypothetical protein
333	 54.90	0	402247..403266	+	339	117622632	tauA	APECO1_1639	-	taurine transporter substrate binding subunit
334	 55.08	0	403279..404046	+	255	117622633	tauB	APECO1_1638	-	taurine transporter ATP-binding subunit
335	 58.94	+1	404043..404870	+	275	117622634	tauC	APECO1_1637	-	taurine transporter subunit
336	 54.58	0	404867..405718	+	283	117622635	tauD	APECO1_1636	-	taurine dioxygenase
337	 53.97	0	405758..406765	-	335	117622636	hemB	APECO1_1635	-	delta-aminolevulinic acid dehydratase
338	 45.92	-1	407258..410245	+	995	117622637	-	APECO1_1634	-	putative structural protein
339	 40.21	-2	410286..410954	+	222	117622638	yaiV	APECO1_1633	-	putative DNA-binding transcriptional regulator
340	 55.26	0	410955..412085	-	376	117622639	ampH	APECO1_1632	-	beta-lactamase/D-alanine carboxypeptidase
341	 51.02	0	412458..413684	+	408	117622640	sbmA	APECO1_1631	-	transport protein
342	 53.88	0	413697..414791	+	364	117622641	yaiW	APECO1_1630	-	hypothetical protein
343	 51.46	0	414850..415158	-	102	117622642	-	APECO1_1629	-	hypothetical protein
344	 44.35	-1	415286..415630	+	114	117622643	yaiZ	APECO1_1628	-	hypothetical protein
345	 51.14	0	415654..416748	-	364	117622644	ddl	APECO1_1627	-	D-alanyl-alanine synthetase A
346	 46.74	0	417211..417471	+	86	117622645	yaiB	APECO1_1626	-	hypothetical protein
347	 53.04	0	417572..418987	+	471	117622646	phoA	APECO1_1625	-	alkaline phosphatase
348	 47.49	0	419088..419426	+	112	117622647	psiF	APECO1_1624	-	hypothetical protein
349	 53.76	0	419528..420643	+	371	117622648	-	APECO1_1623	-	diguanylate cyclase AdrA
350	 54.69	0	420660..421469	-	269	117622649	proC	APECO1_1622	-	pyrroline-5-carboxylate reductase
351	 55.34	0	421589..422047	+	152	117622650	-	APECO1_1621	-	hypothetical protein
352	 52.19	0	422230..422754	+	174	117622651	aroL	APECO1_1620	-	shikimate kinase II
353	 47.53	0	422744..423067	-	107	117622652	-	APECO1_1619	-	hypothetical protein
354	 46.61	0	423253..423930	+	225	117622653	aroM	APECO1_1618	-	hypothetical protein
355	 51.58	0	424002..424286	+	94	117622654	-	APECO1_1617	-	hypothetical protein
356	 52.45	0	424933..425790	-	285	117622655	rdgC	APECO1_1616	-	recombination associated protein
357	 53.91	0	425844..426878	+	344	117622656	yajF	APECO1_1615	-	fructokinase
358	 50.37	0	427147..428367	-	406	117622657	araJ	APECO1_1614	-	protein AraJ
359	 53.69	0	428457..431600	-	1047	117622658	sbcC	APECO1_1613	-	exonuclease subunit SbcC
360	 53.06	0	431597..432823	-	408	117622659	sbcD	APECO1_1612	-	exonuclease subunit SbcD
361	 53.91	0	432989..433678	+	229	117622660	phoB	APECO1_1611	-	transcriptional regulator PhoB
362	 53.16	0	433736..435031	+	431	117622661	phoR	APECO1_1610	-	phosphate regulon sensor protein
363	 55.53	0	435438..436757	+	439	117622662	brnQ	APECO1_1609	-	branched-chain amino-acid transport system II carrier protein
364	 52.47	0	436833..438206	+	457	117622663	proY	APECO1_1608	-	putative proline-specific permease
365	 54.57	0	438362..440179	+	605	117622664	malZ	APECO1_1607	-	maltodextrin glucosidase
366	 52.43	0	440184..440822	-	212	117622665	yajB	APECO1_1606	-	acyl carrier protein phosphodiesterase
367	 53.41	0	440984..442054	+	356	117622666	queA	APECO1_1605	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
368	 51.33	0	442109..443236	+	375	117622667	tgt	APECO1_1604	-	queuine tRNA-ribosyltransferase
369	 49.55	0	443259..443591	+	110	117622668	yajC	APECO1_1603	-	preprotein translocase subunit YajC
370	 53.19	0	443619..445466	+	615	117622669	secD	APECO1_1602	-	preprotein translocase subunit SecD
371	 51.92	0	445432..446448	+	338	117622670	secF	APECO1_1601	-	preprotein translocase subunit SecF
372	 46.04	-1	446509..446925	+	138	117622671	yajD	APECO1_1600	-	hypothetical protein
373	 50.85	0	446963..447847	-	294	117622672	tsx	APECO1_1599	-	nucleoside-specific channel-forming protein Tsx
50.94	MEAN

4.72	STD DEV
