IslandPath Analysis: Escherichia coli APEC O1

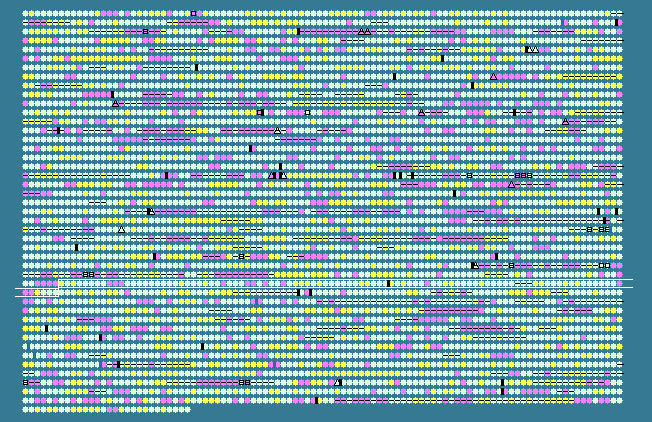

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3007	 55.84	+1	3452441..3453853	-	470	117625325	sufI	APECO1_3402	-	repressor protein for FtsI
3008	 49.86	0	3453928..3454665	-	245	117625326	plsC	APECO1_3401	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
3009	 55.07	0	3454900..3457158	-	752	117625327	parC	APECO1_3400	-	DNA topoisomerase IV subunit A
3010	 52.24	0	3457296..3458903	-	535	117625328	ygiS	APECO1_3399	-	putative binding protein
3011	 53.00	0	3459012..3459494	-	160	117625329	ygiV	APECO1_3398	-	putative transcriptional regulator
3012	 51.40	0	3459547..3459939	-	130	117625330	ygiW	APECO1_3397	-	hypothetical protein
3013	 52.58	0	3460091..3460750	+	219	117625331	ygiX	APECO1_3396	-	DNA-binding transcriptional regulator QseB
3014	 52.81	0	3460747..3462096	+	449	117625332	qseC	APECO1_3395	-	sensor protein QseC
3015	 33.63	-2	3462142..3462474	-	110	117625333	-	APECO1_3394	-	hypothetical protein
3016	 35.02	-2	3462481..3463191	-	236	117625334	-	APECO1_3393	-	hypothetical protein
3017	 32.50	-2	3463194..3463673	-	159	117625335	-	APECO1_3392	-	hypothetical protein
3018	 49.83	0	3463923..3464504	+	193	117625336	mdaB	APECO1_3391	-	modulator of drug activity B
3019	 52.03	0	3464894..3465781	-	295	117625338	-	APECO1_3389	-	putative phosphosugar isomerases
3020	 49.01	0	3465778..3466785	-	335	117625339	-	APECO1_3388	-	iron ABC transporter substrate-binding protein
3021	 50.95	0	3466736..3467785	-	349	117625340	-	APECO1_3387	-	iron ABC transporter permease
3022	 54.37	0	3467782..3468765	-	327	117625341	-	APECO1_3386	-	iron ABC transporter permease
3023	 49.26	0	3468762..3469571	-	269	117625342	fepC	APECO1_3385	-	ferric enterobactin transport ATP-binding protein FepC
3024	 47.99	0	3469945..3472086	+	713	117625343	-	APECO1_3384	-	putative iron compound receptor
3025	 53.67	0	3472150..3474042	-	630	117625344	parE	APECO1_3383	-	DNA topoisomerase IV subunit B
3026	 53.95	0	3474071..3474652	-	193	117625345	yqiA	APECO1_3382	-	esterase YqiA
3027	 57.61	+1	3474652..3475347	-	231	117625346	icc	APECO1_3381	-	cyclic 3',5'-adenosine monophosphate phosphodiesterase
3028	 48.23	0	3475504..3475926	-	140	117625347	yqiB	APECO1_3380	-	hypothetical protein
3029	 50.79	0	3475927..3476556	-	209	117625348	nudF	APECO1_3379	-	ADP-ribose pyrophosphatase NudF
3030	 51.34	0	3476755..3478242	+	495	117625349	tolC	APECO1_3378	-	outer membrane channel protein
3031	 55.74	+1	3478357..3479061	+	234	117625350	-	APECO1_3377	-	hypothetical protein
3032	 50.99	0	3479067..3480227	+	386	117625351	ygiC	APECO1_3376	-	putative synthetase/amidase
3033	 49.58	0	3480712..3482508	+	598	117625352	assT	APECO1_3375	-	arylsulfate sulfotransferase
3034	 44.69	-1	3482526..3483194	+	222	117625353	-	APECO1_3374	-	putative disulfide isomerase
3035	 48.51	0	3483209..3483880	+	223	117625354	-	APECO1_3373	-	putative disulfide oxidoreductase
3036	 53.31	0	3483926..3484741	-	271	117625355	ygiD	APECO1_3372	-	hypothetical protein
3037	 53.36	0	3484857..3485630	+	257	117625356	ygiE	APECO1_3371	-	zinc transporter ZupT
3038	 44.33	-1	3486433..3486996	+	187	117625357	-	APECO1_3370	-	putative fimbrial protein
3039	 46.89	0	3487083..3489605	+	840	117625358	yqiG	APECO1_3369	-	putative outer membrane usher protein YqiG precursor
3040	 47.87	0	3489612..3490361	+	249	117625359	yqiH	APECO1_3368	-	putative periplasmic chaperone YqiH precursor
3041	 39.43	-2	3490358..3491407	+	349	117625360	-	APECO1_3367	-	putative Yqi fimbrial adhesin
3042	 53.06	0	3491461..3492114	-	217	117625361	ribB	APECO1_3366	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
3043	 48.61	0	3492428..3492787	+	119	117625362	yqiC	APECO1_3365	-	hypothetical protein
3044	 43.17	-1	3493292..3493921	+	209	117625363	yqiJ	APECO1_3364	-	hypothetical protein
3045	 50.60	0	3493948..3495609	+	553	117625364	yqiK	APECO1_3363	-	hypothetical protein
3046	 55.65	0	3496028..3497461	-	477	117625365	rfaE	APECO1_3362	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
3047	 55.54	0	3497509..3500421	-	970	117625366	glnE	APECO1_3361	-	bifunctional glutamine-synthetase adenylyltransferase/deadenyltransferase
3048	 54.69	0	3500372..3501673	-	433	117625367	ygiF	APECO1_3360	-	putative adenylate cyclase
3049	 52.33	0	3501915..3502535	+	206	117625368	htrG	APECO1_3359	-	putative signal transduction protein
3050	 56.66	+1	3502599..3503837	+	412	117625369	cca	APECO1_3358	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
3051	 52.92	0	3504025..3504846	-	273	117625370	uppP	APECO1_3357	-	undecaprenyl pyrophosphate phosphatase
3052	 50.68	0	3504937..3505305	-	122	117625371	folB	APECO1_3356	-	bifunctional dihydroneopterin aldolase/dihydroneopterin triphosphate 2'-epimerase
3053	 53.56	0	3505410..3506027	+	205	117625372	ygiH	APECO1_3355	-	putative glycerol-3-phosphate acyltransferase PlsY
3054	 48.94	0	3506040..3507026	-	328	117625373	-	APECO1_3354	-	transcriptional activator TtdR
3055	 53.29	0	3507179..3508090	+	303	117625374	ttdA	APECO1_3353	-	tartrate dehydratase subunit alpha
3056	 53.80	0	3508087..3508692	+	201	117625375	ttdB	APECO1_3352	-	L(+)-tartrate dehydratase subunit beta
3057	 54.58	0	3508740..3510203	+	487	117625376	ygjE	APECO1_3351	-	putative tartrate:succinate antiporter
3058	 56.41	+1	3510246..3511259	-	337	117625377	ygjD	APECO1_3350	-	O-sialoglycoprotein endopeptidase
3059	 52.29	0	3511823..3513568	+	581	117625378	dnaG	APECO1_3349	-	DNA primase
3060	 53.04	0	3513763..3515604	+	613	117625379	rpoD	APECO1_3348	-	RNA polymerase sigma factor RpoD
3061	 53.06	0	3515683..3516189	-	168	117625380	ygjF	APECO1_3347	-	G/U mismatch-specific DNA glycosylase
3062	 56.47	+1	3516443..3517207	-	254	117625381	yqjH	APECO1_3346	-	putative siderophore interacting protein
3063	 53.85	0	3517484..3518107	+	207	117625382	yqjI	APECO1_3345	-	hypothetical protein
3064	 55.03	0	3518261..3519781	-	506	117625383	aer	APECO1_3344	-	aerotaxis sensor receptor, flavoprotein
3065	 54.19	0	3520088..3521578	+	496	117625384	ygjG	APECO1_3343	-	putrescine--2-oxoglutarate aminotransferase
3066	 51.32	0	3522171..3523154	+	327	117625386	ebgR	APECO1_3341	-	DNA-binding transcriptional repressor EbgR
3067	 53.76	0	3523302..3526430	+	1042	117625387	ebgA	APECO1_3340	-	cryptic beta-D-galactosidase subunit alpha
3068	 45.78	-1	3526427..3526876	+	149	117625388	ebgC	APECO1_3339	-	cryptic beta-D-galactosidase subunit beta
3069	 49.44	0	3526939..3528372	+	477	117625389	ygjI	APECO1_3338	-	putative oxidoreductase
3070	 52.10	0	3528506..3529576	+	356	117625390	ygjJ	APECO1_3337	-	hypothetical protein
3071	 54.51	0	3529593..3531944	+	783	117625391	ygjK	APECO1_3336	-	putative glycosyl hydrolase
3072	 56.76	+1	3532115..3534133	+	672	117625392	ygjL	APECO1_3335	-	NADPH 2,4-dienoyl-CoA reductase
3073	 53.91	0	3534251..3535387	-	378	117625393	ygjO	APECO1_3334	-	putative ribosomal RNA small subunit methyltransferase D
3074	 50.36	0	3536052..3536744	+	230	117625394	ygjQ	APECO1_3333	-	hypothetical protein
3075	 51.74	0	3536805..3537809	+	334	117625395	ygjR	APECO1_3332	-	putative oxidoreductase
3076	 53.21	0	3538092..3539057	+	321	117625396	ygjT	APECO1_3331	-	hypothetical protein
3077	 54.78	0	3539381..3540625	+	414	117625397	ygjU	APECO1_3330	-	serine/threonine transporter SstT
3078	 50.36	0	3540629..3541180	-	183	117625398	ygjV	APECO1_3329	-	hypothetical protein
3079	 53.76	0	3541263..3542750	-	495	117625399	uxaA	APECO1_3328	-	altronate hydrolase UxaA
3080	 53.72	0	3542765..3544177	-	470	117625400	uxaC	APECO1_3327	-	glucuronate isomerase
3081	 54.33	0	3544540..3545958	+	472	117625401	exuT	APECO1_3326	-	hexuronate transporter ExuT
3082	 51.14	0	3546073..3546864	+	263	117625402	exuR	APECO1_3325	-	DNA-binding transcriptional repressor ExuR
3083	 50.98	0	3547209..3547871	+	220	117625403	-	APECO1_3324	-	hypothetical protein
3084	 53.65	0	3547875..3548258	+	127	117625404	yqjB	APECO1_3323	-	hypothetical protein
3085	 47.92	0	3548390..3548773	+	127	117625405	yqjC	APECO1_3322	-	hypothetical protein
3086	 55.70	+1	3549050..3549523	+	157	117625406	-	APECO1_3321	-	hypothetical protein
3087	 56.73	+1	3549471..3549812	+	113	117625407	yqjK	APECO1_3320	-	hypothetical protein
3088	 48.86	0	3549909..3550391	+	160	117625408	yqjF	APECO1_3319	-	hypothetical protein
3089	 51.67	0	3550461..3551447	+	328	117625409	yqjG	APECO1_3318	-	putative glutathione S-transferase
3090	 51.22	0	3551730..3552098	+	122	117625410	yhaH	APECO1_3317	-	putative cytochrome
3091	 56.08	+1	3552132..3553028	-	298	117625411	yhaJ	APECO1_3316	-	putative DNA-binding transcriptional regulator
3092	 51.99	0	3553133..3553834	+	233	117625412	-	APECO1_3315	-	putative pirin-related protein
3093	 56.06	+1	3554153..3555463	-	436	117625413	yhaM	APECO1_3314	-	hypothetical protein
3094	 50.60	0	3555491..3556822	-	443	117625414	-	APECO1_3313	-	putative amino acid permease
3095	 53.17	0	3557097..3558467	-	456	117625415	tdcG	APECO1_3312	-	L-serine dehydratase
3096	 52.05	0	3558533..3558970	-	145	117625416	tdcF	APECO1_3311	-	hypothetical protein
3097	 52.42	0	3558936..3561230	-	764	117625417	tdcE	APECO1_3310	-	putative formate acetyltransferase 3
3098	 48.08	0	3561264..3562484	-	406	117625418	tdcD	APECO1_3309	-	propionate/acetate kinase
3099	 48.95	0	3562498..3563829	-	443	117625419	tdcC	APECO1_3308	-	threonine/serine transporter TdcC
3100	 46.26	0	3563851..3564840	-	329	117625420	tdcB	APECO1_3307	-	threonine dehydratase
3101	 42.28	-1	3564933..3565871	-	312	117625421	tdcA	APECO1_3306	-	DNA-binding transcriptional activator TdcA
3102	 31.59	-2	3566061..3566405	+	114	117625422	tdcR	APECO1_3305	-	DNA-binding transcriptional activator TdcR
3103	 59.47	+1	3566924..3567451	+	175	117625423	-	APECO1_3304	-	hypothetical protein
3104	 53.46	0	3567379..3568605	-	408	117625424	garK	APECO1_3303	-	glycerate kinase I
3105	 53.11	0	3568621..3569520	-	299	117625425	garR	APECO1_3302	-	tartronate semialdehyde reductase
3106	 52.53	0	3569541..3570311	-	256	117625426	garL	APECO1_3301	-	alpha-dehydro-beta-deoxy-D-glucarate aldolase
50.94	MEAN

4.72	STD DEV
