IslandPath Analysis: Escherichia coli APEC O1

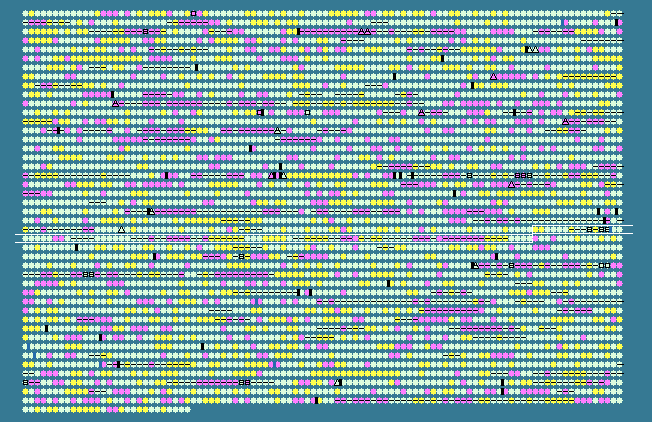

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2486	 55.65	0	2871390..2871761	-	123	117624802	yfiF	APECO1_39512	-	tRNA/rRNA methyltransferase YfiF
2487	 55.39	0	2871967..2872569	+	200	117624803	yfiF	APECO1_3951	-	tRNA/rRNA methyltransferase YfiF
2488	 49.76	0	2872638..2873057	+	139	117624804	trxC	APECO1_3950	-	thioredoxin 2
2489	 51.45	0	2873102..2873824	+	240	117624805	yfiP	APECO1_3949	-	hypothetical protein
2490	 54.11	0	2873856..2876516	+	886	117624806	yfiQ	APECO1_3948	-	acyl-CoA synthetase (NDP forming)
2491	 49.01	0	2876627..2877985	+	452	117624807	pssA	APECO1_3947	-	phosphatidylserine synthase
2492	 56.04	+1	2878082..2878354	+	90	117624808	yfiM	APECO1_3946	-	hypothetical protein
2493	 47.56	0	2878351..2879742	-	463	117624809	kgtP	APECO1_3945	-	alpha-ketoglutarate transporter
2494	 48.21	0	2879972..2880307	-	111	117624810	-	APECO1_3944	-	ISEc12 putative ATP-binding protein
2495	 48.12	0	2880735..2882276	-	513	117624811	-	APECO1_3943	-	transposase for ISEc12
2496	 55.56	0	2882841..2883272	+	143	117624812	-	APECO1_3942	-	hypothetical protein
2497	 49.10	0	2883791..2884513	-	240	117624813	-	APECO1_3941	-	putative transposase subunit
2498	 48.46	0	2884618..2884941	-	107	117624814	-	APECO1_3940	-	putative transposase subunit
2499	 51.31	0	2890825..2893410	-	861	117624816	clpB	APECO1_3938	-	protein disaggregation chaperone
2500	 54.10	0	2893528..2894259	-	243	117624817	yfiH	APECO1_3937	-	hypothetical protein
2501	 52.70	0	2894256..2895236	-	326	117624818	rluD	APECO1_3936	-	23S rRNA pseudouridine synthase D
2502	 50.54	0	2895371..2896108	+	245	117624819	yfiO	APECO1_3935	-	outer membrane protein assembly complex subunit YfiO
2503	 48.84	0	2896969..2898129	+	386	117624820	pheA	APECO1_3934	-	bifunctional chorismate mutase/prephenate dehydratase
2504	 52.32	0	2898172..2899293	-	373	117624821	tyrA	APECO1_3933	-	bifunctional chorismate mutase/prephenate dehydrogenase
2505	 51.40	0	2899304..2900443	-	379	117624822	aroF	APECO1_3932	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2506	 45.36	-1	2900584..2900949	+	121	117624823	yfiL	APECO1_3931	-	hypothetical protein
2507	 43.93	-1	2901098..2901616	+	172	117624824	yfiR	APECO1_3930	-	hypothetical protein
2508	 48.00	0	2901606..2902832	+	408	117624825	yfiN	APECO1_3929	-	hypothetical protein
2509	 51.14	0	2902848..2903330	+	160	117624826	yfiB	APECO1_3928	-	putative outer membrane lipoprotein
2510	 48.28	0	2903407..2903754	-	115	117624827	rplS	APECO1_3927	-	50S ribosomal protein L19
2511	 52.55	0	2903796..2904128	-	110	117624828	trmD	APECO1_39262	-	tRNA (guanine-1-)-methyltransferase
2512	 54.17	0	2904206..2904565	-	119	117624829	trmD	APECO1_3926	-	tRNA (guanine-1-)-methyltransferase
2513	 48.73	0	2904596..2905147	-	183	117624830	rimM	APECO1_3925	-	16S rRNA-processing protein
2514	 51.13	0	2905163..2905471	-	102	117624831	rpsP	APECO1_3924	-	30S ribosomal protein S16
2515	 54.26	0	2905548..2906909	-	453	117624832	ffh	APECO1_3923	-	signal recognition particle protein
2516	 51.56	0	2907001..2907867	+	288	117624833	ypjD	APECO1_3922	-	hypothetical protein
2517	 51.29	0	2907933..2909174	+	413	117624834	-	APECO1_3921	-	hypothetical protein
2518	 48.61	0	2909196..2909948	+	250	117624835	-	APECO1_3920	-	hypothetical protein
2519	 50.28	0	2909945..2910823	+	292	117624836	ppnK	APECO1_3919	-	inorganic polyphosphate/ATP-NAD kinase
2520	 51.99	0	2910909..2912570	+	553	117624837	recN	APECO1_3918	-	recombination and repair protein
2521	 49.71	0	2912719..2913060	+	113	117624838	smpA	APECO1_3917	-	hypothetical protein
2522	 46.33	0	2913402..2913878	-	158	117624839	yfjG	APECO1_3916	-	hypothetical protein
2523	 51.55	0	2914010..2914492	+	160	117624840	smpB	APECO1_3915	-	SsrA-binding protein
2524	 48.63	0	2915071..2915325	-	84	117624841	-	APECO1_3914	-	hypothetical protein
2525	 43.22	-1	2915649..2916437	+	262	117624842	-	APECO1_3913	-	hypothetical protein
2526	 42.18	-1	2916525..2916818	-	97	117624843	-	APECO1_39122	-	hypothetical protein
2527	 45.35	-1	2917029..2917802	-	257	117624844	-	APECO1_3912	-	hypothetical protein
2528	 40.94	-2	2918794..2920608	+	604	117624845	-	APECO1_3911	-	hypothetical protein
2529	 48.69	0	2920995..2921489	+	164	117624846	-	APECO1_3910	-	putative tail fiber protein
2530	 47.93	0	2921489..2922091	+	200	117624847	-	APECO1_3909	-	putative tail fiber assembly protein
2531	 45.05	-1	2922063..2922506	-	147	117624848	-	APECO1_3908	-	hypothetical protein
2532	 58.12	+1	2923256..2923840	-	194	117624849	-	APECO1_3907	-	hypothetical protein
2533	 57.70	+1	2923831..2924889	-	352	117624850	-	APECO1_3906	-	bacteriophage V tail protein
2534	 57.58	+1	2924876..2925304	-	142	117624851	-	APECO1_3905	-	bacteriophage V tail protein
2535	 57.19	+1	2925301..2925849	-	182	117624852	-	APECO1_3904	-	bacteriophage V tail protein
2536	 58.70	+1	2925849..2926928	-	359	117624853	-	APECO1_3903	-	putative tail protein
2537	 55.94	+1	2926925..2928295	-	456	117624854	-	APECO1_3902	-	bacteriophage V tail/DNA circulation protein
2538	 52.18	0	2928314..2930149	-	611	117624855	-	APECO1_3901	-	bacteriophage V tail protein
2539	 52.72	0	2930148..2930441	+	97	117624856	-	APECO1_3900	-	hypothetical protein
2540	 53.50	0	2930560..2930916	-	118	117624857	-	APECO1_3899	-	hypothetical protein
2541	 57.45	+1	2930916..2932412	-	498	117624858	-	APECO1_3898	-	bacteriophage V tail sheath pro
2542	 54.90	0	2932575..2933135	-	186	117624859	-	APECO1_3897	-	hypothetical protein
2543	 56.61	+1	2933132..2933638	-	168	117624860	-	APECO1_3896	-	hypothetical protein
2544	 57.66	+1	2933613..2934023	-	136	117624861	-	APECO1_3895	-	bacteriophage head tail adaptor
2545	 53.70	0	2934020..2934343	-	107	117624862	-	APECO1_3894	-	hypothetical protein
2546	 54.31	0	2934596..2935801	-	401	117624863	-	APECO1_3893	-	major capsid protein precursor
2547	 54.15	0	2935816..2936502	-	228	117624864	-	APECO1_3892	-	pro-head protease
2548	 56.09	+1	2936444..2937559	-	371	117624865	-	APECO1_3891	-	phage portal protein
2549	 54.44	0	2937879..2939612	-	577	117624866	-	APECO1_3890	-	bacteriophage V large terminase subunit
2550	 58.59	+1	2939609..2940103	-	164	117624867	-	APECO1_3889	-	bacteriophage V small terminase subunit
2551	 58.40	+1	2940229..2940579	-	116	117624868	-	APECO1_3888	-	putative phage endonuclease
2552	 48.40	0	2941550..2941987	-	145	117624869	-	APECO1_3887	-	putative phage lysis protein
2553	 49.06	0	2941984..2942460	-	158	117624870	-	APECO1_3886	-	putative muramidase
2554	 44.69	-1	2942447..2942851	-	134	117624871	-	APECO1_3885	-	hypothetical protein
2555	 33.04	-2	2942904..2943239	-	111	117624872	-	APECO1_3884	-	hypothetical protein
2556	 47.14	0	2943425..2944177	-	250	117624873	-	APECO1_3883	-	Qin-like prophage; antitermination protein Q
2557	 55.24	0	2944191..2945144	-	317	117624874	-	APECO1_3882	-	hypothetical protein
2558	 50.63	0	2945188..2945985	-	265	117624875	-	APECO1_3881	-	hypothetical protein
2559	 56.67	+1	2946005..2946394	-	129	117624876	-	APECO1_3880	-	bacteriophage V crossover junction endodeoxyribonuclease
2560	 55.05	0	2946391..2946717	-	108	117624877	-	APECO1_3879	-	hypothetical protein
2561	 53.98	0	2946714..2947367	-	217	117624878	-	APECO1_3878	-	DNA adenine methylase
2562	 54.19	0	2947367..2947855	-	162	117624879	-	APECO1_3877	-	hypothetical protein
2563	 53.08	0	2947858..2948799	-	313	117624880	-	APECO1_3876	-	hypothetical protein
2564	 49.56	0	2948809..2949147	-	112	117624881	ymfM	APECO1_3875	-	hypothetical protein
2565	 51.06	0	2949144..2949707	-	187	117624882	ymfL	APECO1_3874	-	e14 prophage; DNA-binding transcriptional regulator
2566	 40.52	-2	2949739..2950044	-	101	117624883	-	APECO1_3873	-	hypothetical protein
2567	 44.74	-1	2950030..2950704	+	224	117624884	-	APECO1_3872	-	putative phage repressor
2568	 43.47	-1	2950907..2951419	-	170	117624885	-	APECO1_3871	-	hypothetical protein
2569	 53.74	0	2951570..2952250	+	226	117624886	-	APECO1_3870	-	hypothetical protein
2570	 46.06	-1	2952316..2953140	+	274	117624887	yfdQ	APECO1_3869	-	hypothetical protein
2571	 45.90	-1	2953268..2953792	+	174	117624888	yfdR	APECO1_3868	-	hypothetical protein
2572	 28.37	-2	2953901..2954767	+	288	117624889	-	APECO1_3867	-	hypothetical protein
2573	 44.08	-1	2954976..2956148	+	390	117624890	-	APECO1_3866	-	hypothetical protein
2574	 37.83	-2	2956140..2956739	-	199	117624891	-	APECO1_3865	-	hypothetical protein
2575	 42.51	-1	2956768..2957094	-	108	117624892	-	APECO1_3864	-	hypothetical protein
2576	 42.65	-1	2957099..2958010	-	303	117624893	-	APECO1_3863	-	hypothetical protein
2577	 36.74	-2	2957976..2958239	+	87	117624894	-	APECO1_3862	-	hypothetical protein
2578	 54.91	0	2958871..2959848	+	325	117624895	ygaT	APECO1_3861	-	hypothetical protein
2579	 56.74	+1	2959868..2961136	+	422	117624896	ygaF	APECO1_3860	-	hypothetical protein
2580	 56.73	+1	2961159..2962607	+	482	117624897	gabD	APECO1_3859	-	succinate-semialdehyde dehydrogenase I
2581	 58.20	+1	2962615..2963901	+	428	117624898	gabT	APECO1_3858	-	4-aminobutyrate aminotransferase
2582	 51.50	0	2964076..2965539	+	487	117624899	gabP	APECO1_3857	-	gamma-aminobutyrate transporter
2583	 53.30	0	2965542..2966222	+	226	117624900	ygaE	APECO1_38572	-	DNA-binding transcriptional regulator CsiR
2584	 48.22	0	2966223..2966672	-	149	117624901	ygaU	APECO1_3856	-	hypothetical protein
2585	 52.00	0	2967097..2967396	+	99	117624902	ygaV	APECO1_3855	-	DNA-binding transcriptional regulator
50.94	MEAN

4.72	STD DEV
