IslandPath Analysis: Escherichia coli APEC O1

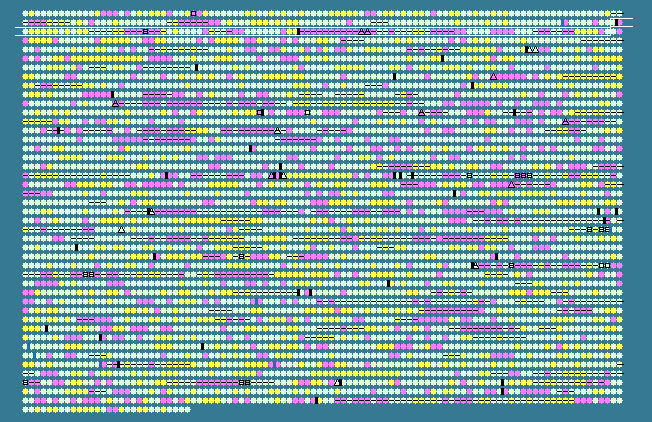

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
199	 51.28	0	241004..241744	+	246	117622497	dnaQ	APECO1_1775	-	DNA polymerase III subunit epsilon
200	 39.44	-2	242282..243067	+	261	117622499	yafT	APECO1_1773	-	putative aminopeptidase
201	 50.83	0	243407..243886	-	159	117622500	aec32	APECO1_1772	-	hypothetical protein
202	 55.80	+1	243904..245403	-	499	117622501	aec31	APECO1_1771	-	hypothetical protein
203	 57.54	+1	245273..248800	-	1175	117622502	aec30	APECO1_1770	-	hypothetical protein
204	 57.03	+1	248820..250262	-	480	117622503	aec29	APECO1_1769	-	hypothetical protein
205	 61.83	+2	250267..251010	-	247	117622504	aec28	APECO1_1768	-	hypothetical protein
206	 58.77	+1	251007..253766	-	919	117622505	aec27	APECO1_1767	-	putative ATPase with chaperone activity
207	 52.68	0	253776..254540	-	254	117622506	aec26	APECO1_1766	-	hypothetical protein
208	 57.76	+1	254545..255891	-	448	117622507	aec25	APECO1_1765	-	hypothetical protein
209	 52.76	0	255894..256418	-	174	117622508	aec24	APECO1_1764	-	hypothetical protein
210	 59.32	+1	256415..257707	-	430	117622509	aec23	APECO1_1763	-	hypothetical protein
211	 56.57	+1	257712..258761	-	349	117622510	aec22	APECO1_1762	-	hypothetical protein
212	 54.35	0	258725..260575	-	616	117622511	-	APECO1_1761	-	hypothetical protein
213	 48.12	0	260572..260997	-	141	117622512	aec19	APECO1_1760	-	hypothetical protein
214	 53.13	0	261002..262486	-	494	117622513	aec18	APECO1_1759	-	hypothetical protein
215	 48.41	0	262509..263012	-	167	117622514	aec17	APECO1_1758	-	hypothetical protein
216	 54.53	0	263718..264236	+	172	117622515	aec16	APECO1_1757	-	hypothetical protein
217	 55.47	0	264457..266439	+	660	117622516	aec15	APECO1_1756	-	hypothetical protein
218	 36.96	-2	266546..267592	+	348	117622517	aec14	APECO1_1755	-	hypothetical protein
219	 39.03	-2	267585..269024	+	479	117622518	-	APECO1_1753	-	hypothetical protein
220	 30.58	-2	268999..269289	+	96	117622519	aec11	APECO1_1752	-	hypothetical protein
221	 40.33	-2	269826..270311	+	161	117622520	yhhI	APECO1_1751	-	putative transposase
222	 34.72	-2	270540..271043	+	167	117622521	aec8	APECO1_1750	-	hypothetical protein
223	 38.01	-2	271113..271625	+	170	117622522	aec7	APECO1_1749	-	hypothetical protein
224	 54.86	0	271896..272666	-	256	117622523	yafV	APECO1_1748	-	hypothetical protein
225	 50.84	0	272820..273293	+	157	117622524	ivy	APECO1_1747	-	vertebrate C-lysozyme inhibitor
226	 56.07	+1	273336..275780	-	814	162317586	fadE	APECO1_1746	-	acyl-CoA dehydrogenase
227	 48.58	0	275858..276598	+	246	117622526	gmhA	APECO1_1745	-	phosphoheptose isomerase
228	 52.86	0	276804..277571	+	255	117622527	yafJ	APECO1_1744	-	putative amidotransferase
229	 48.99	0	277542..278282	-	246	117622528	yafK	APECO1_1743	-	hypothetical protein
230	 52.17	0	278585..279343	+	252	117622529	yafL	APECO1_1742	-	putative lipoprotein
231	 41.57	-1	279519..280016	+	165	117622530	yafM	APECO1_1741	-	hypothetical protein
232	 56.78	+1	280336..282075	-	579	117622531	fhiA	APECO1_1740	-	FhiA protein
233	 52.42	0	282020..282805	+	261	117622532	mbhA	APECO1_1739	-	hypothetical protein
234	 53.88	0	282876..283931	+	351	117622533	dinB	APECO1_1738	-	DNA polymerase IV
235	 41.50	-1	283983..284276	+	97	117622534	yafN	APECO1_1737	-	putative antitoxin of the YafO-YafN toxin-antitoxin system
236	 43.61	-1	284279..284677	+	132	117622535	-	APECO1_1736	-	putative toxin YafO
237	 43.93	-1	284687..285139	+	150	117622536	yafP	APECO1_1735	-	hypothetical protein
238	 53.12	0	285317..286468	+	383	117622537	-	APECO1_1734	-	hypothetical protein
239	 54.22	0	286381..287079	+	232	117622538	prfH	APECO1_1733	-	peptide chain release factor-like protein
240	 51.03	0	287136..288593	-	485	117622539	pepD	APECO1_1732	-	aminoacyl-histidine dipeptidase
241	 51.20	0	288854..289312	+	152	117622540	gpt	APECO1_1731	-	xanthine-guanine phosphoribosyltransferase
242	 53.17	0	289404..290648	+	414	117622541	frsA	APECO1_1730	-	fermentation/respiration switch protein
243	 50.25	0	290706..291107	+	133	117622542	crl	APECO1_1729	-	DNA-binding transcriptional regulator Crl
244	 44.82	-1	291217..292278	-	353	117622543	phoE	APECO1_1728	-	outer membrane phosphoporin protein E
245	 55.16	0	292561..293664	+	367	117622544	proB	APECO1_1727	-	gamma-glutamyl kinase
246	 54.94	0	293676..294929	+	417	117622545	proA	APECO1_1726	-	gamma-glutamyl phosphate reductase
247	 46.35	0	295178..295492	-	104	117622546	-	APECO1_1725	-	hypothetical protein
248	 40.10	-2	296225..296608	+	127	117622547	-	APECO1_1724	-	hypothetical protein
249	 35.65	-2	299152..299841	+	229	117622548	-	APECO1_1723	-	hypothetical protein
250	 34.41	-2	299853..300131	+	92	117622549	-	APECO1_1722	-	hypothetical protein
251	 37.04	-2	300264..300668	+	134	117622550	-	APECO1_1721	-	hypothetical protein
252	 40.83	-2	300646..301005	+	119	117622551	-	APECO1_1720	-	hypothetical protein
253	 40.22	-2	301550..301912	+	120	117622552	-	APECO1_1719	-	hypothetical protein
254	 44.51	-1	301931..302959	+	342	117622553	-	APECO1_1718	-	hypothetical protein
255	 40.60	-2	303266..305095	+	609	117622554	-	APECO1_1717	-	hypothetical protein
256	 38.94	-2	305130..305843	+	237	117622555	-	APECO1_1716	-	hypothetical protein
257	 44.19	-1	305925..307259	-	444	117622556	-	APECO1_1715	-	integrase
258	 40.97	-2	307569..307961	-	130	117622557	-	APECO1_1714	-	integrase
259	 30.48	-2	308292..308816	-	174	117622558	-	APECO1_1713	-	hypothetical protein
260	 48.37	0	308942..313072	-	1376	117622559	vat	APECO1_1712	-	vacuolating autotransporter
261	 51.81	0	314071..314346	-	91	117622560	-	APECO1_1711	-	hypothetical protein
262	 43.90	-1	315182..315796	+	204	117622561	yagU	APECO1_1710	-	hypothetical protein
263	 48.79	0	316045..316374	-	109	117622562	ykgJ	APECO1_1709	-	putative ferredoxin
264	 52.91	0	316681..317436	-	251	117622563	yagV	APECO1_1708	-	hypothetical protein
265	 51.64	0	317360..319003	-	547	117622564	yagW	APECO1_1707	-	hypothetical protein
266	 55.11	0	318993..321518	-	841	117622565	yagX	APECO1_1706	-	hypothetical protein
267	 55.09	0	321544..322260	-	238	117622566	yagY	APECO1_1705	-	hypothetical protein
268	 52.38	0	322269..322856	-	195	117622567	matB	APECO1_1704	-	hypothetical protein
269	 39.76	-2	322930..323520	-	196	117622568	ykgK	APECO1_1703	-	hypothetical protein
270	 47.08	0	323944..324234	+	96	117622569	-	APECO1_1702	-	hypothetical protein
271	 46.07	-1	324696..324962	-	88	117622570	rpmE2	APECO1_1701	-	50S ribosomal protein L31 type B
272	 44.18	-1	325899..327041	-	380	117622571	-	APECO1_1700	-	putative NADH-dependent flavin oxidoreductase
273	 45.49	-1	327213..328133	-	306	117622572	ycjY	APECO1_1699	-	hypothetical protein
274	 42.53	-1	328227..329216	+	329	117622573	-	APECO1_1698	-	putative LysR-like transcriptional regulator
275	 50.26	0	329341..330309	+	322	117622574	ycjZ	APECO1_1697	-	putative transcriptional regulator
276	 50.61	0	330340..331329	-	329	117622575	-	APECO1_1696	-	putative aldo/keto reductase
277	 50.70	0	331356..332207	-	283	117622576	-	APECO1_1695	-	2,5-diketo-D-gluconic acid reductase A
278	 51.92	0	332773..337023	+	1416	117622577	eaeH	APECO1_1694	-	attaching and effacing protein, pathogenesis factor EaeH
279	 43.21	-1	337148..338038	-	296	117622578	ykgA	APECO1_1693	-	putative transcriptional regulator
280	 43.16	-1	338238..339122	+	294	117622579	-	APECO1_1692	-	2,5-diketo-D-gluconic acid reductase A
281	 44.78	-1	339282..339884	-	200	117622580	ykgB	APECO1_1691	-	hypothetical protein
282	 45.45	-1	340232..341584	-	450	117622581	ykgC	APECO1_1690	-	pyridine nucleotide-disulfide oxidoreductase
283	 50.88	0	341784..342638	+	284	117622582	ykgD	APECO1_1689	-	putative DNA-binding transcriptional regulator
284	 50.56	0	343165..343884	+	239	117622583	ykgE	APECO1_1688	-	hypothetical protein
285	 50.31	0	344022..345323	+	433	117622584	ykgG	APECO1_1687	-	hypothetical protein
286	 51.47	0	345163..346011	+	282	117622585	ykgG	APECO1_1686	-	hypothetical protein
287	 37.07	-2	346254..346922	-	222	117622586	ykgH	APECO1_1685	-	hypothetical protein
288	 46.26	0	347106..349418	-	770	117622587	-	APECO1_1684	-	hypothetical protein
289	 47.64	0	349445..350206	-	253	117622588	-	APECO1_1683	-	hypothetical protein
290	 48.93	0	350360..351154	-	264	117622589	-	APECO1_1682	-	hypothetical protein
291	 42.45	-1	351484..352086	-	200	117622590	-	APECO1_1681	-	hypothetical protein
292	 41.49	-2	352811..353092	+	93	117622591	-	APECO1_1680	-	hypothetical protein
293	 58.26	+1	353117..354721	-	534	117622592	betA	APECO1_1679	-	choline dehydrogenase
294	 57.52	+1	354819..356294	-	491	117622593	betB	APECO1_1678	-	betaine aldehyde dehydrogenase
295	 56.28	+1	356305..356901	-	198	117622594	betI	APECO1_1677	-	transcriptional regulator BetI
296	 55.01	0	357021..359054	+	677	117622595	betT	APECO1_1676	-	choline transport protein BetT
297	 45.48	-1	359926..361020	+	364	117622596	yahA	APECO1_1675	-	putative DNA-binding transcriptional regulator
298	 50.16	0	361062..361994	-	310	117622597	yahB	APECO1_1674	-	putative DNA-bindng transcriptional regulator
50.94	MEAN

4.72	STD DEV
