IslandPath Analysis: Escherichia coli APEC O1

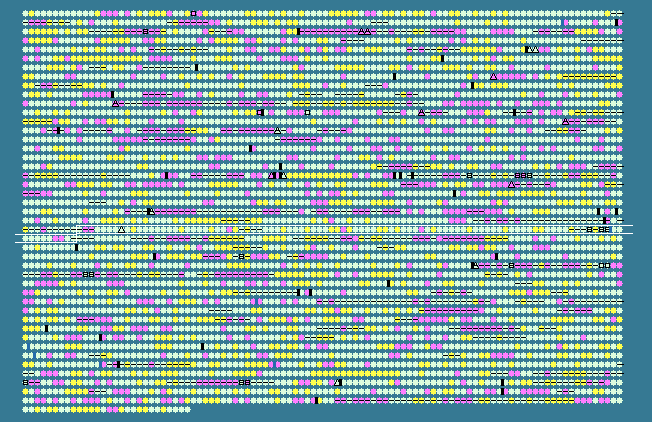

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 50.94 STD DEV: 4.72
Escherichia coli APEC O1, complete genome - 1..5082025
4428 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2410	 49.84	0	2773386..2773700	+	104	117624726	-	APECO1_4027	-	hypothetical protein
2411	 47.33	0	2773697..2774596	+	299	117624727	-	APECO1_4026	-	hypothetical protein
2412	 47.41	0	2774606..2775628	+	340	117624728	recT	APECO1_4025	-	recombination and repair protein RecT
2413	 53.01	0	2775678..2775926	+	82	117624729	-	APECO1_4024	-	putative phage regulatory protein
2414	 48.33	0	2776036..2776335	+	99	117624730	-	APECO1_4023	-	hypothetical protein
2415	 49.46	0	2776328..2776978	+	216	117624731	-	APECO1_4022	-	putative adenine methylase
2416	 51.79	0	2776855..2777634	+	259	117624732	-	APECO1_4021	-	hypothetical protein
2417	 48.93	0	2777637..2778893	-	418	117624733	-	APECO1_4020	-	integrase-like protein
2418	 54.06	0	2779086..2780663	-	525	117624734	guaA	APECO1_4019	-	bifunctional GMP synthase/glutamine amidotransferase protein
2419	 54.43	0	2780732..2782267	-	511	117624735	guaB	APECO1_4018	-	inositol-5-monophosphate dehydrogenase
2420	 54.25	0	2782360..2783736	+	458	117624736	xseA	APECO1_4017	-	exodeoxyribonuclease VII large subunit
2421	 51.53	0	2783805..2791856	-	2683	117624737	-	APECO1_4016	-	RatA-like protein
2422	 52.25	0	2791977..2792954	-	325	117624738	sinI	APECO1_4015	-	SinI-like protein
2423	 48.92	0	2793009..2795240	-	743	117624739	sinH	APECO1_4014	-	putative intimin/invasin (SinH-like protein)
2424	 52.25	0	2795727..2797238	-	503	117624740	engA	APECO1_4013	-	GTP-binding protein EngA
2425	 53.10	0	2797317..2798495	-	392	117624741	yfgL	APECO1_4012	-	outer membrane protein assembly complex subunit YfgL
2426	 49.60	0	2798506..2799126	-	206	117624742	yfgM	APECO1_4011	-	hypothetical protein
2427	 54.59	0	2799144..2800418	-	424	117624743	hisS	APECO1_4010	-	histidyl-tRNA synthetase
2428	 52.90	0	2800529..2801647	-	372	117624744	ispG	APECO1_4009	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2429	 53.57	0	2801674..2802681	-	335	117624745	yfgA	APECO1_4008	-	hypothetical protein
2430	 52.55	0	2802966..2804120	-	384	117624746	yfgB	APECO1_4007	-	hypothetical protein
2431	 51.85	0	2804270..2804701	-	143	117624747	ndk	APECO1_4006	-	nucleoside diphosphate kinase
2432	 56.72	+1	2804850..2807162	-	770	117624748	pbpC	APECO1_4005	-	penicillin-binding protein 1C
2433	 53.12	0	2807163..2812124	-	1653	117624749	yfhM	APECO1_4004	-	putative lipoprotein YfhM
2434	 50.35	0	2812172..2813176	+	334	117624750	sseA	APECO1_4003	-	3-mercaptopyruvate sulfurtransferase
2435	 47.07	0	2813669..2814454	-	261	117624751	sseB	APECO1_4002	-	enhanced serine sensitivity protein SseB
2436	 56.31	+1	2814587..2815870	-	427	117624752	pepB	APECO1_4001	-	aminopeptidase B
2437	 52.38	0	2816141..2816476	-	111	117624753	fdx	APECO1_4000	-	[2Fe-2S] ferredoxin
2438	 57.38	+1	2816478..2818382	-	634	117624754	hscA	APECO1_3999	-	chaperone protein HscA
2439	 51.74	0	2818345..2818860	-	171	117624755	hscB	APECO1_3998	-	co-chaperone HscB
2440	 51.23	0	2818956..2819279	-	107	117624756	iscA	APECO1_3997	-	iron-sulfur cluster assembly protein
2441	 49.35	0	2819296..2819682	-	128	117624757	iscU	APECO1_3996	-	scaffold protein
2442	 52.54	0	2819710..2820948	-	412	117624758	iscS	APECO1_3995	-	cysteine desulfurase
2443	 53.37	0	2821036..2821524	-	162	117624759	iscR	APECO1_3994	-	DNA-binding transcriptional regulator IscR
2444	 54.79	0	2821794..2822534	-	246	117624760	yfhQ	APECO1_3993	-	putative methyltransferase
2445	 54.23	0	2822653..2823456	+	267	117624761	suhB	APECO1_3992	-	inositol monophosphatase
2446	 50.00	0	2823574..2824455	+	293	117624762	yfhR	APECO1_3991	-	putative peptidase
2447	 51.84	0	2824625..2825926	+	433	117624763	csiE	APECO1_3990	-	stationary phase inducible protein CsiE
2448	 56.75	+1	2825918..2827057	-	379	117624764	hcaT	APECO1_3989	-	putative 3-phenylpropionic acid transporter
2449	 48.93	0	2827381..2827848	+	155	117624765	yphA	APECO1_3988	-	hypothetical protein
2450	 54.30	0	2828008..2828880	-	290	117624766	yphB	APECO1_3987	-	hypothetical protein
2451	 54.06	0	2828892..2829986	-	364	117624767	yphC	APECO1_3986	-	putative oxidoreductase, Zn-dependent and NAD(P)-binding
2452	 55.26	0	2830019..2831017	-	332	117624768	yphD	APECO1_3985	-	ABC-type sugar transport system permease component YphD
2453	 55.82	+1	2831042..2832553	-	503	117624769	yphE	APECO1_3984	-	ABC-type sugar transport system, ATP-binding component YphE
2454	 45.63	-1	2832576..2833559	-	327	117624770	yphF	APECO1_3983	-	ABC-type sugar transport system, periplasmic component YphF
2455	 54.84	0	2833656..2836937	-	1093	117624771	yphG	APECO1_3982	-	hypothetical protein
2456	 51.42	0	2837055..2838248	+	397	117624772	ychA	APECO1_3981	-	putative transcriptional regulator YchA
2457	 52.70	0	2838312..2839571	-	419	117624773	glyA	APECO1_3980	-	serine hydroxymethyltransferase
2458	 52.23	0	2839894..2841084	+	396	117624774	hmpA	APECO1_3979	-	nitric oxide dioxygenase
2459	 50.44	0	2841129..2841467	-	112	117624775	glnB	APECO1_3978	-	nitrogen regulatory protein P-II 1
2460	 54.95	0	2841528..2842901	-	457	117624776	yfhA	APECO1_3977	-	putative DNA-binding response regulator in two-component system
2461	 54.58	0	2842852..2843571	-	239	117624777	yfhG	APECO1_3976	-	hypothetical protein
2462	 53.07	0	2843730..2845112	-	460	117624778	yfhK	APECO1_3975	-	putative sensor-like histidine kinase YfhK
2463	 56.66	+1	2845733..2849620	-	1295	117624779	purL	APECO1_3974	-	phosphoribosylformylglycinamidine synthase
2464	 50.46	0	2850019..2851437	+	472	117624780	yfhD	APECO1_3973	-	putative transglycosylase
2465	 52.89	0	2851434..2851970	-	178	117624781	tadA	APECO1_3972	-	tRNA-specific adenosine deaminase
2466	 50.81	0	2852767..2853687	+	306	117624782	yfhH	APECO1_3970	-	putative DNA-binding transcriptional regulator
2467	 44.83	-1	2853743..2854003	+	86	117624783	yfhL	APECO1_3969	-	putative 4Fe-4S cluster-containing protein
2468	 49.87	0	2854698..2855078	-	126	117624784	acpS	APECO1_3968	-	4'-phosphopantetheinyl transferase
2469	 55.42	0	2855078..2855824	-	248	117624785	pdxJ	APECO1_3967	-	pyridoxal phosphate biosynthetic protein PdxJ
2470	 54.18	0	2855821..2856549	-	242	117624786	recO	APECO1_3966	-	DNA repair protein RecO
2471	 51.99	0	2856561..2857466	-	301	117624787	era	APECO1_3965	-	GTP-binding protein Era
2472	 51.25	0	2857463..2858143	-	226	117624788	rnc	APECO1_3964	-	ribonuclease III
2473	 52.00	0	2858410..2859384	-	324	117624789	lepB	APECO1_3963	-	lsignal peptidase I
2474	 53.28	0	2859400..2861199	-	599	117624790	lepA	APECO1_3962	-	GTP-binding protein LepA
2475	 55.21	0	2861397..2861876	-	159	117624791	rseC	APECO1_3961	-	SoxR reducing system protein RseC
2476	 51.31	0	2861873..2862829	-	318	117624792	rseB	APECO1_3960	-	periplasmic negative regulator of sigmaE
2477	 51.77	0	2862829..2863479	-	216	117624793	rseA	APECO1_3959	-	anti-RNA polymerase sigma factor SigE
2478	 48.77	0	2863512..2864120	-	202	117624794	rpoE	APECO1_3958	-	RNA polymerase sigma factor RpoE
2479	 53.11	0	2864495..2866117	+	540	117624795	nadB	APECO1_3957	-	L-aspartate oxidase
2480	 51.28	0	2866102..2866959	-	285	117624796	yfiC	APECO1_3956	-	hypothetical protein
2481	 54.46	0	2866971..2868305	+	444	117624797	srmB	APECO1_39552	-	ATP-dependent RNA helicase SrmB
2482	 48.33	0	2868338..2869264	-	308	117624798	yfiE	APECO1_3955	-	putative transcriptional regulator YfiE
2483	 50.85	0	2869322..2869909	+	195	117624799	yfiK	APECO1_3954	-	neutral amino-acid efflux protein
2484	 47.92	0	2869965..2870348	-	127	117624800	yfiD	APECO1_3953	-	autonomous glycyl radical cofactor GrcA
2485	 52.03	0	2870653..2871342	+	229	117624801	ung	APECO1_3952	-	uracil-DNA glycosylase
2486	 55.65	0	2871390..2871761	-	123	117624802	yfiF	APECO1_39512	-	tRNA/rRNA methyltransferase YfiF
2487	 55.39	0	2871967..2872569	+	200	117624803	yfiF	APECO1_3951	-	tRNA/rRNA methyltransferase YfiF
2488	 49.76	0	2872638..2873057	+	139	117624804	trxC	APECO1_3950	-	thioredoxin 2
2489	 51.45	0	2873102..2873824	+	240	117624805	yfiP	APECO1_3949	-	hypothetical protein
2490	 54.11	0	2873856..2876516	+	886	117624806	yfiQ	APECO1_3948	-	acyl-CoA synthetase (NDP forming)
2491	 49.01	0	2876627..2877985	+	452	117624807	pssA	APECO1_3947	-	phosphatidylserine synthase
2492	 56.04	+1	2878082..2878354	+	90	117624808	yfiM	APECO1_3946	-	hypothetical protein
2493	 47.56	0	2878351..2879742	-	463	117624809	kgtP	APECO1_3945	-	alpha-ketoglutarate transporter
2494	 48.21	0	2879972..2880307	-	111	117624810	-	APECO1_3944	-	ISEc12 putative ATP-binding protein
2495	 48.12	0	2880735..2882276	-	513	117624811	-	APECO1_3943	-	transposase for ISEc12
2496	 55.56	0	2882841..2883272	+	143	117624812	-	APECO1_3942	-	hypothetical protein
2497	 49.10	0	2883791..2884513	-	240	117624813	-	APECO1_3941	-	putative transposase subunit
2498	 48.46	0	2884618..2884941	-	107	117624814	-	APECO1_3940	-	putative transposase subunit
2499	 51.31	0	2890825..2893410	-	861	117624816	clpB	APECO1_3938	-	protein disaggregation chaperone
2500	 54.10	0	2893528..2894259	-	243	117624817	yfiH	APECO1_3937	-	hypothetical protein
2501	 52.70	0	2894256..2895236	-	326	117624818	rluD	APECO1_3936	-	23S rRNA pseudouridine synthase D
2502	 50.54	0	2895371..2896108	+	245	117624819	yfiO	APECO1_3935	-	outer membrane protein assembly complex subunit YfiO
2503	 48.84	0	2896969..2898129	+	386	117624820	pheA	APECO1_3934	-	bifunctional chorismate mutase/prephenate dehydratase
2504	 52.32	0	2898172..2899293	-	373	117624821	tyrA	APECO1_3933	-	bifunctional chorismate mutase/prephenate dehydrogenase
2505	 51.40	0	2899304..2900443	-	379	117624822	aroF	APECO1_3932	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2506	 45.36	-1	2900584..2900949	+	121	117624823	yfiL	APECO1_3931	-	hypothetical protein
2507	 43.93	-1	2901098..2901616	+	172	117624824	yfiR	APECO1_3930	-	hypothetical protein
2508	 48.00	0	2901606..2902832	+	408	117624825	yfiN	APECO1_3929	-	hypothetical protein
2509	 51.14	0	2902848..2903330	+	160	117624826	yfiB	APECO1_3928	-	putative outer membrane lipoprotein
50.94	MEAN

4.72	STD DEV
